LED FOLLOWSPOT 75W SHOWTEC KOUD WIT LED
Regular price
€679,00
Unit price
per
LED Followspot with zoom and iris. Focus from 16 - 22 degrees. It has a 75W Cool White LED with a strobe function and a natural dimmer from 100 – 0 %. It can be controlled manually or by DMX (3channels). The refreshrate is above 400Hz which makes this followspot also suitable for TV studio's.
KEY FEATURES:
All product information
- 75W Cool white LED
- DMX ...
Ca. 3-7 werkdagen
S2 Ref: 30628
Delivery
Available
S2Store Genk (BE)
Available
Plus- en minpunten
Omschrijving

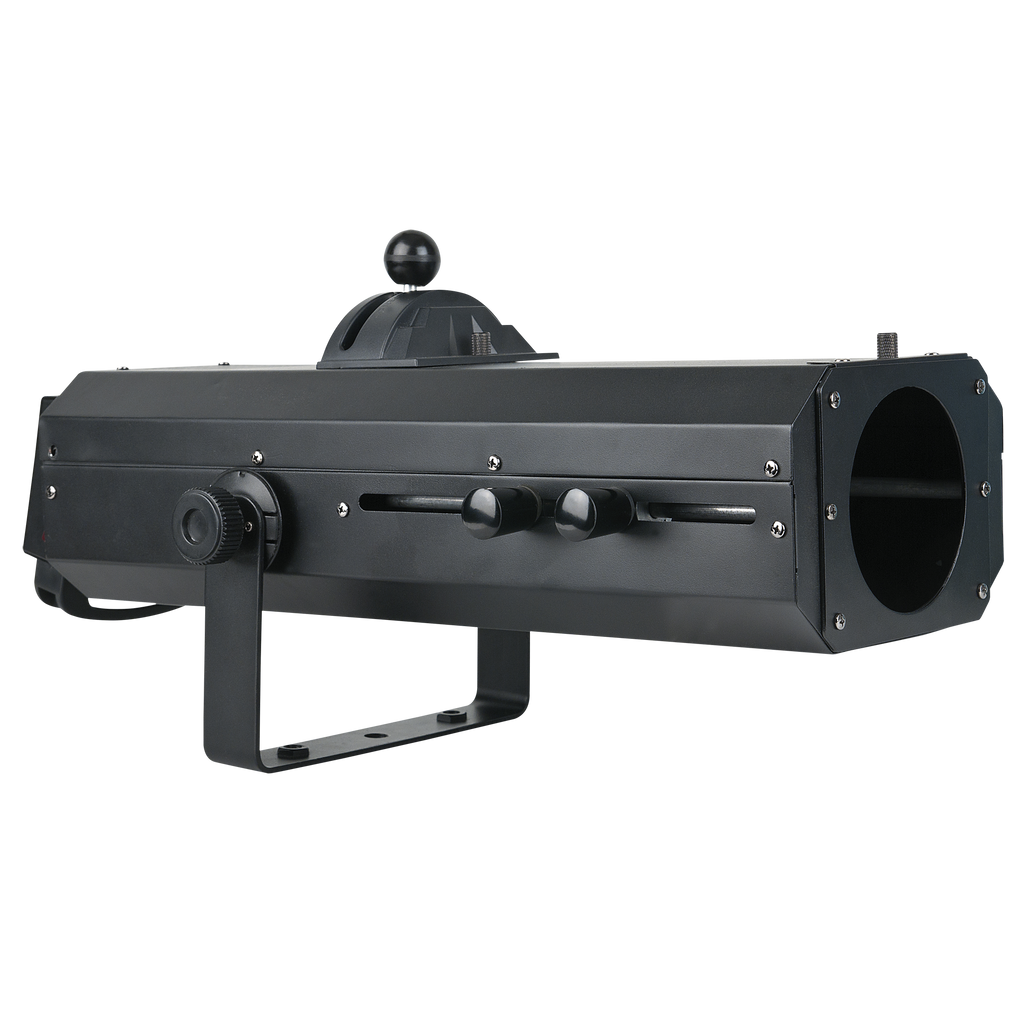

LED FOLLOWSPOT 75W SHOWTEC KOUD WIT LED
LED Followspot with zoom and iris. Focus from 16 - 22 degrees. It has a 75W Cool White LED with a strobe function and a natural dimmer from 100 – 0 %. It can be controlled manually or by DMX (3channels). The refreshrate is above 400Hz which makes this followspot also suitable for TV studio's.
KEY FEATURES:
Output:
- 75W Cool white LED
- DMX and Manual control
- 0 – 100% natural dimmer
- 400Hz refreshrate
Output:
- Lumen: 1600+
- Lux@1m: 25000+
- Efficiency: 21 lm/W
- LED Quantity: 1x CW (75W)
- Driver current: 18A
- Refreshrate: 400 Hz
- Dimmer: 0-100%
- Strobe: 0-20Hz
- Iris: 2-100% manual
- Beam Angle: 16° - 22°

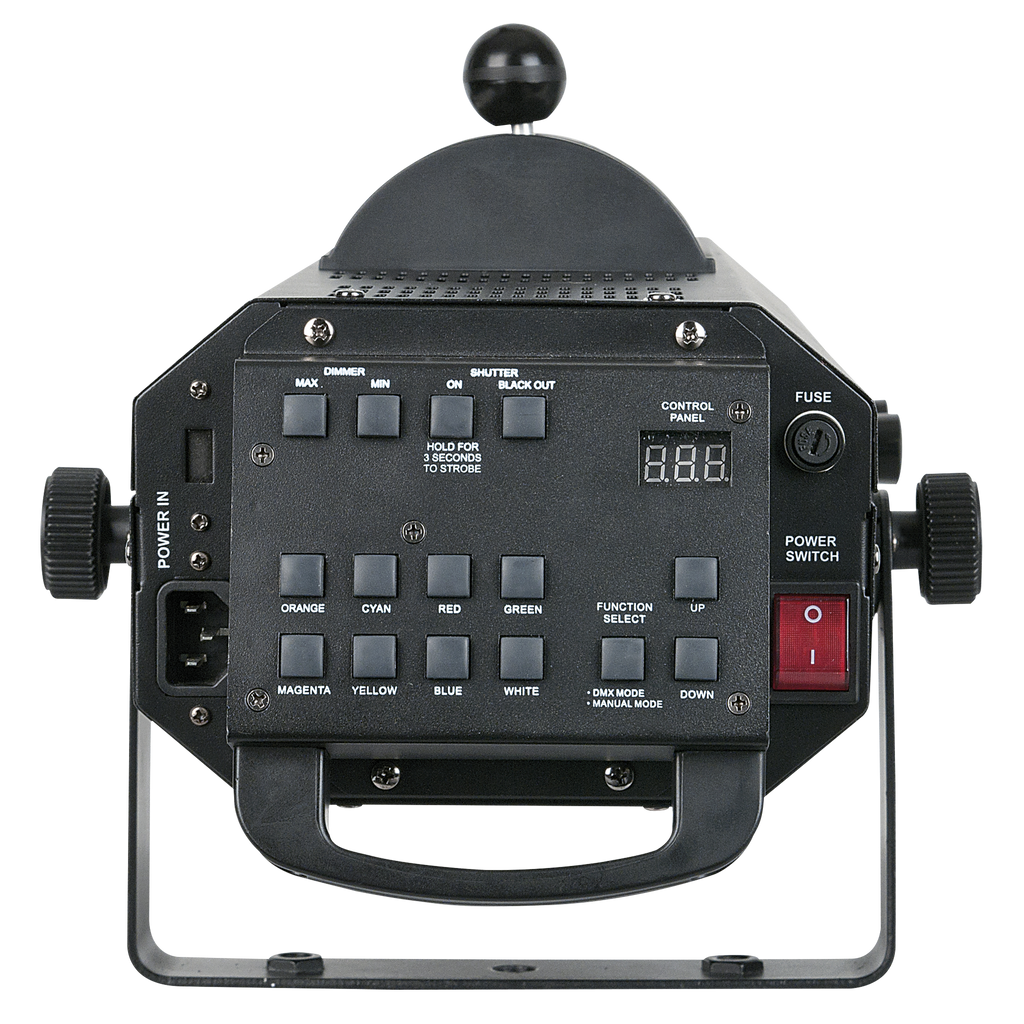

- On Board: Display for easy Set Up
- Options: DMX512, Manual
- DMX personality: 3 Channel
- Input Voltage: 100~240VAC...50/60Hz
- Power consumption: 121W max @FO
- Dimensions (LxWxH): 630 x 340 x 300 mm
- Weight: 5,9 Kg

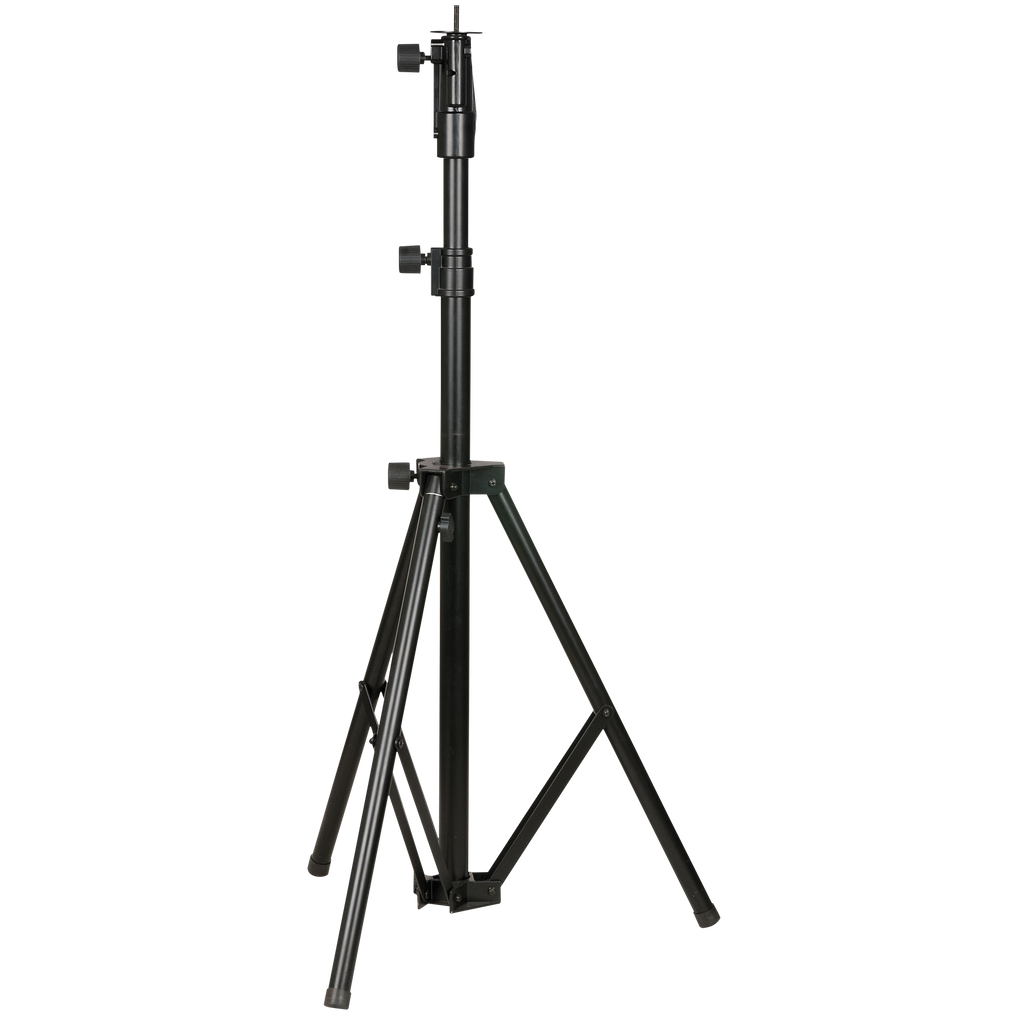

- Weight Tripod: 3,4 Kg
- IP Rating: IP-20
- Housing: Steel, powder coat finish
- Connections: IEC + Neutrik XLR 3 pole
- Cooling: Forced Cooling (Fan)
Korte specificaties
| Lichtbron | |
|---|---|
| Type | LED |
| Vermogen | 75 W |
| LED-kleuren | CW |
| Verversingsfrequentie | 400 Hz |
| CRE | 80 |
| CCT | 15000 K |
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Optisch | |
|---|---|
| Stralingshoek | 16 ° - 22 ° |
| Zoom | Ja, Handmatig, 16-22 ° |
| Iris | Ja, Handmatig |
| Kleurenwiel | Ja |
| Aansturing | |
|---|---|
| Bediening | Handmatig, DMX |
| DMX-kanalen | 3 |
| Mechanische Specificaties | |
|---|---|
| Ingangsspanning | 100-240 V AC 50/60 Hz |
| Vermogensverbruik | 121 W |
| Powerconnector In | IEC, Kabellengte 2 m |
| DMX-connectoren | XLR 3p |
| Afmetingen | 630 x 340 x 300 mm |
| Gewicht | 6 kg |
| IP-waarde | IP20 (Alleen Binnengebruik) |
| Behuizing | Metaal |
| Kleur | Zwart |
