Phantom 180 Wash Showtec Moving Head
- Powerful 12 x 15 W RGBW LED Wash Moving Head
- Four independently controllable sections
- Wide DMX-controllable zoom range
- 16 bit pan & tilt for fast and precise movements
- Quick Lock brackets for fast mounting
The Showtec Phantom 180 Wash is a powerful 180 W RGBW LED Wash Moving Head with a wide 7°–50° motorised zoom range, suitable for indoor...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
Phantom 180 Wash Showtec Moving Head
- Powerful 12 x 15 W RGBW LED Wash Moving Head
- Four independently controllable sections
- Wide DMX-controllable zoom range
- 16 bit pan & tilt for fast and precise movements

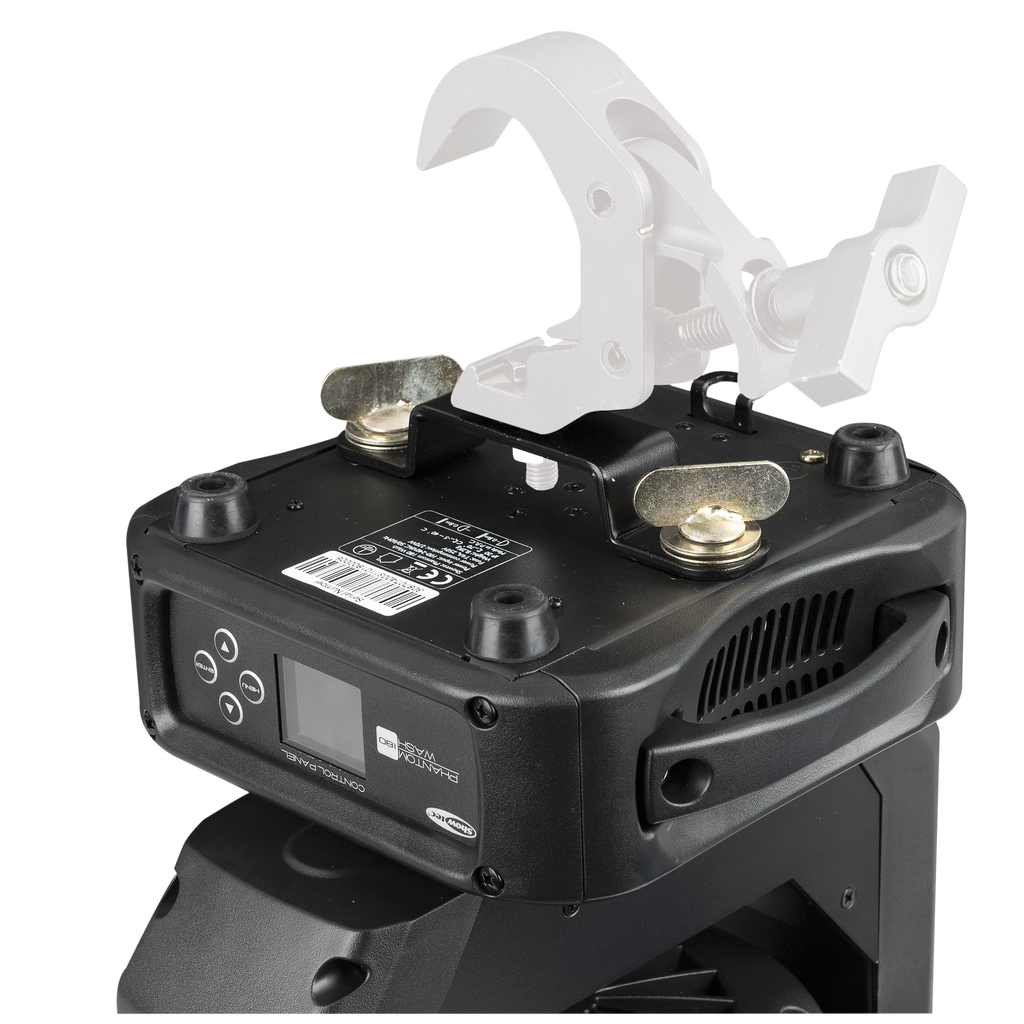

- Quick Lock brackets for fast mounting
The Showtec Phantom 180 Wash is a powerful 180 W RGBW LED Wash Moving Head with a wide 7°–50° motorised zoom range, suitable for indoor venues. Its 12 powerful 15 W LEDs are divided into four individual sections that can be controlled independently. The Phantom 180 Wash features various built-in programs, and its 16 bit pan and tilt ensure precise and fast movements. It also offers a 0–100% dimmer and a 0–20 Hz strobe function for creating a lively show. The Phantom 180 Wash can be rigged on stage quickly thanks to its Quick Lock brackets.
Brief specifications
| Lichtbron | |
|---|---|
| Type Lichtbron | LED |
| Vermogen Lichtbron | 12 x 15 W |
| LED-kleuren | RGBW |
| CRI | 75 |
| CCT | 7200 K |
| Optisch | |
|---|---|
| Zoombereik | 7 ° - 50 ° |
| Zoomtype | Gemotoriseerd |
| Aansturing en Programmering | |
|---|---|
| Aansturing | Auto, DMX, Handmatig, Master Slave, Geluid |
| DMX-kanalen | 14, 29 |
| Dimcurve | Lineair, Vierkant, I-Square, S-Curve |
| Zone Control (Secties) | 4 |
| Dynamische Effecten | |
|---|---|
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Beweging | |
|---|---|
| Pan | 540 ° |
| Tilt | 270 ° |
| Pan/Tilt-resolutie | 16 bit |
| Oneindige Rotatie | Neen |
| Elektrische Specificaties en Aansluitingen | |
|---|---|
| Ingangsspanning | 100-240 V AC 50/60 Hz |
| Vermogensverbruik | 220 W |

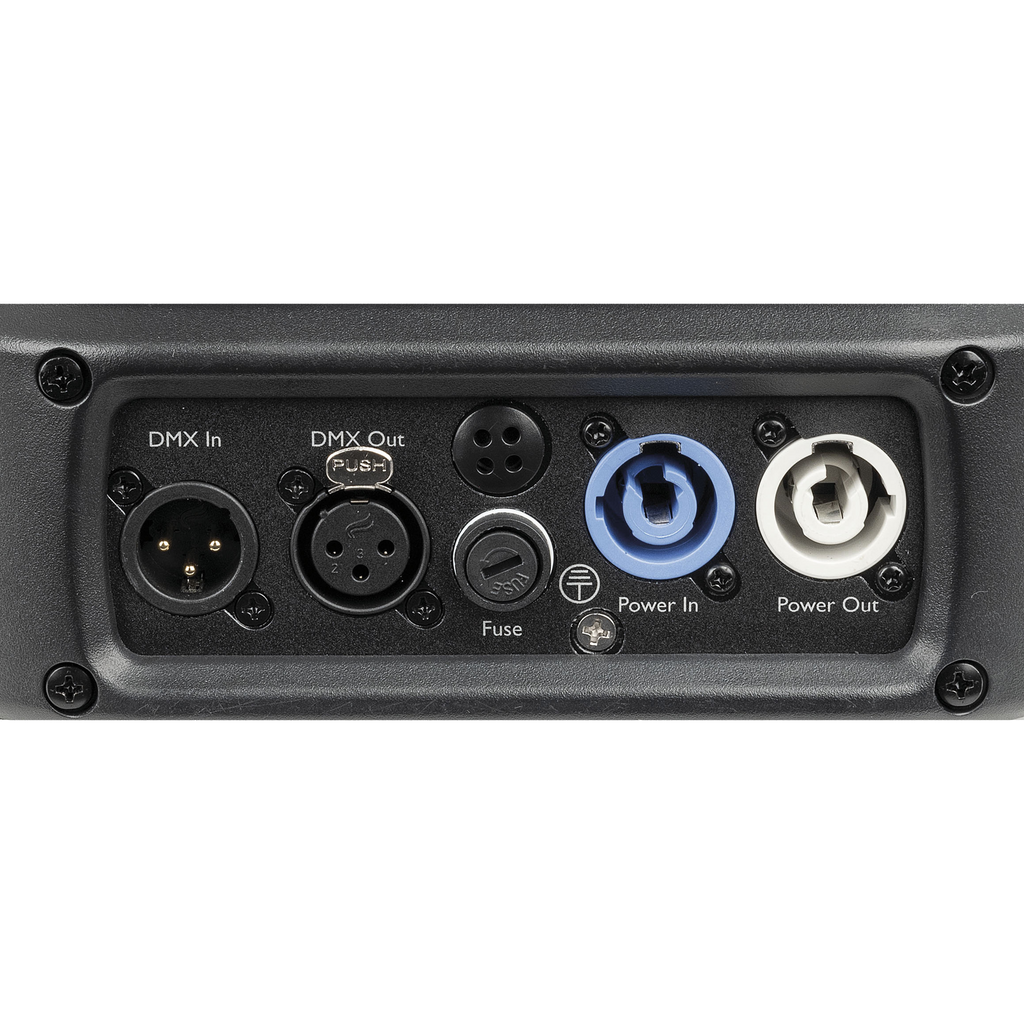

| Powerconnectoren | Power Pro Blue, Power Pro Grey |
| DMX-connectoren | XLR 3p |
| Mechanische Specificaties | |
|---|---|
| Afmetingen | 290 x 205 x 366 mm |
| Gewicht | 8.5 kg |
| Maximale Geluidsniveau | 47 dB, 43 dB (stille modus) |
| IP-waarde | IP20 (Alleen Binnengebruik) |
| Materiaal Behuizing | Metaal, Plastic |
| Kleur Behuizing | Zwart |
