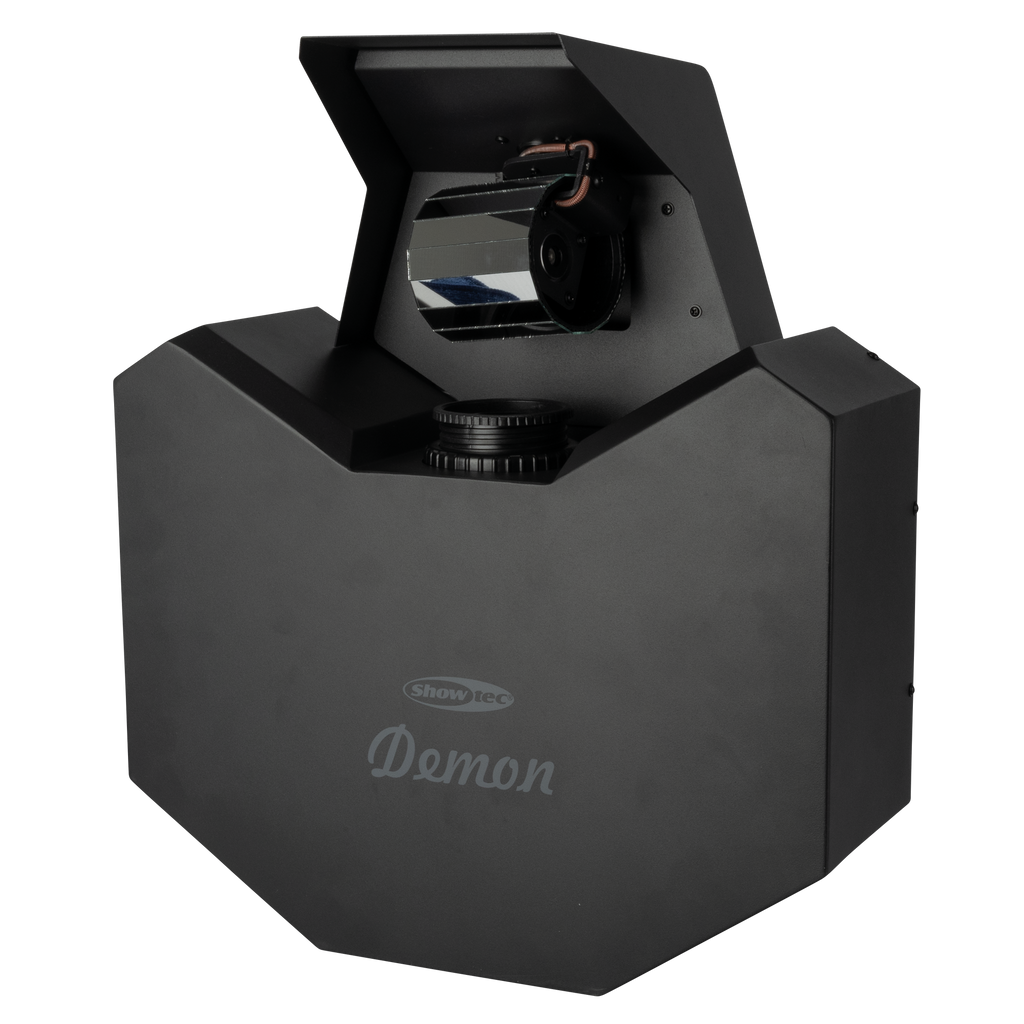

Demon Showtec 140W Led-barrel Scan Effect
- 140 W LED light source
- Barrel and moonflower mirrors with infinite rotation
- Colour wheel (9 colours + open) with split-colour function
- Gobo wheel (7 gobos + open) with interchangeable rotating gobos
- DMX/RDM, automatic programs and sound-to-light mode

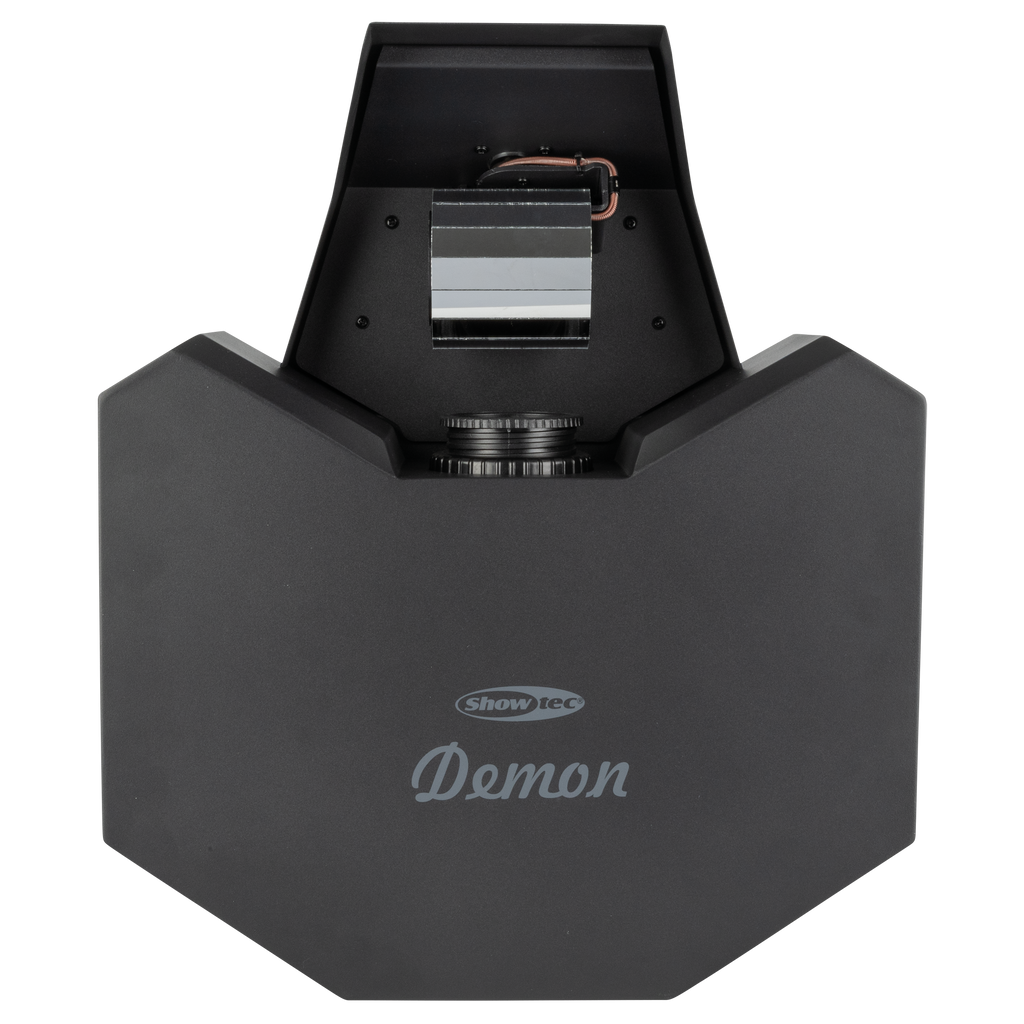

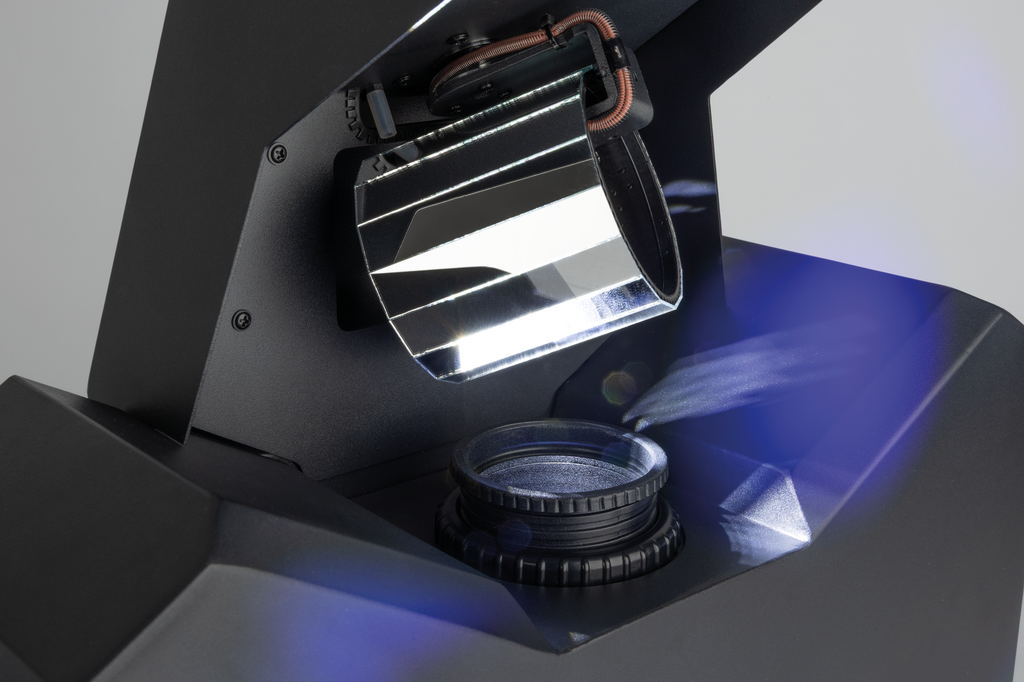

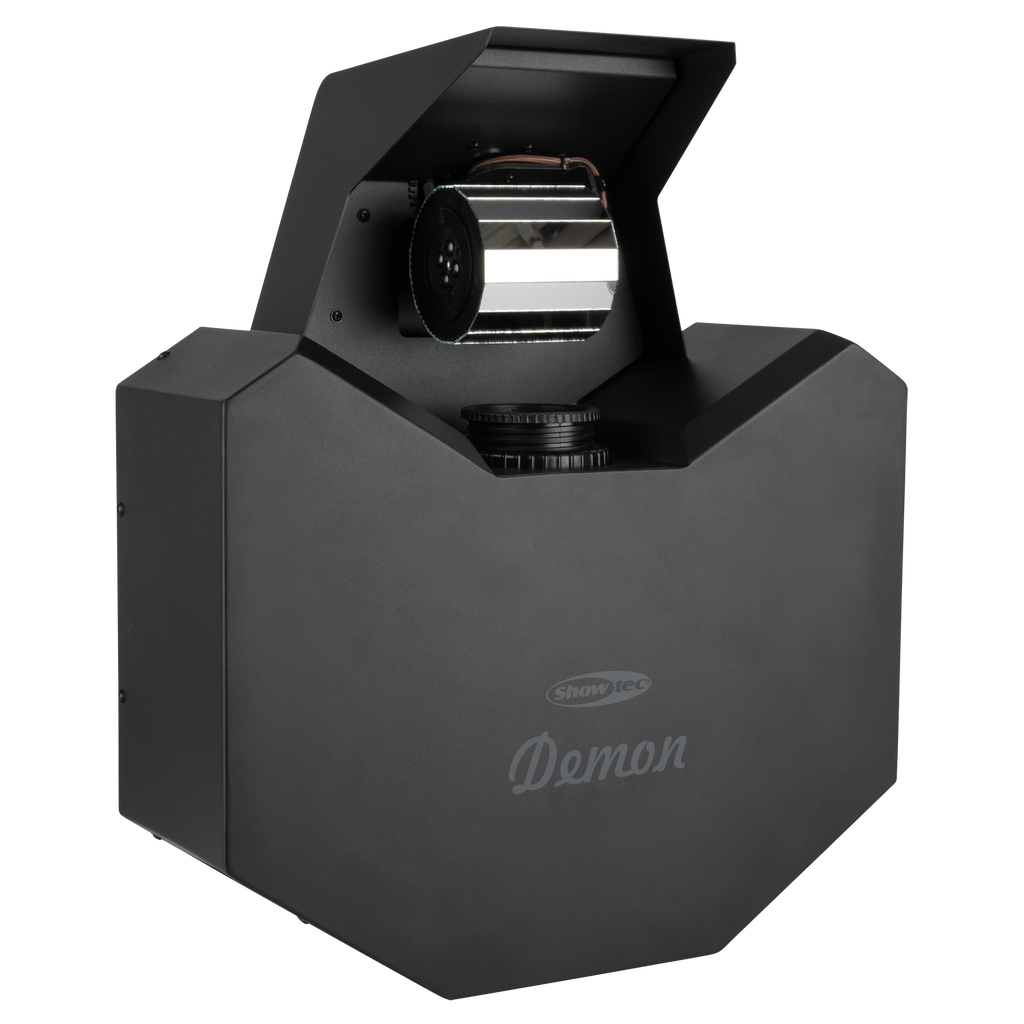

The Showtec Demon is a dynamic barrel scan effect designed to create vivid, energetic effects for clubs, stages and events. It features an internal rotating moonflower mirror, a colour wheel and a gobo wheel for endless creative possibilities. Thanks to the 140 W LED, the Demon produces bright, colourful beams with sharp projections.

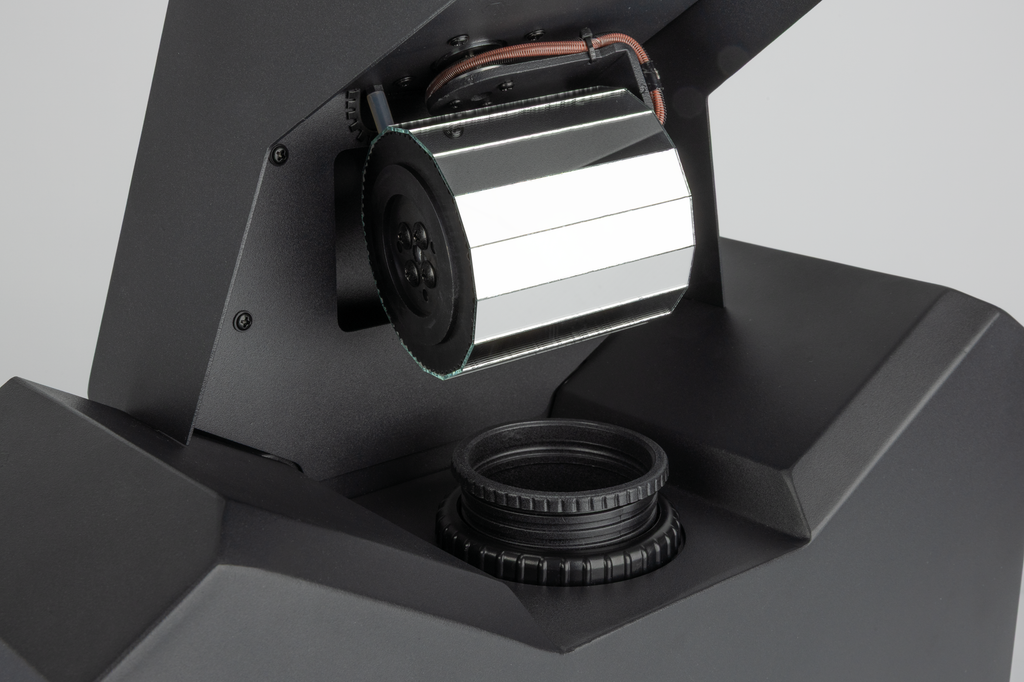

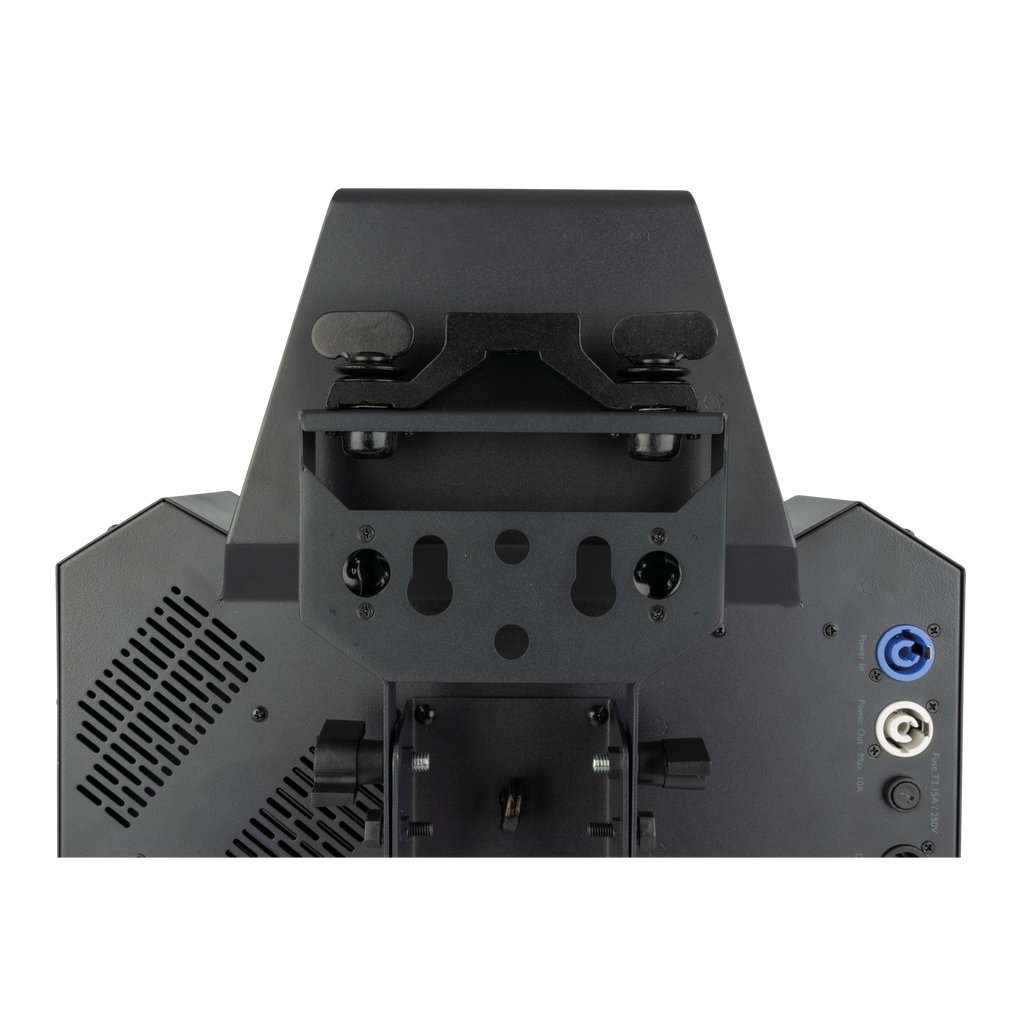

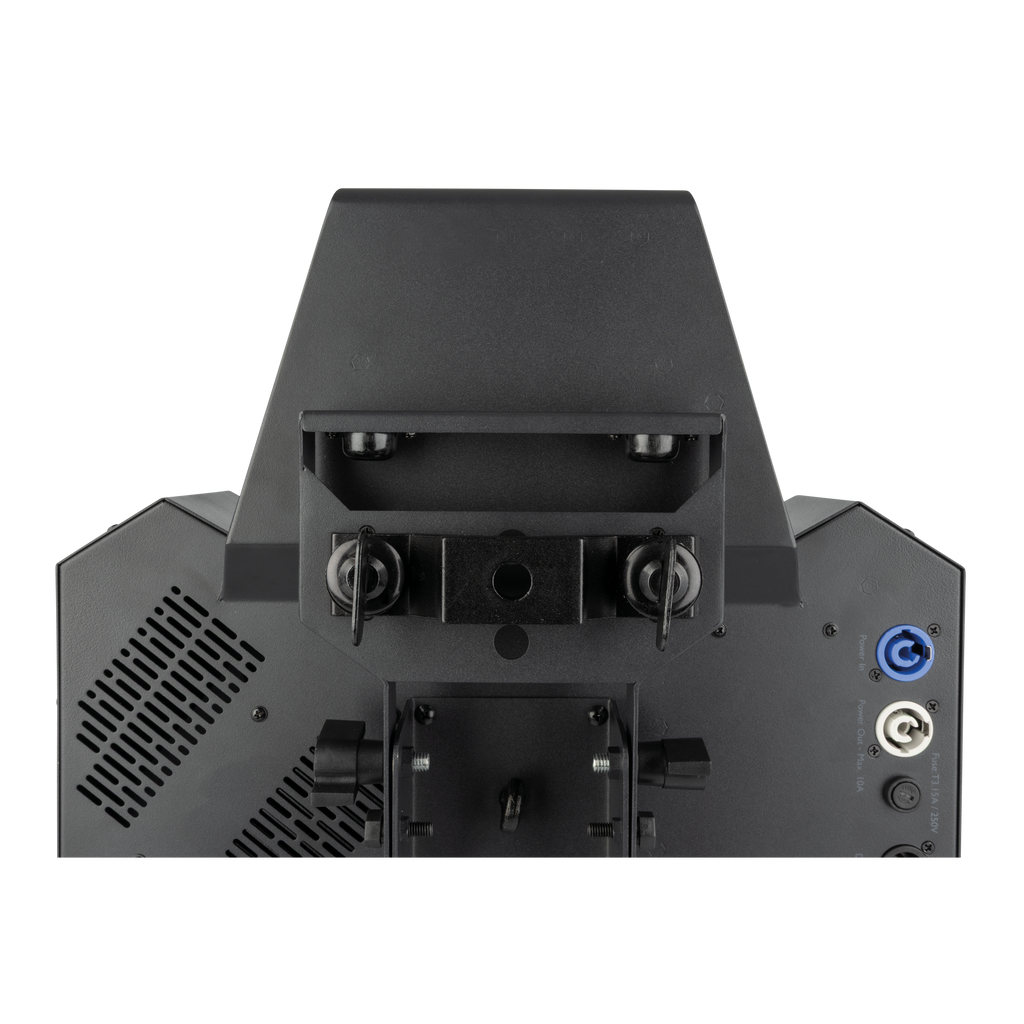

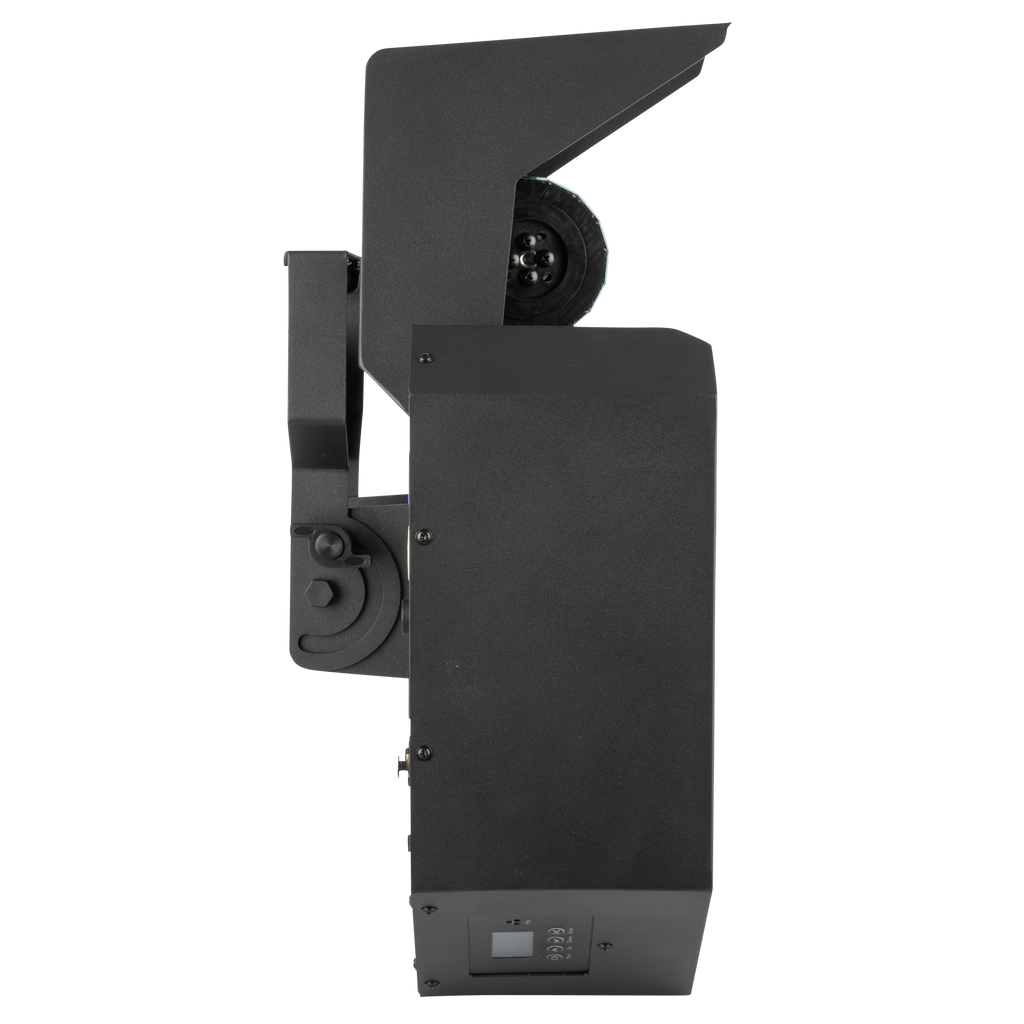

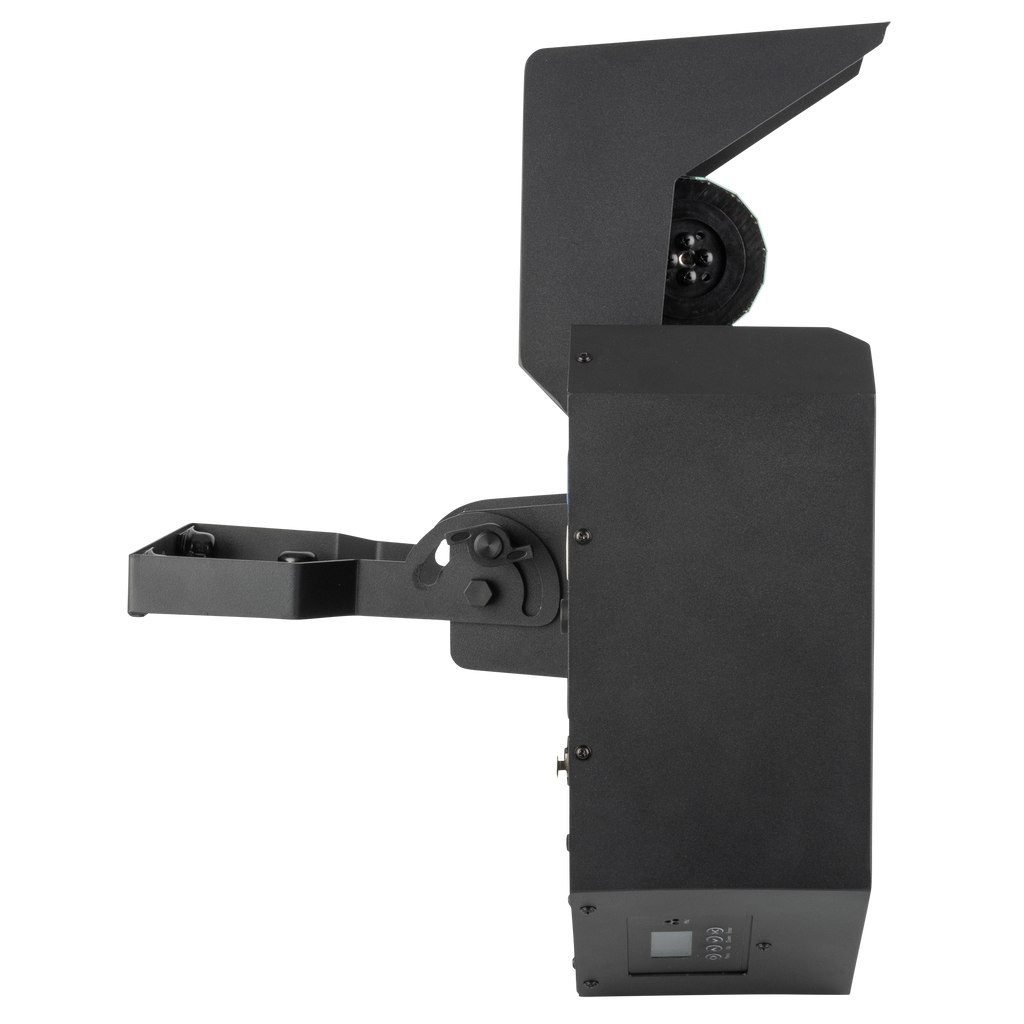

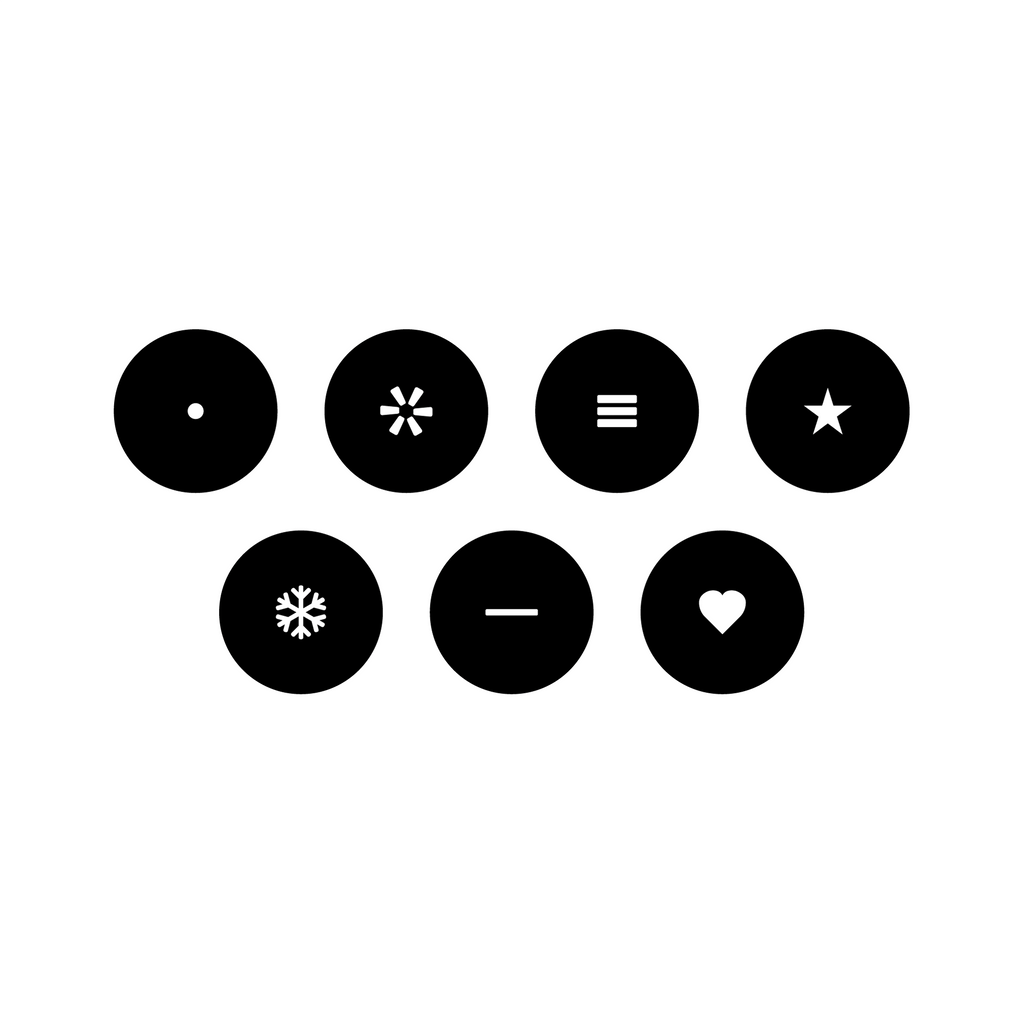

Control options include DMX/RDM, automatic programs and sound-to-light mode, with selectable 3-, 9- or 12-channel DMX modes for flexible programming. The colour wheel offers 9 fixed colours + open, and the software enables split-colour effects for up to 16 colour combinations. The gobo wheel contains 7 gobos + open, with interchangeable rotating gobos for dynamic patterns. Both the barrel mirror and moonflower mirror feature infinite rotation, creating continuous movement and stunning effects. With 180° pan, internal programs and sound-activated operation, the Demon is perfect for adding extra energy to any show. Installation is straightforward thanks to the included quick-lock bracket, which supports truss mounting. The fixture can also be wall-mounted using the standard bracket.
Brief specifications
| Lichtbron | |
|---|---|
| Type lichtbron | led |
| Vermogen lichtbron | 140 w |
| Led-kleuren | wit |
| CRI | 70 |
| Optisch | |
|---|---|
| Stralingshoek | 22.6 ° |
| Focus | handmatig |
| Aansturing en Programmering | |
|---|---|
| Aansturing | Ingebouwd Programma, DMX, Handmatig, Master Slave, RDM, Geluid |
| DMX-kanalen | 3, 9, 12 |
| Dynamische Effecten | |
|---|---|
| Dimmer | 0-100 % |
| Strobe | 0-20 Hz |
| Kleurensysteem | kleurenwiel |
| Kleurenwiel index en rotatie | ja |
| Kleurenwiel | 9 + open |
| Gobo-systeem | metaal |
| Gobo-wiel index en rotatie | ja |
| Gobowiel | 7 + open |
| Beweging | |
|---|---|
| Pan | 180 ° |
| Tilt | 360 ° |
| Oneindige rotatie | Barrel, Spiegelschijf Bidirectioneel |

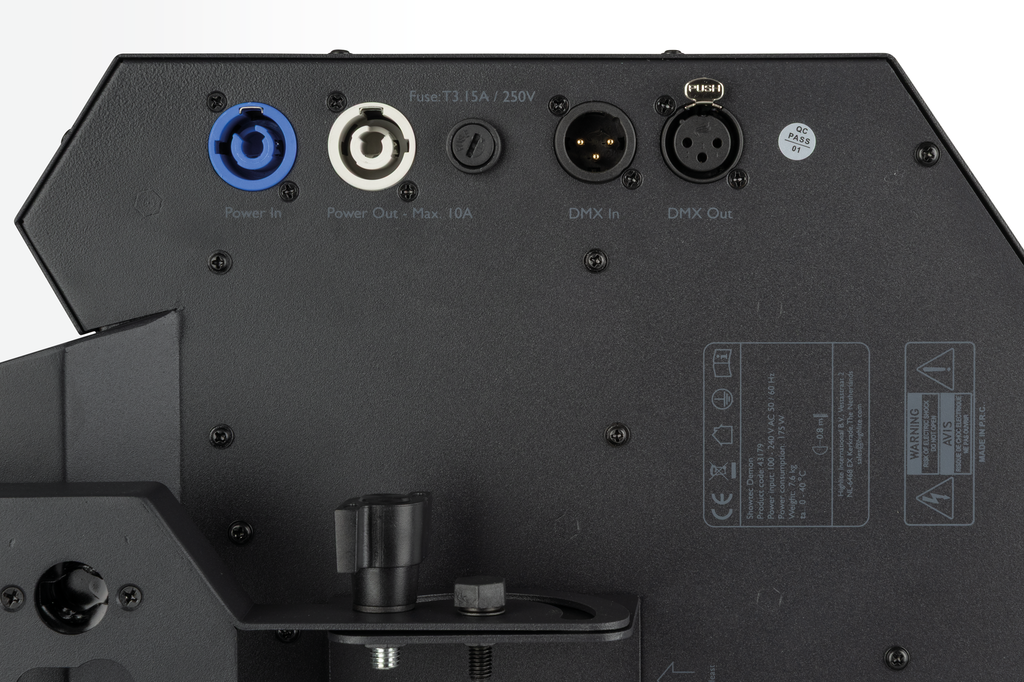

| Elektrische Specificaties en Aansluitingen | |
|---|---|
| Ingangsspanning | 100-240 V AC 50/60 Hz |
| Vermogensverbruik | 175 W |

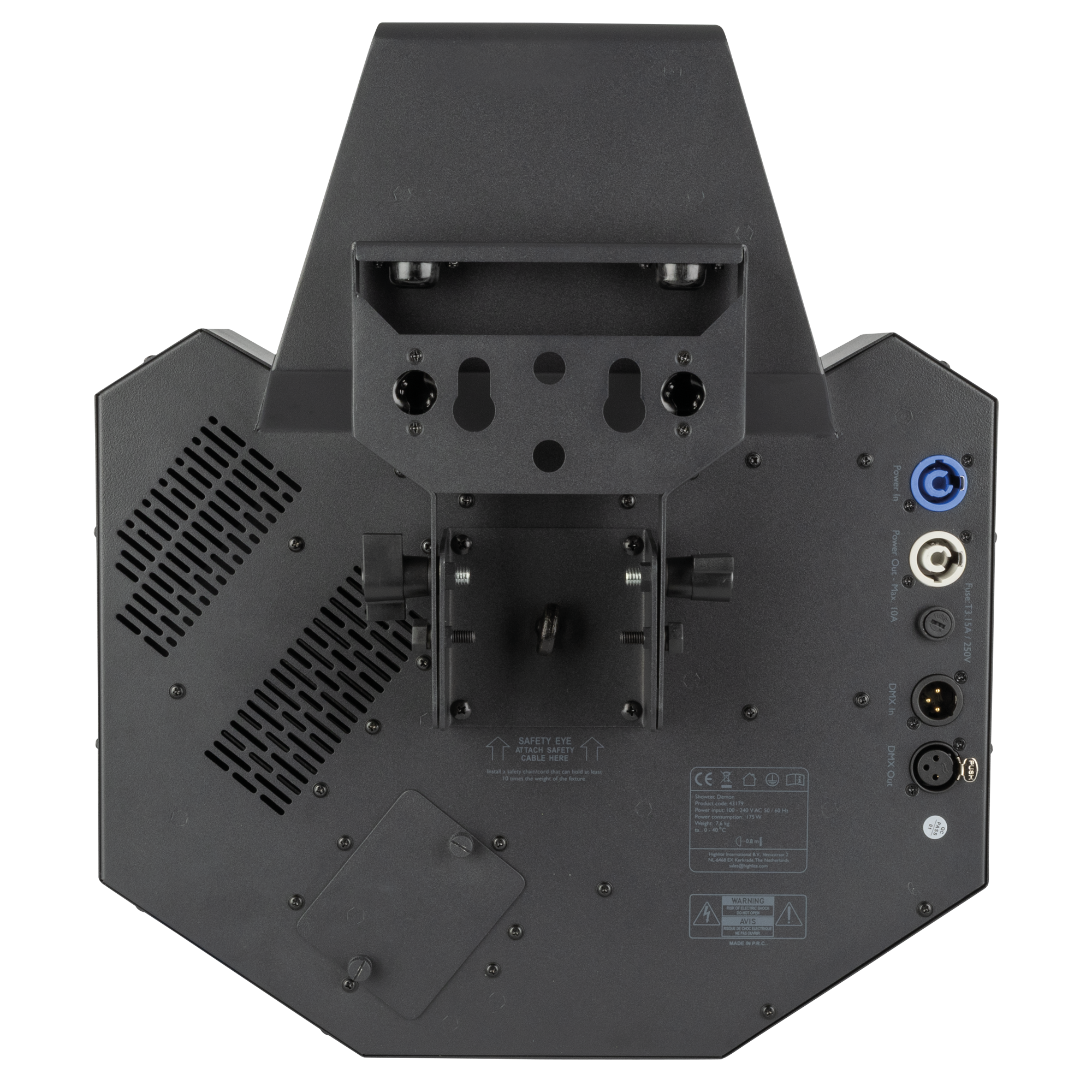

| Power connector in | power pro blauw |
| Power connector uit | power pro grijs |
| DMX-connectoren | XLR 3p in/uit |
| Mechanische Specificaties | |
|---|---|
| Lengte | 451 mm |
| Breedte | 381 mm |
| Hoogte | 205 mm |
| Gewicht | 7.6 kg |
| IP-waarde | IP20 (Alleen Binnengebruik) |
| Materiaal behuizing | metaal |
| Kleur behuizing | zwart |
