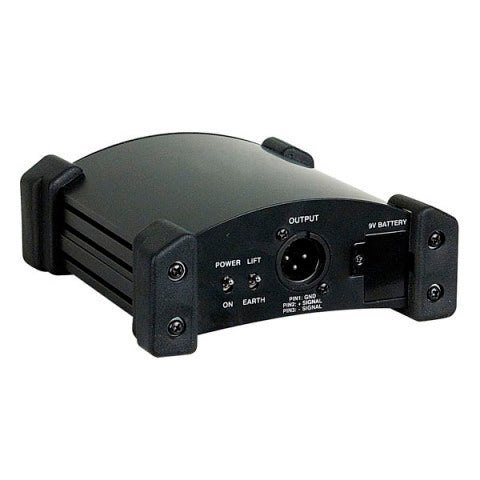

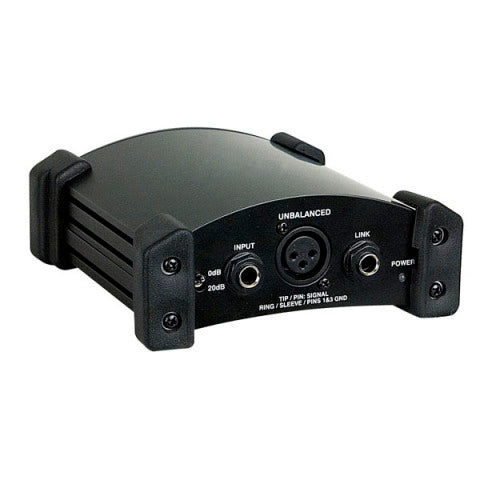

ADI-200 DAP AUDIO ACTIEVE DI BOX
The ADI-200 active DI box will help you with instruments that have a low level and high impedance output. It will convert the output to a more suitable signal without interfering or modifying the signal. With the ADI-200 your signal can be driven up to long cable lengths without any problems. It offers a clean and undistorted signal as well as reliability on touring stages. It wo...
Delivery
S2Store Genk (BE)
Plus- en minpunten
Omschrijving
ADI-200 DAP AUDIO ACTIEVE DI BOX
The ADI-200 active DI box will help you with instruments that have a low level and high impedance output. It will convert the output to a more suitable signal without interfering or modifying the signal. With the ADI-200 your signal can be driven up to long cable lengths without any problems. It offers a clean and undistorted signal as well as reliability on touring stages. It works on a 9V battery or with phantom power. It has a ground lift function and an attenuation switch for 20dB.
FEATURES:
- Roadproof housing with rubber feet
- Low distortion
- Ground lift
- 20dB Attenuation switch
SPECIFICATIONS:
- Frequency Response: 10Hz-40KHz
- Noise Level: < -105db
- Distortion (THD): < 0.005% at 1khz, 0dbu output
- Inputs: XLR & 1/4" Jack unbalanced
- Link out: 1/4" Jack unbalanced
- Output: XLR balanced
- Power supply: 9V Battery or 18 - 48V DC (phantom)
- Input Impedance: >250KΩ
- Load Impedance: >600 Ω
- Dimensions: 55 x 135 x 145mm (HxWxD)
- Weight: 0,65 Kg
