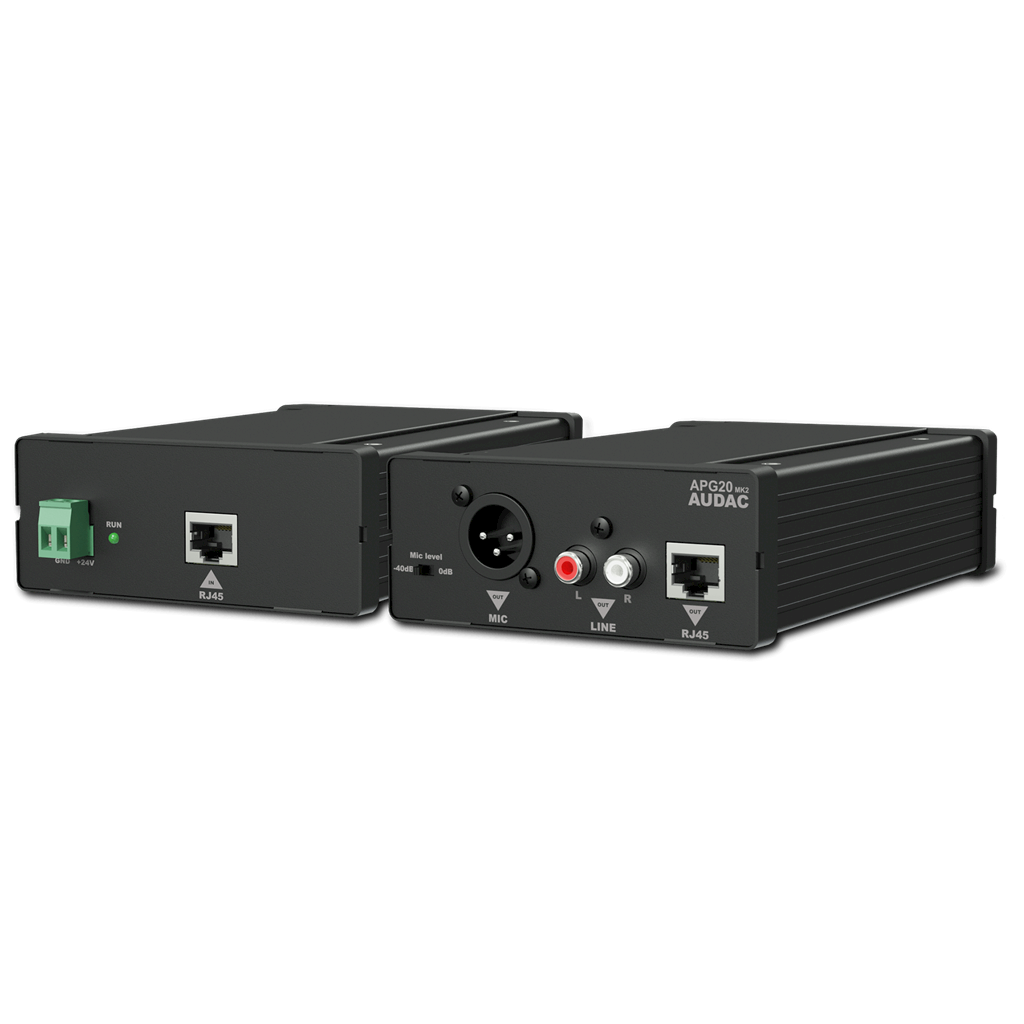

APG20MK2 AUDAC LINE & MIC SIGNAL OVER IP MAX 150M

The APG20MK2 is an audio receiver gateway that converts the audio signals transmitted over the data bus into standard line- and mic-level signals. The audio output of the APG20MK2 can be connected to regular inputs on audio amplifiers, preamplifiers, mixers or much more. The APG20MK2 provides audio over IP for two-channel audio transmission (line & microphone) up to 150 metres.

SPECIFICATIONS

• Connection standard TIA/EIA T568B
• Cabling UTP CAT5E (or better)
• Inputs Type Audio / RS-485 / 24V DC Bus
• Connector RJ45
• Power consumption 0,8 W (including PSD241)
• Power supply 24V DC (PSD241 switching power supply included 100 ~ 240V AC / 47 ~ 63 Hz)
• Max. cable length without external PSU 300 m
• With external PSU 600 m
• Outputs Microphone type 1 x Microphone outputs (level switchable 0 dB ~ -40 dB)
• Connector XLR male
• Line type 1 x Line output
• Dual RCA
• Datalink Type 1 x RS-485 datalink outputs
• Connector RJ45

PRODUCT FEATURES

• Dimensions 108 x 44 x 165 mm (W x H x D)
• Weight 0.760 kg
• Colours Black
• Construction Aluminium
• Accessories Included PSD241 - Power supply 24V / 1,67 A (efficiency level V)
• Optional ARJ03P connection box
• PSD24x external power supply
• MBS1xx Wall mounting brackets
• WLI18 Wall line input unit
• WMI18 Wall microphone input unit
