BT-NODE 283 Briteq ArtNet and sACN node
Regular price
€599,00
Unit price
per
- Fast ArtNet and sACN node with 8 highly flexible configurable DMX ports.
- Automatic Ethernet bypass on power failure.
- Perfect for both the installation and rental market with DHCP and configurations via Art-Net.
- Versatile control options:
- Integrated web interface: easy configuration via network PC
- Large graphical LCD display and rotary knob for eas...
In stock (1)
S2 Ref: B05044
Delivery
In stock
S2Store Genk (BE)
In stock
Pros and Cons
Description

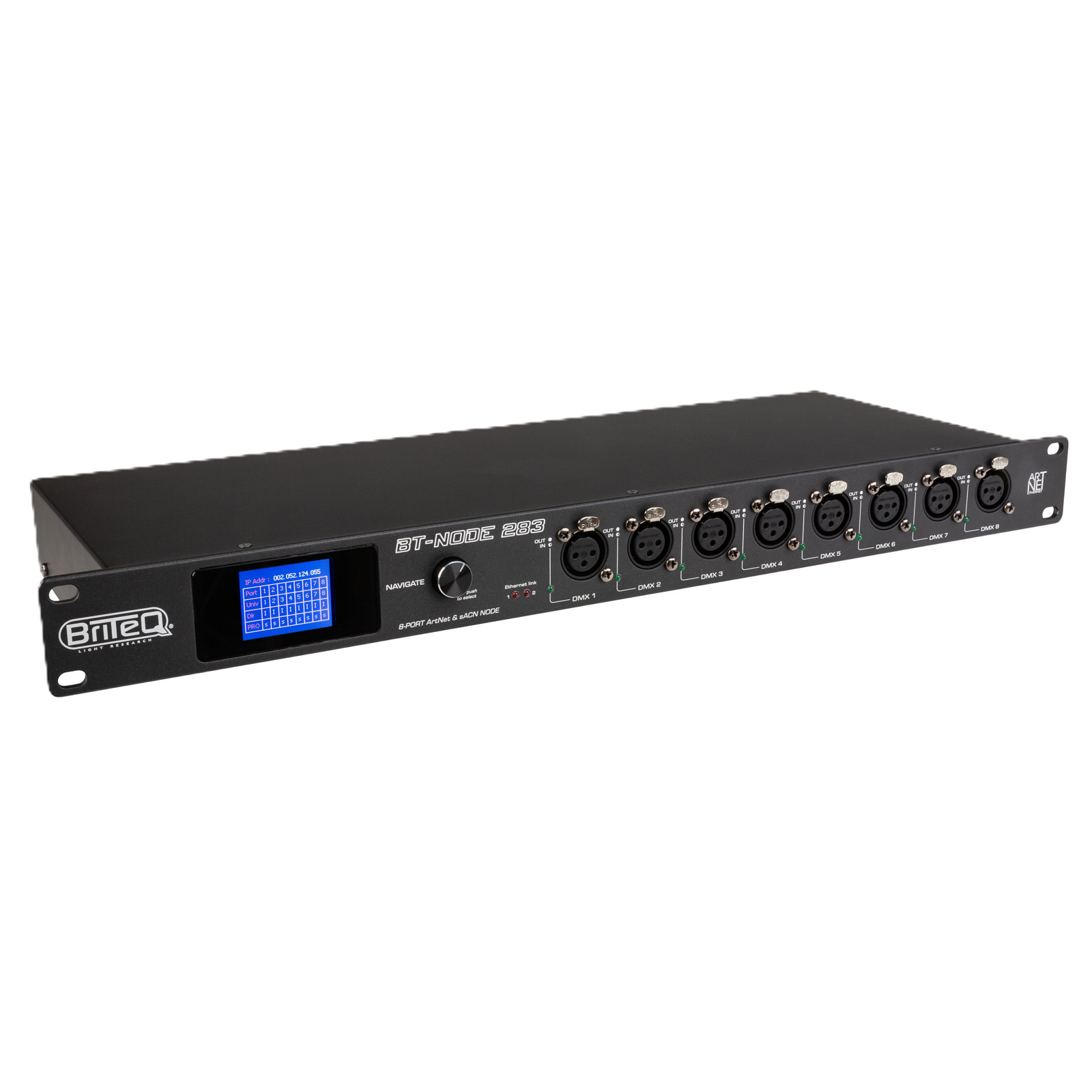

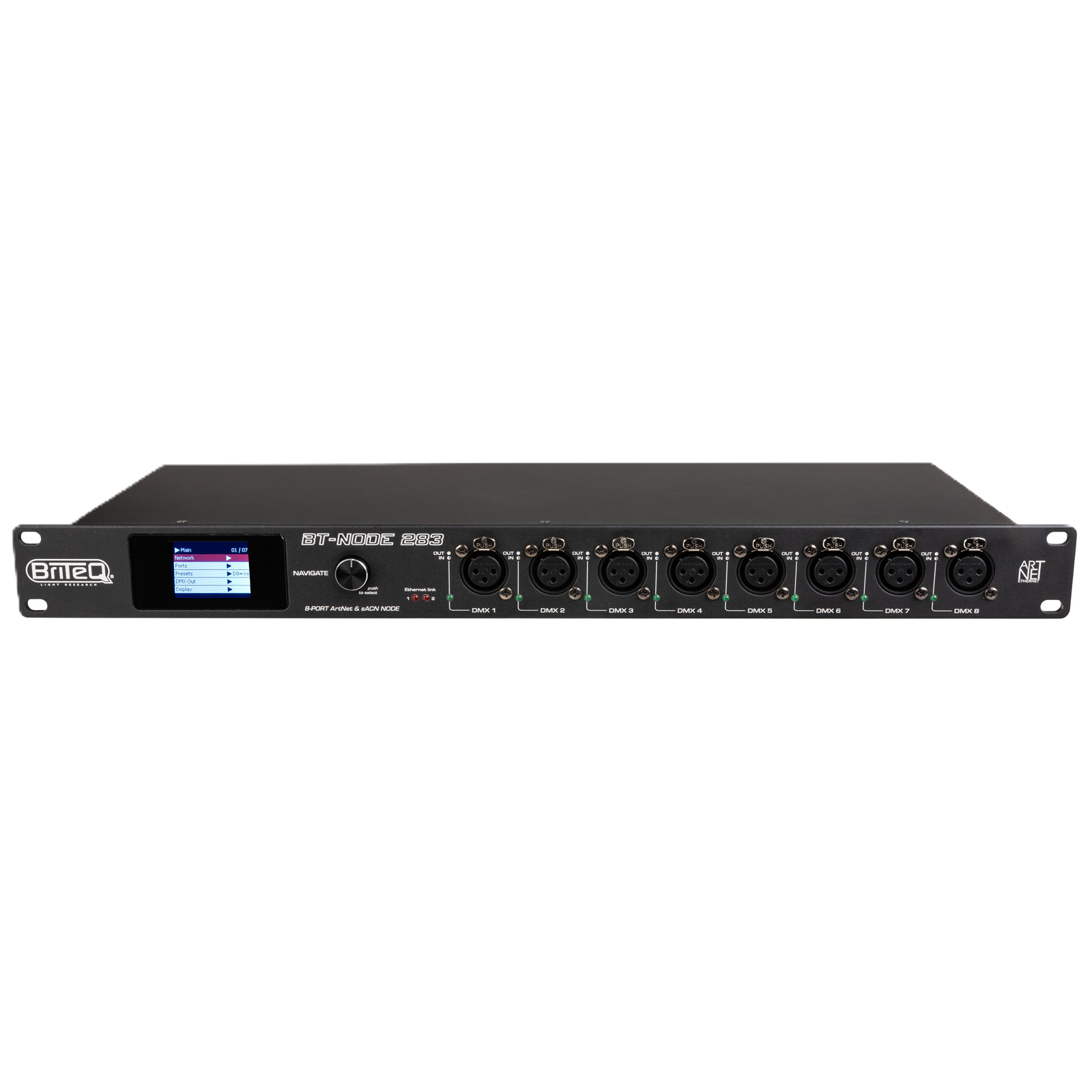

BT-NODE 283 Briteq ArtNet and sACN node
- Fast ArtNet and sACN node with 8 highly flexible configurable DMX ports.
- Automatic Ethernet bypass on power failure.
- Perfect for both the installation and rental market with DHCP and configurations via Art-Net.
- Versatile control options:

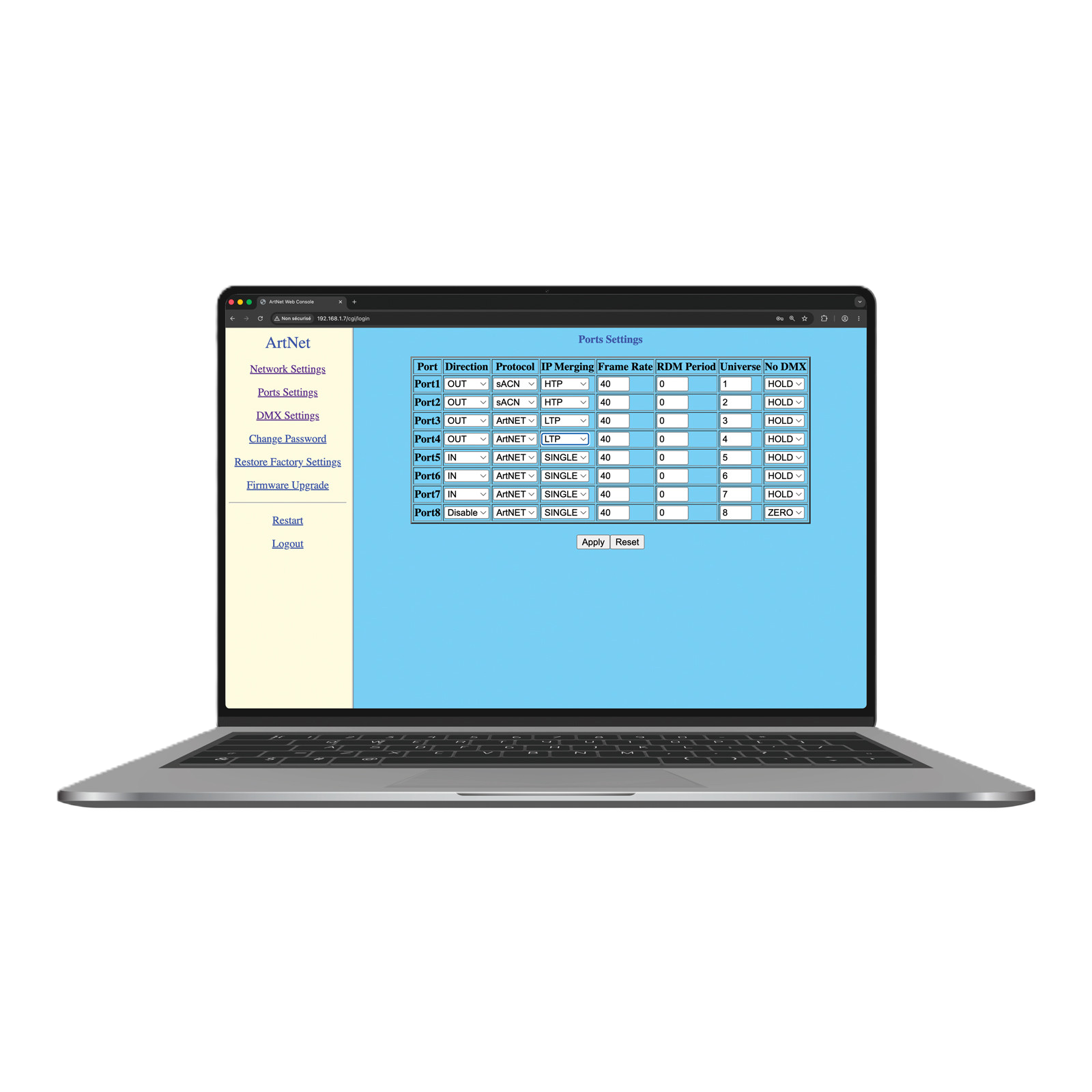

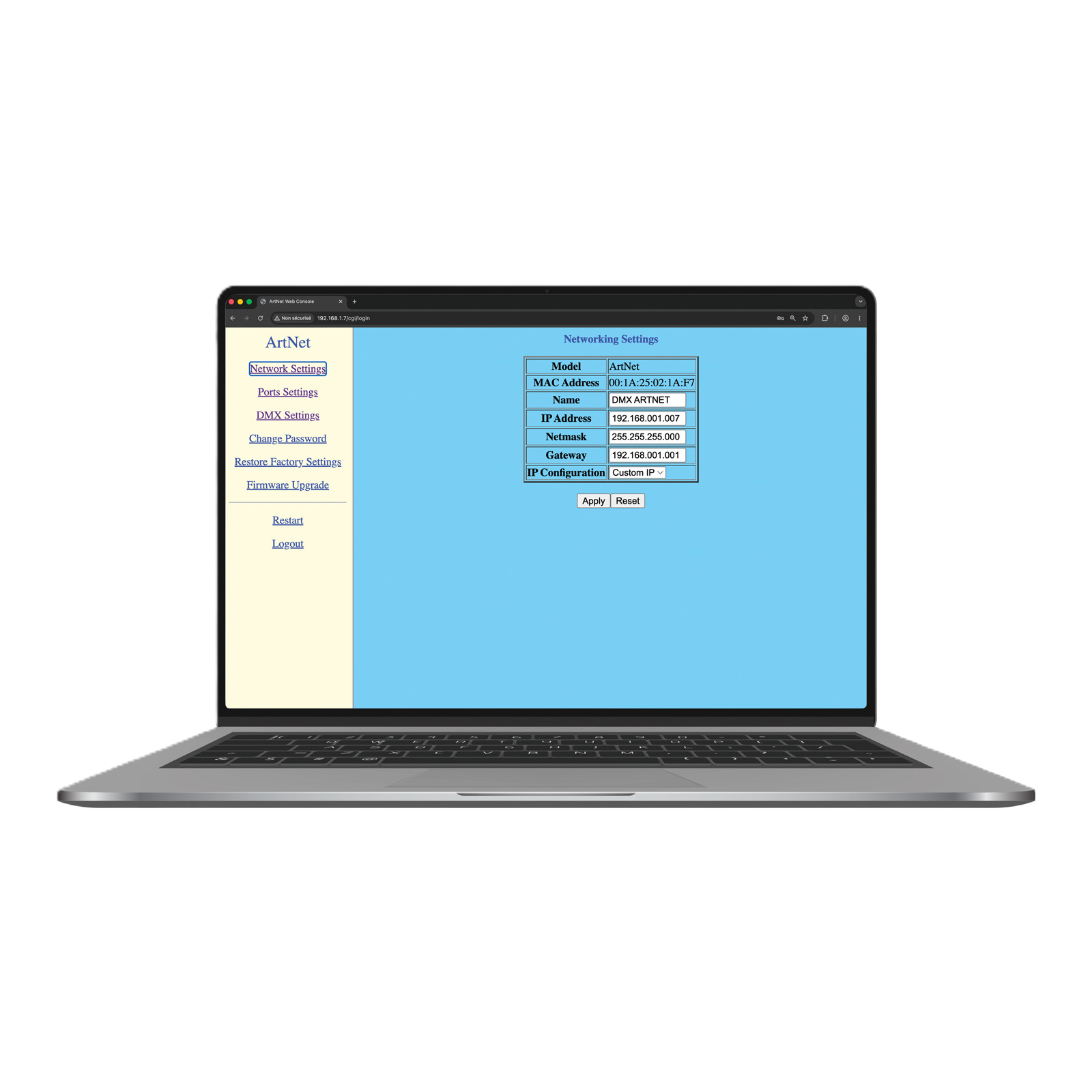

- Integrated web interface: easy configuration via network PC

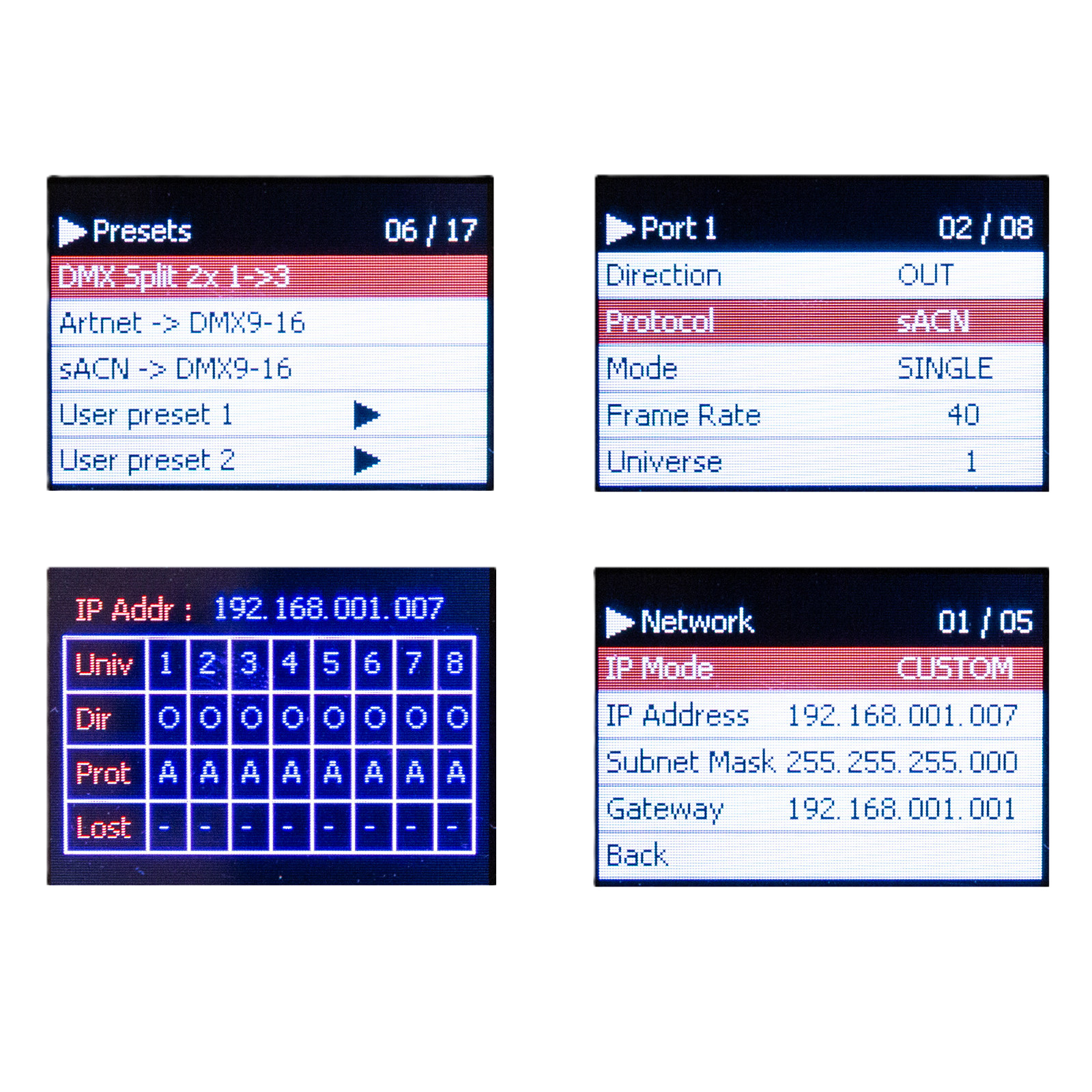

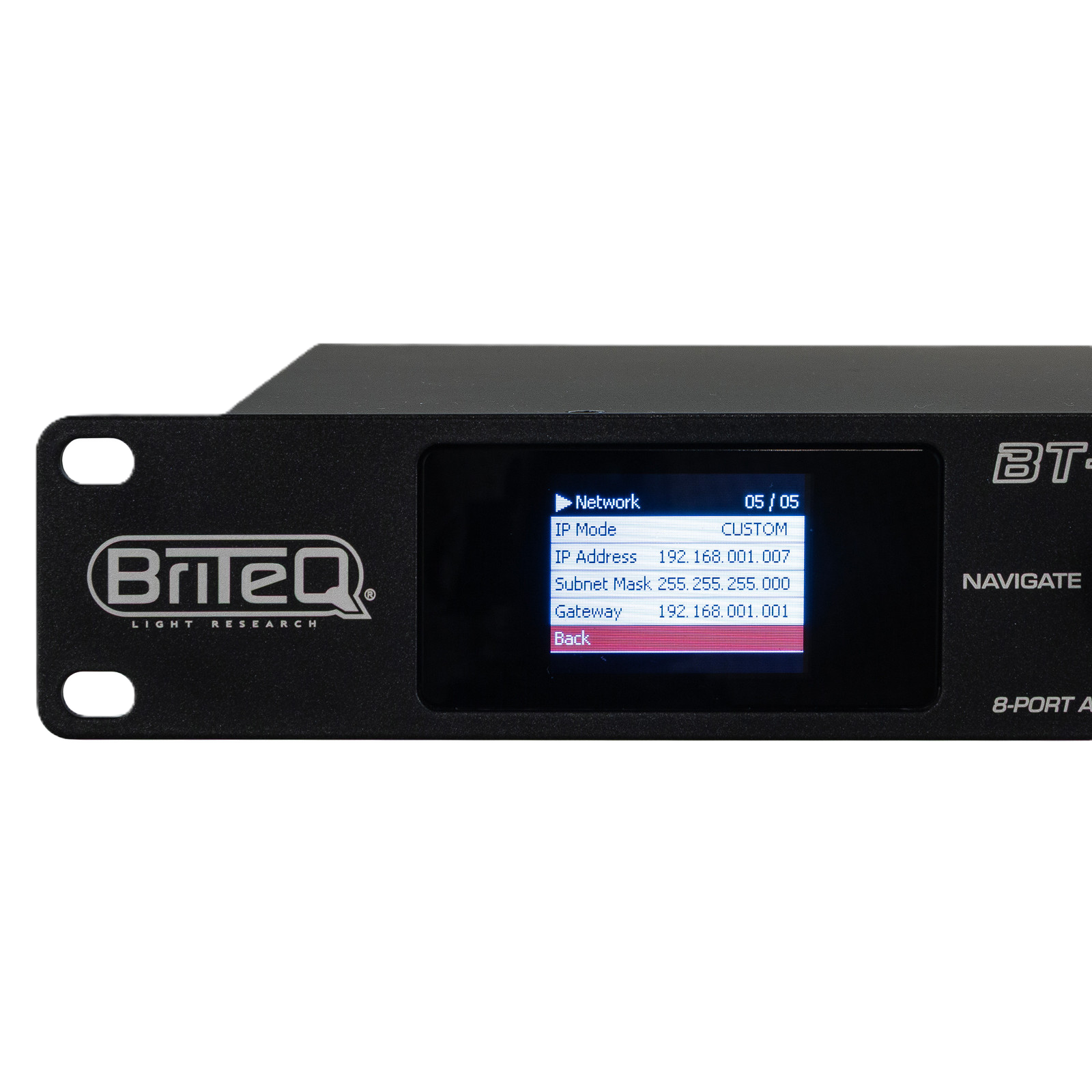

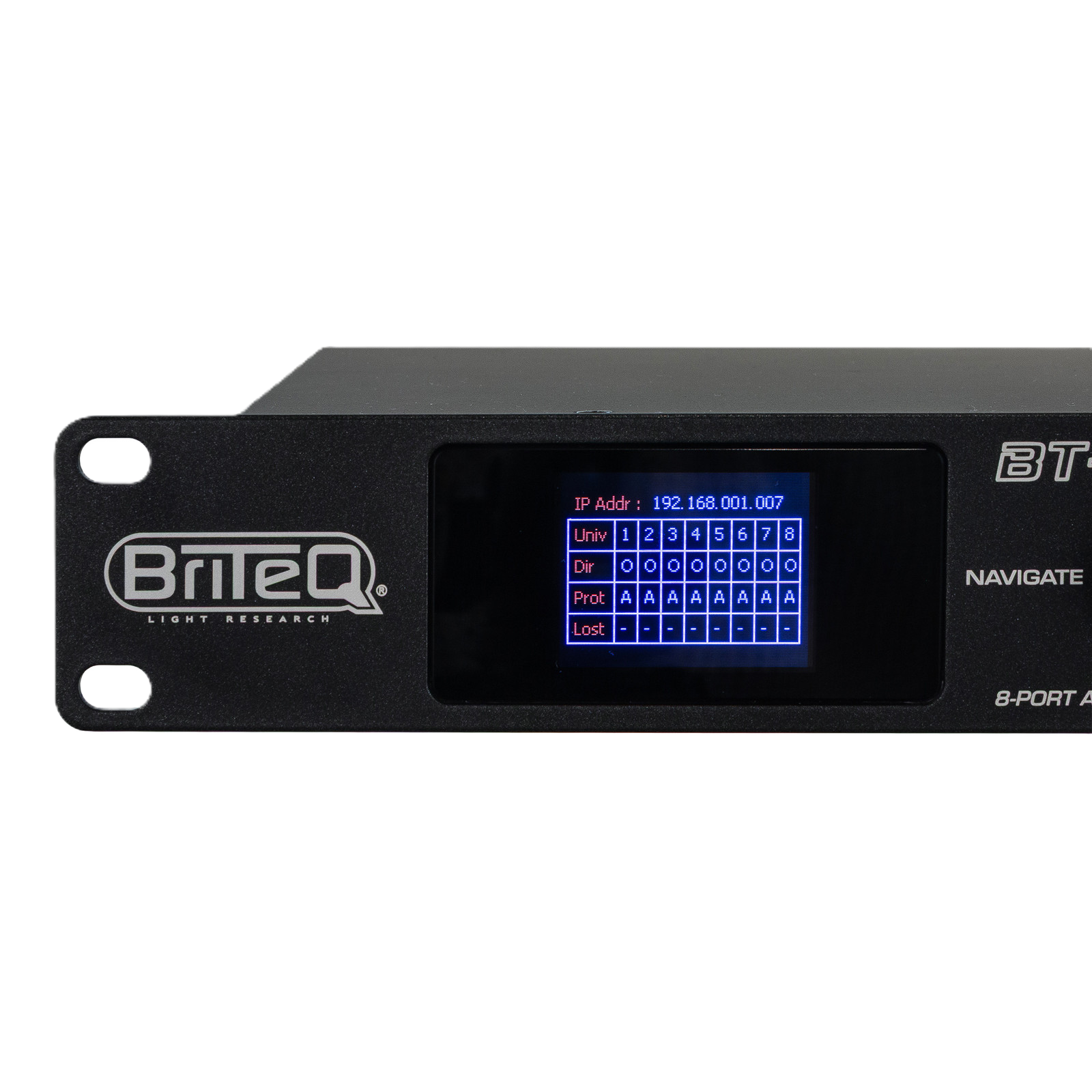

- Large graphical LCD display and rotary knob for easy monitoring and adjustment
- All 8 DMX ports can be configured as inputs or outputs:
- Configured as input: normal mode
- Configured as output: single, LTP and HTP mode
- Multiple predefined presets available as well as personalised presets.
- Easy IP merging of universes.
- Compatible with RDM over Art-Net.
- All DMX ports are equipped with 3-pin XLR connectors (5-pin XLR version also available).

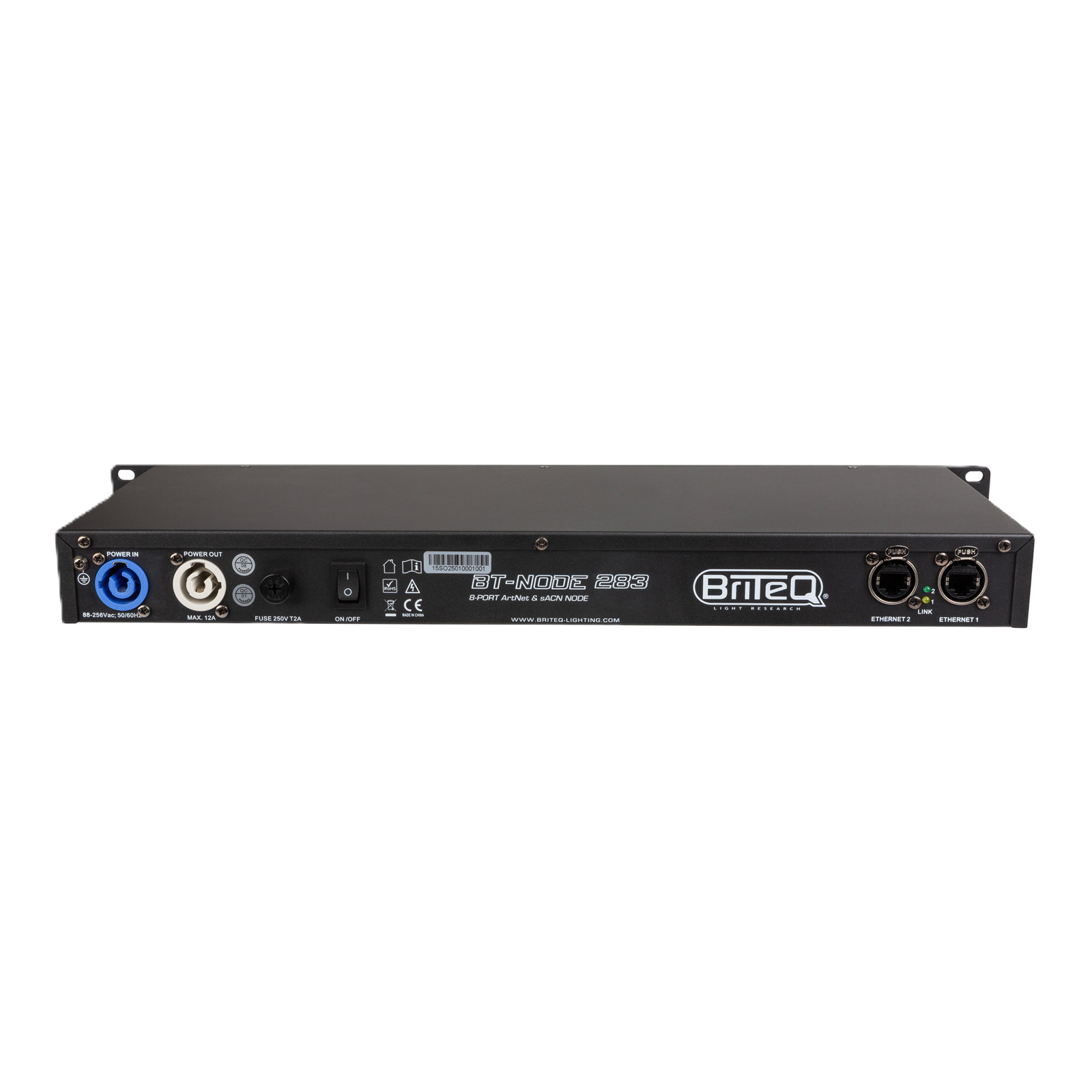

- 100-240 VAC 50/60 Hz PowerCon®-compatible input and output for daisy chaining.
- 1U 19" rack enclosure.
Brief specifications
| Technische Gegevens | |
|---|---|
| Afmetingen | 482 x 44 x 167 mm |
| Gewicht | 1.65 kg |
| Stroomvoorziening | AC 100 - 240V, 50/60Hz |
| Stroomverbruik | 7 W |
| Kleur | Zwart |
| Rackhoogte | 1 U |
| Protocol | Art-Net, sACN, DMX |
| Connectoren In | 3 pin XLR, artnet, RJ45, rdm, PowerCon or compatible |
| Connectoren Uit | 3 pin XLR, artnet, RJ45, rdm, PowerCon or compatible |
