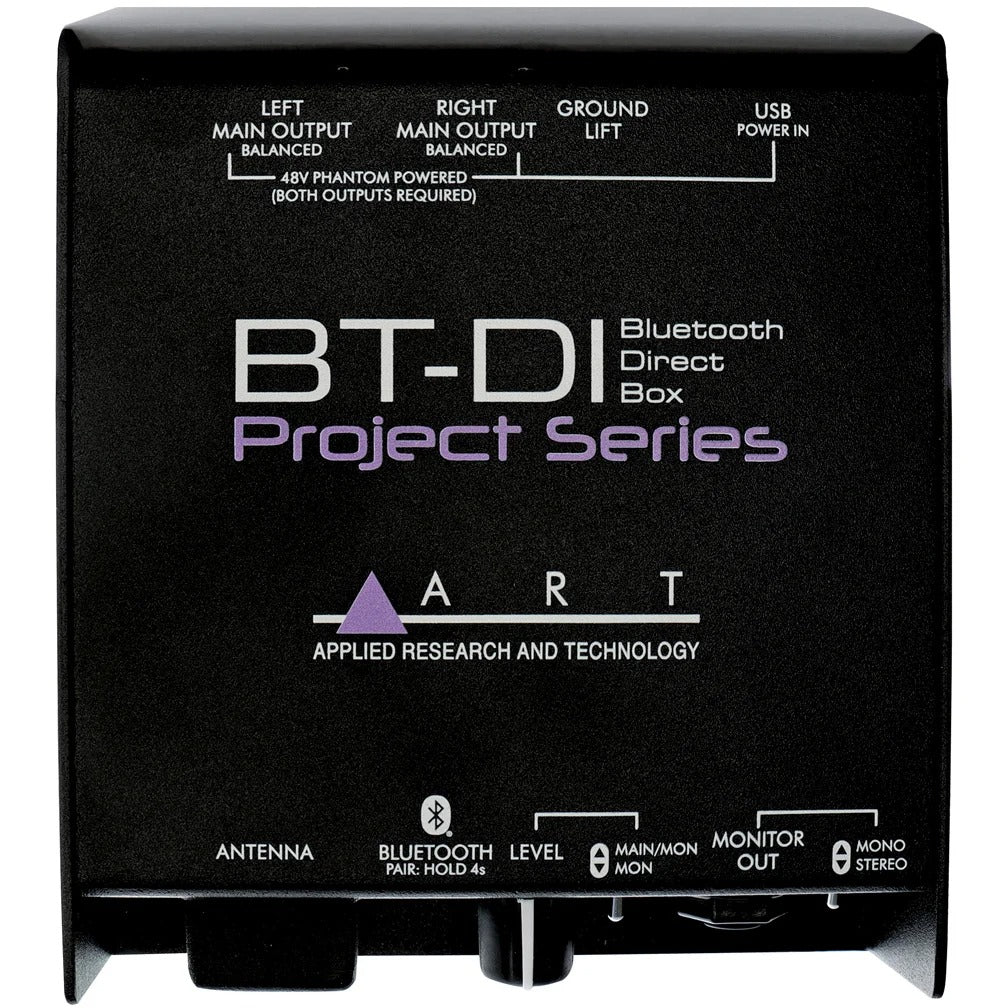

BT-DI ART Bluetooth Direct Box with Isolated Outputs

Make your professional audio devices Bluetooth compatible with the ART BT-DI, a rugged and flexible Bluetooth Audio DAC. The BT-DI is designed to provide a reliable Bluetooth interface from computers, phones, and legacy Bluetooth devices to any installation. Working as a remote extension of your mixer and mic outputs, the BT-DI utilizes phantom power, so an external power supply is not required.

Features

• Bluetooth 5.0 receiver
• External antenna for long-range operation
• Transformer isolated XLR outputs

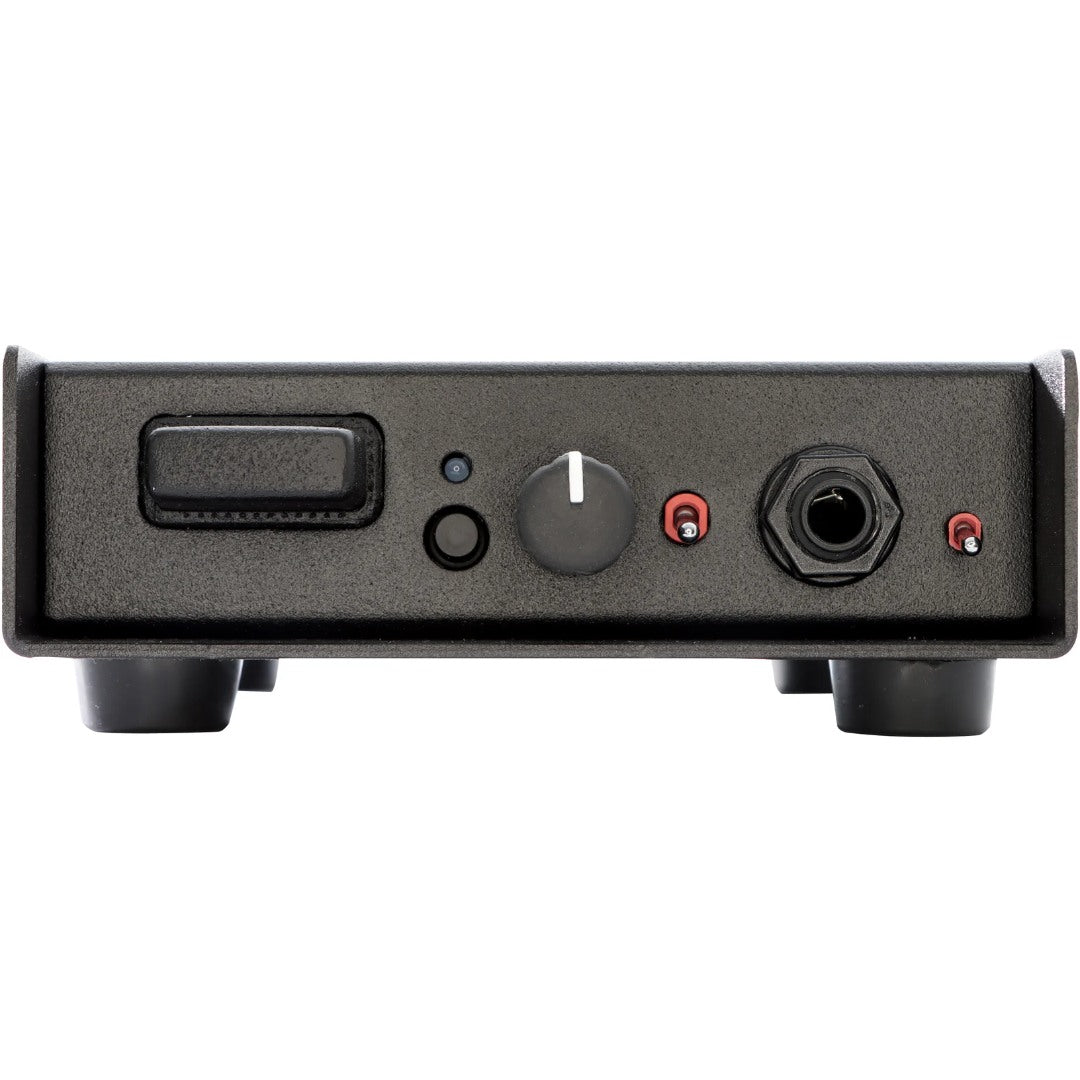

• Headphone out
• Selectable fixed/external USB supply OR Phantom Power
• Headphone can be summed Mono
• Compact rugged package, extruded chassis
• Designed and developed in the USA

Technical Data

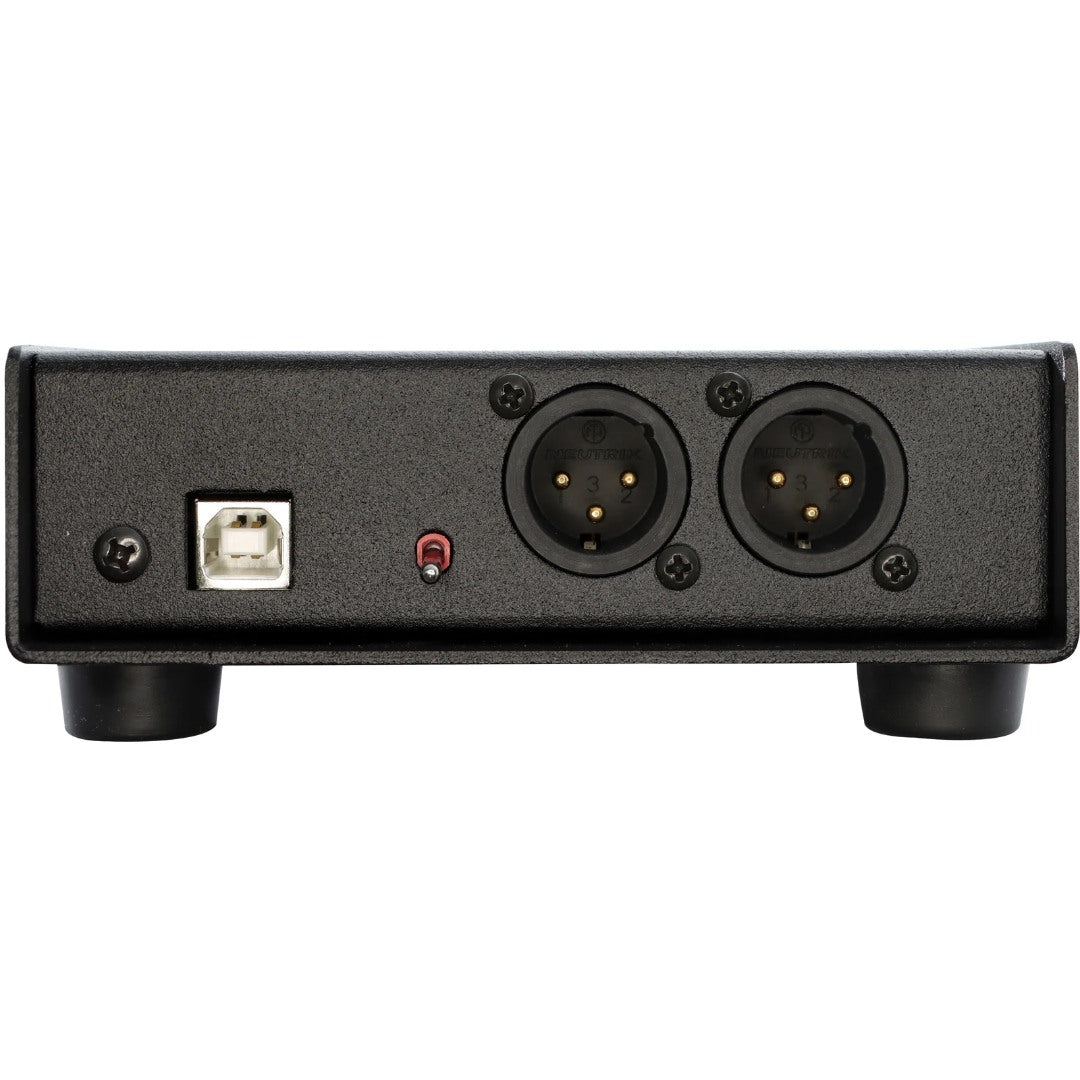

• Main Output Connections: XLR (2) main output, transformer, coupled, switchable ground.
• Main Output Impedance: 300 Ohms.
• Maximum Output Level: 30 dBu balanced Main output, 0 dBu Headphone output.
• Signal to Noise Ratio: -90dB unweighted typical.
• THD: <0.05% typical
• Bluetooth Version: 5.0, up to 50m, Class 2, device (BDR/EDR)
• Supported Audio: CODEC’s SBC, AAC
• Power Requirements: 5V USB (80ma) or +48V, Phantom power w/both XLR’s connected.
• Dimensions (WxDxH): 36 x 126 x 140 mm
• Weight: 0.91 kg
