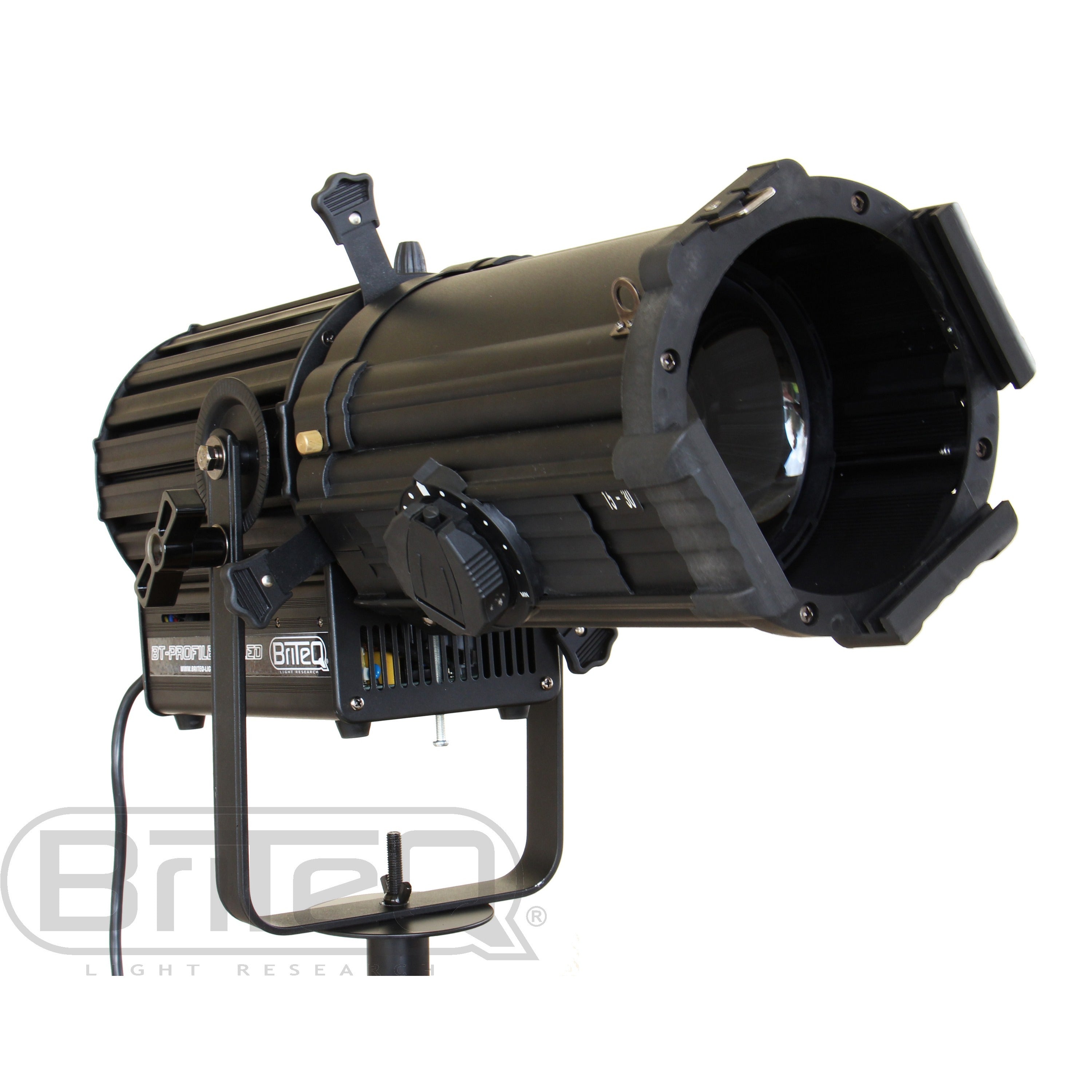

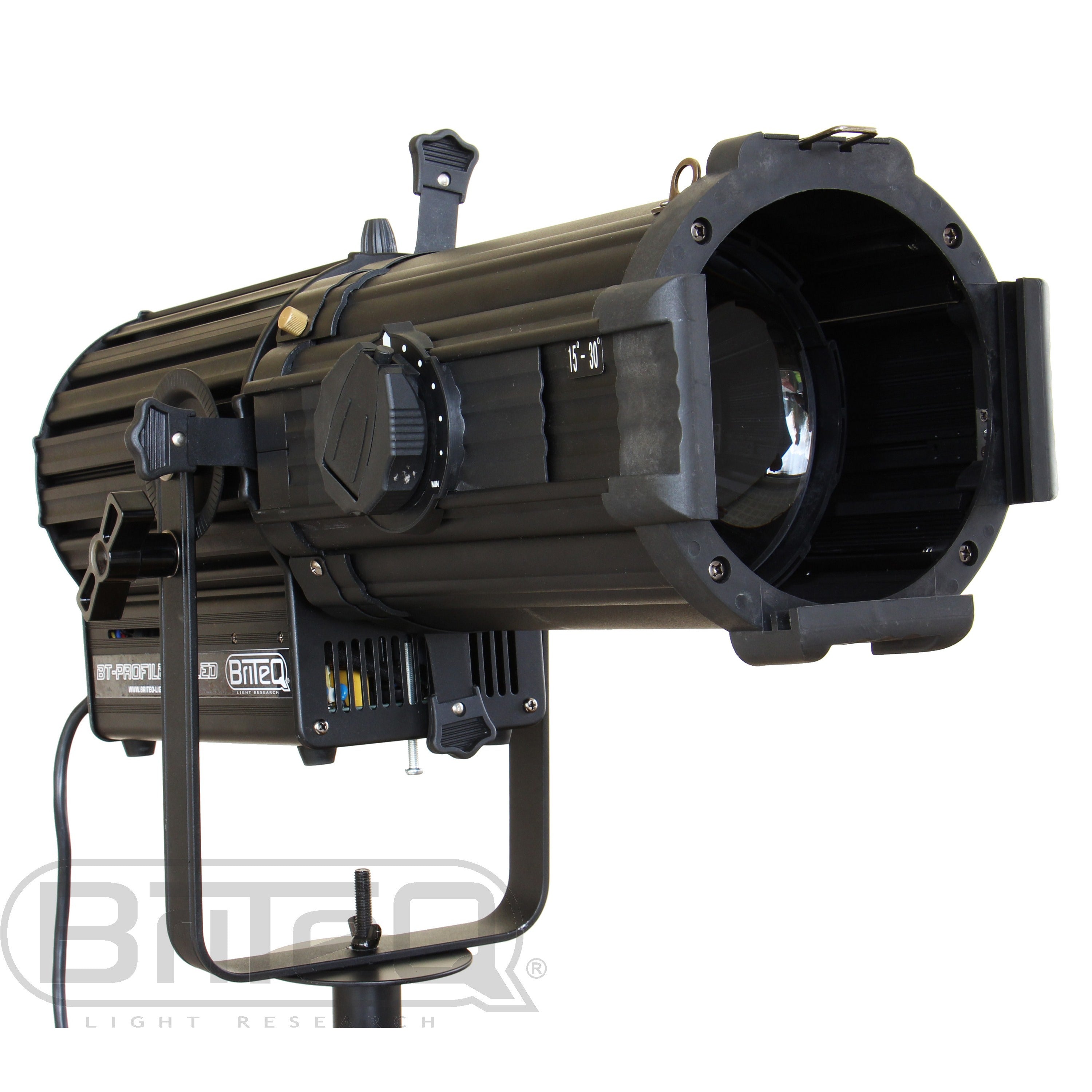

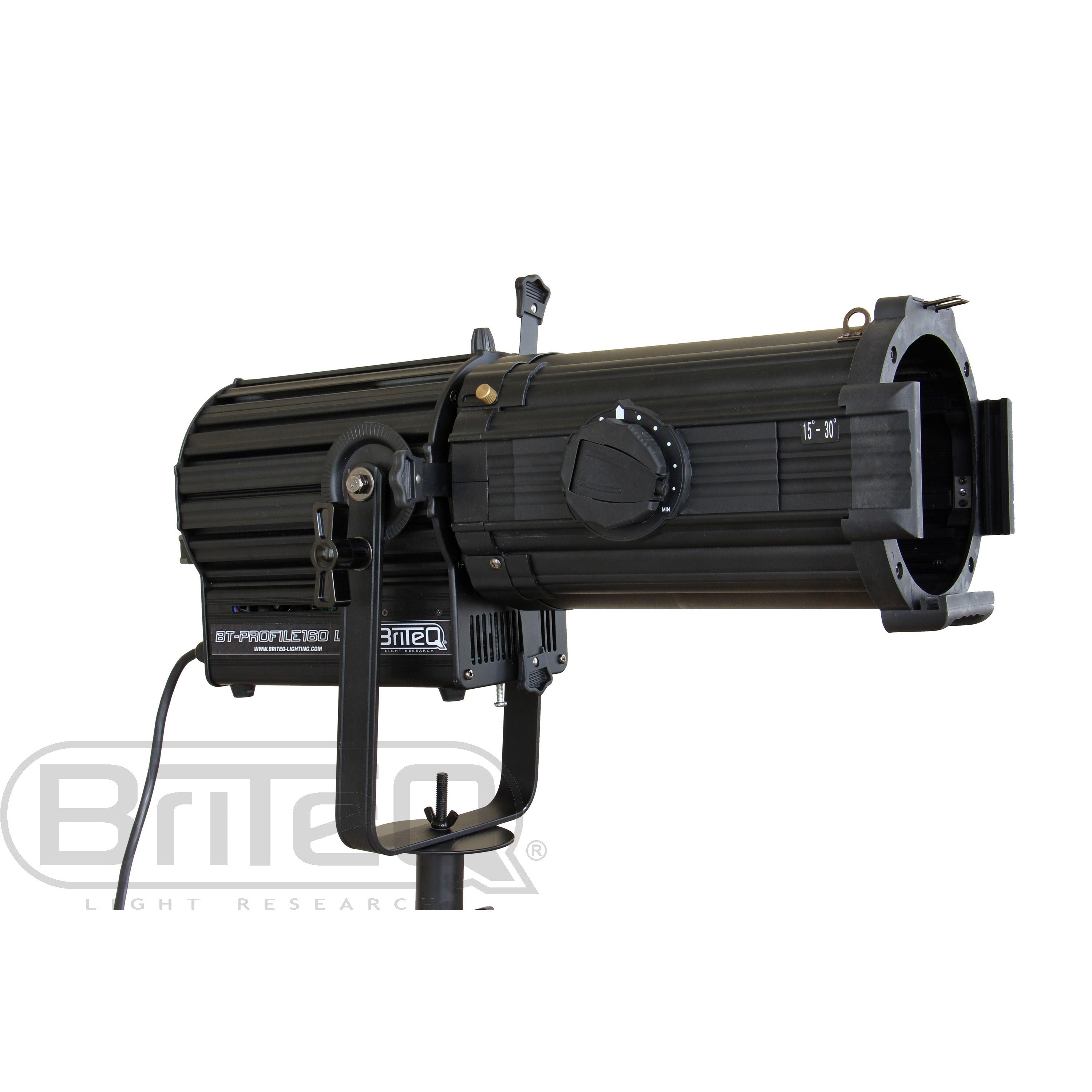

BT-PROFILE160/OPTIC 15-30° BRITEQ
A powerful LED profile spot based on high power COB LED technology. It's a perfect replacement for the halogen units with high power consumption! Consists out of a rugged die-cast and extruded aluminum construction and for your convenience the projector is sold as two separate parts:

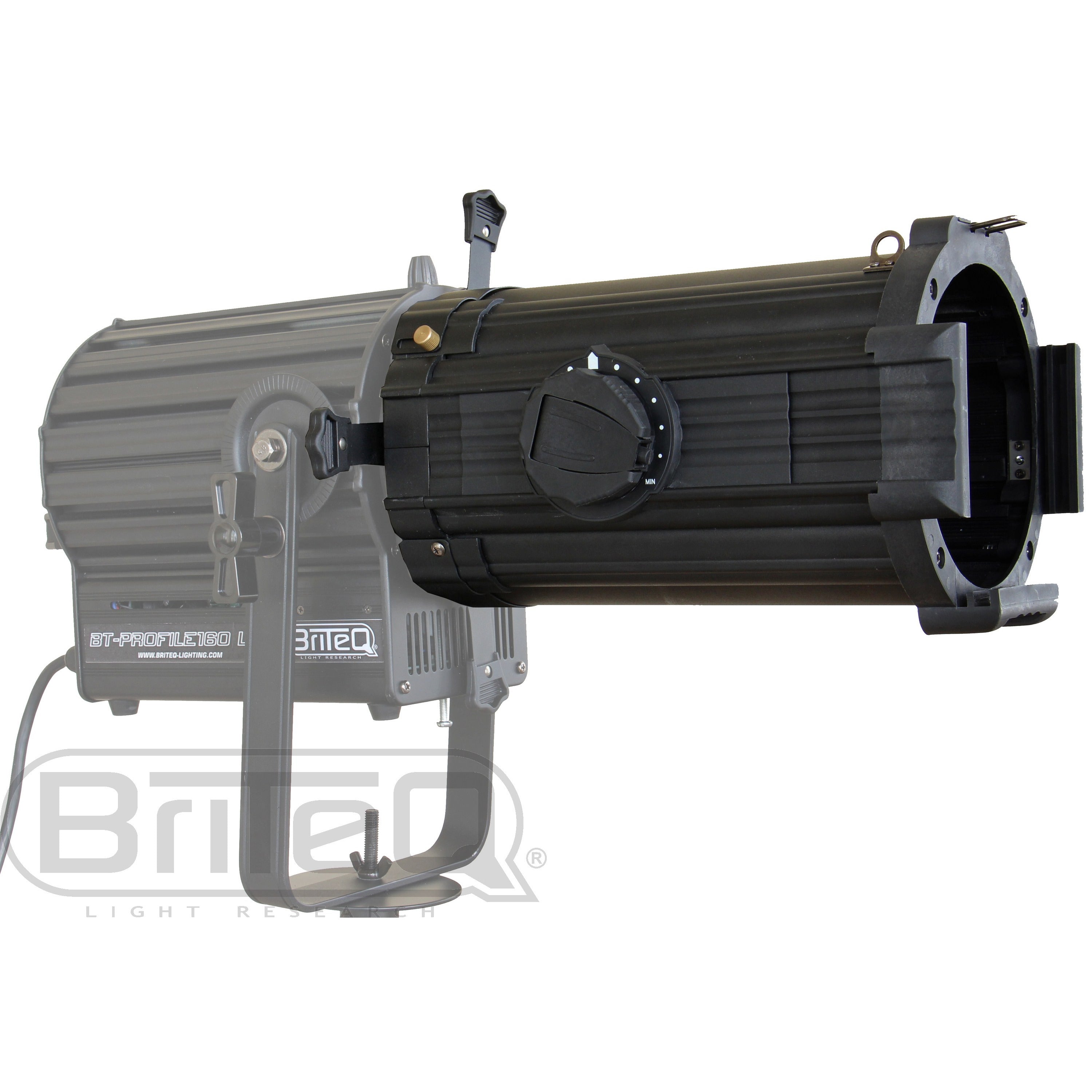

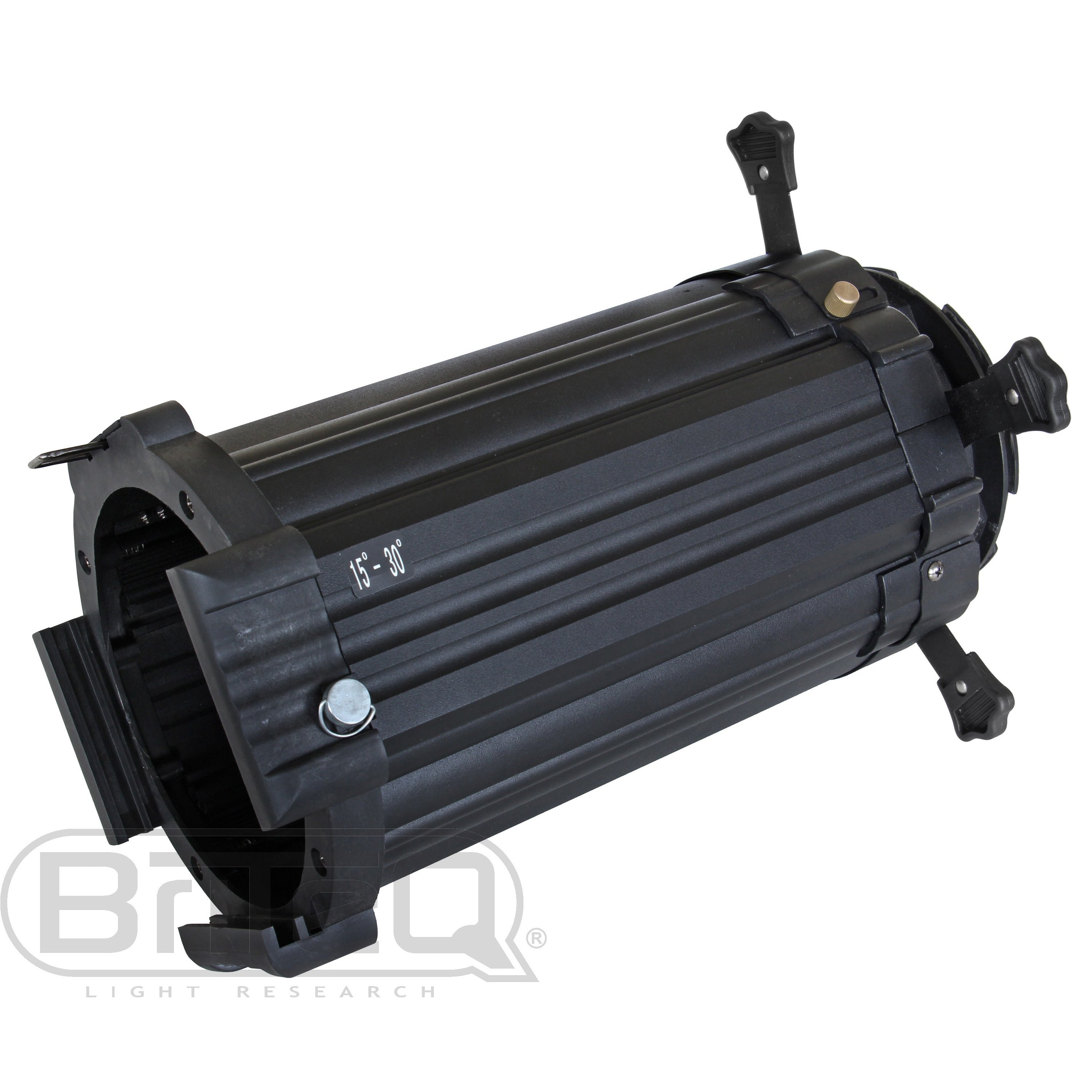

BT-PROFILE160/OPTIC
-
Specially coated optics for sharply defined crisp projections
-

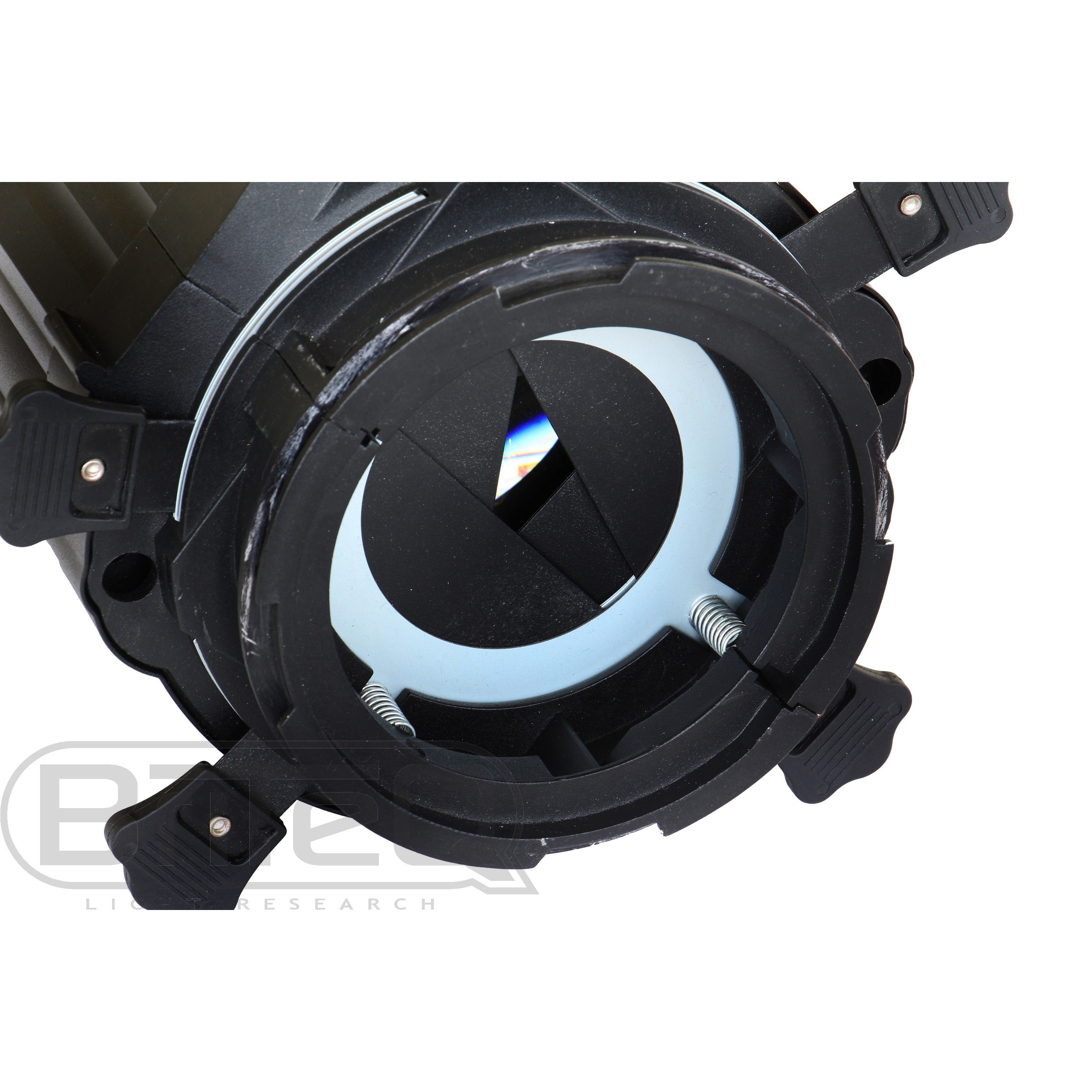

Four profile blades, specially coated for minimum reflections
-
Two different optical units with adjustable zoom are available:
-
“BT-PROFILE160/OPTIC 15-30" (order code: 6001): 15°-30° zoom range
-
“BT-PROFILE160/OPTIC 25-50" (order code: 6002): 25°-50° zoom range
-
-
Lockable compartment for use of the optionally available:
-
GOBO Holder (“BT-PROFILE160/GOBO HOLDER", order code: 6003)
-
Outer diameter gobos: 86mm, optical diameter: 64.5mm
-
-
IRIS (“BT-PROFILE160/IRIS", order code: 6004)
-
Aperture diameter: adjustable from 5mm to 74mm
-
-
-
Combined zoom/focus operation with locking mechanism
-

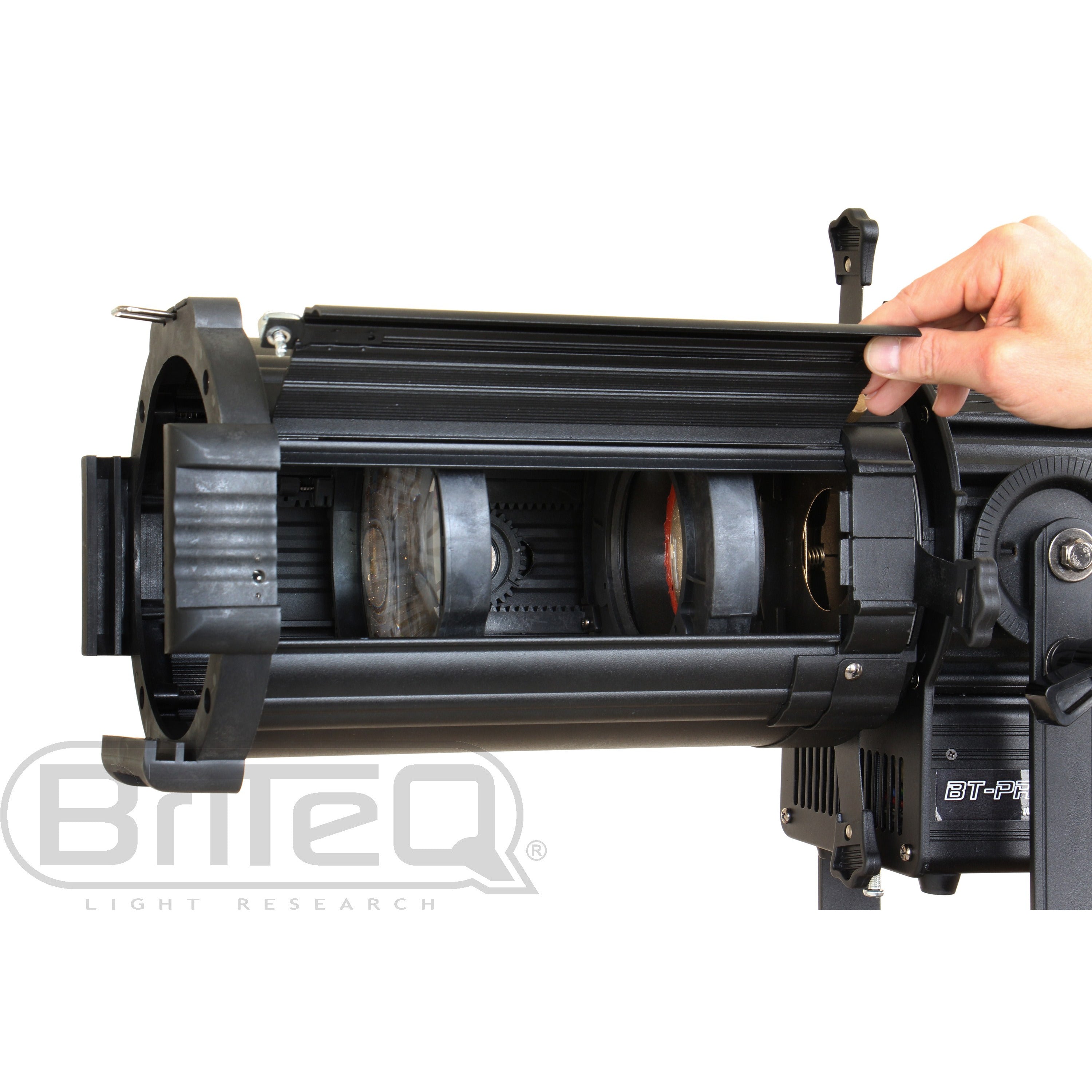

Lockable lens compartment: easy access for internal lens cleaning
-
Can replace ETC Source Four-optics
-
Optical barrel can be rotated and locked I any position
BT-PROFILE160/LED ENGINE:
-
This is the actual LED ENGINE containing the 160W COB LED, which is sold separately.
-
See linked products for more information
Technical Information:
-
Zoom Range: 15°-30°
