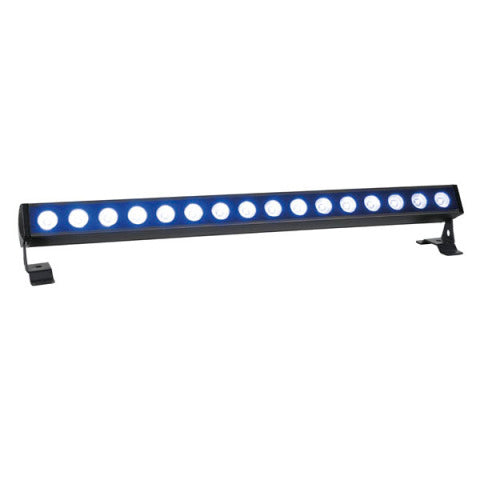

Showtec Cameleon Bar 16 Q4

The Cameleon Bar 16Q4 is a stylish LED bar with IP65 rating and is equipped with four-in-one RGBW LED's. This intelligent RGBW fixture offers an expanded palette of intensely saturated full color light output. An intuitive touch screen with O-LED display enables you to select the right settings or the right internal program. IP-rated data and power connectors allow you to connect multiple Showtec Cameleon fixtures in one line.

Features

• Plug and Play

• IP 65 Rating

• RGBW 4-in-1 Color mixing

• Touch display

Specifications

• Output:

  • Lux @ 2m:

    • R: 640 Lumen

    • G: 898 Lumen

    • B: 282 Lumen

    • W: 1287 Lumen

    • FO: 2966 Lumen

• Max distance: 20m

• Colour Range: 16,7 million additive colors

• LED Quantity: 16x 5W 4-in-1 RGBW ProLight Opto Hornet Series

• Drive Current: 350mA

• Input voltage: 100-240VAC..50/60Hz

• Power Consumption: 120W @FO

• Display: O-LED display with touch interface for auto and custom control

• Control: DMX-512, Auto, Master/Slave

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Beam Angle: 25 degrees

• Housing: Die Cast Aluminium

• Color: Black

• Lens Plate: Tempered Glass

• DMX Connection: Dedicated IP65 connector

• Cooling: Convection (no fans)

• IP Rating: IP-65

• Dimensions: 1000 x 150 x 150 mm

• Weight: 6.2 Kg

• Refresh rate: > 6000Hz

• Accessories: Schuko to IP powercable
