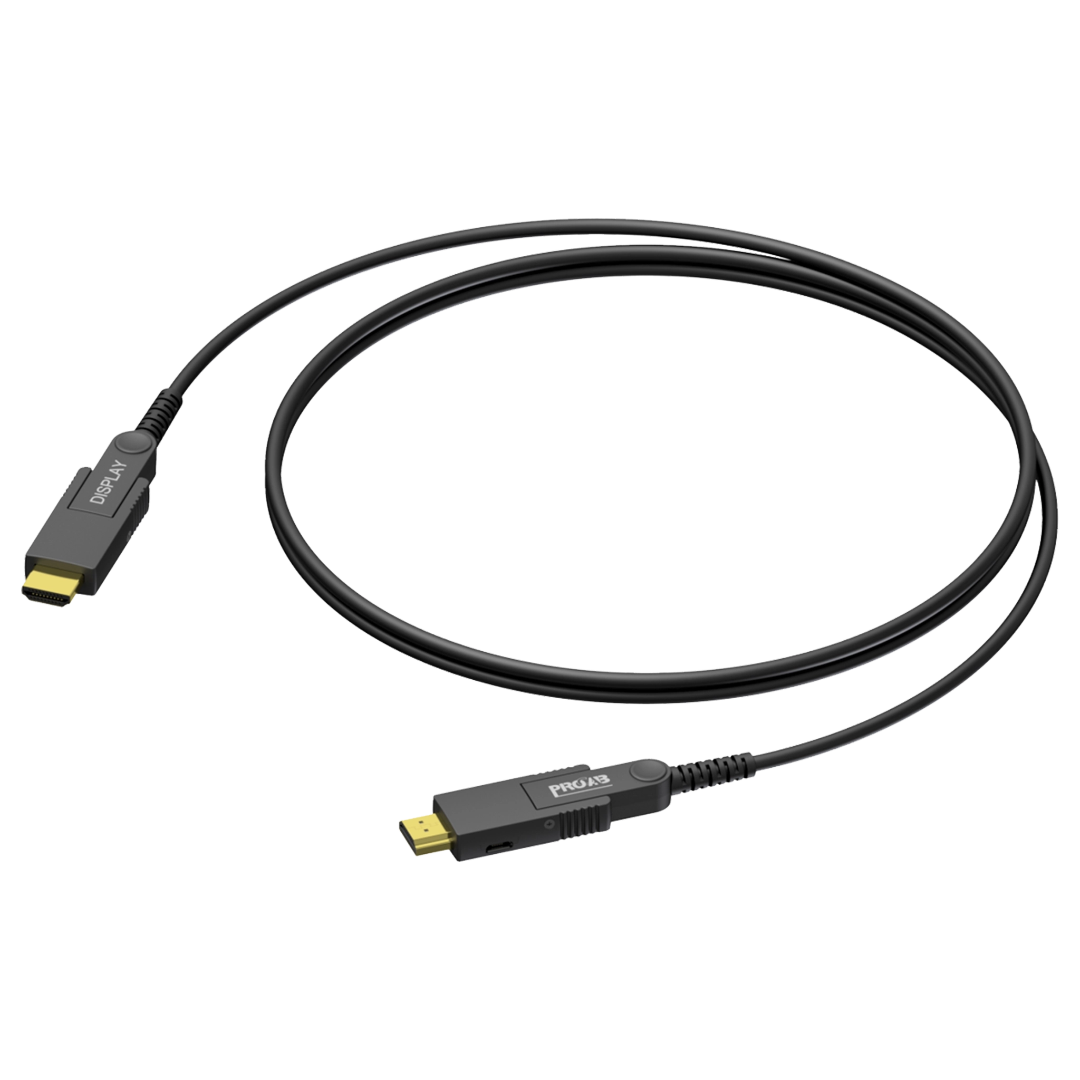

CLV220A/20 Procab HDMI Cable Active Optical (20m)

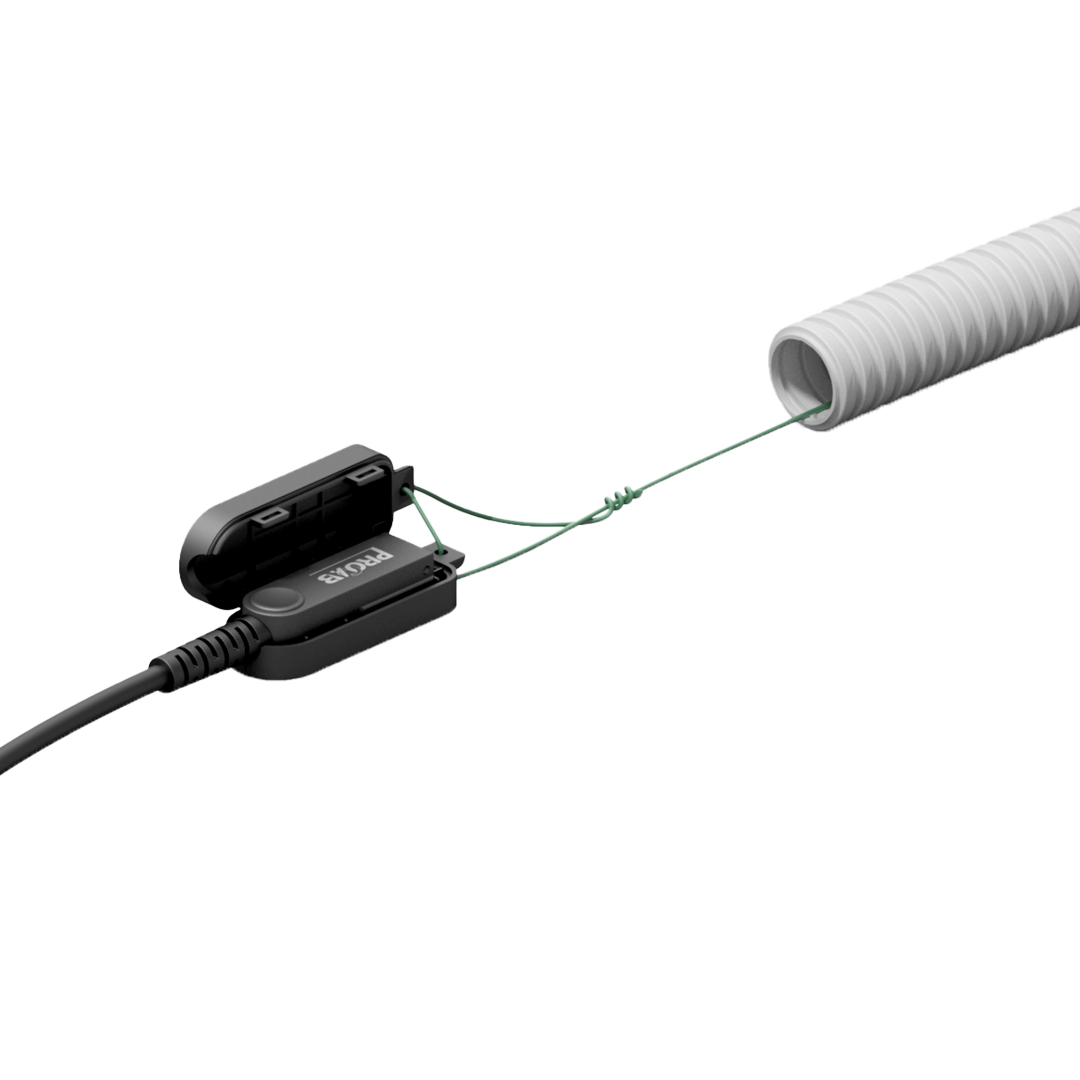

The CLV220A is an active optical HDMI 2.0 cable for fixed installations. It can transmit resolutions up to ultra HD 4K 2160p (4096 x 2160) at 60 Hz with a bandwidth of 18 Gbps via OM3 fibre optic technology, eliminating electronic interference. Thanks to the detachable connectors, you can easily disconnect and reconnect the connectors. This allows the cable to be threaded through holes and straight conduits with a diameter of as little as 25 mm.

The CLV220A is supplied with a USB A to USB Micro B cable, an accessory that is only required when the HDMI port on the transmitter side delivers insufficient voltage (typically needed at < 4.8 V) to power the receiver. The power is transferred via the CLV220A cable from the transmitter to the receiver.

Most common HDMI sources deliver sufficient voltage, making the additional cable unnecessary. Typical applications where this may be required include streaming media players, which may deliver insufficient voltage via their HDMI output.

• Resolutions up to ultra HD 4K 2160p (4096 x 2160) 4:4:4 at 60 Hz
• HDMI 2.0 compatible
• Fibre optic technology
• Flexible outer jacket

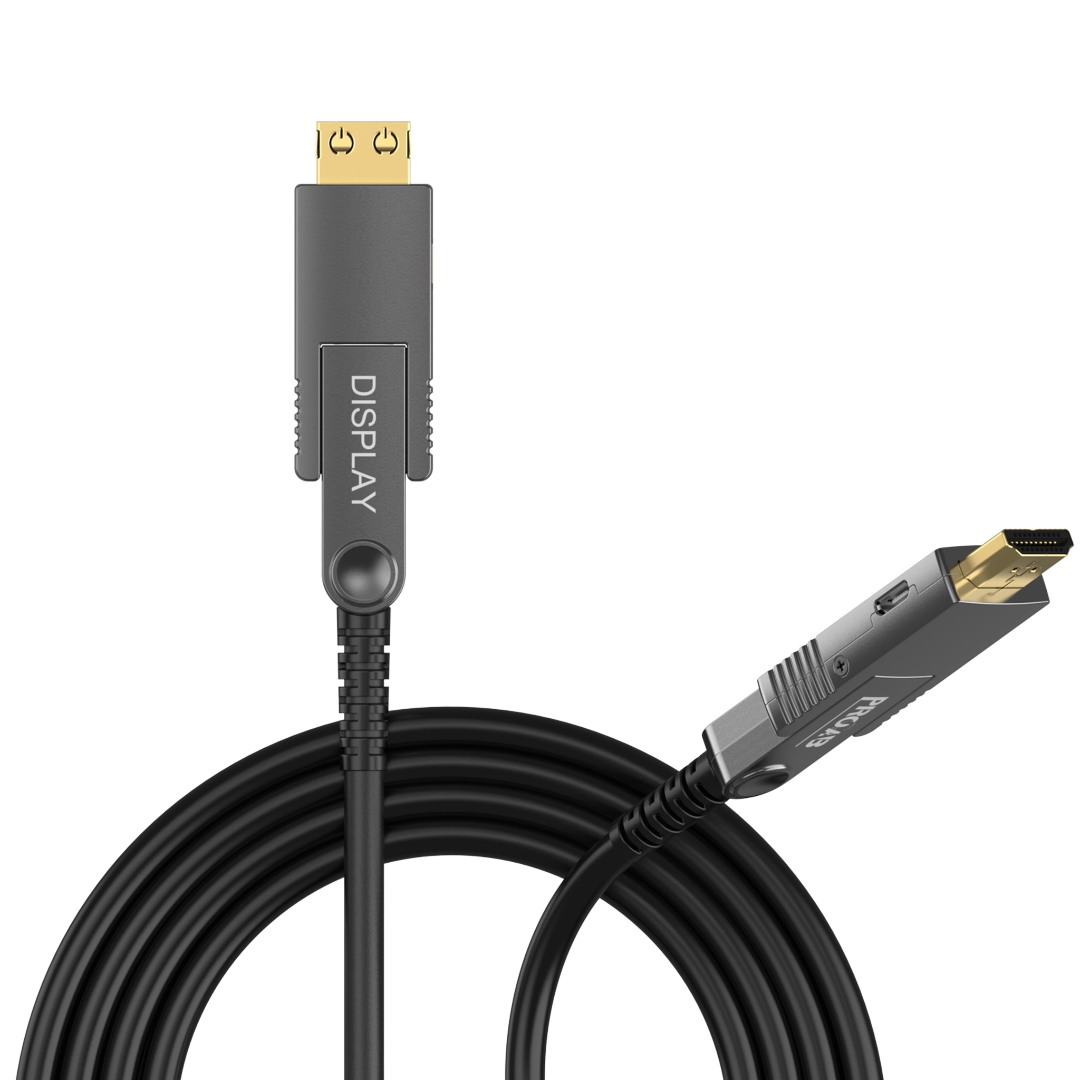

• Detachable connectors
• HDMI ARC up to 50 metres

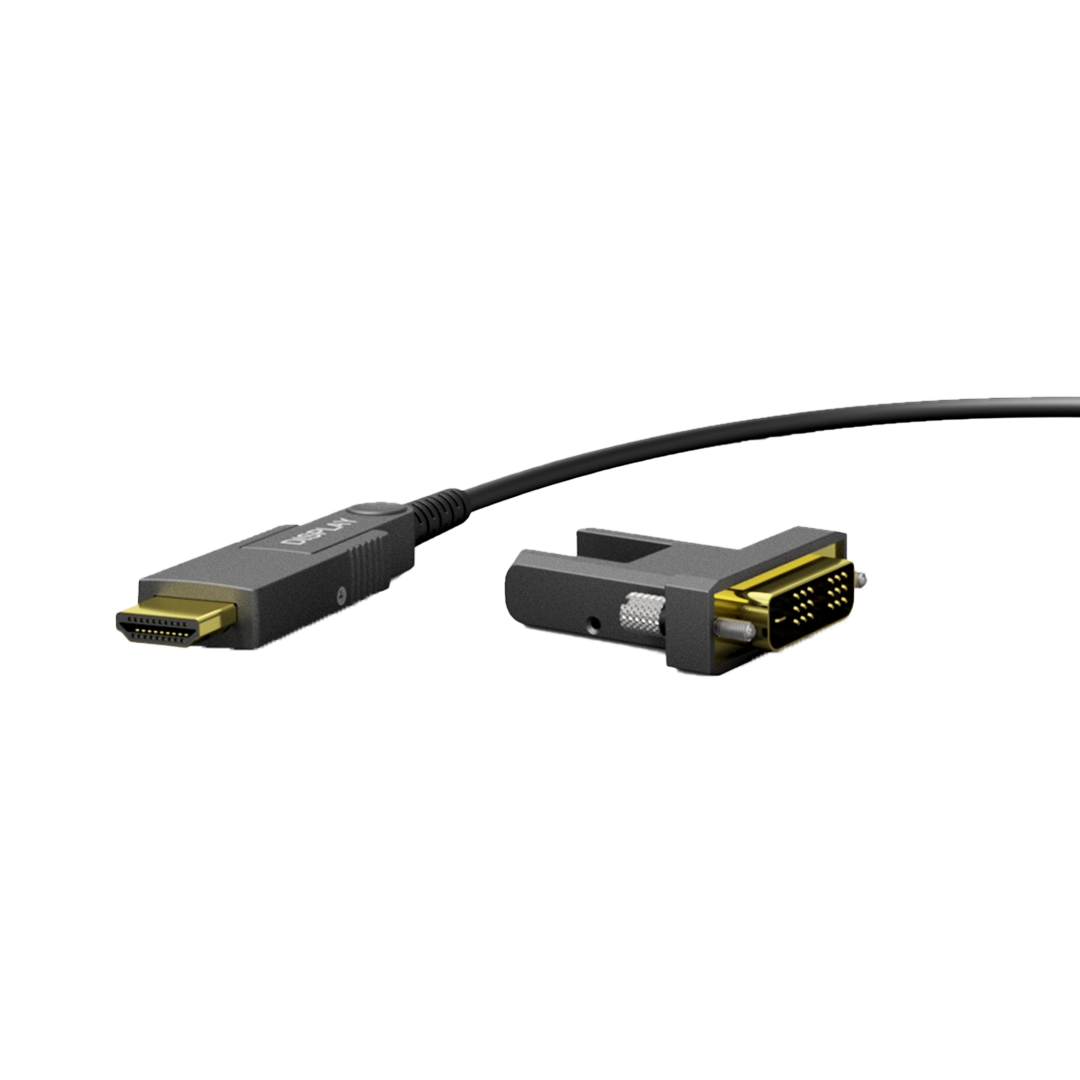

• Multifunctional connections (Micro-HDMI [both sides])
