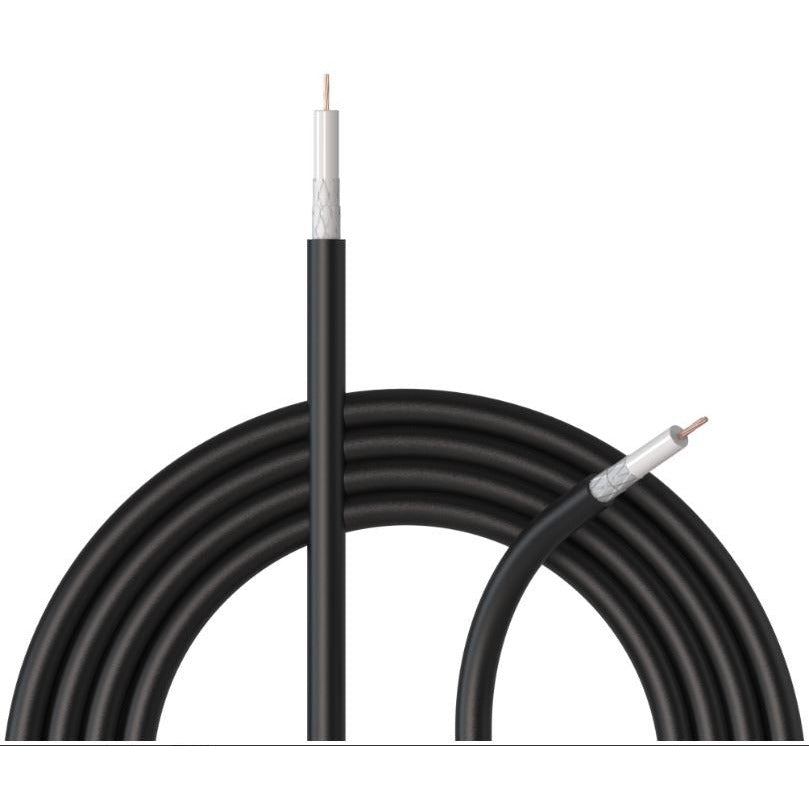

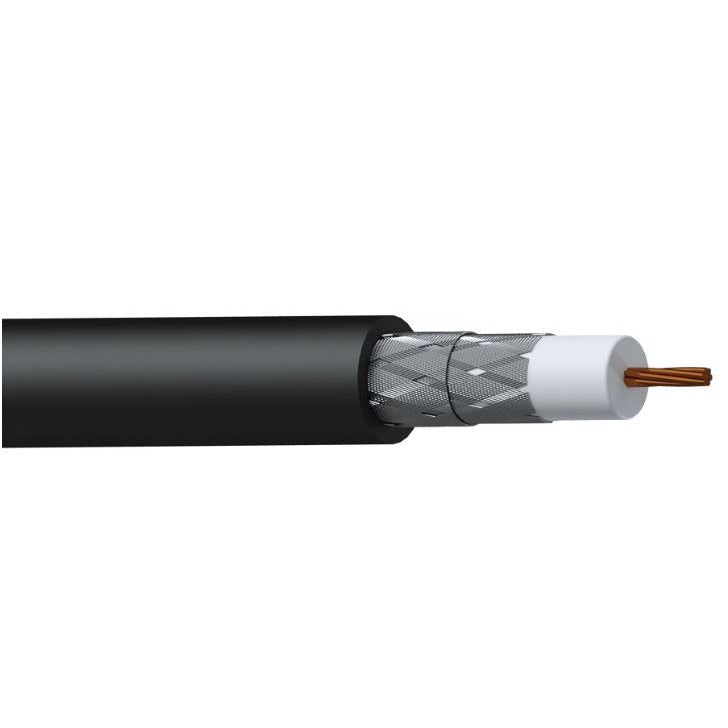

PCX160/1 Procab Video Cable (100m)
PCX160/1 Procab SG SDI Coaxial Video Cable - RG6/U - Flex 0.65mm² - 19 AWG - HighFlex (100m)
The PCX160 is an RG6/U coaxial video cable specifically designed for digital SDI, HD-SDI and 3G-SDI video transmissions in mobile applications. Its Highflex™ PVC outer jacket in combination with other high-grade materials guarantee a great flexibility, long service life span and accurate...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
PCX160/1 Procab Video Cable (100m)
PCX160/1 Procab SG SDI Coaxial Video Cable - RG6/U - Flex 0.65mm² - 19 AWG - HighFlex (100m)
The PCX160 is an RG6/U coaxial video cable specifically designed for digital SDI, HD-SDI and 3G-SDI video transmissions in mobile applications. Its Highflex™ PVC outer jacket in combination with other high-grade materials guarantee a great flexibility, long service life span and accurate signal transmission under all circumstances. The conductor section of 19 AWG is constructed using 7 strands of high purity copper with a thickness of 0,345 mm, resulting in an overall section of 0,65 mm² surrounded by a foamed polyethylene isolator. The dual braided overall shielding consists of two individual layers with a coverage percentage of 95%, guaranteeing the best possible immunity against noise and interference. Compatible with Neutrik NBNC75BRU11.
Brief specifications
| Housing | |
|---|---|
| Color | Zwart |
| Cable | |
|---|---|
| Number of cores x cross-section | BC 7 x 0.345 mm (Ø) (OFC) |
| Outer jacket | PVC 7 mm (Ø) |
| Nominal impedance | 75 Ω ± 3 Ω |
