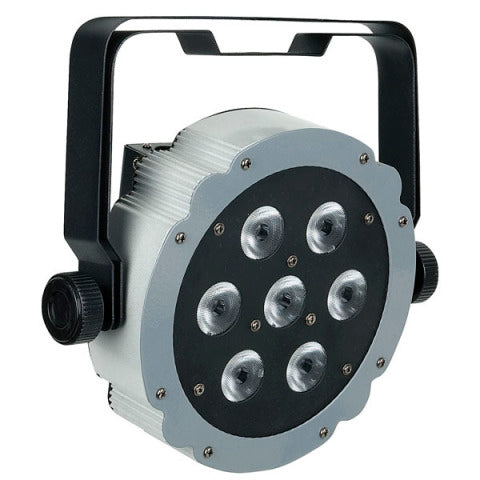

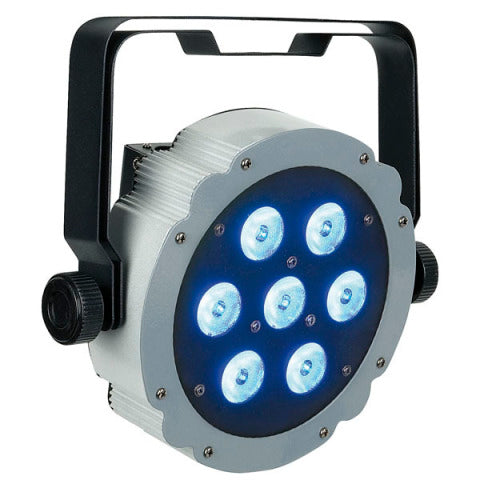

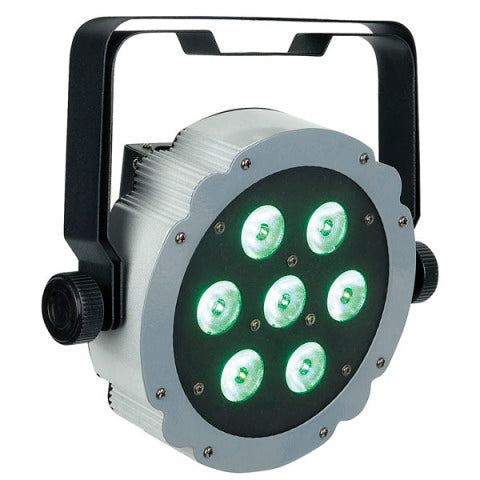

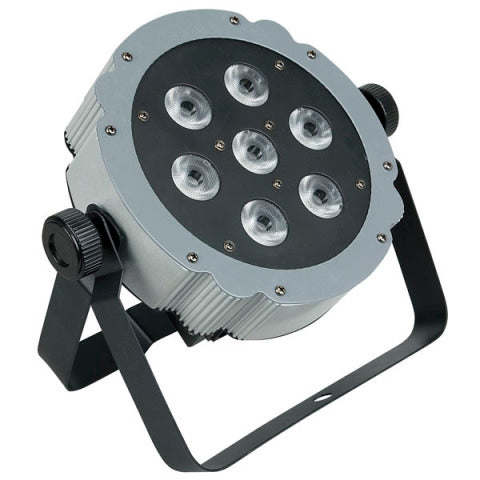

The Showtec Compact Par 7 Q4 is a RGBW parcan in a compact housing. It is the successor of the popular Compact par 7 Tri with 7x 4-in-1 RGBW LEDs. Due to its compact design it saves a lot of space for transportation and also in use. It offers Standalone programs with Master slave possibilities, DMX control and sound to light functions. For small applications the Compact Par 7 4405Tri has a Master Slave modus.

FEATURES

• 7x 4W LEDs

• RGBW 4-in1 Colormix

• Flat stylish design

• Double bracket

SPECIFICATIONS

Output

• Lux @2m: 2201

Light Source

• LED System: 7 x 4W RGBW LED

• Drive Current: 330mA

• Refresh rate: 7,8KHz

Electrical

• Power Supply: 100-240V AC

• Power Consumption: 32W

Control

• Control Mode: DMX512, Sound, Stand-alone, Master/slave

• DMX channels: 4,6,11

Optical system

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Beam Angle: 15°

Physical

• Dimensions: 275 x 95 x 260 mm

• Weight: 2,14 kg

• Housing: Aluminum and Iron

• Color: Black

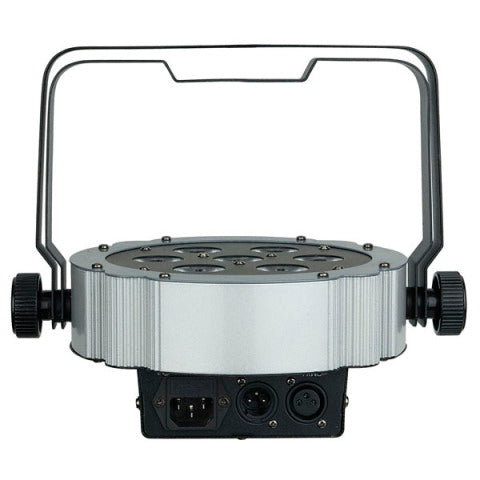

• Power Connectors: IEC

• Data Connectors: XLR 3pole

• Cooling: Aluminum heat sink

Certification and Safety

• Certification: CE

• Max. ambient Temp.: 40°C
