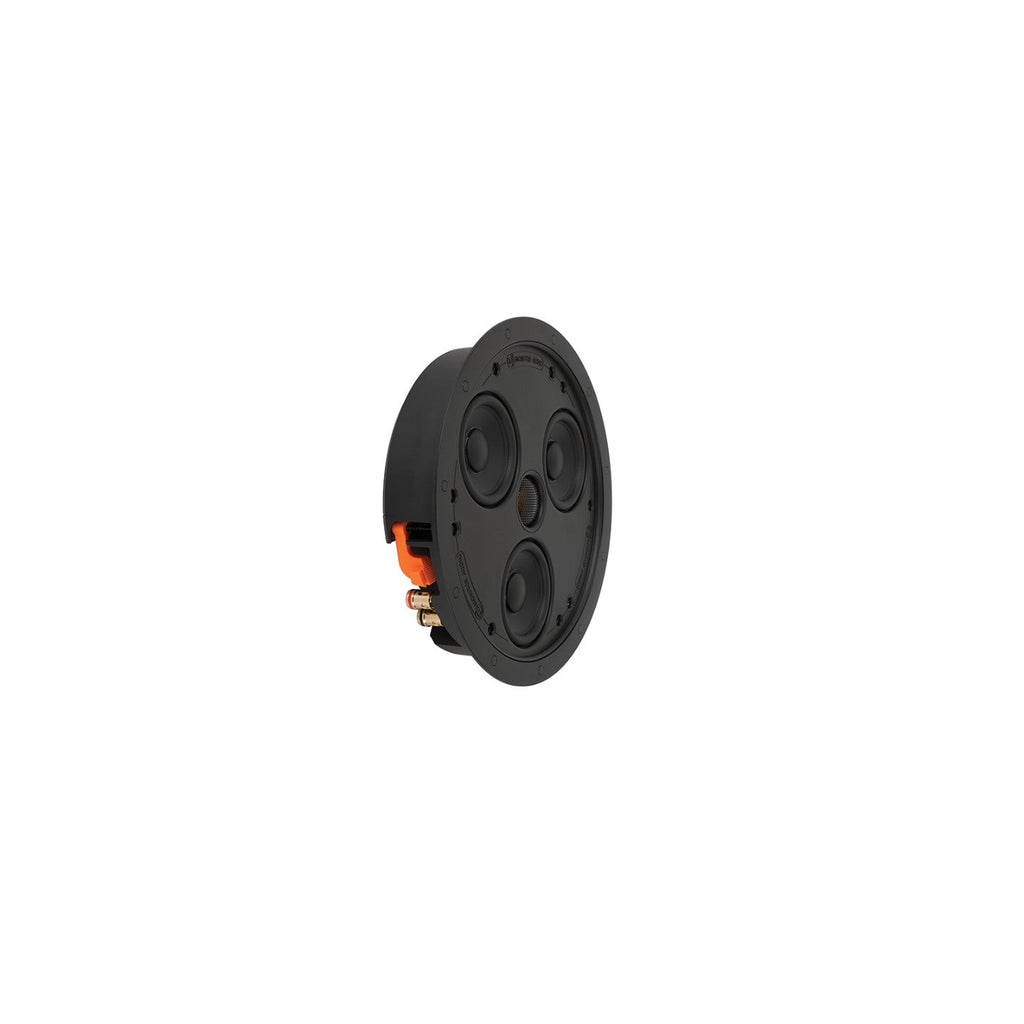

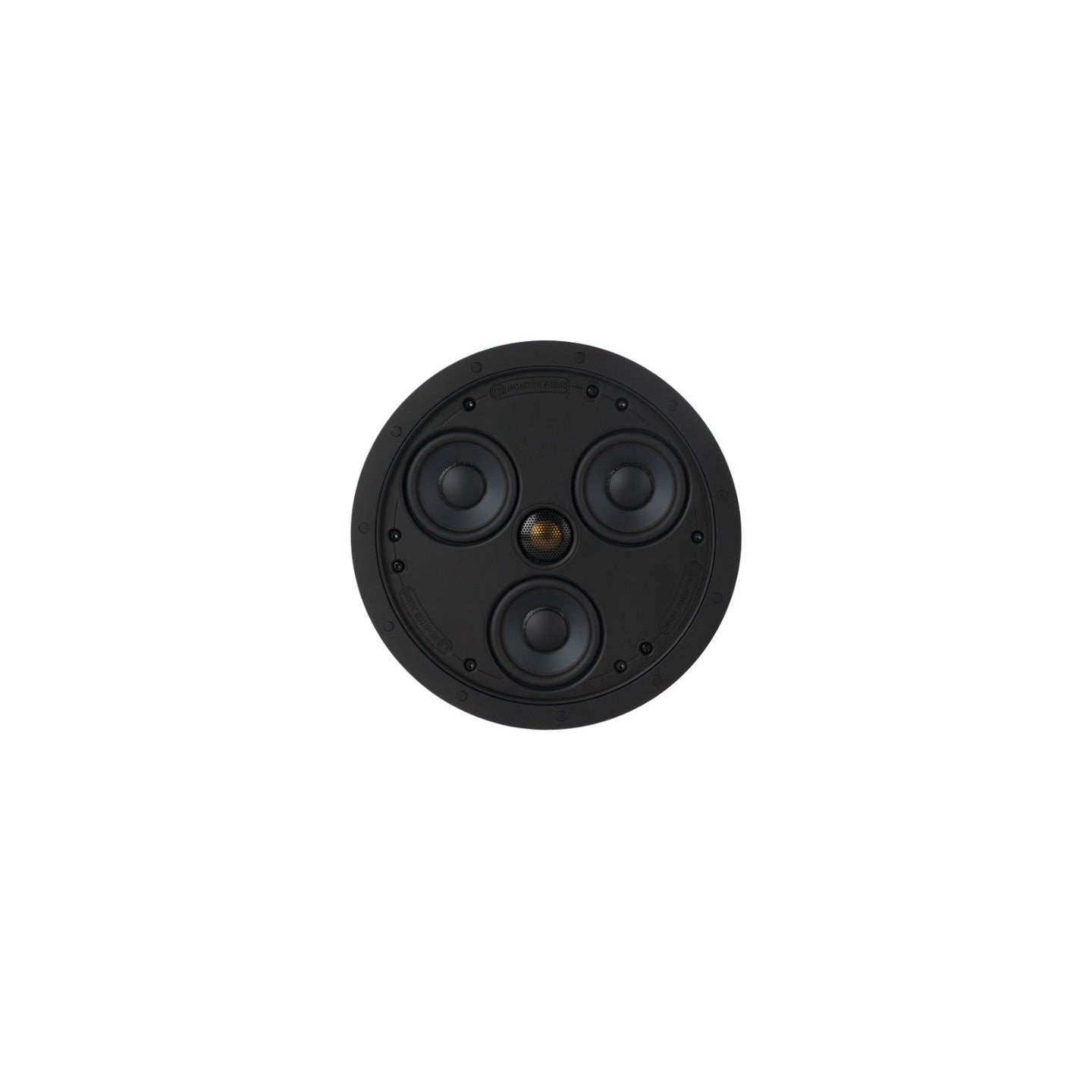

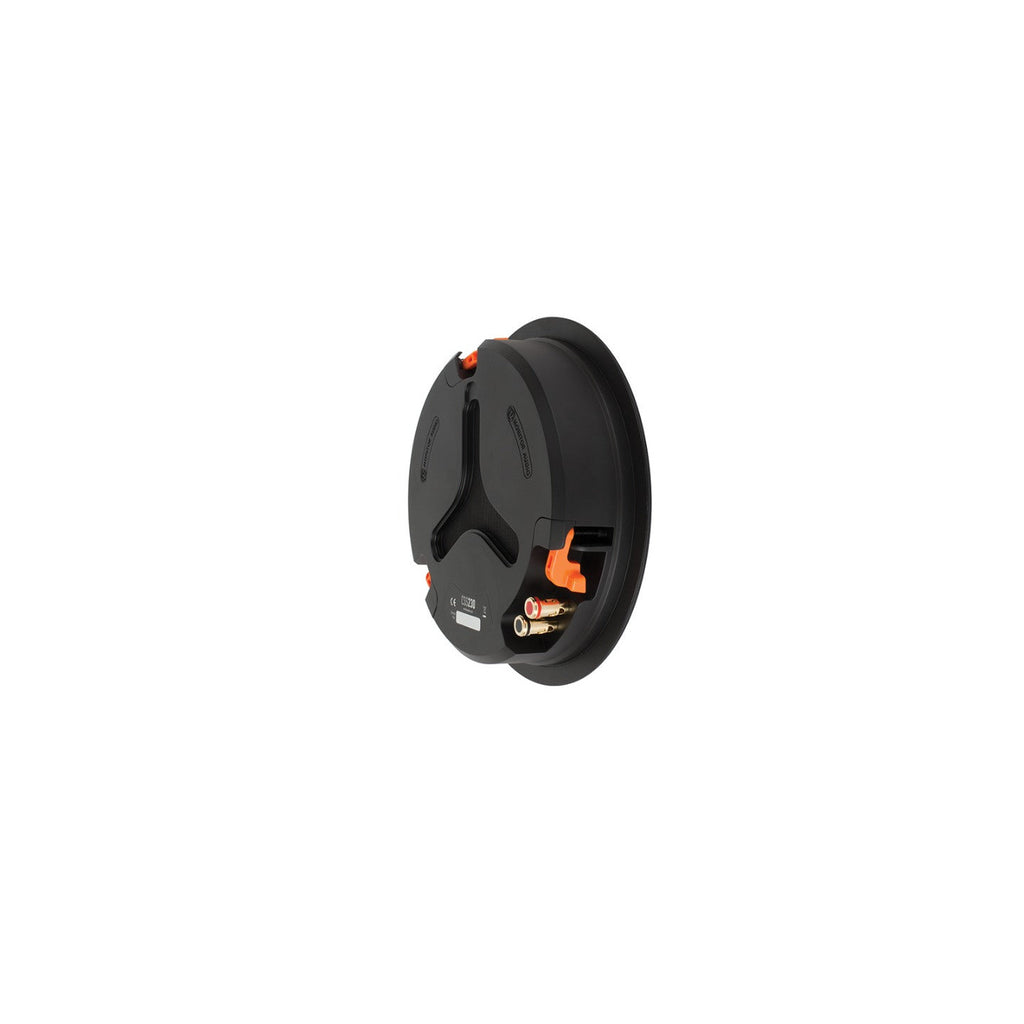

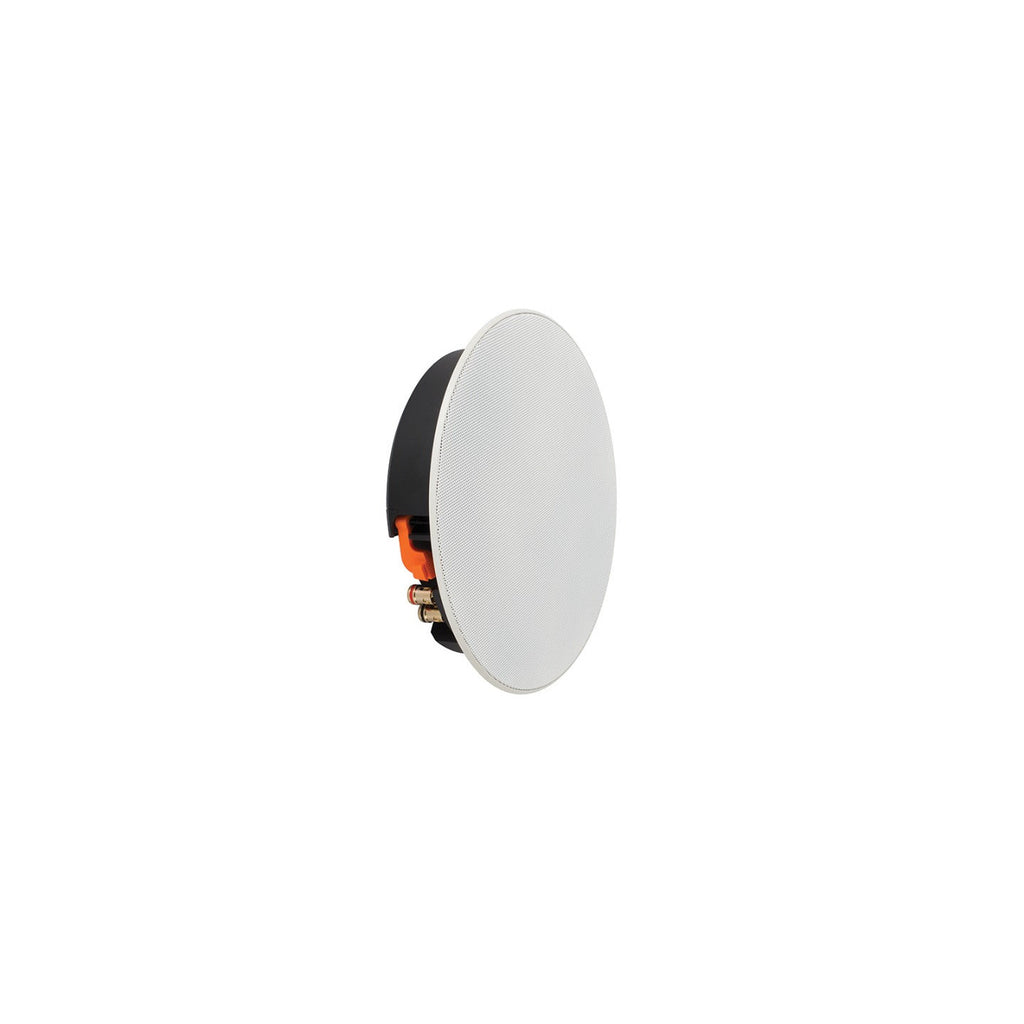

CSS230 Ceiling speaker Monitor Audio (a Piece)
CSS230 Ceiling speaker Monitor Audio (a Piece)
This super slim loudspeaker is specially designed for applications with limited cavity depth. With a depth of only 50 mm, it fits perfectly where other speakers do not. The loudspeaker can be easily installed with 5 cm long nails, or where the pipe system, wiring and air conditioning pipes restrict mounting.
Delivery
S2Store Genk (BE)
Pros and Cons
Description
CSS230 Ceiling speaker Monitor Audio (a Piece)
CSS230 Ceiling speaker Monitor Audio (a Piece)
This super slim loudspeaker is specially designed for applications with limited cavity depth. With a depth of only 50 mm, it fits perfectly where other speakers do not. The loudspeaker can be easily installed with 5 cm long nails, or where the pipe system, wiring and air conditioning pipes restrict mounting.
Brief specifications
| Housing | |
|---|---|
| Dimensions | Buitenmaat: 251.7mm x 93.5mm Uitzaag diameter: 211mm |
| Depth | 50 mm (montagediepte) | 54 mm (Totale diepte, inclusief rooster) |
| Weight | 2.88 kg |
| Construction material | ABS (UL94 rated, RoHS2 Compliant) – geverfde stalen grill |
| Sound | |
|---|---|
| Frequency response | 100 Hz – 30 kHz sealed ‘CP’ (85 Hz – 30 kHz –open back) |
| Sensitivity | 86 dB (1W@1M) |
| Impedance | 8 ohms (nominaal) |
| SPL | 103.8 dBA Max |
| Power | |
|---|---|
| RMS power | 40 Watt – Full range (60 watt met crossover op 100 Hz @ 12 dB/Octave) |
| Features | |
|---|---|

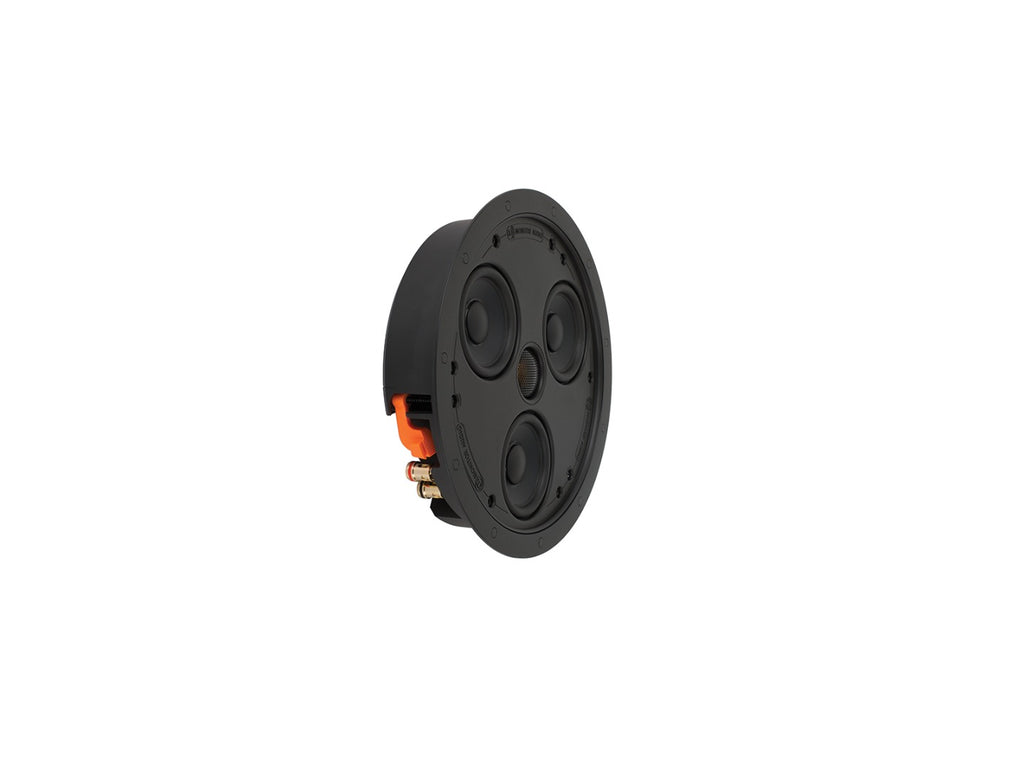

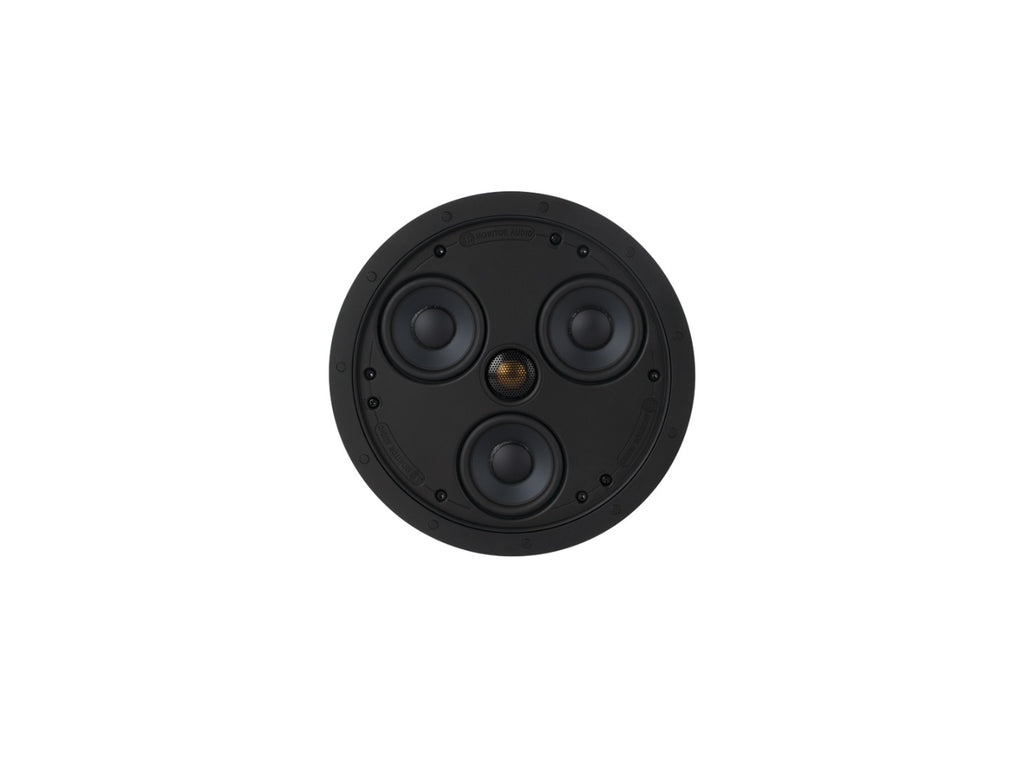

| Driver units | 3 x 3" C-CAM cone bass-mid drivers 1 x 19 mm (3/4") C-CAM Gold Dome tweeter |
