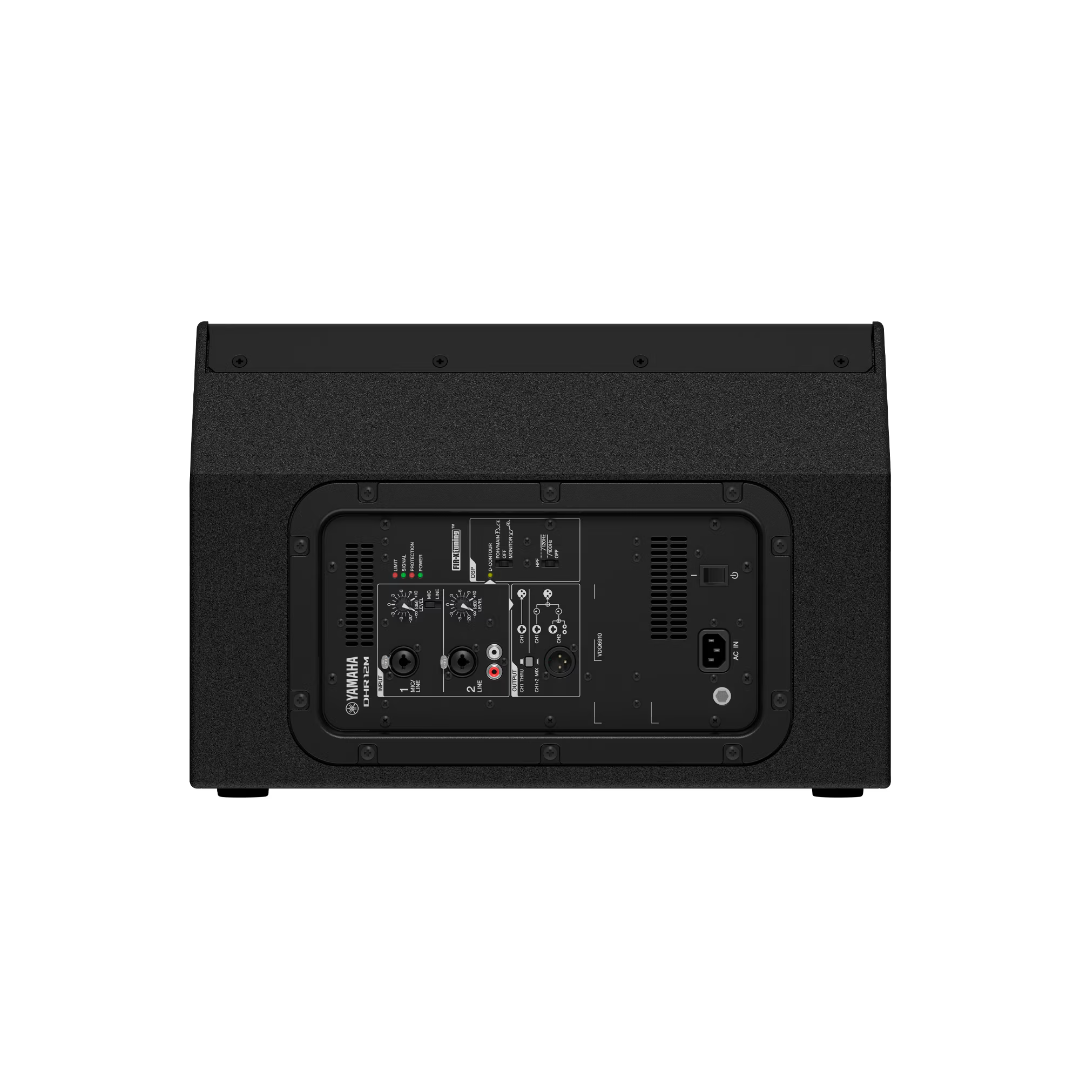

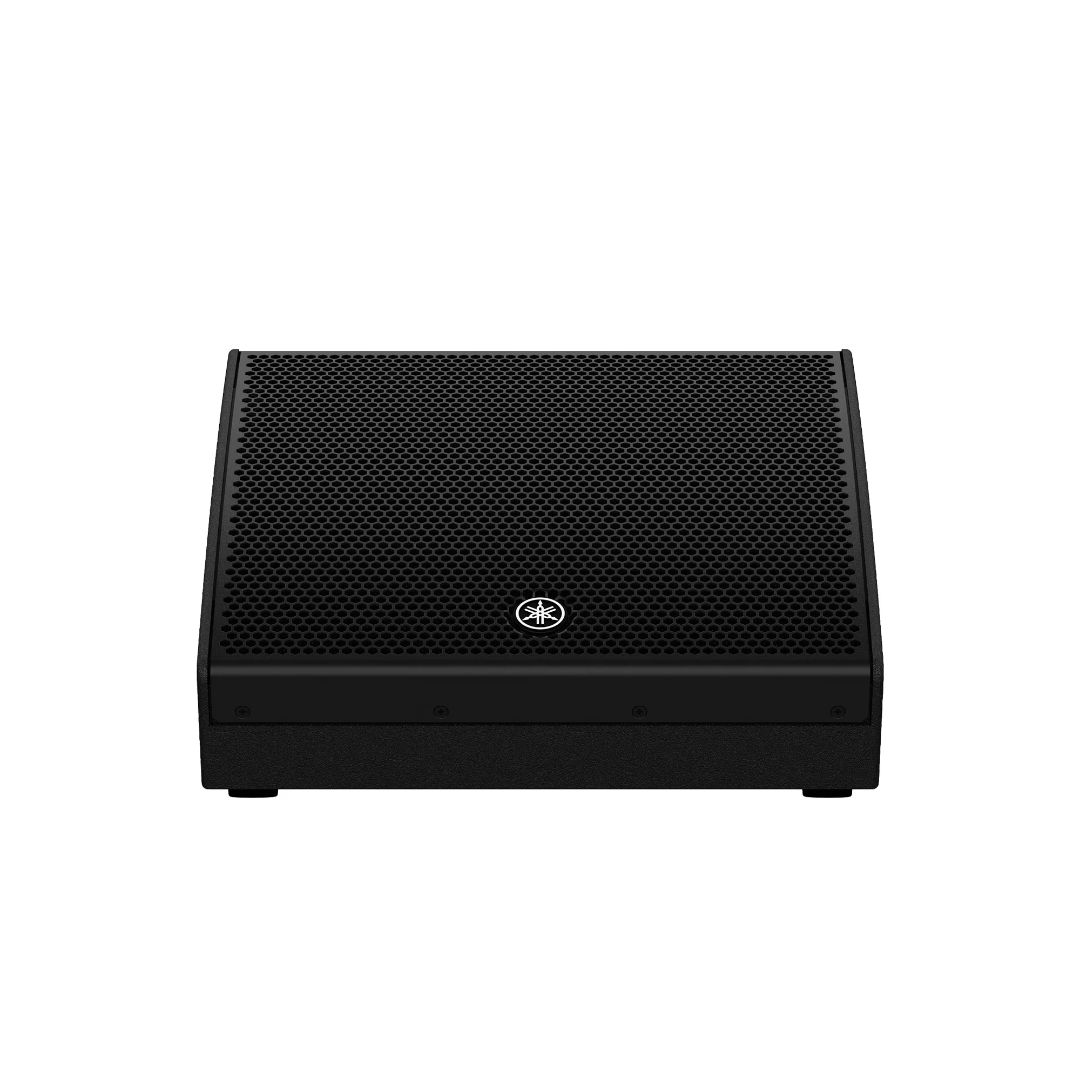

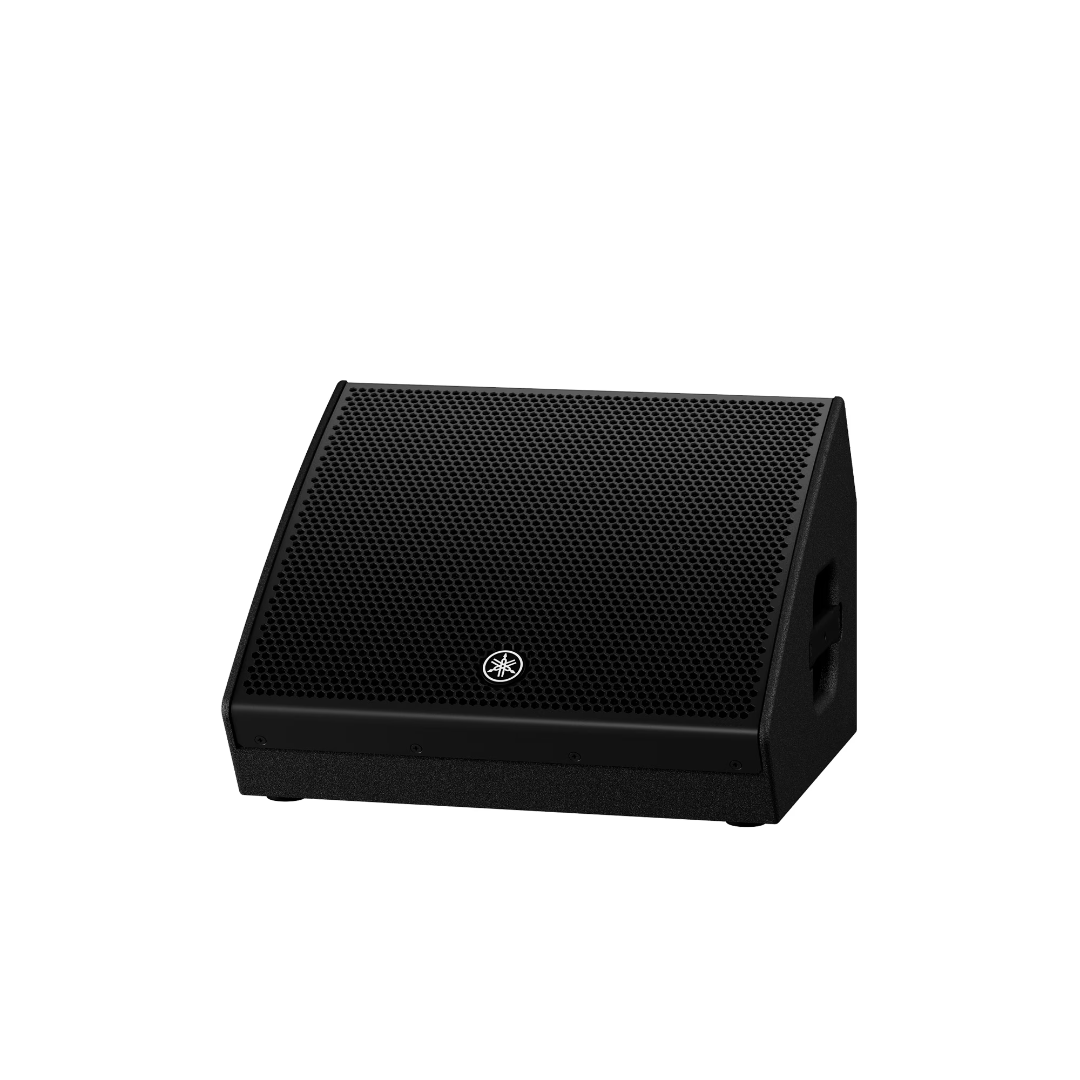

DHR12M Yamaha Floor Monitor
DHR12M Yamaha Floor Monitor
The DHR12M is a 2-way bi-amp powered loudspeaker with a 12-inch woofer and a 1.75-inch HF driver in a space saving coaxial configuration, perfect for use as a floor monitor. Combining a 1000W amplifier and high performance DSP with the same plywood construction found on Yamaha’s high-end DZR Series, the DHR12M offers best-in-class sound quality and durability.
- The coaxial driver delivers precise, smooth phase and frequency response characteristics ideal for use in monitoring applications
- Featuring a plywood cabinet that delivers a clear sound with minimal vibration
- Compact, low profile, plywood enclosure with a polyurea coating for a robust, scratch-resistant surface
- A pole socket for use on a stand
- Proprietary FIR-X™ tuning, provides FIR filtering and corrective EQ, minimizing phase distortion
Brief specifications
| Housing | |
|---|---|
| Dimensions | 500 x 343 x 545 mm |
| Weight | 16.5 kg |
| Construction material | Multiplex |
| Sound | |
|---|---|
| Frequency range | 55 Hz - 20 kHz |
| HF driver | 1.75 inch |
| LF driver | 12 inch |
| Beam angle | H 90 ° x V 90 ° |
| Power | |
|---|---|
| HF power | 200 W (65 W Continue) |
| LF power | 800 W (400 W Continue) |
| Max SPL sound pressure level | 129 dB |
| Amplifier class | D |
| Digital I/O | |
|---|---|
| Conversion resolution | 24 bit 48 kHz Sampling |
