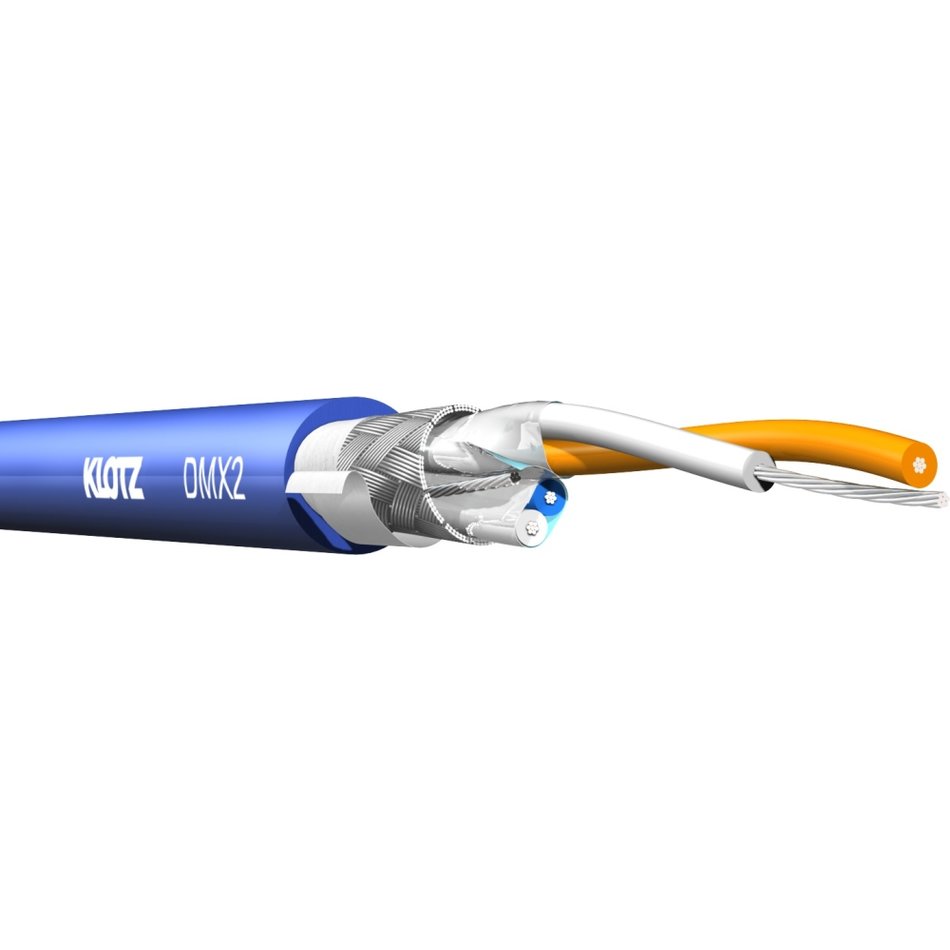

DMX2 2 PAIR BLUE KLOTZ / ROL 100M
Regular price
€459,00
Unit price
per
DMX2 2 PAIR BLUE KLOTZ / ROL 100M
This two-pair digital cable with a characteristic impedance of 110 ohm not only provides for the standard unidirectional DMX link between the control unit and dimmers but also the transmission of optional error and status signa...
All product information
Approx. 3-7 business days
S2 Ref: DMX2.100
Delivery
Approx. 3-7 business days
S2Store Genk (BE)
Approx. 3-7 business days
Related products
In stock (1)
Regular price
€135,00
Unit price
per
In stock (1)
Regular price
€299,00
Unit price
per
In stock (2)
Regular price
€188,00
Unit price
per
Pros and Cons
Description
DMX2 2 PAIR BLUE KLOTZ / ROL 100M
DMX2 2 PAIR BLUE KLOTZ / ROL 100M
This two-pair digital cable with a characteristic impedance of 110 ohm not only provides for the standard unidirectional DMX link between the control unit and dimmers but also the transmission of optional error and status signals in the opposite direction. So this cable is also HIGHLY suitable for RDM compatibility.
Technical Specification:
Construction
|
cond. construction
|
stranded tinned copper, 7 x 0.20 mm
|
|
cond. cross section
|
0.22 mm2
|
|
insulation
|
Foam-Skin PE
|
|
pair shielding
|
AL/PET foil
|
|
drain wire
|
stranded tinned copper, 7 x 0.20 mm
|
|
overall shield
|
tinned copper braid, 85% coverage
|
|
outer jacket
|
PVC
|
|
overall diameter
|
8.0 mm
|
Mechanics
|
min. bending radius
|
35 mm
|
|
working temperature
|
-20°C / +70°C
|
Electric:
|
conductor resistance
|
< 85 Ω/km
|
|
Capacitance
|
|
|
cond./cond.
|
47 pF/m
|
|
characteristic impedance
|
110 Ω
|
|
Attenuation [dB/100m]
|
|
|
1 MHz
|
2.3
|
|
3 MHz
|
3.9
|
|
10 MHz
|
6.9
|
|
insulation resistance
|
> 10 GΩ x km
|
|
Test voltage
|
|
|
cond./cond.
|
1200 V
|
|
cond./shield
|
500 V
|
