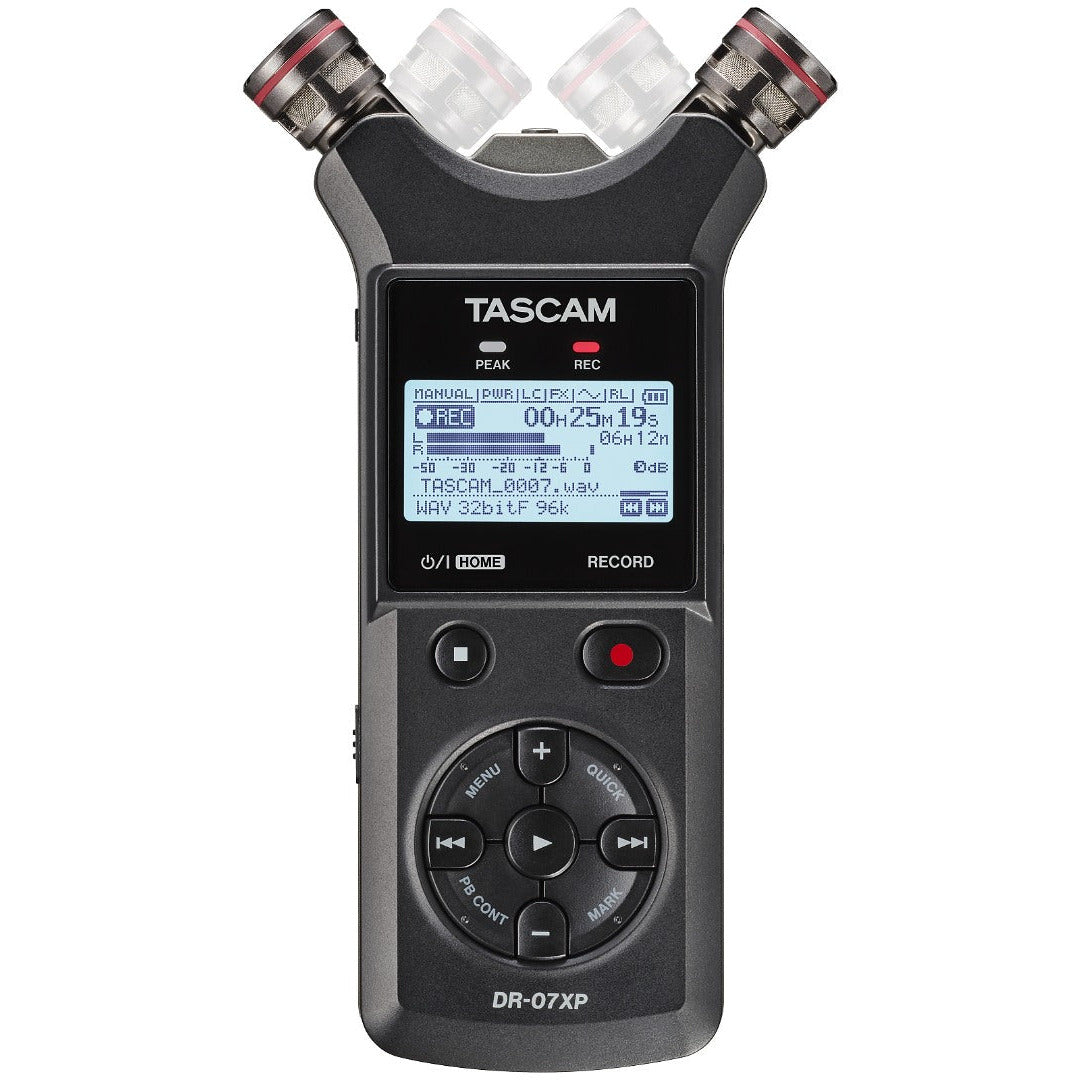

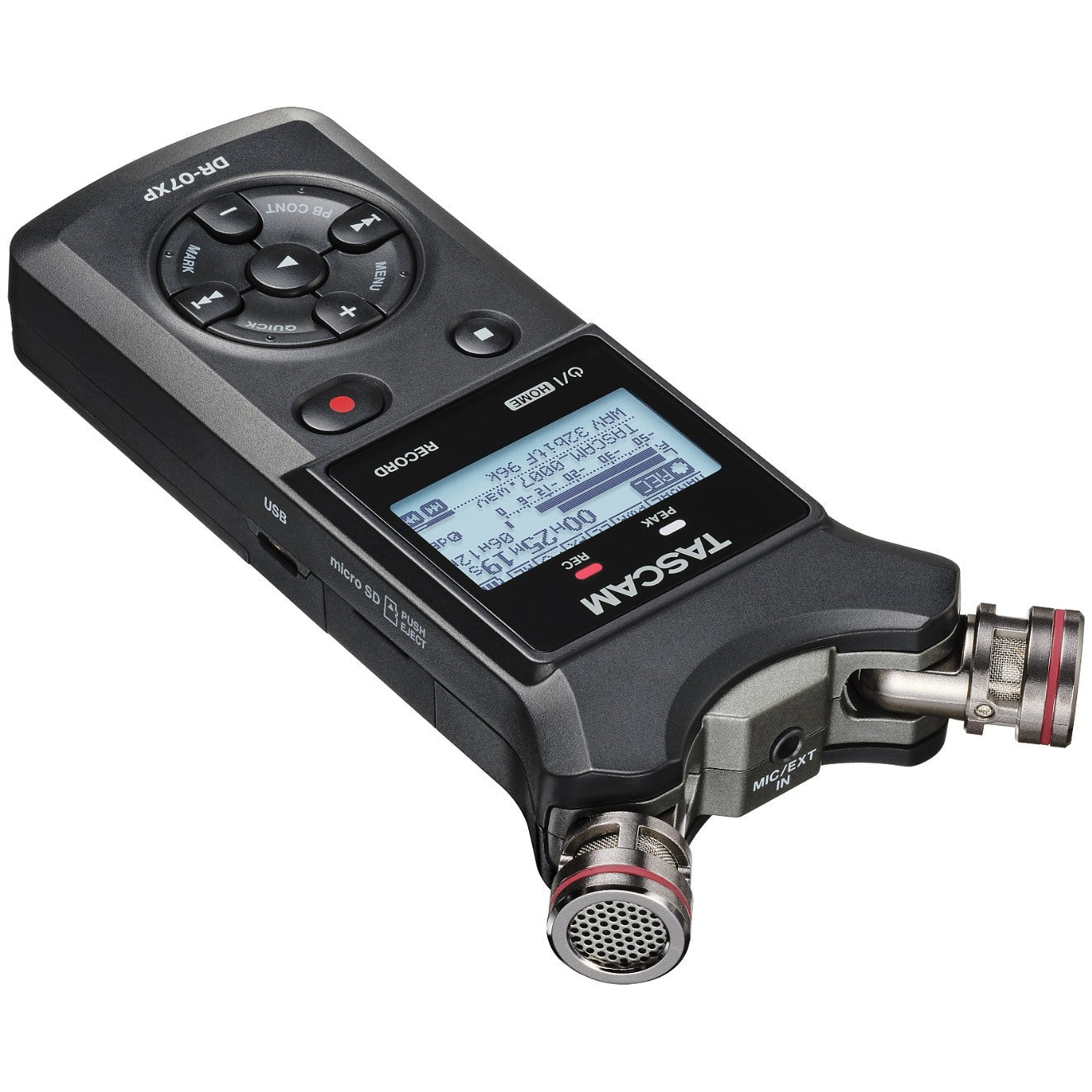

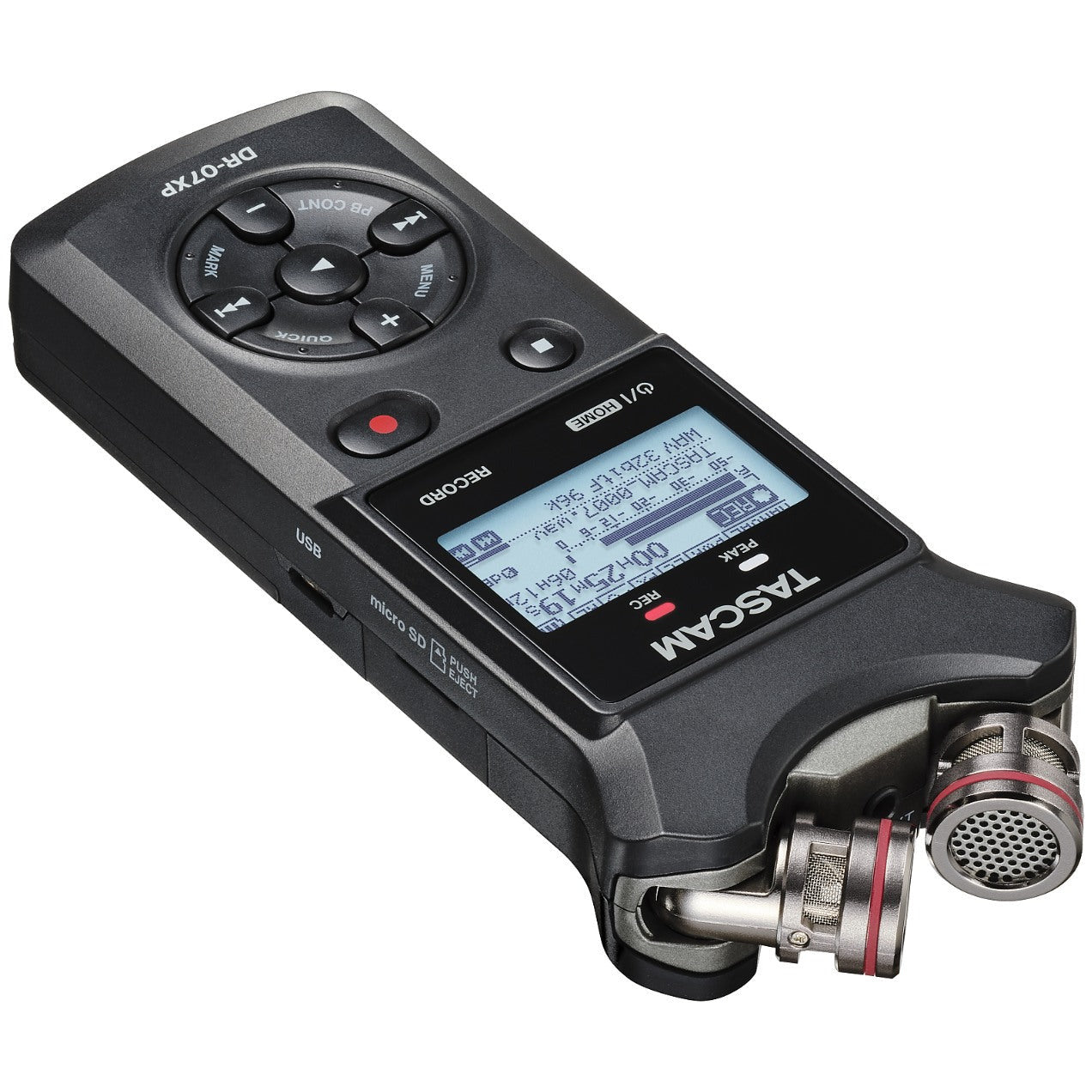

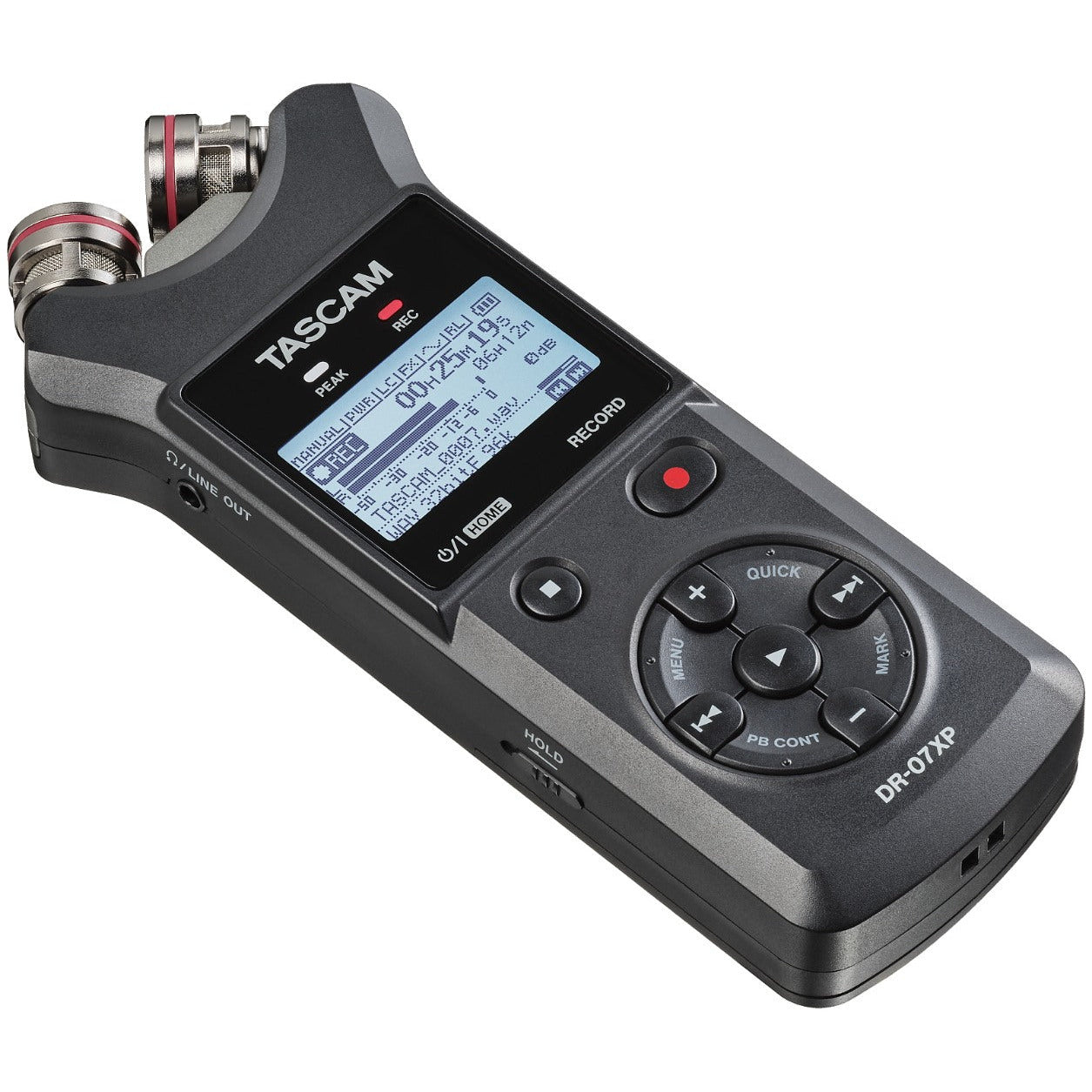

DR-07XP Tascam Stereo Handheld Audio Recorder With USB Audio Interface and Adjustable Microphones

The DR-07XP portable handheld recorder makes it easy to capture pro-quality recordings for music, audio-for-video, meetings, dictation and more. With 32-bit float recording mode, you’ll never need to worry about setting audio levels, and adjustable stereo condenser microphones give you full control over your sound.

With easy one-handed operation, the DR-07XP makes it simple to start recording with minimal setup time.

Features at a glance

• Two-channel portable handheld audio recorder with microSDXC card storage
• 32-bit float resolution ensures low-noise, distortion-free recordings
• Built-in condenser microphones handle loud environments and sources (up to 125 dB SPL)
• 2-in/2-out USB-C audio interface for recording directly to your computer
• More than 17 hours operation with two AA alkaline batteries
• Supported audio formats:

           - Linear PCM (WAV/BWF) at 32-bit float, 24 bit, 16 bit (sampling rates 96 kHz, 48 kHz, 44.1 kHz)

           - Compressed (MP3): 32–320 kbit/s at 44.1/48 kHz (VBR files can be played but not recorded)

Recording

• Cardioid stereo condenser microphones, easy to set up in either AB or XY configuration
• XY configuration allows mono compatible recordings and high sound localization acuity (lively interviews or field recordings with ambience)
• Switchable filter to minimise unwanted low-frequency noise (40 Hz, 80 Hz, 120 Hz, 220 Hz)
• Manual recording level setting for music and field recording
• Three options of automatic level control during recording: Peak Reduction, Auto Level, Limiter
• Auto-recording function to automatically start recording based on input level
• Marks can be added automatically when using the automatic recording function
• Overwrite function for punch-in recording with one level of Undo
• Overdub function for non-destructive overdubbing
• Dictation mode designed for human voice recording and transcription
• Pre-recording buffer (2 seconds) allows a recording to start before the record key is pressed
• Self-timer allows a recording to start 5 or 10 seconds after pressing the RECORD button
• A new file can be created manually during recording or automatically when a certain file size is reached
• Set marks to quickly locate certain audio positions (up to 99 per file)
• Automatic tone generator convenient when editing with video on other equipment
• Stereo mic/line input with plug-in power to connect an external source or microphone
• File name format can be set to use a predefined word or the date

Playback

• Automatic level align prevents uneven playback levels
• Variable speed audition to change the playback tempo without affecting the key (50–200 %)
• Repeat/loop function (repeat one track, all tracks or a marked section, convenient for practicing music and studying languages
• Playlist feature to play files in a certain order
• Resume function retains the last stop position and starts playback from that position when power is turned back on
• Jump back function to instantly review playback (1–10, 20, 30 seconds)
• Equalizer for tone control during playback
• MP3 ID3 tag display (up to version 2.4)
• Built-in loudspeaker
• Headphones/Line output

Other features

• Built-in reverb effect (6 presets, can be applied to input or output signal)
• Chromatic tuner function to tune your instrument
• QUICK menu button for easy access to various functions
• File divide function to cut unwanted noise or to extract parts from long recordings
• Folder management to organize your files
• Hold function to avoid inadvertent operation
• Menu language can be selected between English, German, French, Italian, Spanish, Portuguese, Korean, Japanese, Chinese, Russian
• Clear, backlit LC display
• USB 2.0 port for file transfer to/from computer (USB-C type)
• Power supply by 2 AA size Alkaline or NiMH batteries, USB bus power or optional AC adapter (Tascam PS-P520U)
• Stand adapter (¼ inch) on bottom side to attach the unit to a tripod or microphone stand
