EVOX J11 RCF Active Column Speaker (Black)
EVOX J11 RCF Active Column Speaker (Black)
EVOX J11 is an active, portable three-way column system designed for maximum clarity and power in a compact format. A 1.75-inch compression driver combined with a 120° × 40° True Resistive Waveguide provides wide, consistent coverage, while 12 x 3-inch full-range transducers and a powerful 12-inch woofer in a bass reflex enclosure deliv...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
EVOX J11 RCF Active Column Speaker (Black)
EVOX J11 RCF Active Column Speaker (Black)

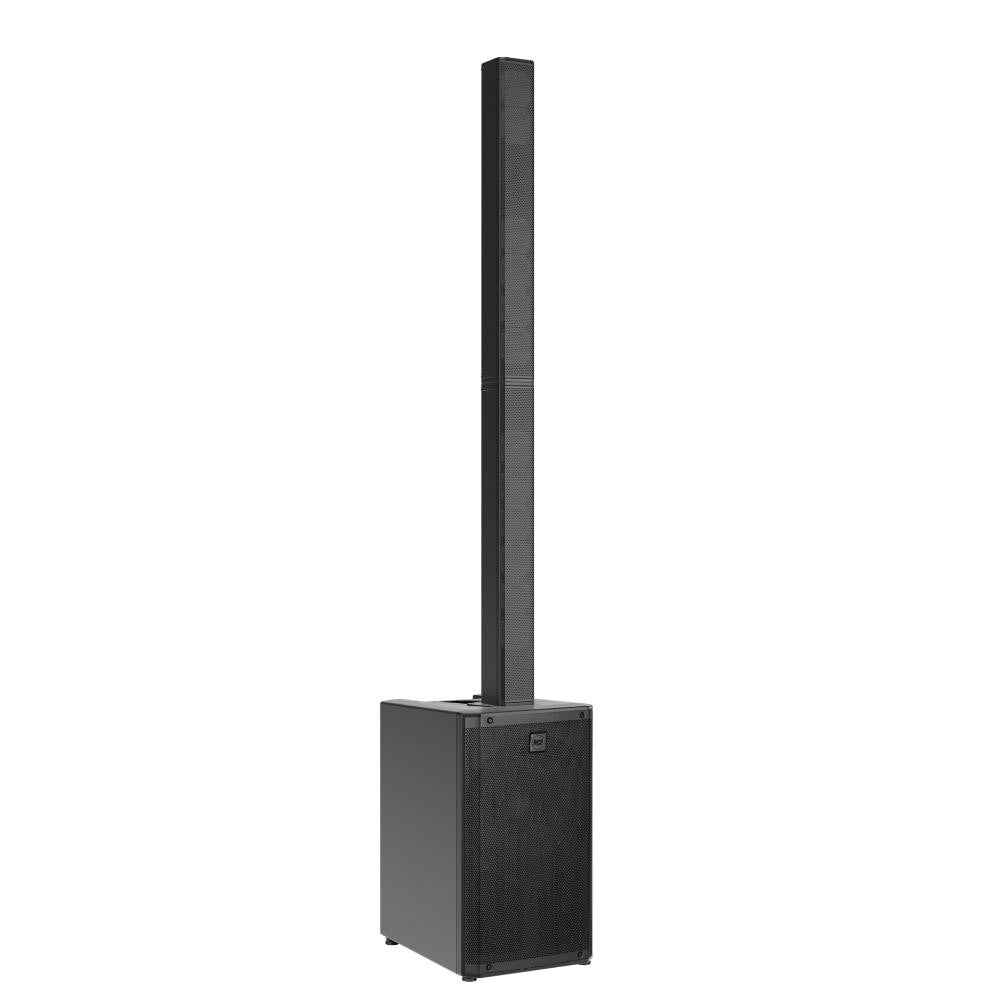

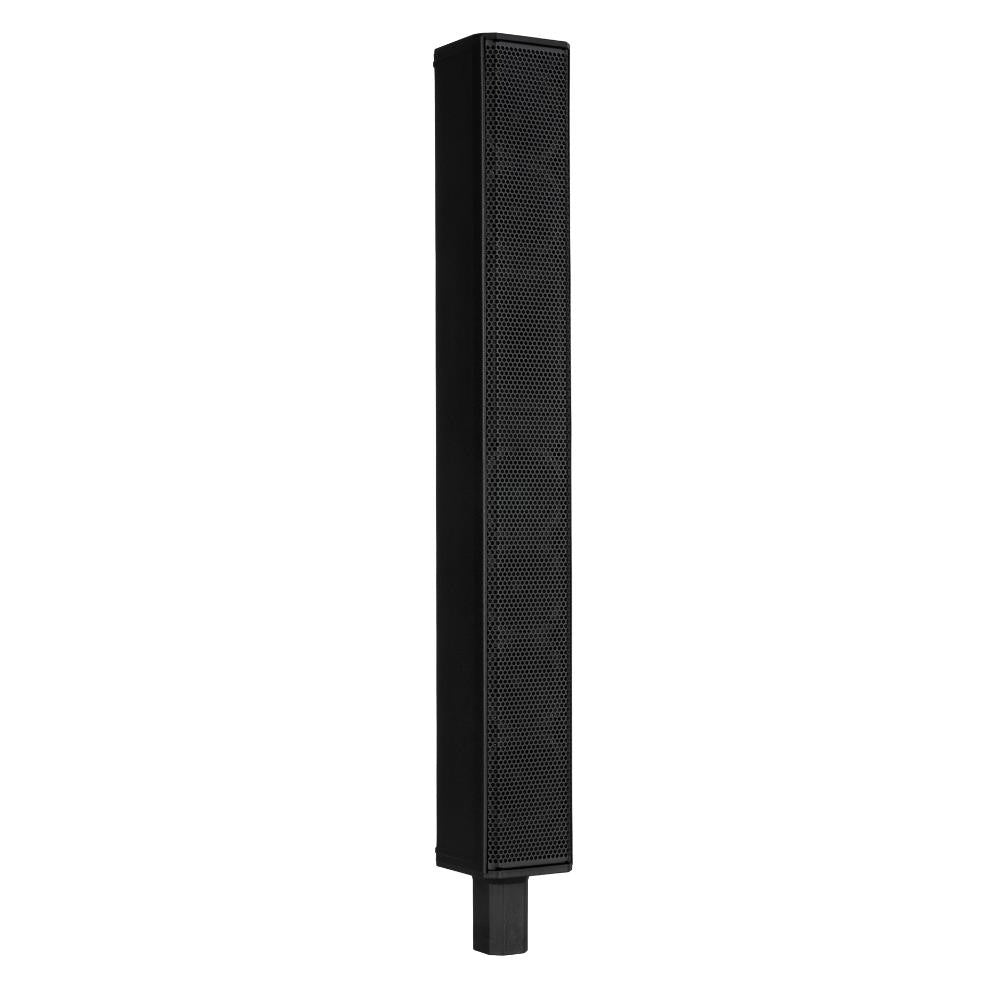

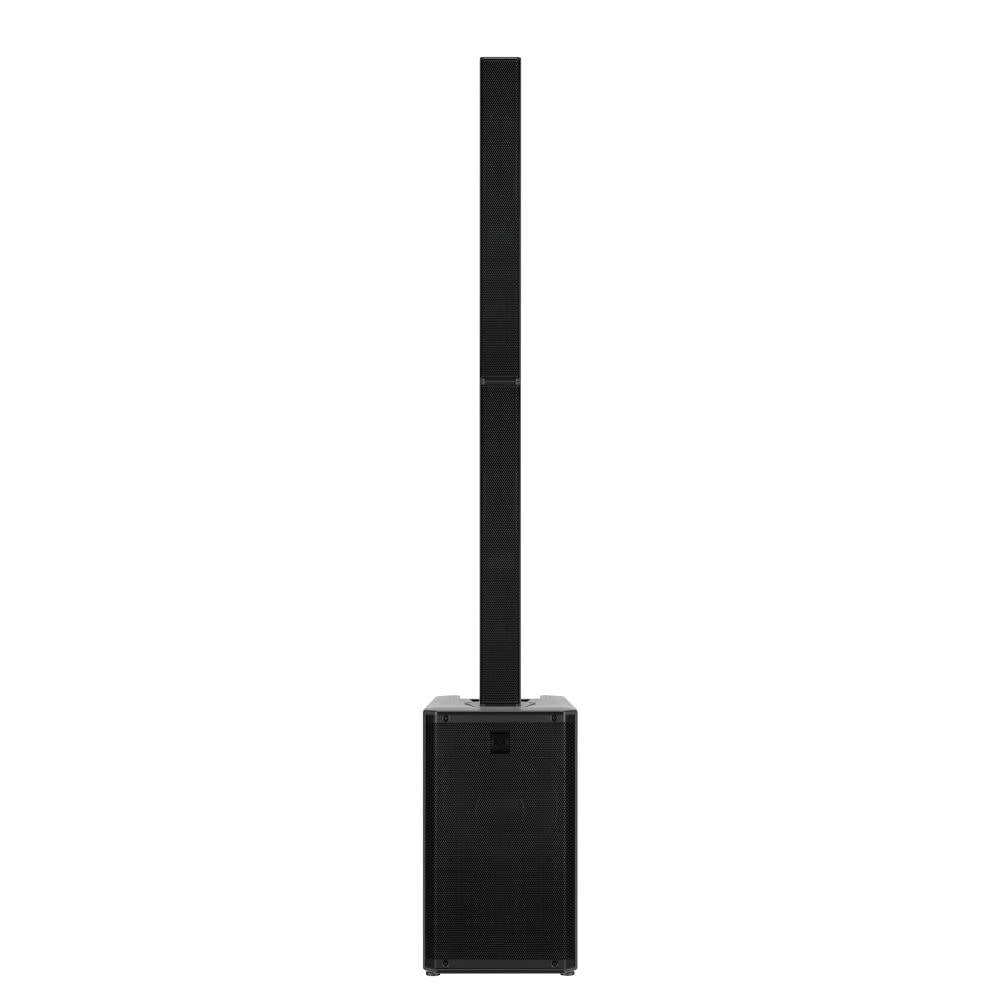

EVOX J11 is an active, portable three-way column system designed for maximum clarity and power in a compact format. A 1.75-inch compression driver combined with a 120° × 40° True Resistive Waveguide provides wide, consistent coverage, while 12 x 3-inch full-range transducers and a powerful 12-inch woofer in a bass reflex enclosure deliver clear midrange and deep, controlled low frequencies. Powered by a built-in 3500 W dual-channel class D amplifier, the EVOX J11 delivers an impressive maximum sound pressure level of 132 dB. As part of the EVOX J series, it combines RCF's tour-grade technology in a sleek, unobtrusive enclosure that offers crystal-clear vocals, a natural musical response and effortless deployability for bands, DJs and live performers.
- 132 dB Max SPL
- 3500 W class D amplifier - Built-in DSP
- 1.75" Neo compression driver - 120° x 40° True Resistive Waveguide
- 12 × 3" full-range Neo transducers
- 12" high-powered woofer
- Enhanced coverage and clarity

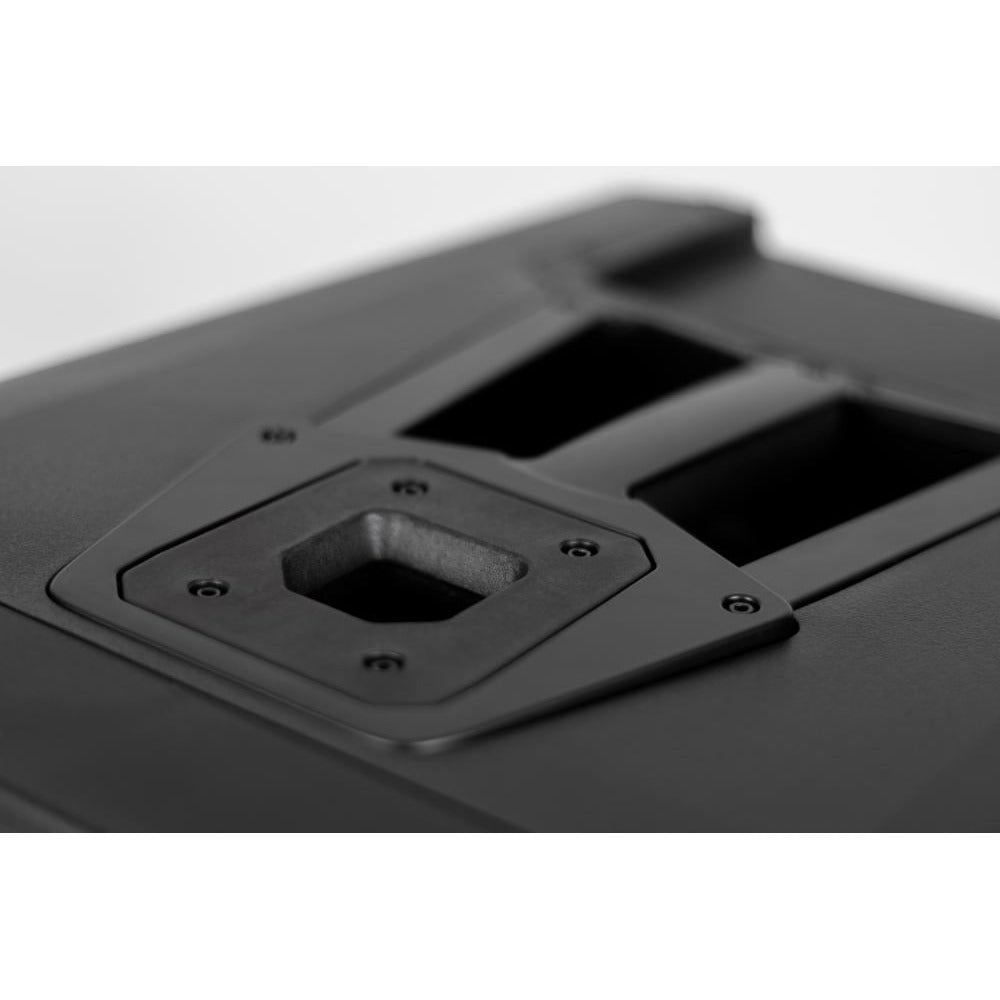

- Composite enclosure with aluminium pole mount
- Sleek, road-ready design

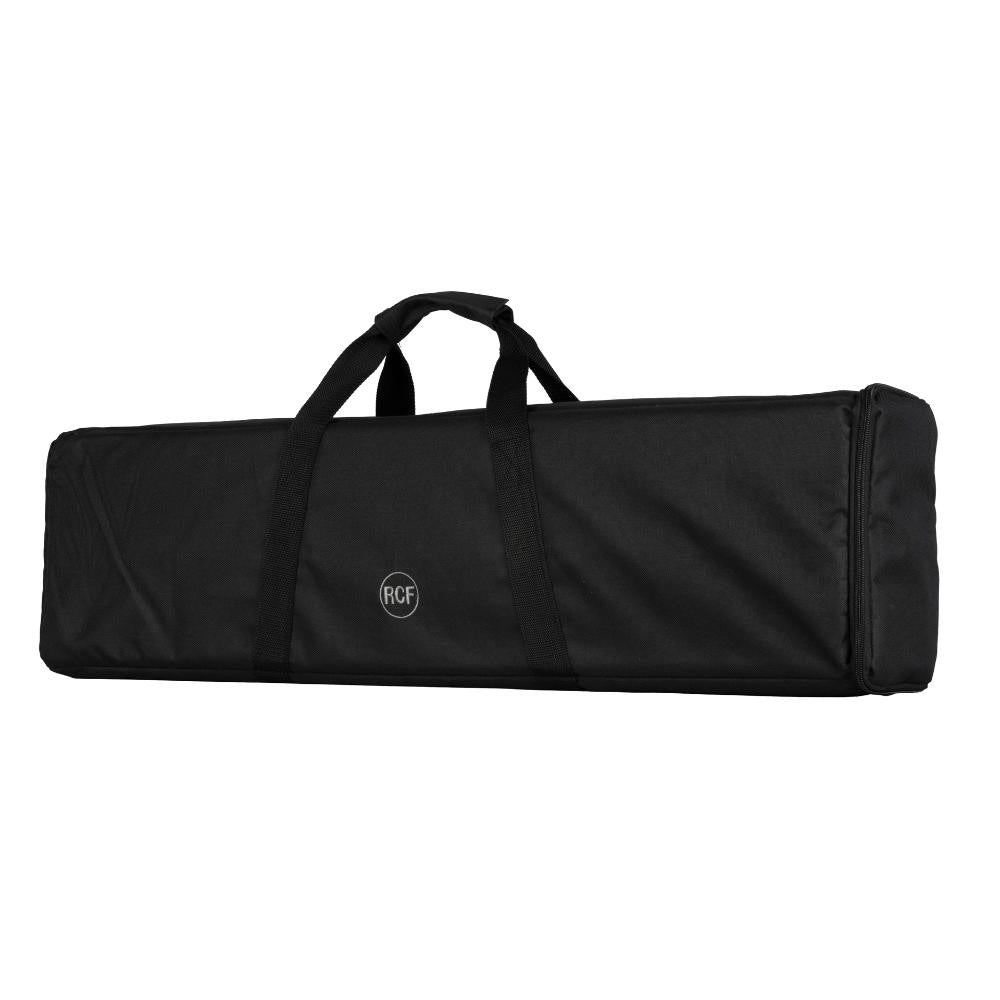

- Includes padded carry bag for the top speaker
Brief specifications
| Housing | |
|---|---|
| Dimensions | 228.5 x 40 x 46 mm |
| Weight | 29 kg |
| Sound | |
|---|---|
| Crossover frequency | 160 Hz/1800 Hz |
| Frequency response | 37 Hz - 20000 Hz |
| HF driver | 1 x 0.75'' neo, 1.75'' v.c |
| LF driver | 1 x 12'', 2.5'' v.c |
| Mid-range driver | 12 x 3.0'' neo, 1.0'' v.c |
| Beam angle | 120 ° H x 40 ° V |
| Power | |
|---|---|
| HF power | 1500 W Piek |
| LF power | 2000 W Piek |
| Max SPL sound pressure level | 132 dB |
| Audio I/O | |
|---|---|
| Audio inputs | Combo XLR/Jack |
| Audio outputs | XLR |
