Helix S5000 Q4 Showtec Ledwasher 40x10W RGBW
Helix S5000 Q4 Showtec Outdoor Ledwasher 40x10W RGBW (CRMX & WDMX)

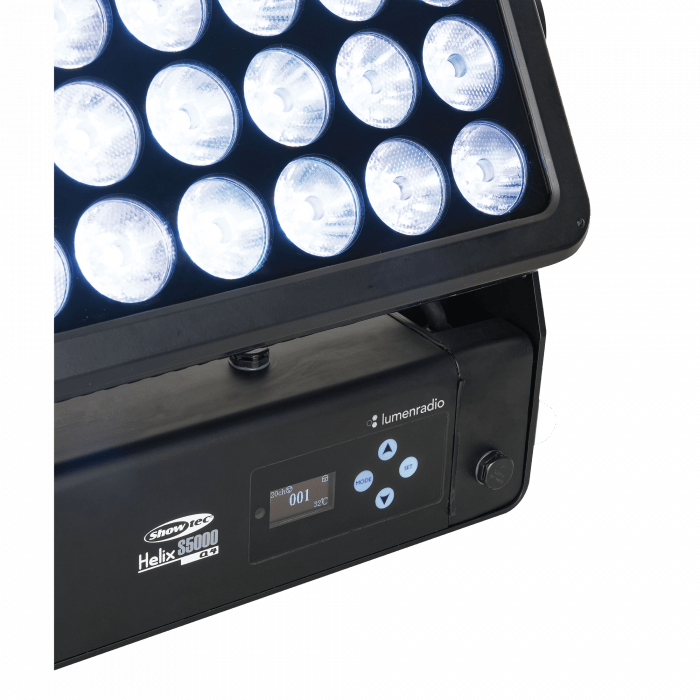

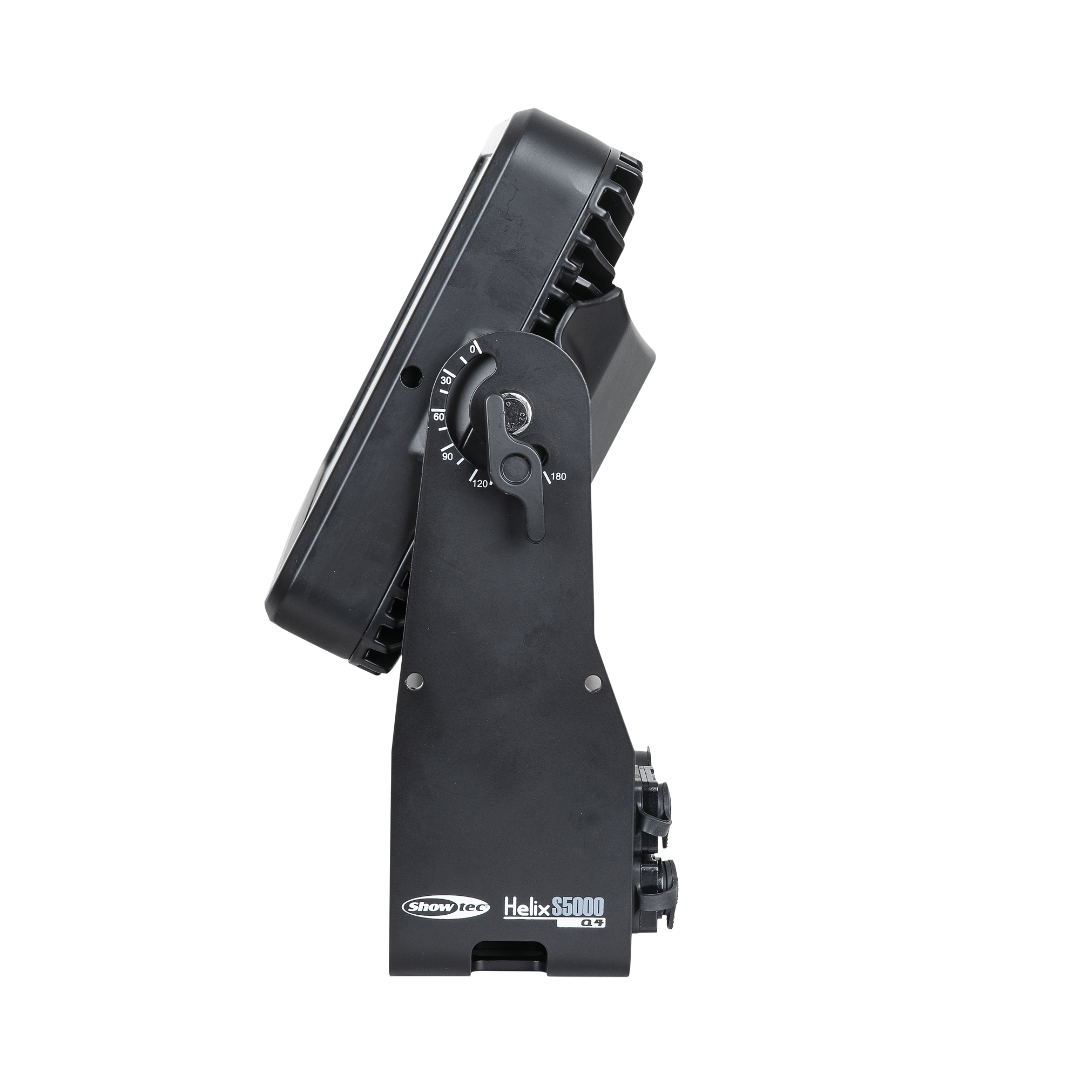

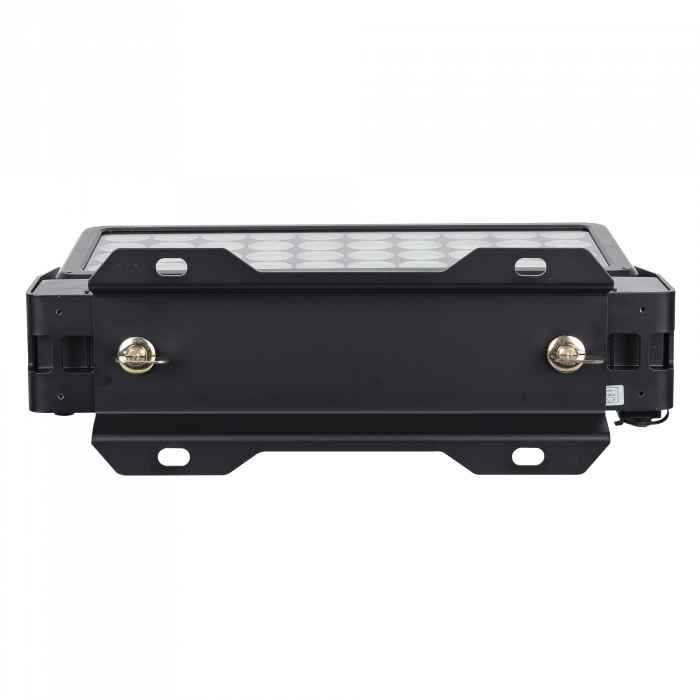

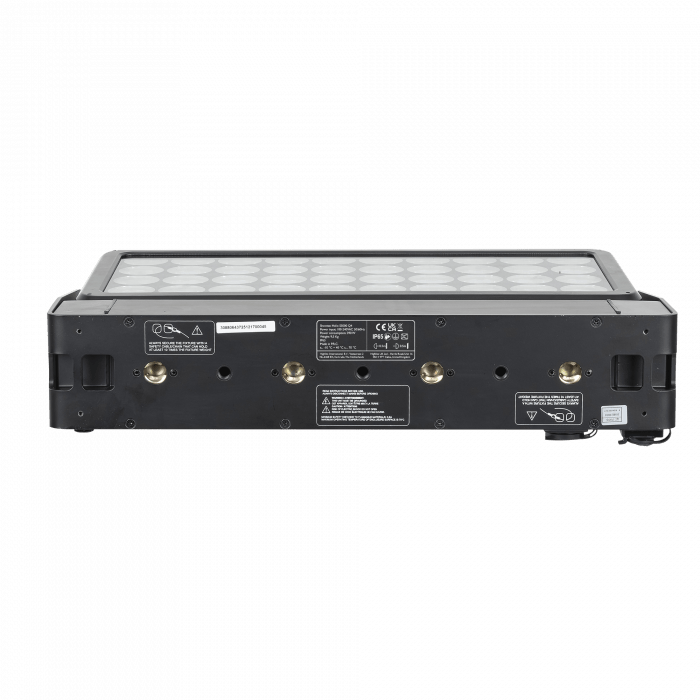

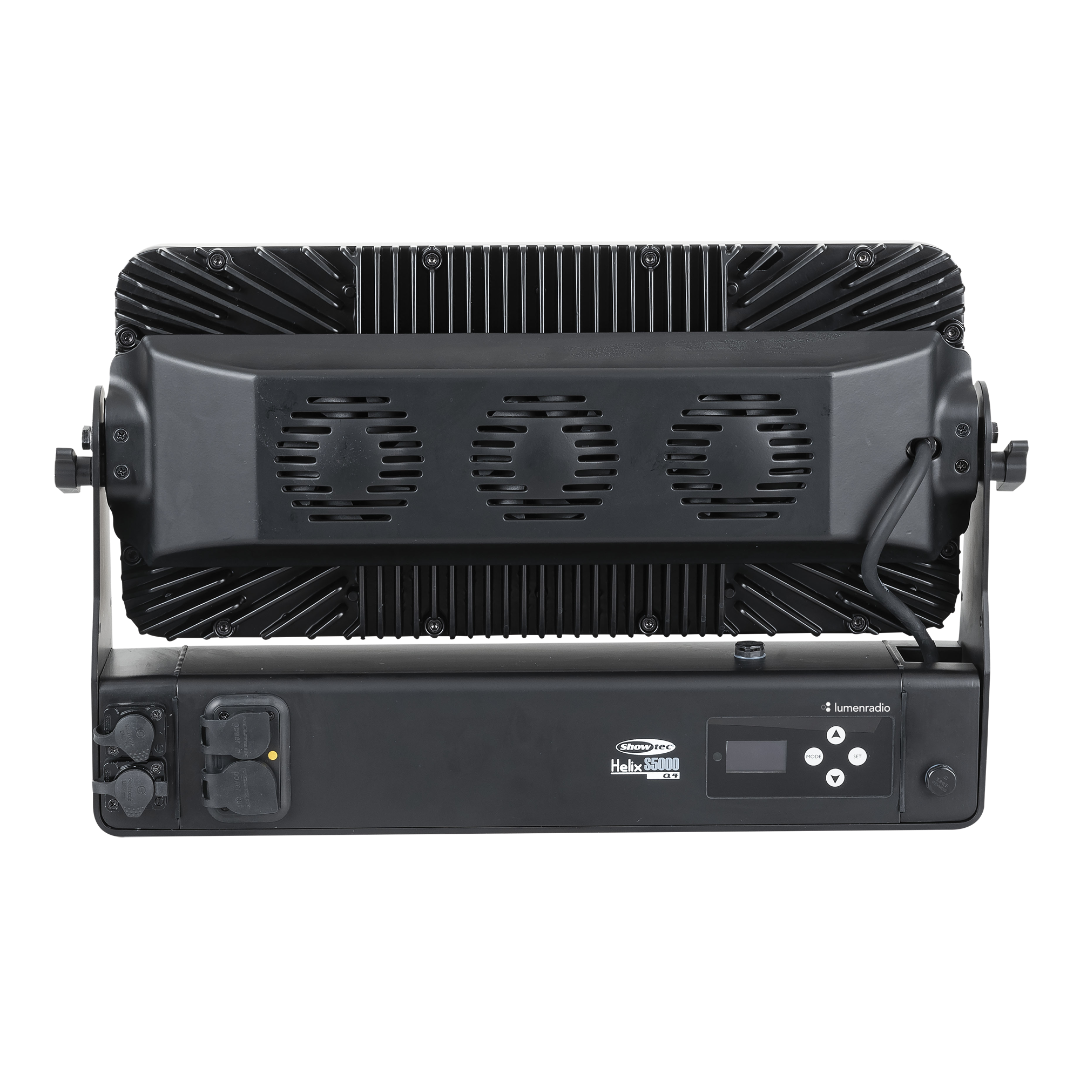

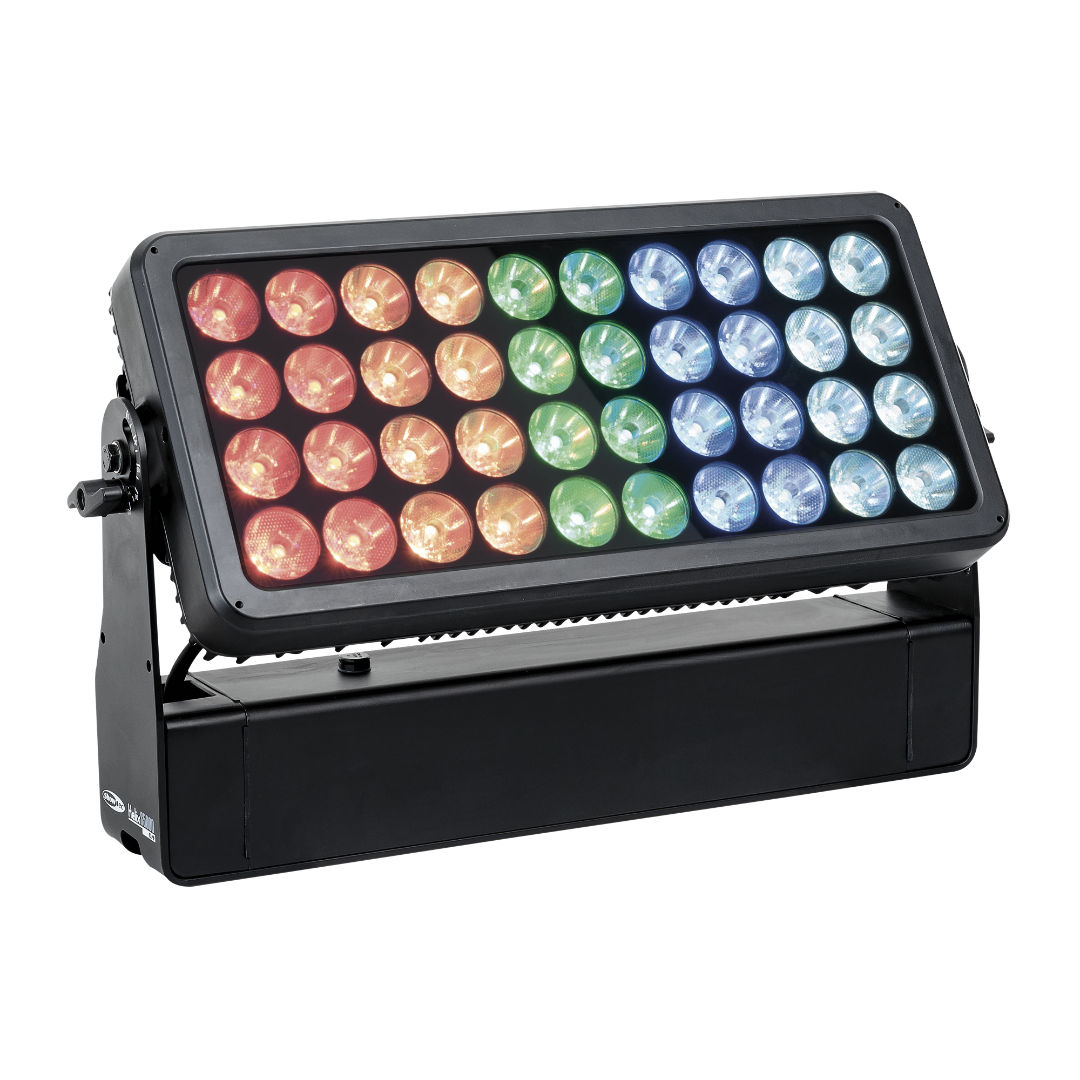

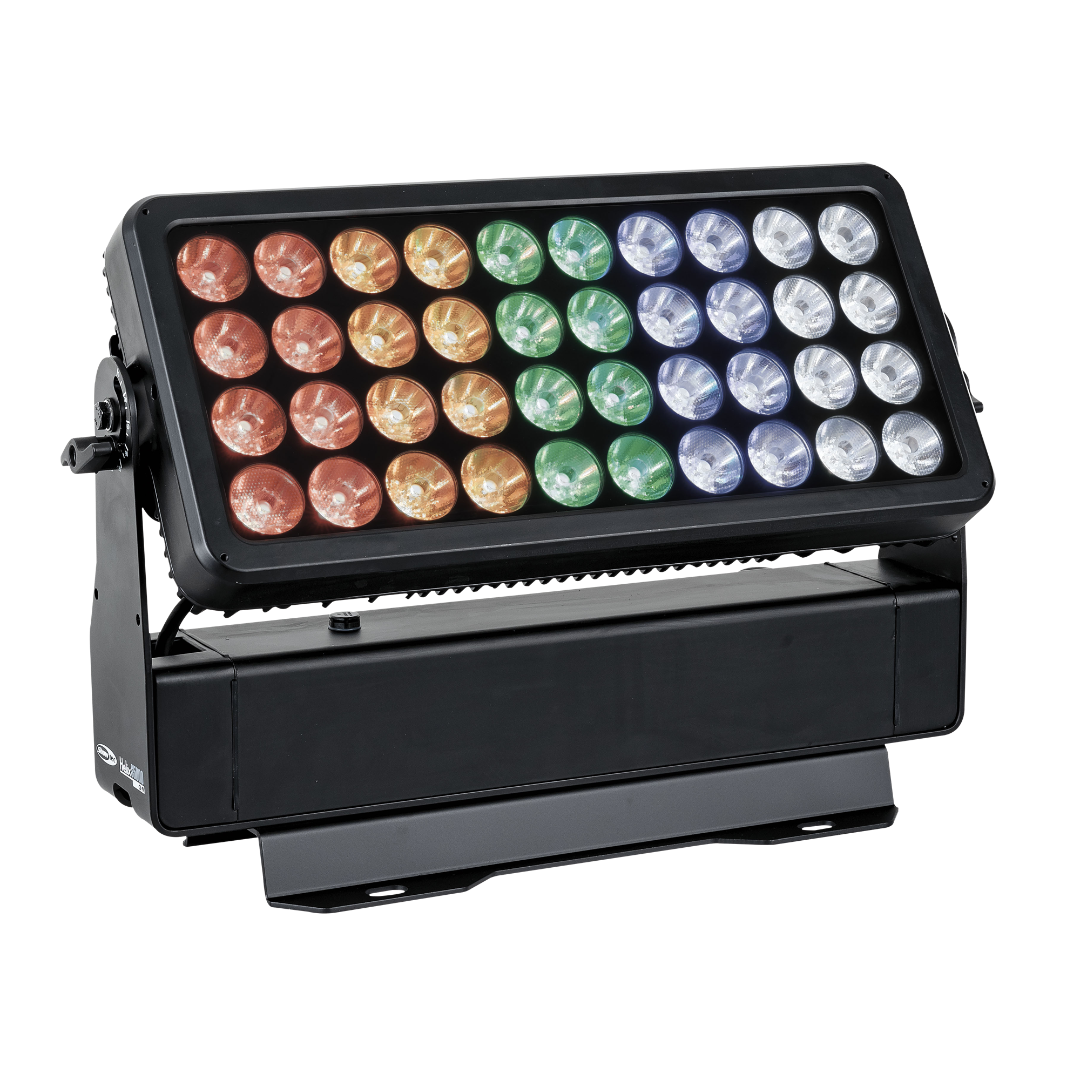

The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creat...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
Helix S5000 Q4 Showtec Ledwasher 40x10W RGBW
Helix S5000 Q4 Showtec Outdoor Ledwasher 40x10W RGBW (CRMX & WDMX)
The Showtec Helix S5000 Q4 is a bright 40x 10 watt RGBW LED Washer with IP65 rating, suitable for outdoor applications. Its 10° beam angle can be widened to a 20°, 40°, 15° x 60° and 90° beam angle by using a dedicated beam shaper. The Helix S5000 Q4 LEDs can be divided into 5 separate sections for creating stunning effects. The Wash can be manually flipped 180° and can be controlled via W-DMX (wireless), DMX and Master/Slave in Manual and Auto-run mode with many built-in programs. The wireless connection is compatible with older fixtures using W-DMX, provided that only one mode (G3) is used. The Helix S5000 Q4 comes with a powerCON True 1 cable, mounting panel, rubber feet and Quick-Lock bracket.
- 40x 10 W RGBW LED Washer
- IP65 (dust and water resistant, fit for outdoor use)
- 10° beam angle
- Optional beam shapers for widening beam angle
- 5-section control
Brief specifications
| Housing | |
|---|---|
| Dimensions | 530 x 330 x 125 mm |
| Weight | 11.5 kg |
| Color | Zwart |
| Construction material | Gegoten aluminium |
| Light source | |
|---|---|
| Type | 40 x 10 W RGBW leds |
| Power supply | |
|---|---|
| Power supply | 100-240 V AC 50/60 Hz |
| Consumption | 415 W |
| Cable | |
|---|---|
| Operating temperature | -10 °C tot 40 °C |
| Connectors | powerCON TRUE1 TOP - DMX Dedicated 5P IP65 In/Out |
| Cable length | 1,5 m |
| Control | |
|---|---|
| Number of DMX channels | 4, 6, 8, 20, 24 (DMX, RDM, CRMX, WDMX) |
| Features | |
|---|---|
| IP ingress protection rating | IP65 |
