IN-EAR SYSTEM U508 IEM HP LD SYSTEMS

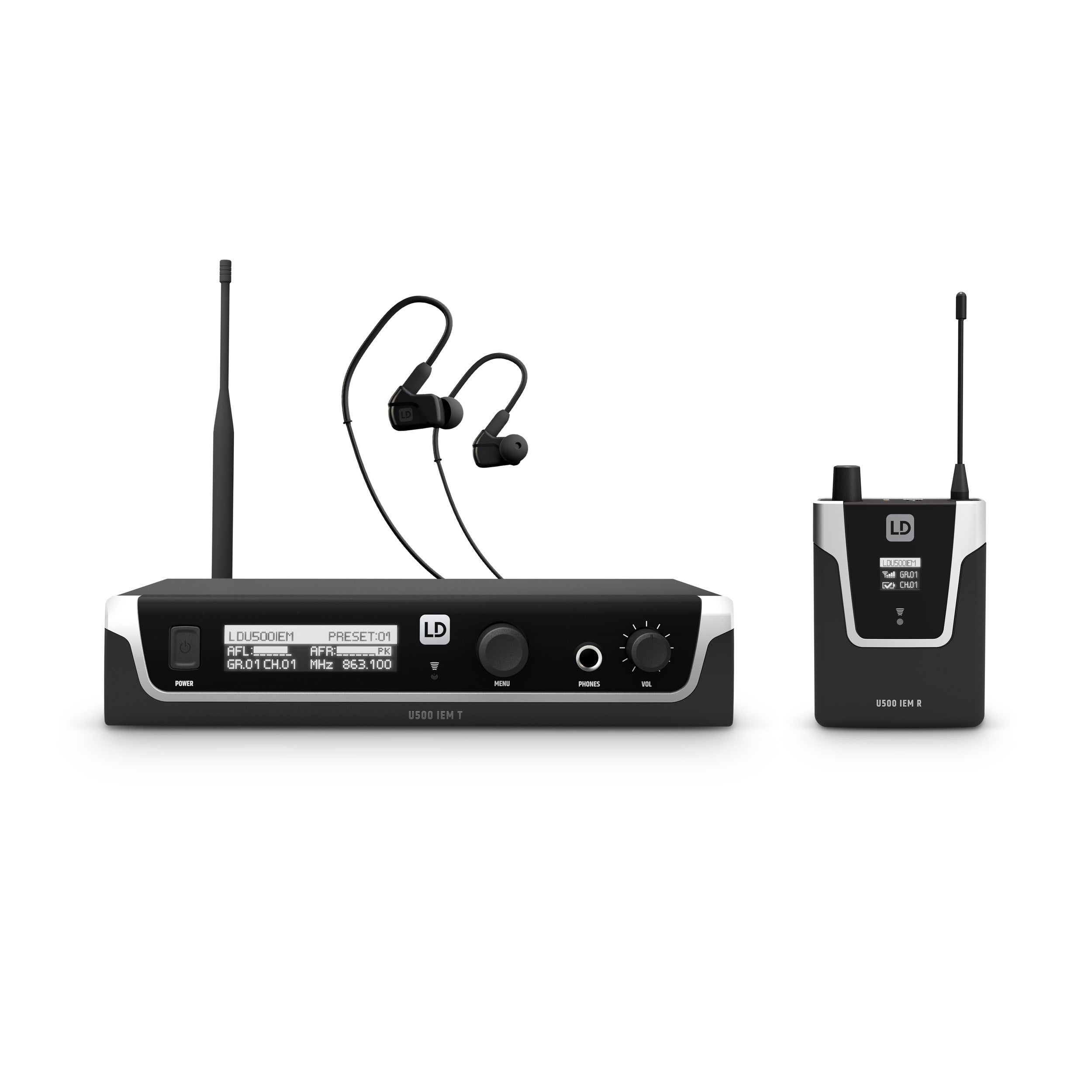

In-ear system U508 IEM HP LD Systems - In-ear monitoring system with earphones (823 MHz - 832 MHz+ 823 - 863 MHz)
The U500® In-Ear Monitoring Systems will certainly exceed your expectations with the outstanding performance and reliability of the U500® In-Ear Monitoring Systems. They are designed with the professional user in mind and feature advanced technology, a contemporary look and straightforward operation.
The U500® In-Ear systems offer a selection of 96 channels and 2, 10 or 30 mW RF output power for a transmission range of more than 100 m. For quick and hassle-free setup, they allow easy infrared synchronisation between transmitter and receiver. U500® In-Ears sport high-contrast OLED displays and allow individual user name assignment. In addition, you can store 10 custom presets.
To deliver pristine, accurate audio, U500® In-Ear Monitoring Systems include a 3-band EQ with parametric mids, a switchable limiter and a squelch circuit. They offer a choice of stereo or mono operation and a direct headphone output for monitoring on the transmitter. They offer a choice of stereo or mono operation and a direct monitor headphone output on the transmitter. With a signal-to-noise ratio of more than 95 dB and less than 0.3% THD, the noise floor of the U500® In-Ear is exceptionally low.

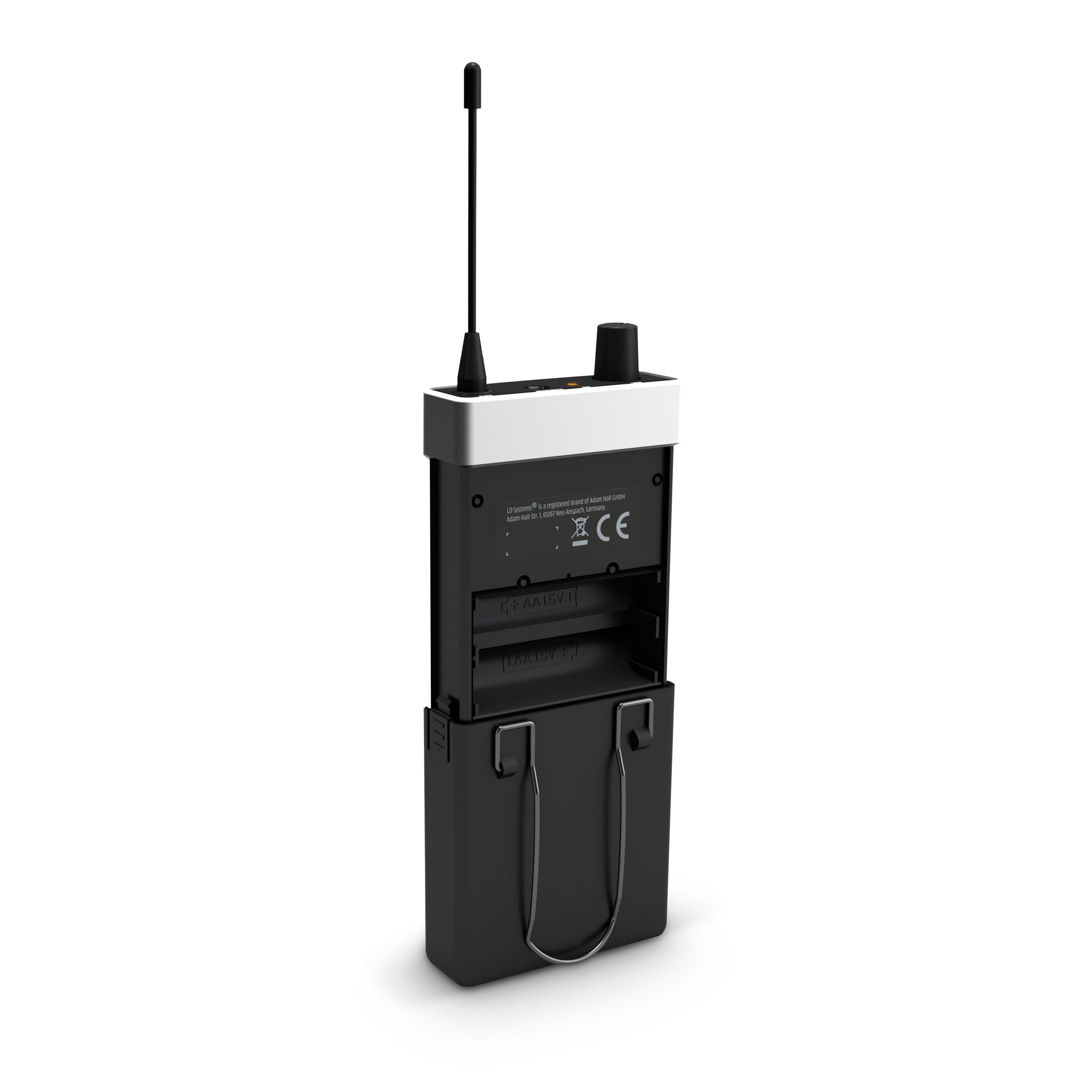

The U500® bodypack receiver runs for up to 10 hours on two AA batteries and consumes very little power. A volume control makes it easy to adjust the in-ear monitoring level. Three selectable squelch levels ensure optimal performance at all times. In the 823 - 832 MHz + 863 - 865 MHz range, six systems can be used simultaneously to monitor your entire band wirelessly.
Features:
-
Reliable in-ear monitoring with a range of more than 100 m
-
96 available channels
-
2, 10 or 30 mW ERP selectable transmit power
-
Convenient infrared frequency synchronisation
-
Individual user name assignment and memory for 10 custom presets
-
Wide frequency response
-
3-band EQ with parametric mid values
-
Switchable limiter
-
Stereo, focus and mono operating modes
-
High-contrast OLED display
-
Transmitter with direct monitor headphone output
-
Bodypack receiver with three selectable squelch levels
-
10-hour bodypack receiver operation on two AA batteries
Technical Specifications:
Set:
-
Transmitter - Receiver range
-
328 - 832 MHz + 863 - 865 MHz
-
Weight: 0.755 kg

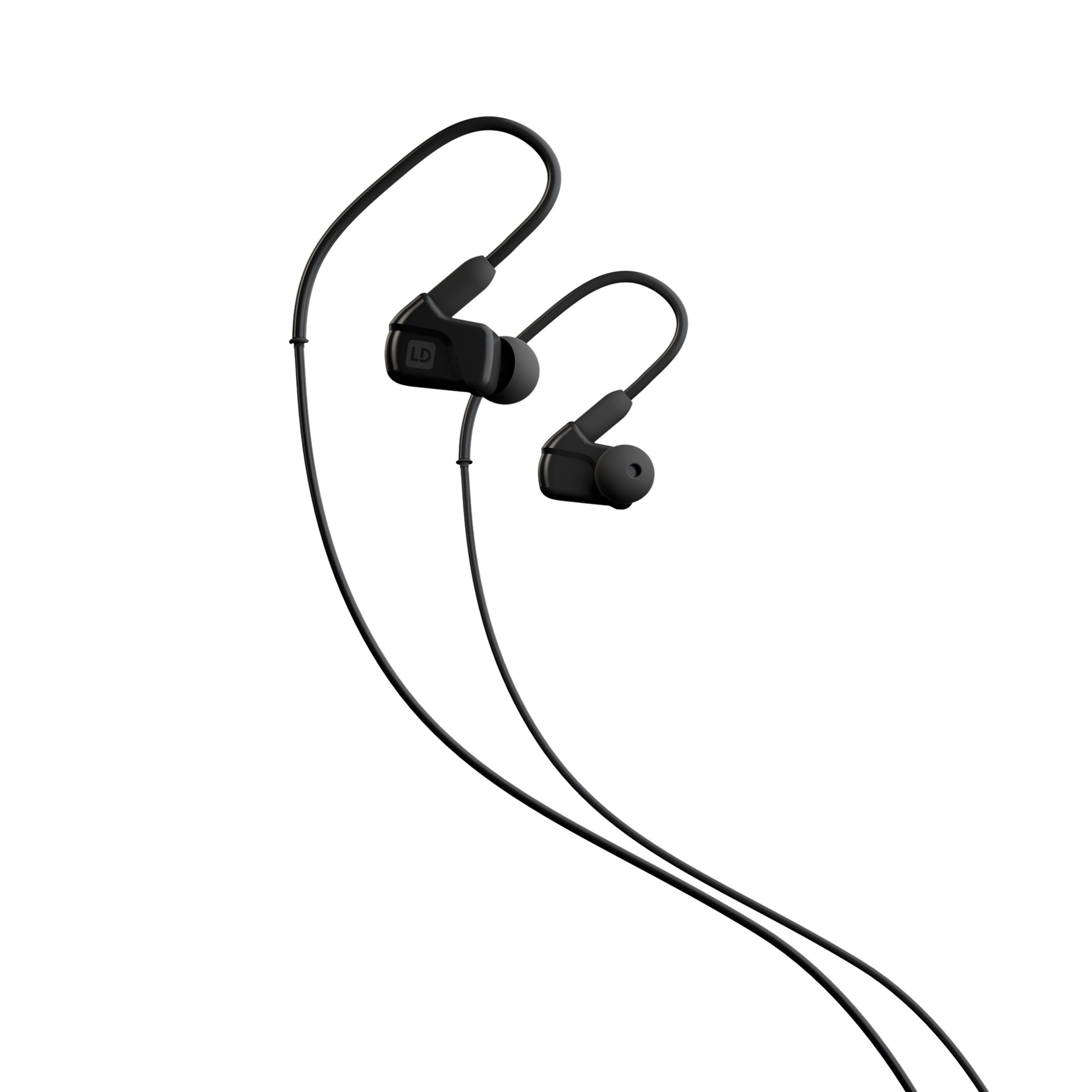

In-Ears:
-
Frequency response
-
20 - 18.000 Hz
-
-
Impedance
-
32 Ohm(s)
-
-
Connection type
-
3.5 mm TRS
-
-
Cable length
-
1.55 m
-
-
Weight
-
0,022 kg
-

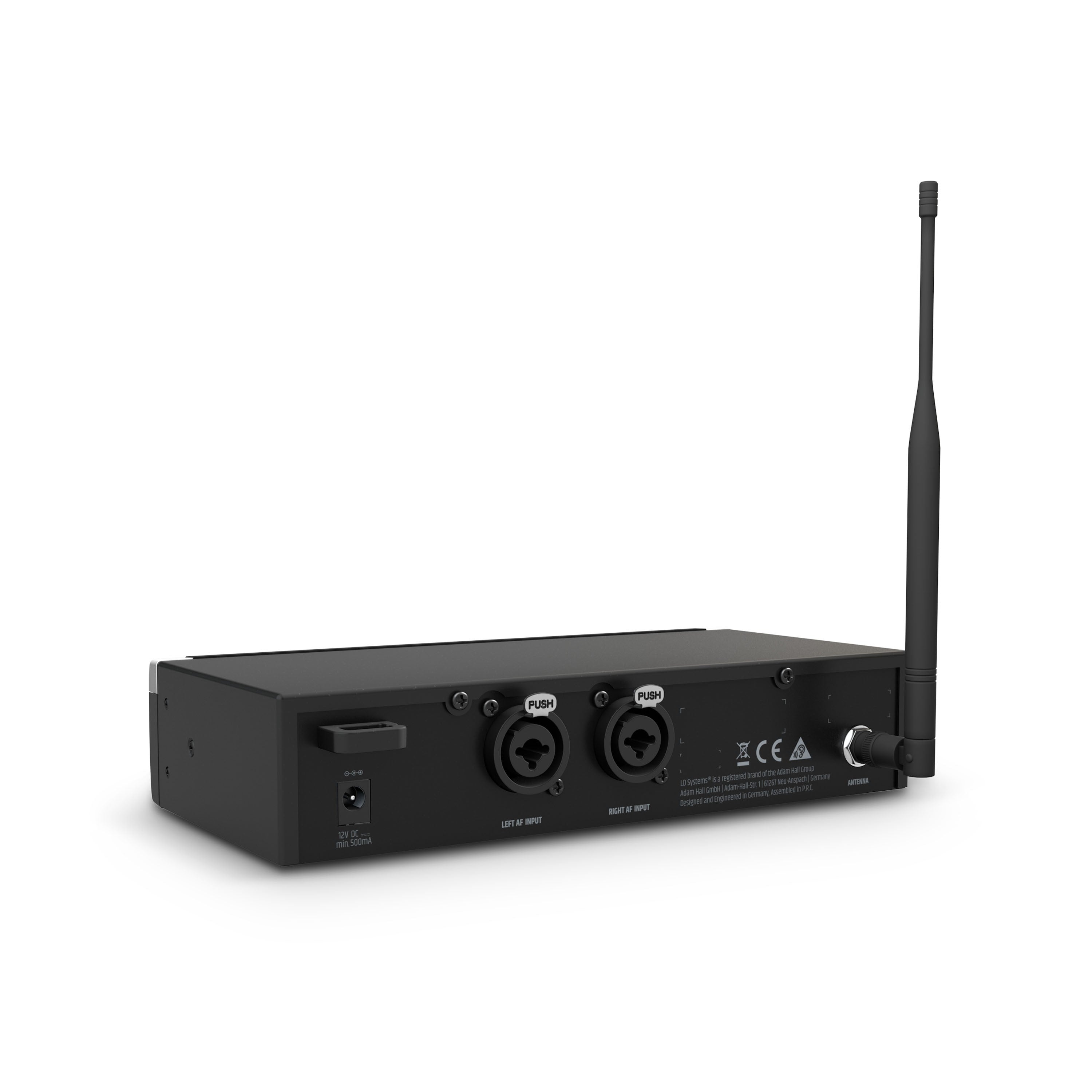

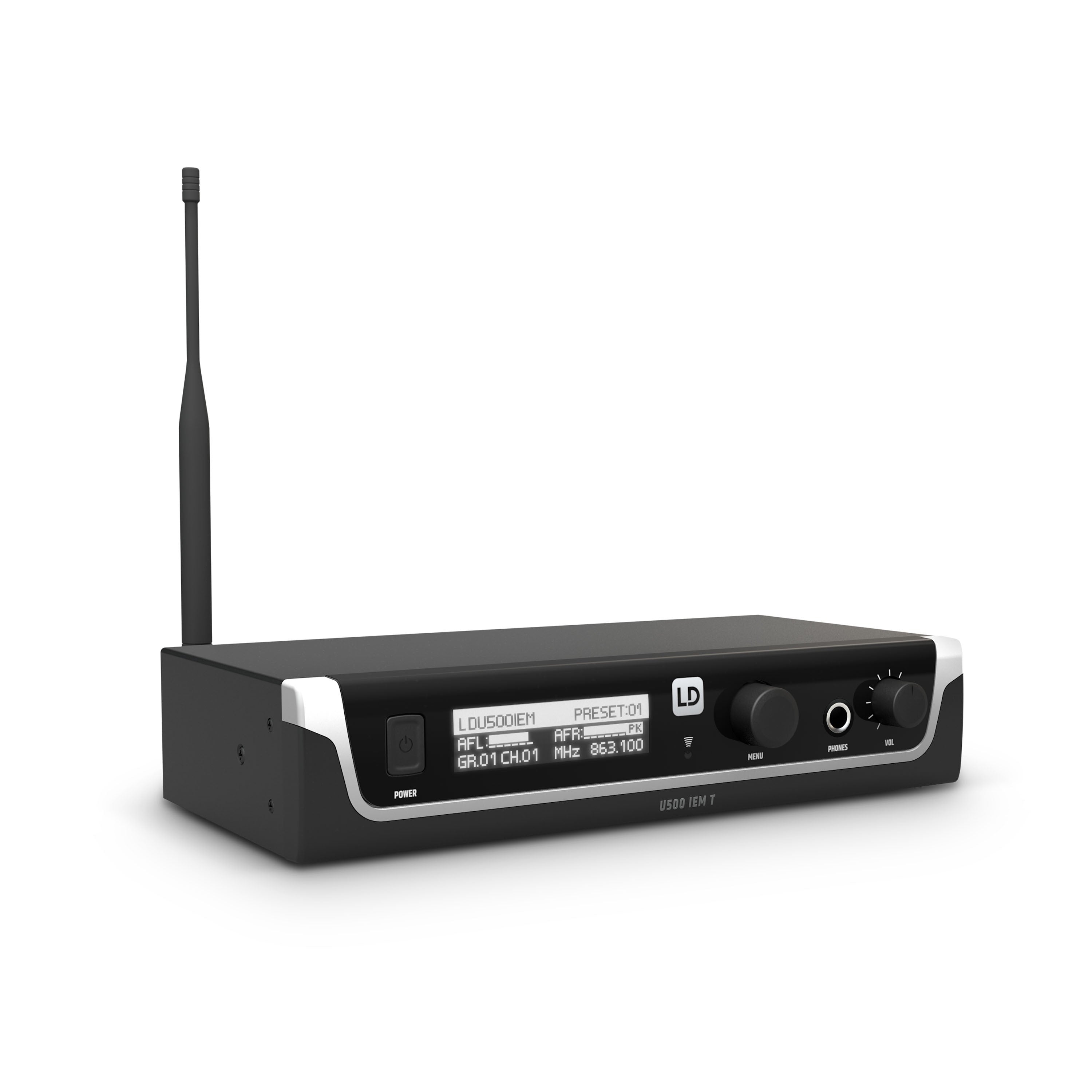

Transmitter:
-
Number of channels
-
12
-
-
Frequency response
-
40 - 16.000 Hz
-
-
Operating modes
-
mono/stereo
-
-
Transmission method
-
FM, mono/stereo
-
-
Nominal RF output power
-
10 mW - 30mW
-
-
Total harmonic distortion (THD)
-
<0,3%
-
-
Dynamic range
-
88 dB
-
-
Antenna connector
-
BNC
-
-
Inputs
-
2
-
-
Controls
-
Menu select button , on/off , headphone volume
-
-
Input connections
-
Combo TRS 6.3 mm , XLR (balanced)
-
-
Weight
-
0,66 kg
-
-
Input impedance (kOhms)
-
12 kOhm
-
-
Indicators
-
OLED - Display
-
-
Operating voltage
-
12 - 18 V DC
-
-
Width
-
212 mm
-
-
Height
-
43 mm
-
-
Depth
-
123 mm
-
-
Power consumption
-
1.7 W
-
-
Accessories (included)
-
19" Rack mount kit , BNC , power supply
-

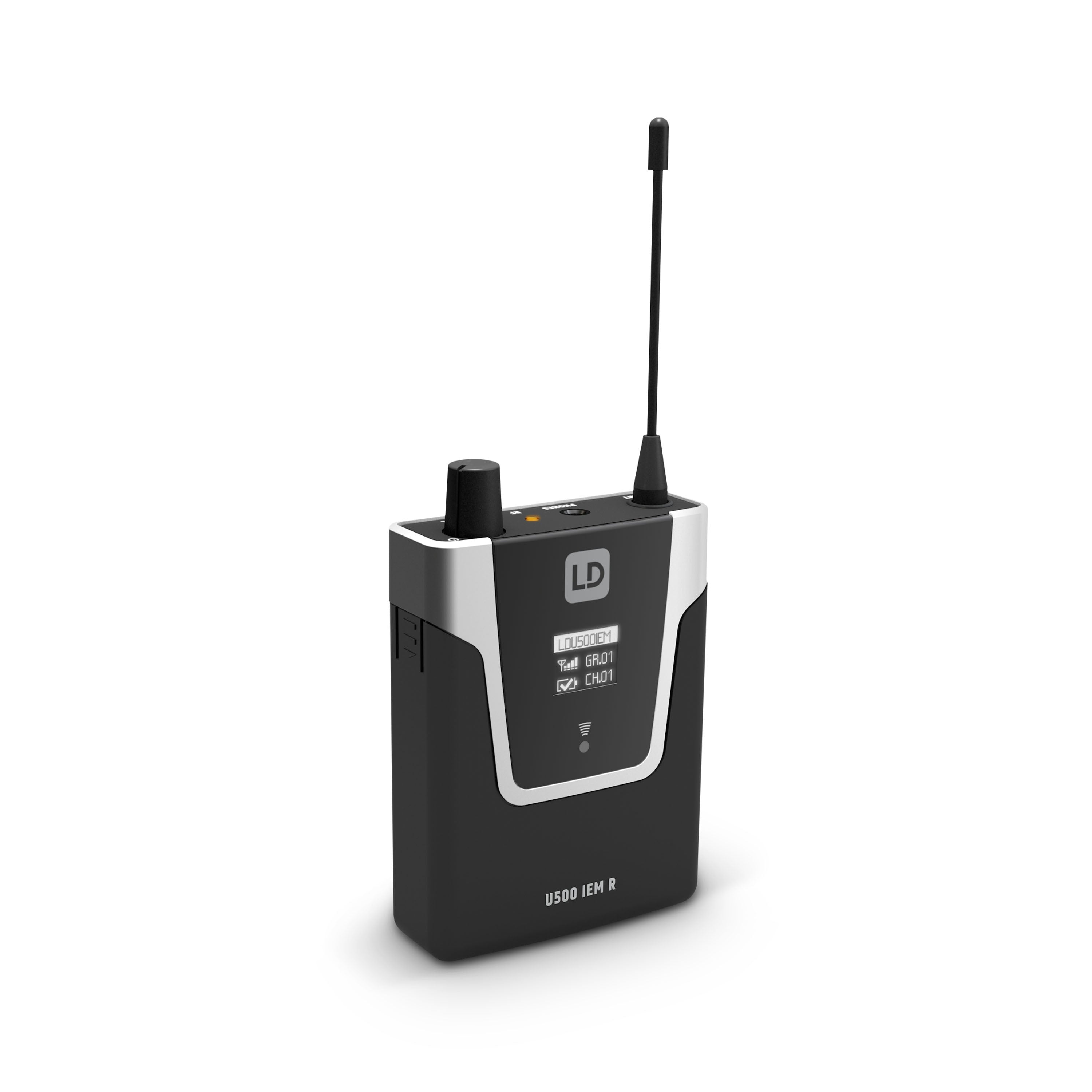

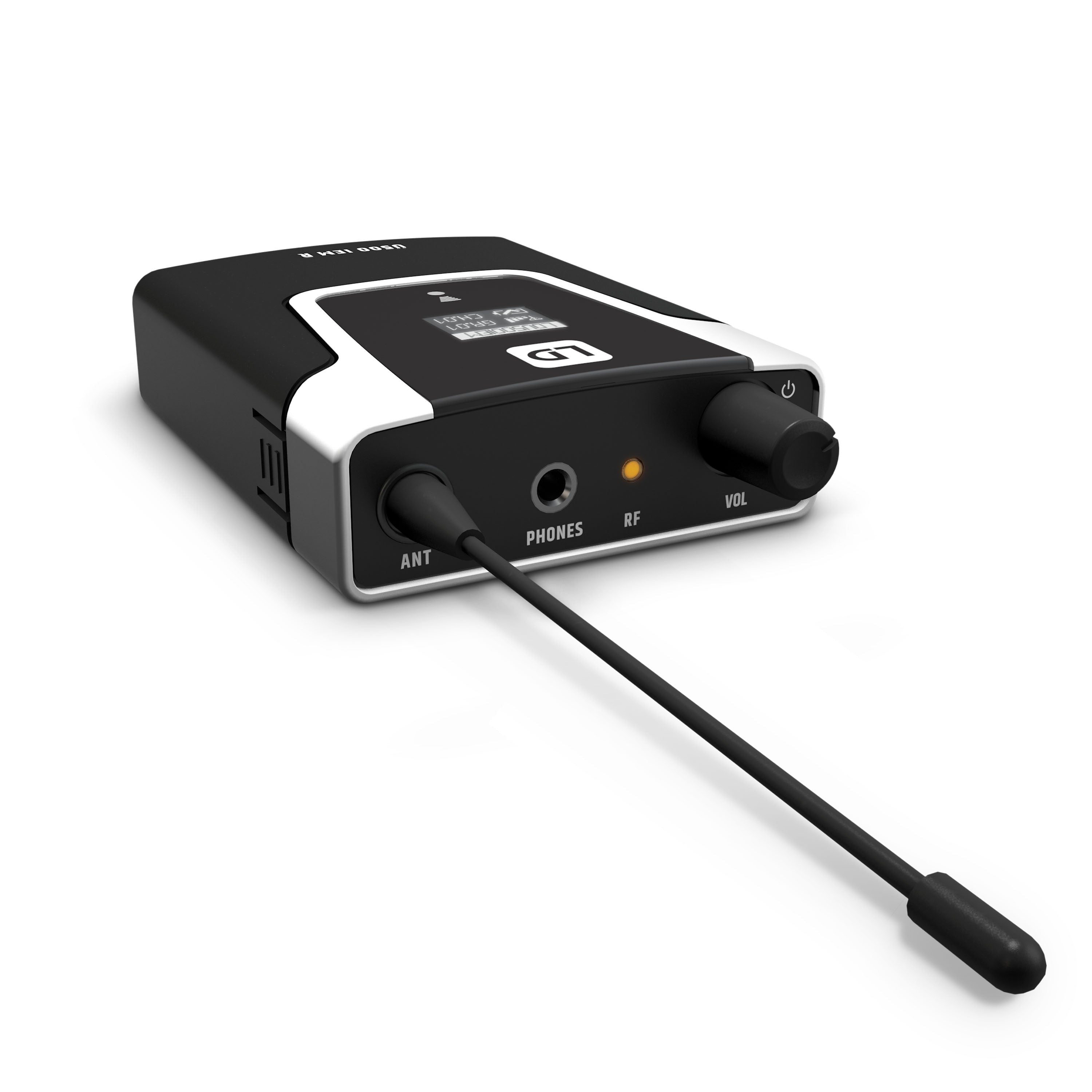

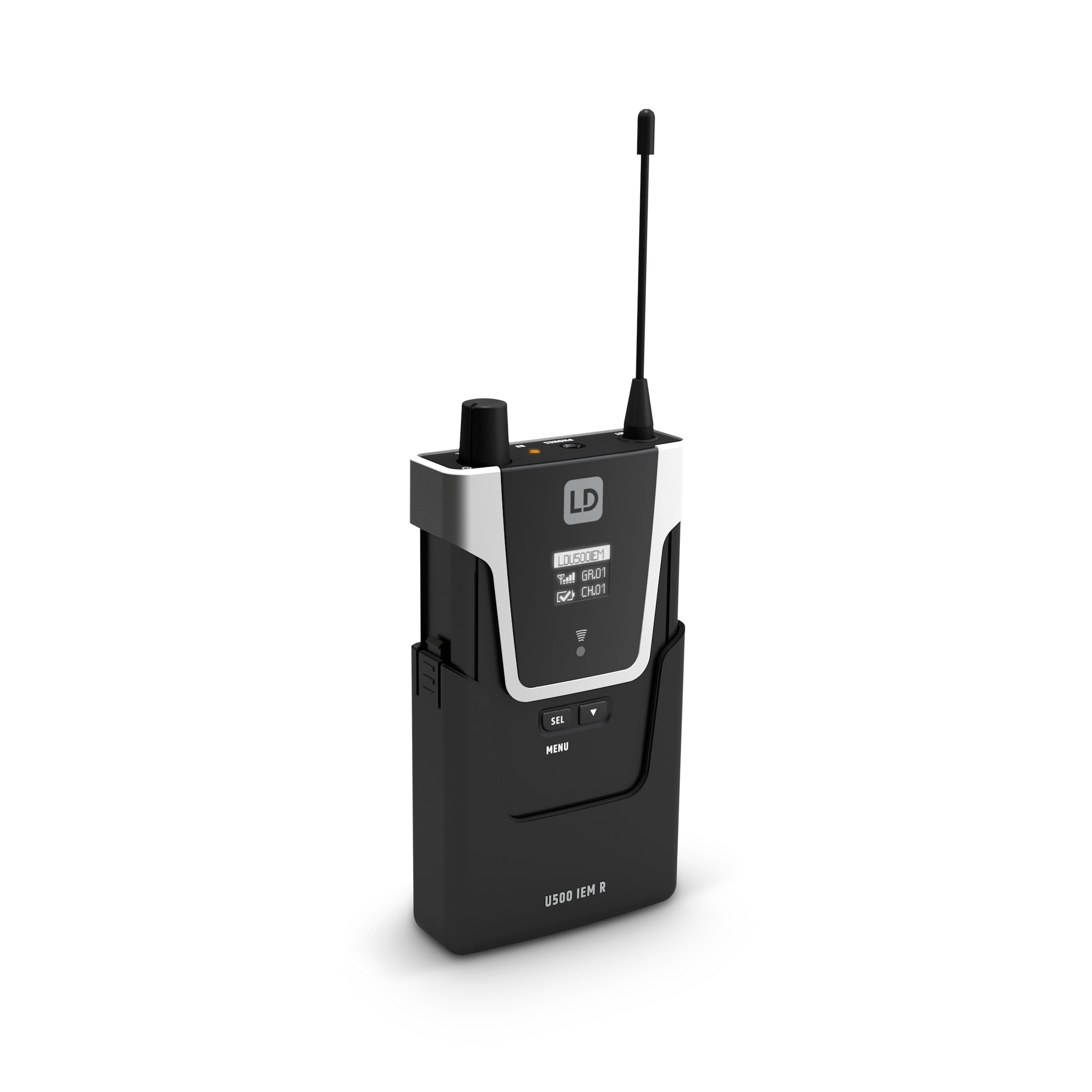

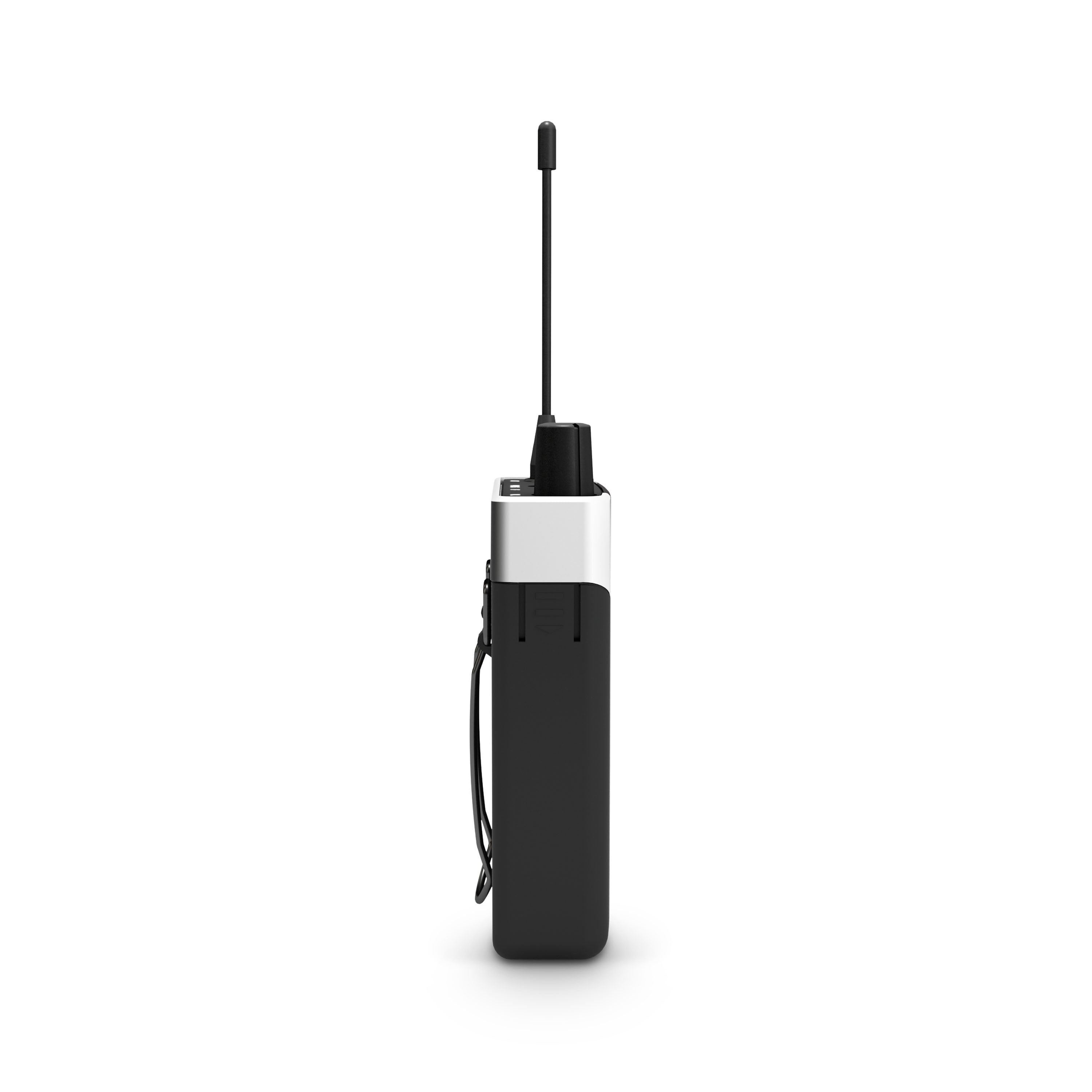

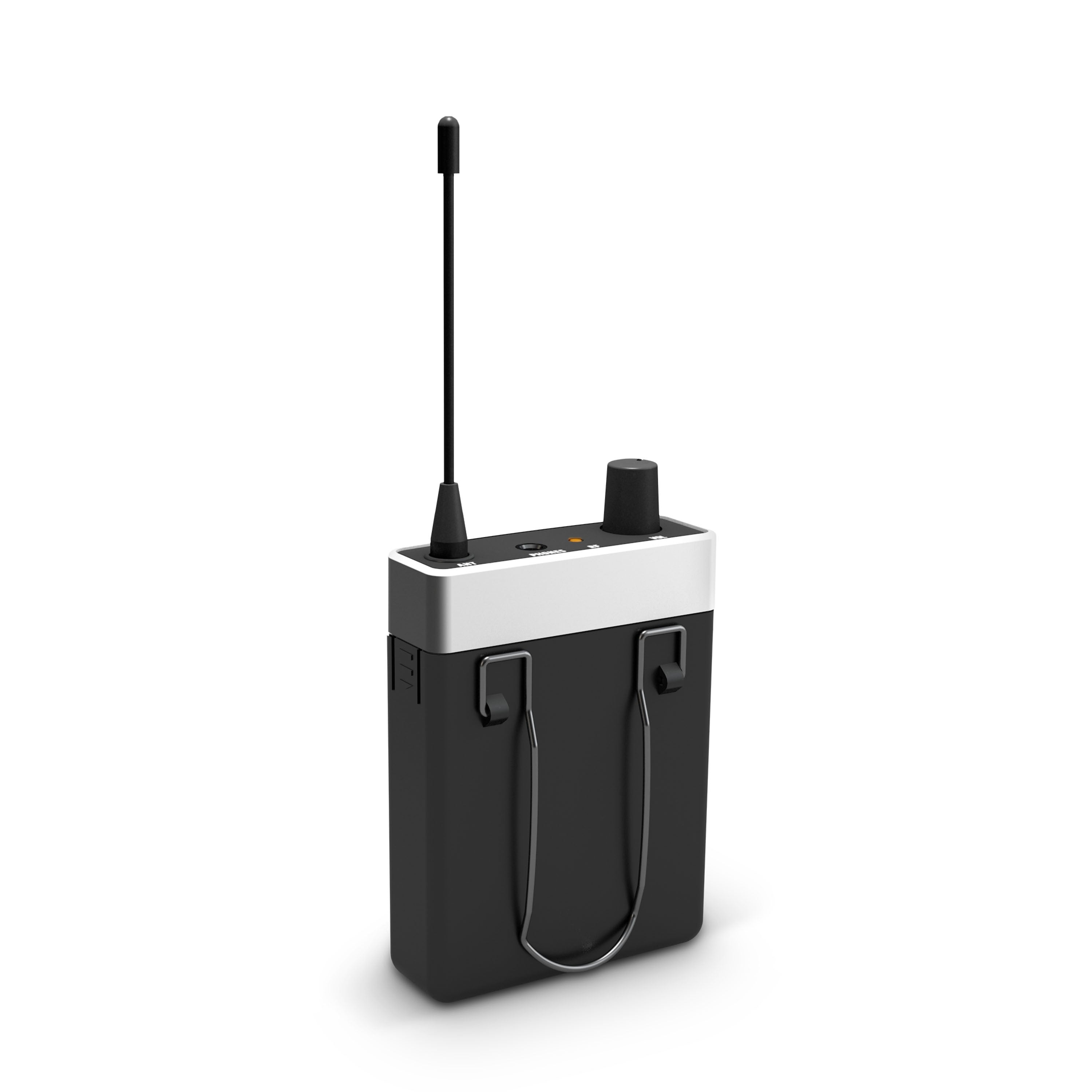

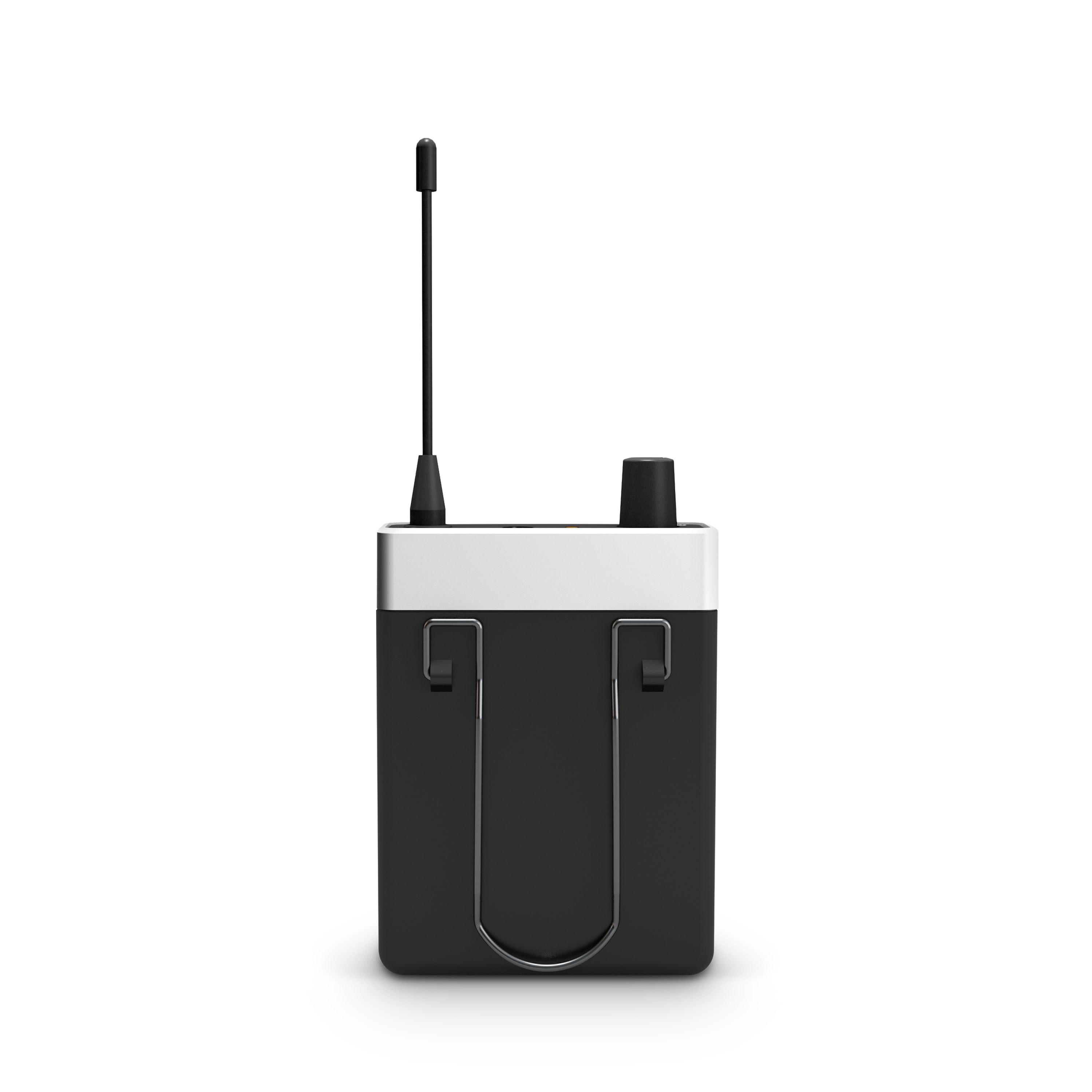

Receiver:
-
Audio output
-
3.5 mm TRS
-
-
Max. audio output level
-
33 mW @ 16 Ohm mW , 80 mW @ 33 Ohm mW
-
-
Antenna connector
-
Fixed to housing
-
-
Controls
-
Channel down , Channel up , on/off switch , volume control
-
-
Weight
-
0,095 kg
-
-
Indicators
-
RF (LED)
-
-
Operating voltage
-
2 x 1.5 V AA
-
-
Operating time
-
< 10 h
-
-
Width
-
64 mm
-
-
Height
-
100 mm
-
-
Depth
-
24 mm
-
-
Features
-
battery status LED
-
