5-star Adam Hall DMX-AES/EBU Cable 1 Pair XLR 5p (15m)
- This DMX/AES/EBU cable from our 5 STAR SERIES with 5-pin XLR connectors is produced in the EU.
- For this cable we exclusively use genuine Neutrik connectors with silver-plated contacts. For a long service life and superior transmission quality we use NC5FXX-BAG & NC5MXX-BAG.
- The cable with an inner conductor cross-section of 0,34 mm² (AWG22) was designed by our Adam H...
Delivery
S2Store Genk (BE)
Pros and Cons
Description

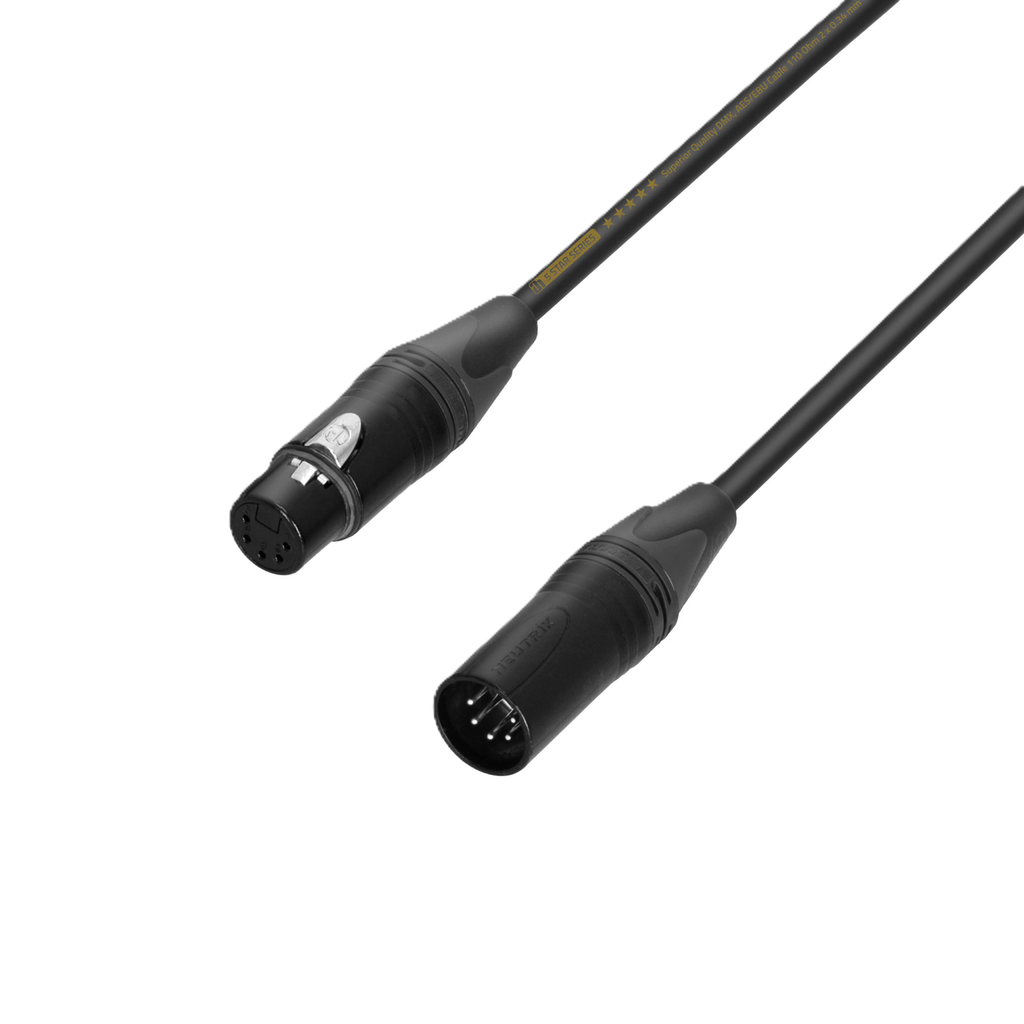

5-star Adam Hall DMX-AES/EBU Cable 1 Pair XLR 5p (15m)
- This DMX/AES/EBU cable from our 5 STAR SERIES with 5-pin XLR connectors is produced in the EU.
- For this cable we exclusively use genuine Neutrik connectors with silver-plated contacts. For a long service life and superior transmission quality we use NC5FXX-BAG & NC5MXX-BAG.
- The cable with an inner conductor cross-section of 0,34 mm² (AWG22) was designed by our Adam Hall Cables team in Germany and produced in the EU. With an impedance of 110 Ω it fully complies with DMX standards.
- It comes with a UV-resistant jacket and we exclusively use a special soft PVC compound for the highest flexibility values. The copper braided shielding prevents magnetic interference.
- The product is supplied with a cable tie and two transparent, loose heat-shrink sleeves for applying labels.
The 5-pin version of our top-quality DMX cables offers exceptional performance and reliability for demanding applications. This superior-quality DMX and AES/EBU cable is specifically designed to ensure excellent signal transmission, making it ideal for professional use.
This cable features genuine Neutrik 5-pin connectors with silver-plated contacts, a fully EU-produced bulk cable, a large conductor cross-section of 0,34 mm² and a braided copper shielding, and therefore rightfully earns the 5 STAR SERIES quality mark.
Brief specifications
| Kabel | |
|---|---|
| Aantal kernen x doorsnede | 2 x 0,34 mm² |
| Bedrijfstemperatuur | -20 °C tot 70 °C |
| Buitenste mantel | PVC (Polyvinyl chloride) |
| Connectoren | Neutrik NC5FXX-BAG, Neutrik NC5MXX-BAG |
| Geleidingsweerstand | 110 Ohm |
| Gewicht | 810 g |
| Kabeldiameter | 6.4 mm |
| Kabelkleur | Zwart |
| Kabellengte | 15 m |
| Kabelsoort | OFC (Oxygen-free copper) |
