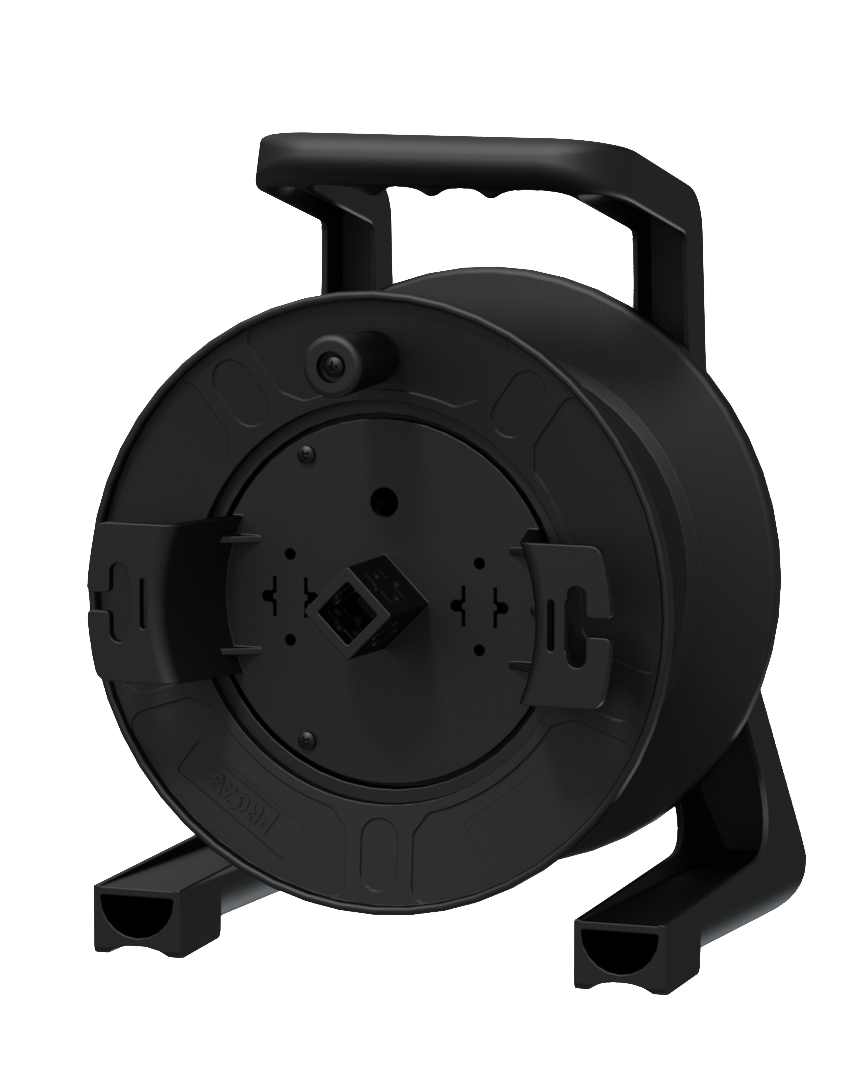

CDM235

Professional cable reel ø235x 113 mm

Product information

The CDM235 is a cable reel designed for intensive and professional use constructed using lightweight, extremely strong and impact resistant materials. The frame construction is made of polycarbonate (PC) materials while the drum is made of impact resistant polyethylene (PE).

The lightweight construction in combination with the ergonomic grip allows easy carriage for mobile applications. The front side is fitted with an external cable winder allowing easy and clean winding of a patch tail. Holes for fixation of all international types of power plugs are available on the center plate.

The drum dimension of Ø 235 mm allows winding of a standard microphone cable (Ø6.5mm) up to 75 meters.

HIGHLIGHTS

• Ergonomic grip

• Front flange with cable winder

• Locking brake

General Specifications

• Width : 235 mm

• Height : 312,5 mm

• Depth : 206 mm

• Drum inner diameter : Ø 130 mm

• Drum outer diameter : Ø 235 mm

• Drum depth : 112 mm

• Weight : 1.0 Kg

• Construction materials : Sturdy polycarbonate frame, Impact resistant polyethylene drum
