Product Information

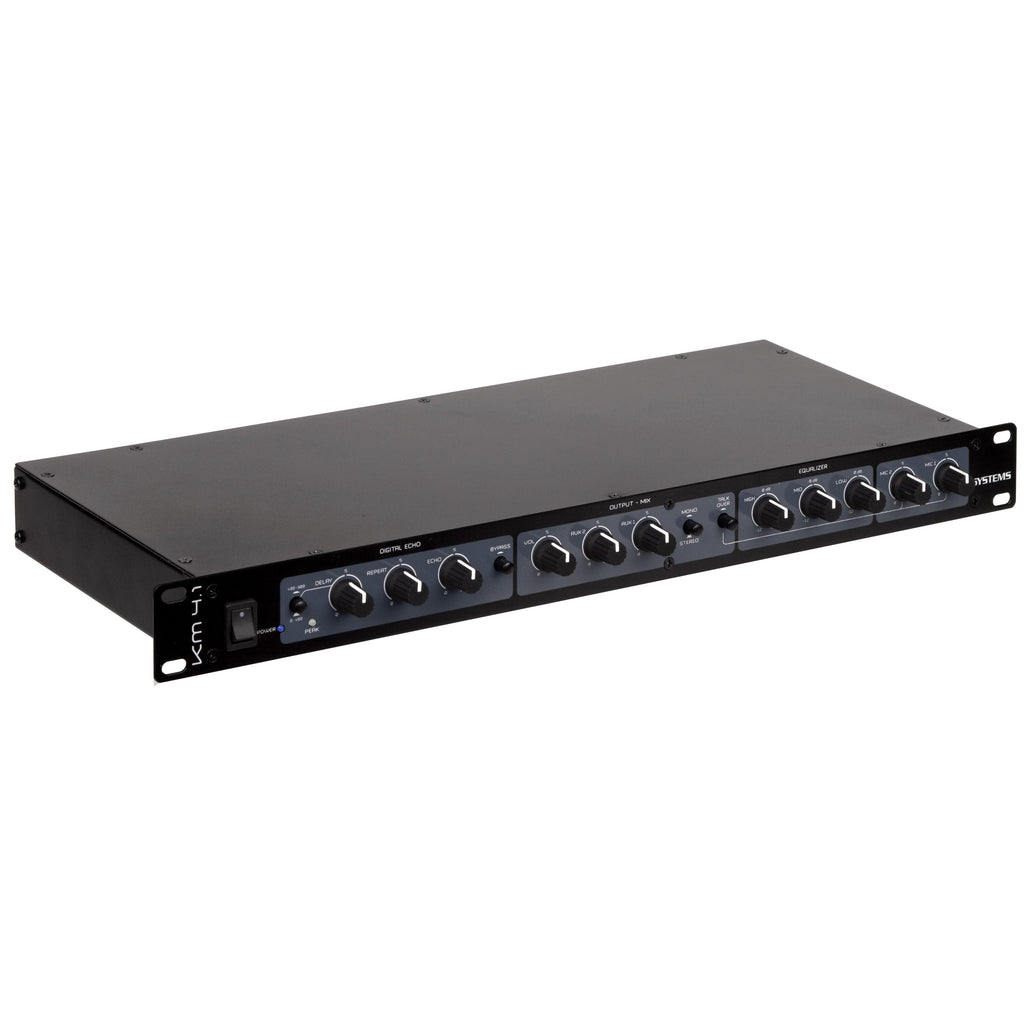

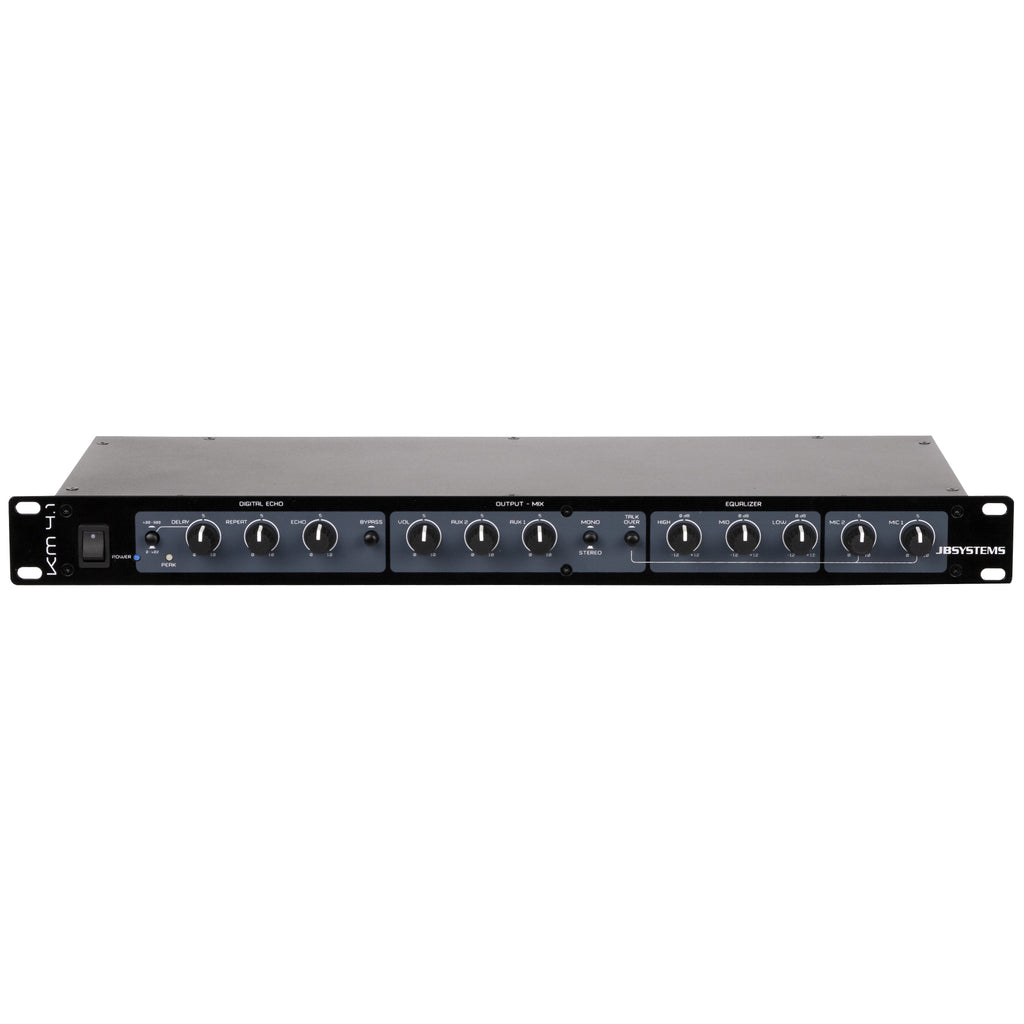

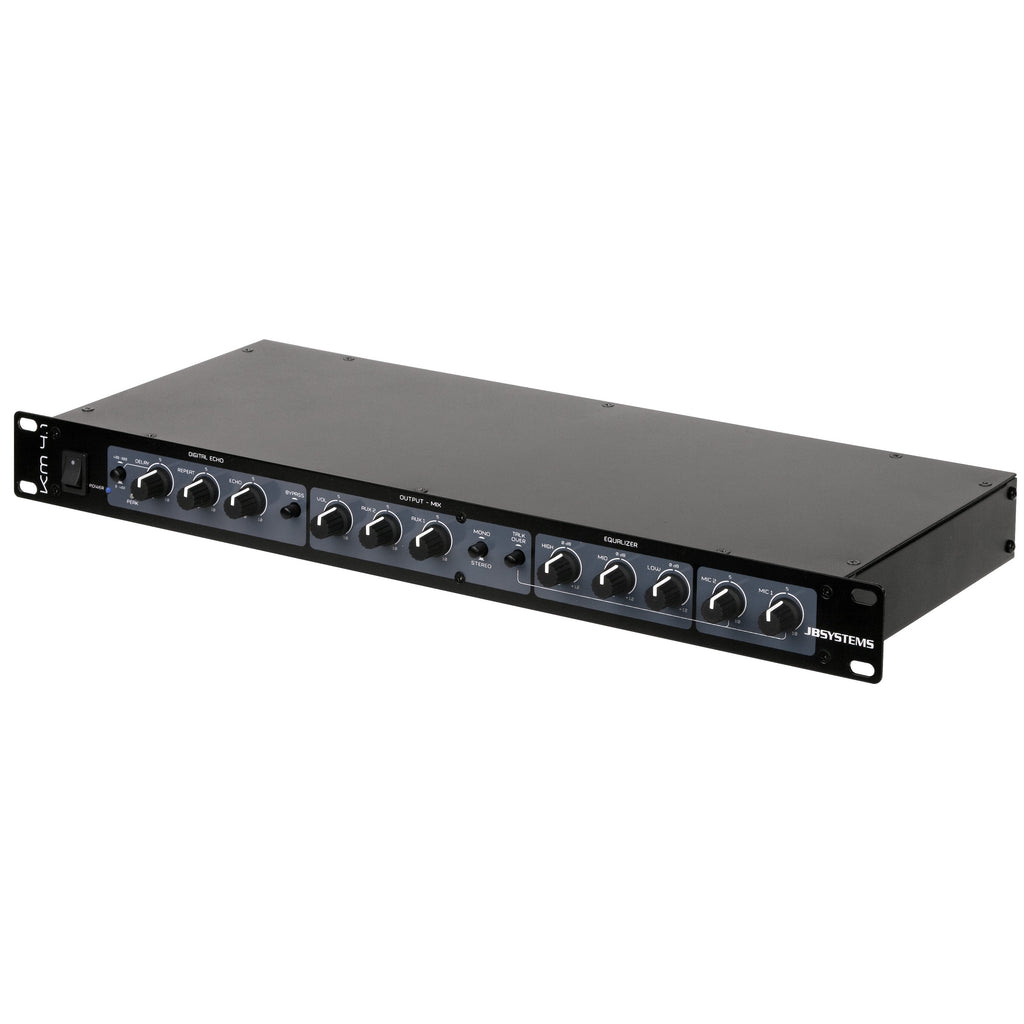

• Echo unit combined with small audio mixer, perfect for karaoke

• Echo can be used on both micro inputs or via effect sends on adapted mixers

• Adaptable delay range: 0-400ms and 400-800ms

• 1 master output with level control

• Mono/stereo switch on master output

• 2 line inputs with level control

• 2 microphone inputs with level control

• 3band equalizer on both microphone inputs

• Automatic talkover triggered by both microphone inputs

Technical Information

• Power Supply: AC 230 V, 50Hz

• Fuse: 20mm glass fuse 250V 500mA slow

• Frequency response: 20-20.000Hz (+/-2dB)
