LCR700 AUDAC Digital LCR meter
Regular price
€256,35
Unit price
per
LCR700 AUDAC Digital LCR meter
The LCR700 is a digital LCR measuring device, indispensable for sound engineers and electronics technicians. Measurements can be made for inductance, capacitance and resistance, and the dissipation factor (D) can be read on a second display. It can be set to auto-range or manual mode and all measurements can be made at two diff...
All product information
Approx. 3-7 business days
S2 Ref: 007057
Delivery
Approx. 3-7 business days
S2Store Genk (BE)
Approx. 3-7 business days
Pros and Cons
Description
LCR700 AUDAC Digital LCR meter
LCR700 AUDAC Digital LCR meter

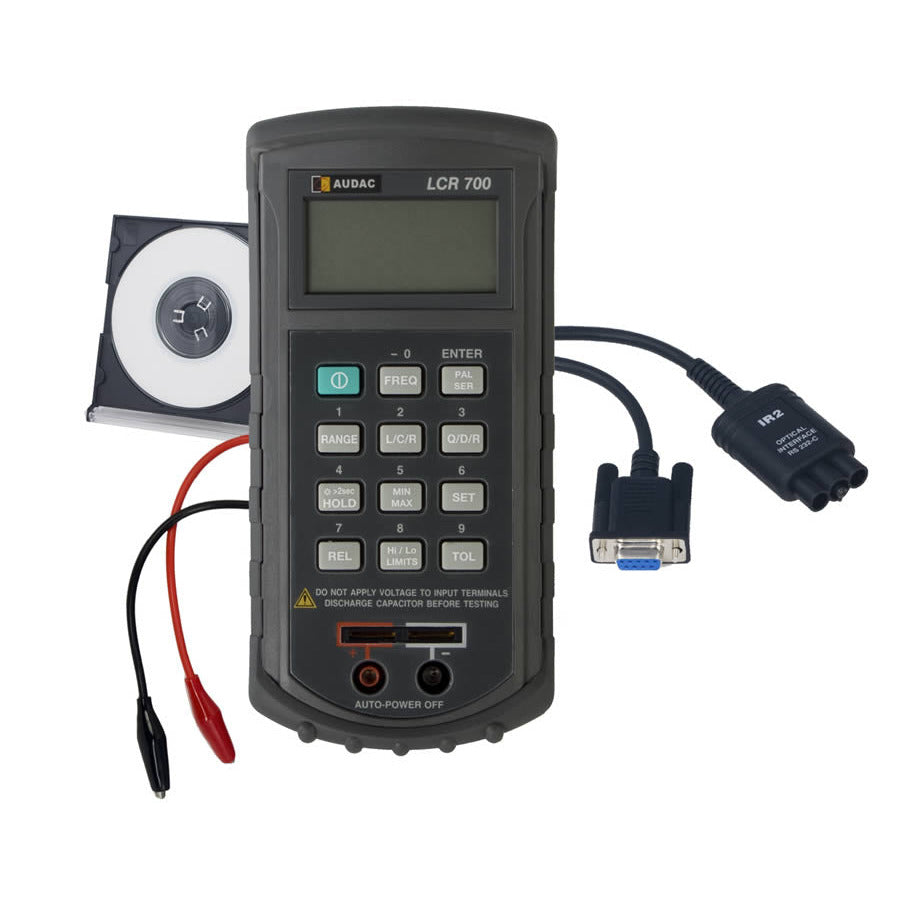

The LCR700 is a digital LCR measuring device, indispensable for sound engineers and electronics technicians. Measurements can be made for inductance, capacitance and resistance, and the dissipation factor (D) can be read on a second display. It can be set to auto-range or manual mode and all measurements can be made at two different frequencies, 120Hz and 1kHz. This allows measurements with high accuracy on all types of specimens. There is an RS232 optical interface to allow communication with a computer and the Auto-Power OFF function helps save battery life. Supplied with: RS232 PC connection cable, measurement leads, shock absorbing case, software, manual.
Brief specifications
| Housing | |
|---|---|
| Dimensions | 91 x 192 x 52.5 mm (W x H x D) |
| Weight | 0.4 kg |
| Power supply | |
|---|---|
| Power supply | 9 V DC Battery |
| Consumption | 0.75 W (max.) |
