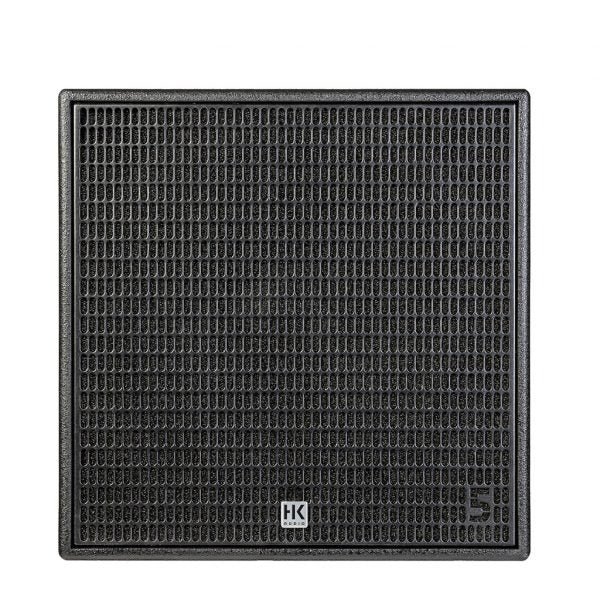

Linear 5 MKII 118 Sub HK Audio active subwoofer
LINEAR 5 MK II 118 Sub HK Audio active subwoofer
The standard bass reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and tight, defined bass down to the lowest frequencies. Cardioid settings that can be easily selected via a preset give the user an enormously expanded range of system configu...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
Linear 5 MKII 118 Sub HK Audio active subwoofer
LINEAR 5 MK II 118 Sub HK Audio active subwoofer
The standard bass reflex subwoofers form the solid foundation of the new LINEAR 5 MK II systems with their uncompromising performance and tight, defined bass down to the lowest frequencies. Cardioid settings that can be easily selected via a preset give the user an enormously expanded range of system configuration options and access to the professional class. 2.1 setups are simplified thanks to the stereo preamplifiers.
Brief specifications
| Housing | |
|---|---|
| Dimensions | 55 x 56 x 68.5 cm |
| Weight | 41.6kg |
| Construction material | multiplex |
| Stand | |
|---|---|
| Stand adapter (top hat) | M20 |
| Sound | |
|---|---|
| Frequency response | +/-3 dB 42 Hz – X-over |
| Frequency range | -10 dB 38 Hz – X-over |
| LF driver | 1 x 18", 4" voice coil |
| SPL | 127 dB half space (10 % THD) |
| Power | |
|---|---|
| Max SPL sound pressure level | 131 dB half space (10 % THD) |
| Peak power | 2000W |
| RMS power | 1000W |
| Amplifier class | D |
| Power supply | |
|---|---|
| Voltage | 1.9 A / 100–240 V nominal according to EN 62368-1 |

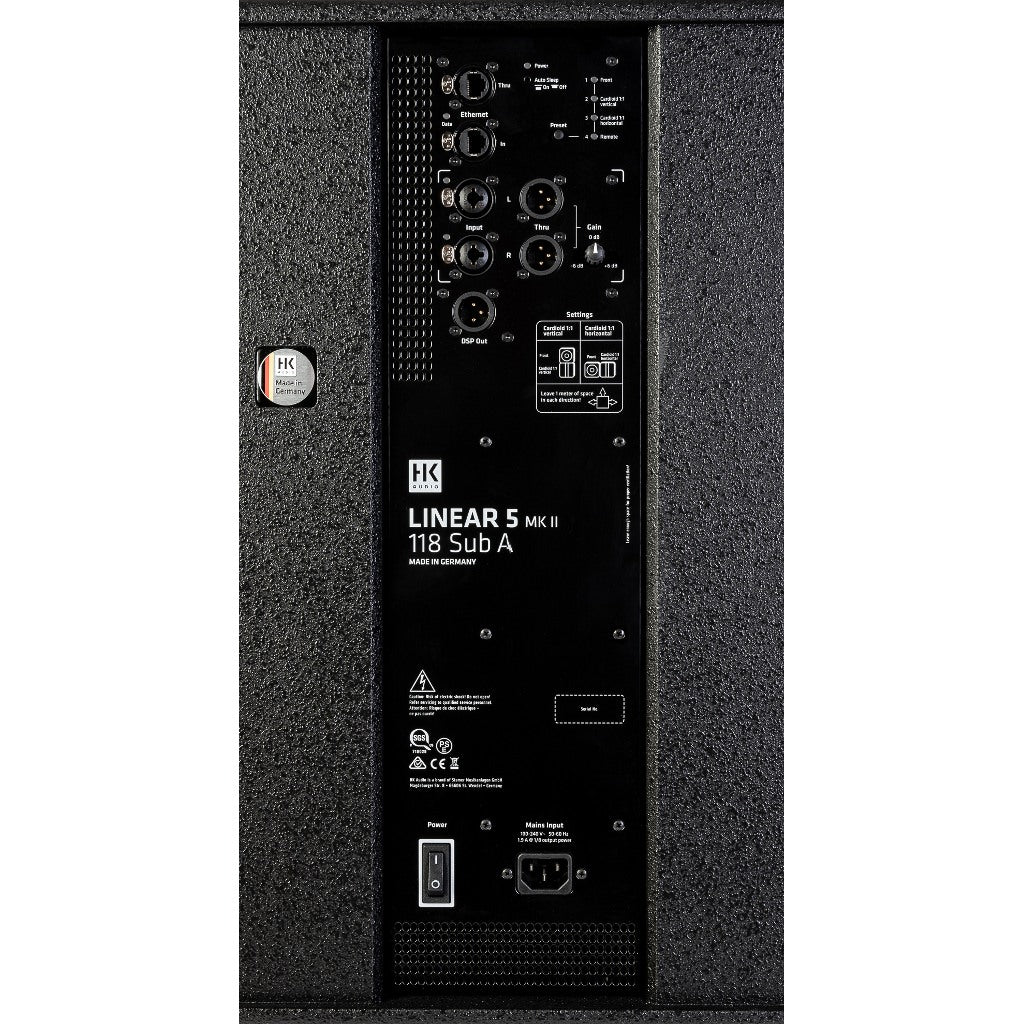

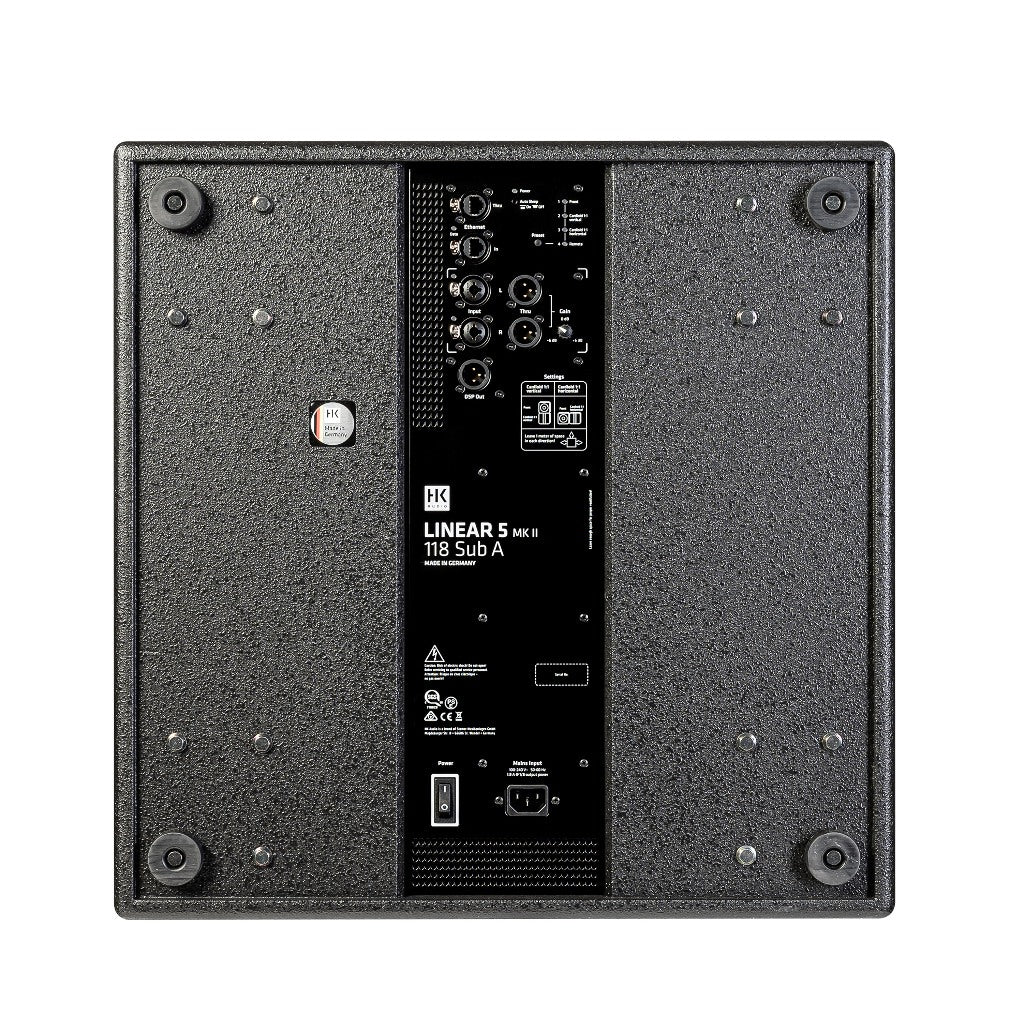

| Audio I/O | |
|---|---|
| Inputs | 2 x XLR combo balanced |
| Outputs | 2 x XLR balanced / DSP out 1 x XLR balanced |
| Digital audio | |
|---|---|
| Sample rate | 48 kHz |
| Network | |
|---|---|
| Network interface | EtherCON RJ45, 1 x In, 1 x Thru |
