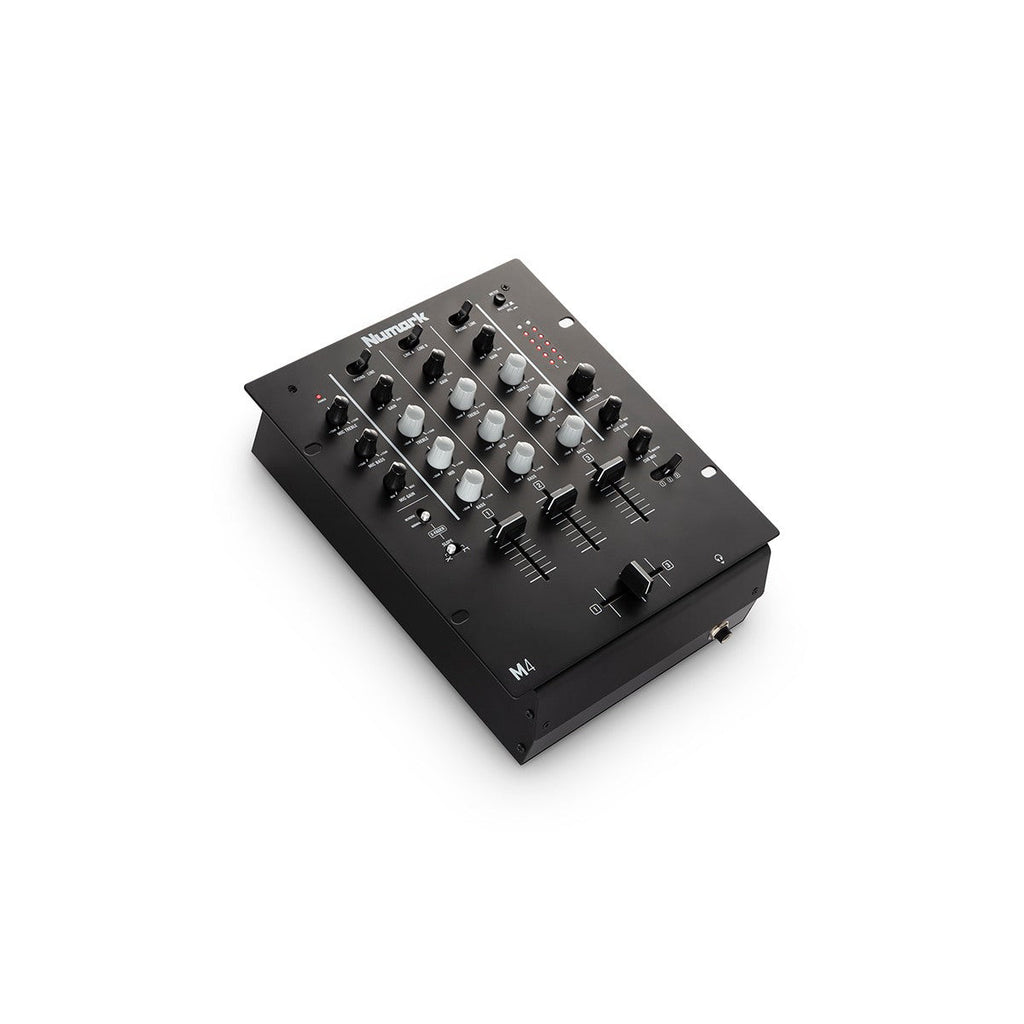

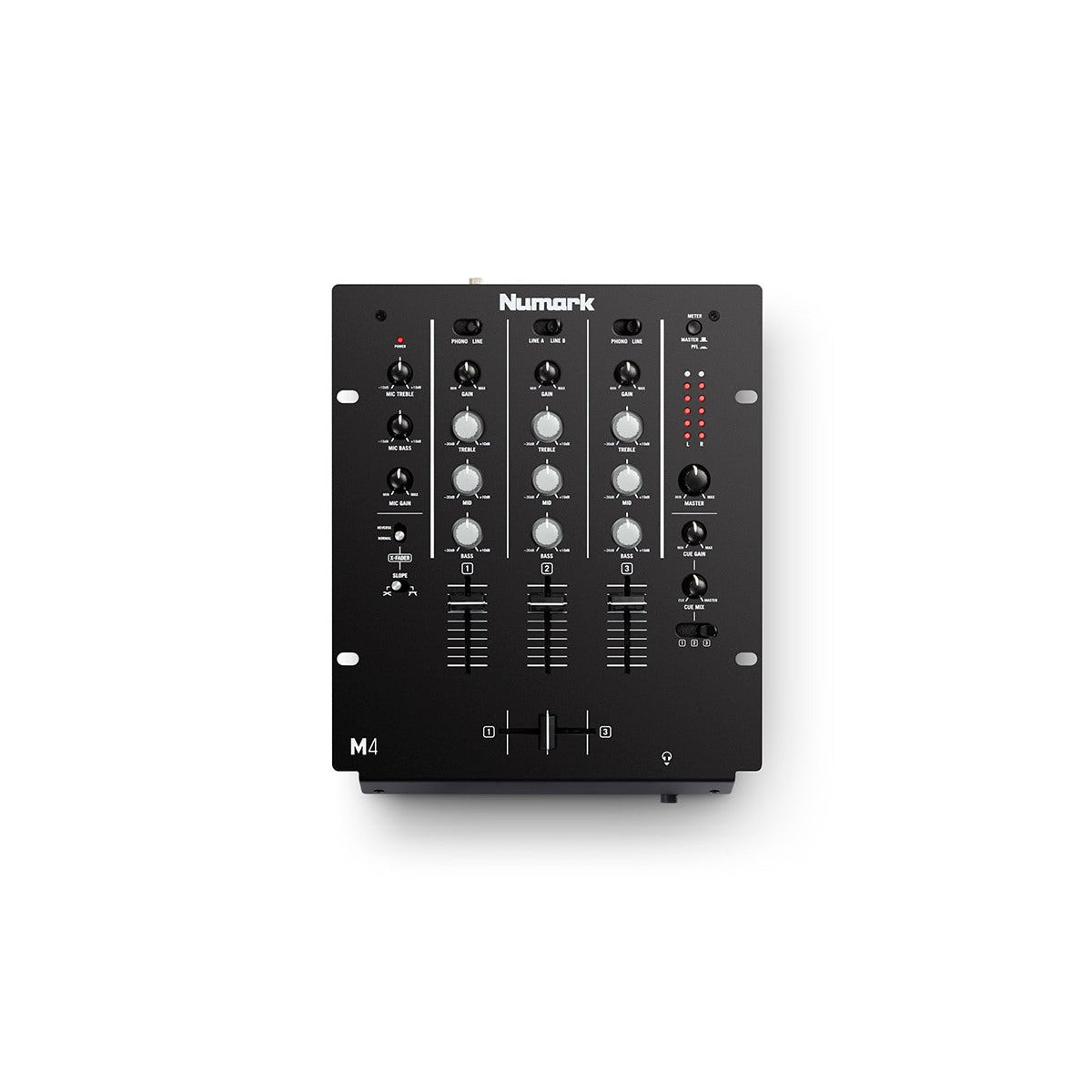

M4 is a three-channel mixer designed for any DJ who needs maximum flexibility. It features a replaceable crossfader with reverse and slope controls, a 1/4" microphone input with EQ, and ample routing for phono and line level devices.

Where the M4 truly shines is its impressive input section. Two switchable phono and line inputs plus four dedicated line inputs give you a total of 6 inputs! Add to that the master and record outputs, and steep three-band EQ/rotary kills on each channel.

M4 has the inputs, knobs and features to turn what would be a problem for the average mixer into a simple plug-in.

Features:

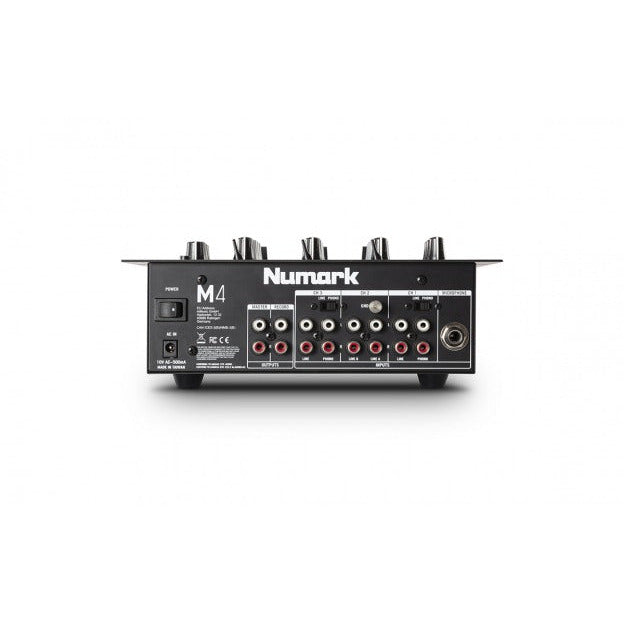

• Inputs: two phono/line switchable (RCA), four line (RCA), microphone (1/4")
• Outputs: Master (RCA), Record (RCA), headphone (1/4" stereo)
• Steep three-band EQ/rotary kills on each channel
• Microphone input with EQ
• Six-segment LED display for monitoring signal strength
• Switch for master and PFL metering
• Replaceable crossfader with reverse and slope control

Specifications:

Input:

• Line: 10K ohm input impedance; 80mV RMS sensitivity for 0dB output
• Mic: 600 ohm input impedance unbalanced; 1.5mV RMS sensitivity for 0dB output; 400mV RMS max input
• Phono: 47k ohm input impedance; 1.3mV RMS sensitivity @ 1kHz for 0dB output

Outputs:

• Line: 7V RMS max.
• Headphone: 0.5W into 47ohm

Signal-to-noise ratio:

• (maximum output JIS-A weighted)
• Line: Better than 100dB
• Mic: Better than 95dB
• Phono: Better than 85dB

Frequency response:

• Line: 20 - 20.000 Hz ±0.5dB
• Mic: 20 - 15.000 Hz ±0.5dB
• Phono: ±1dB; -3dB attenuation at 20 Hz to reduce rumble and feedback

Channel Equalizer:

• Bass: +12 / -35dB at 20 Hz
• Mid: +12 / -25dB at 1.3 kHz
• High: +12 / -20dB at 15 kHz
• Distortion: Less than 0.05%
