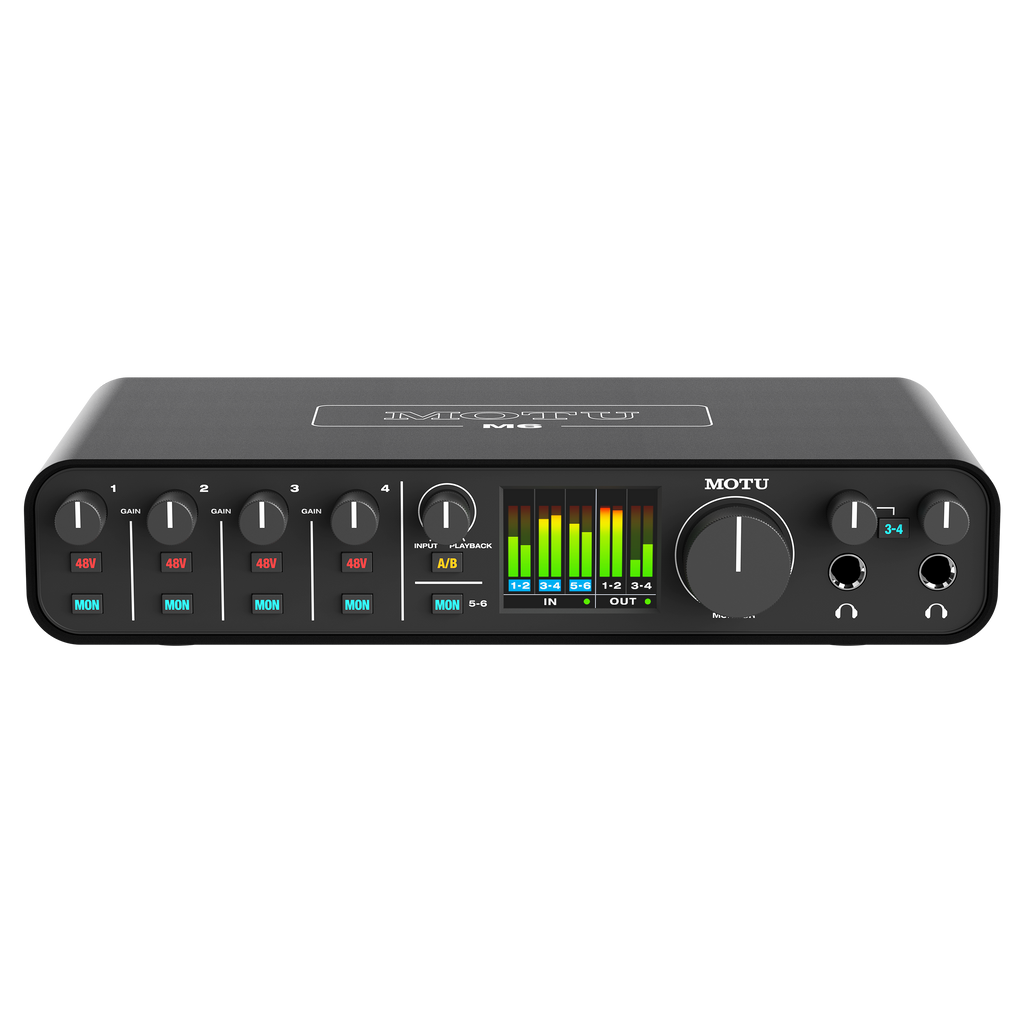

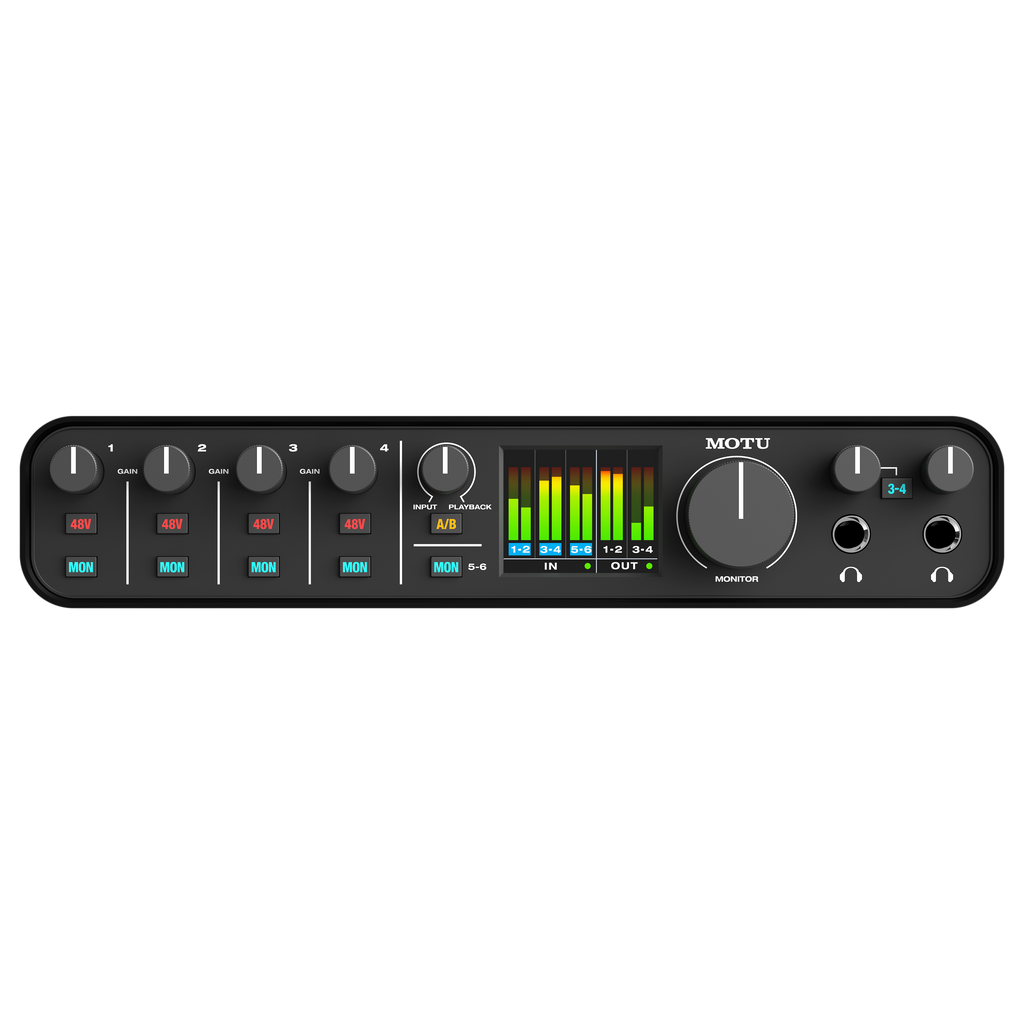

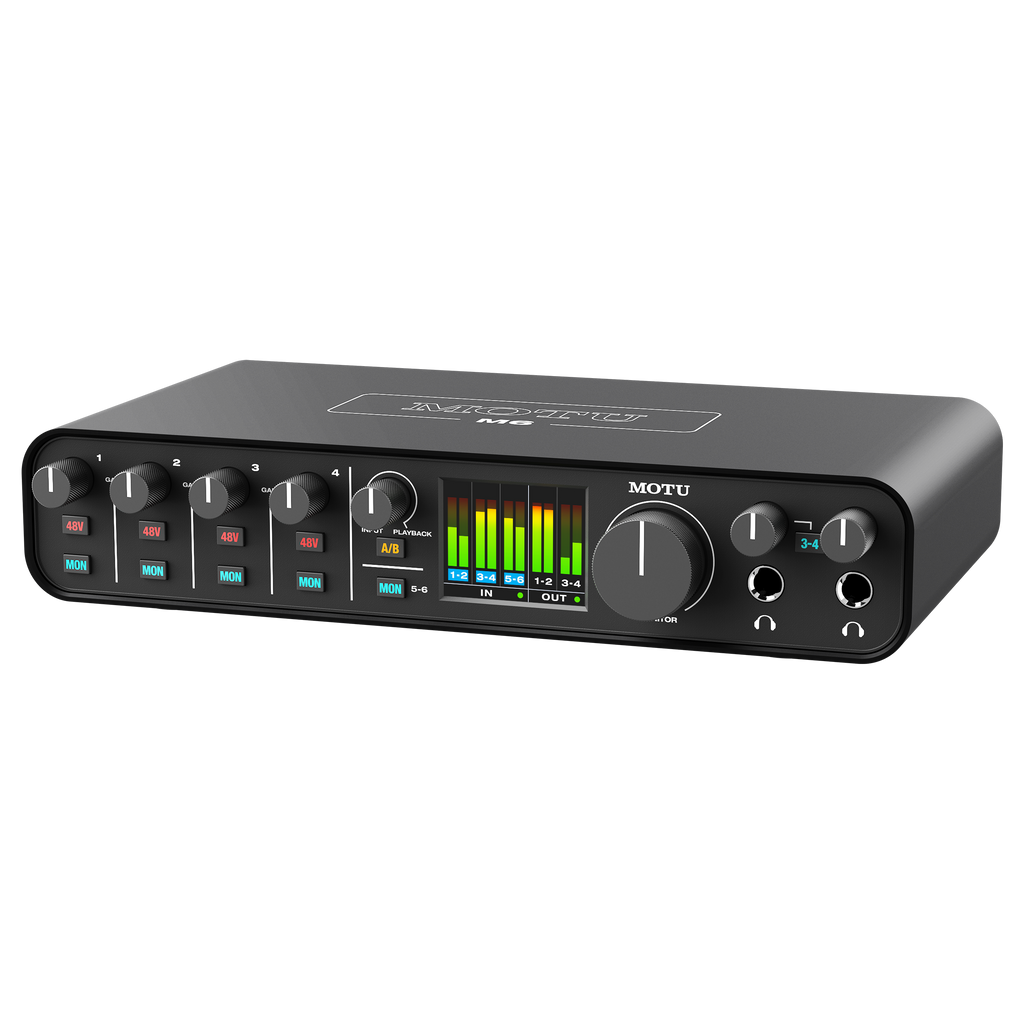

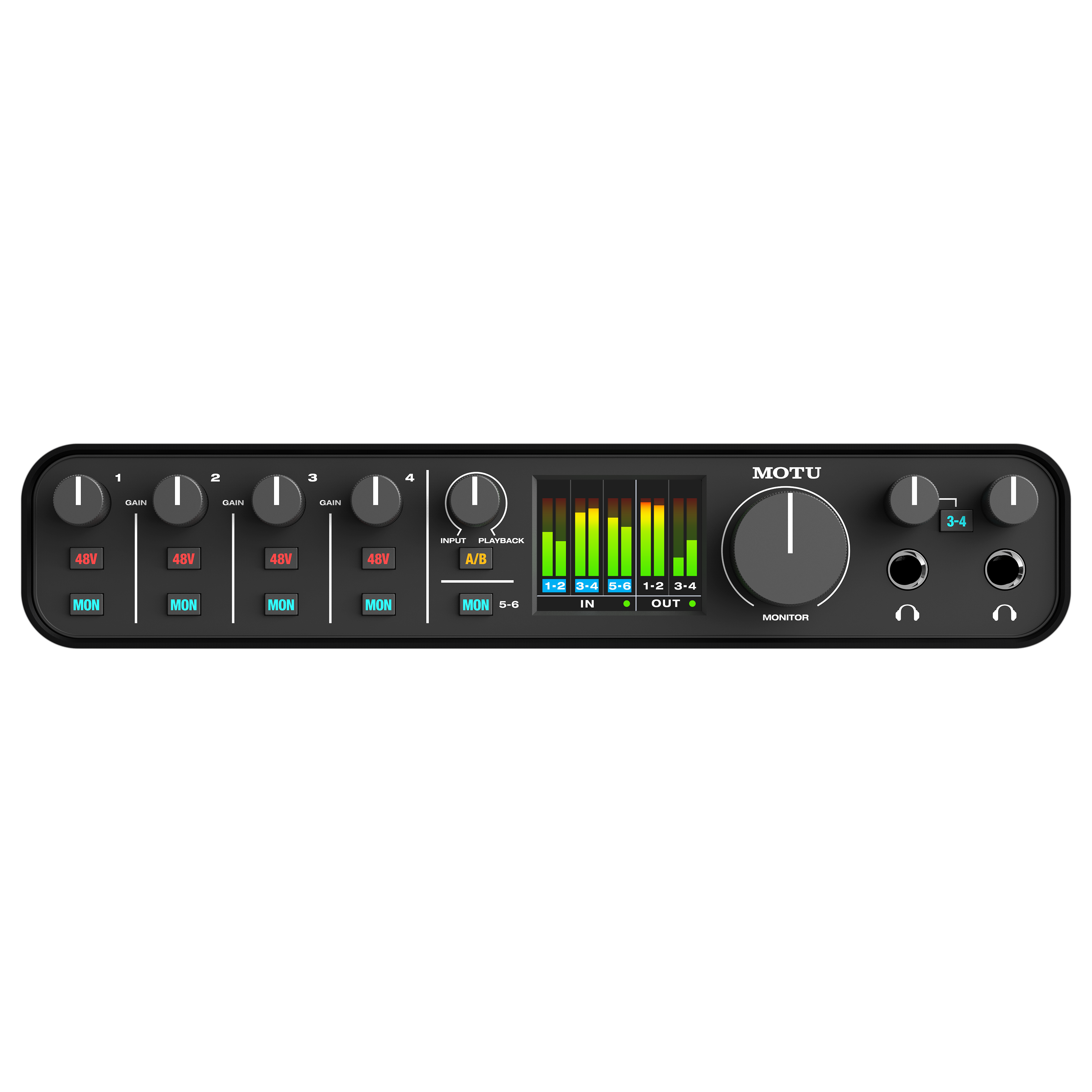

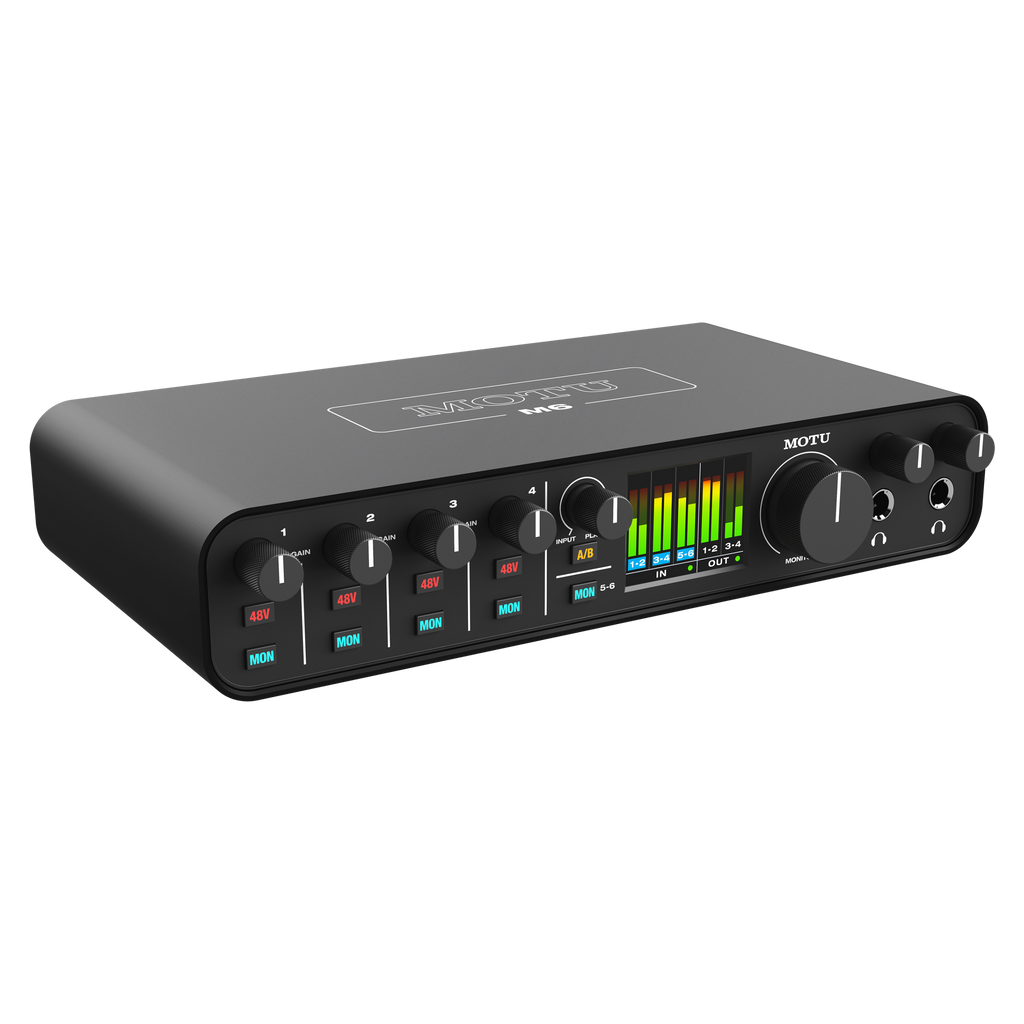

M6 Motu audio interface

The M6 is equipped with the same ESS Sabre32 Ultra™ DAC technology as audio interfaces costing thousands of euros and delivers a stunning dynamic range of 120 dB on the main outputs. ESS converters also drive the headphone outputs, which can compete with dedicated headphone amplifiers costing hundreds of euros. Ultra-pure preamp circuits produce a measured EIN of -129 dBu on the microphone inputs. Record and monitor your audio with impeccable clarity.

• ESS Sabre32 Ultra™ DAC technology for outstanding analog sound
• The same converter technology used in audio interfaces costing thousands of euros
• Measured dynamic range of 120 dB on outputs
• Measured EIN of -129 dBu on microphone inputs
• ESS-driven headphone outputs

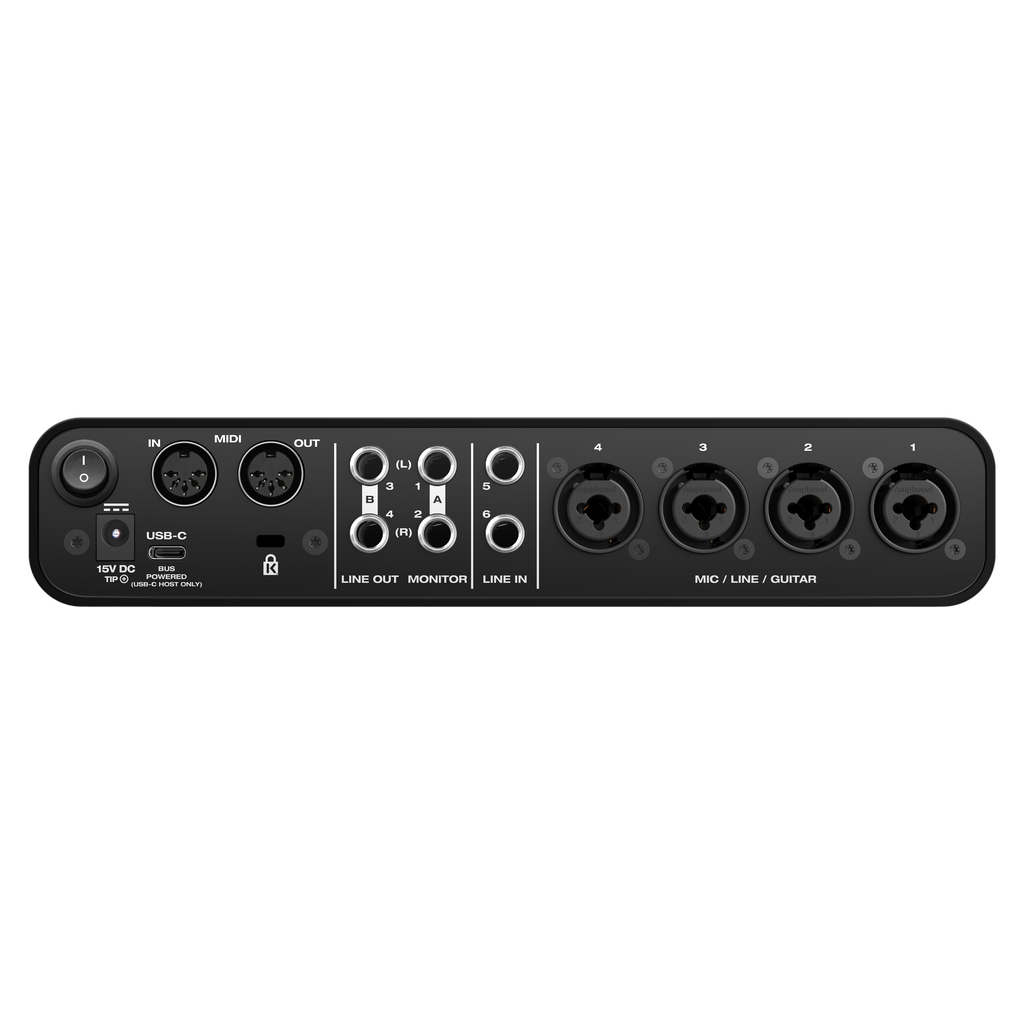

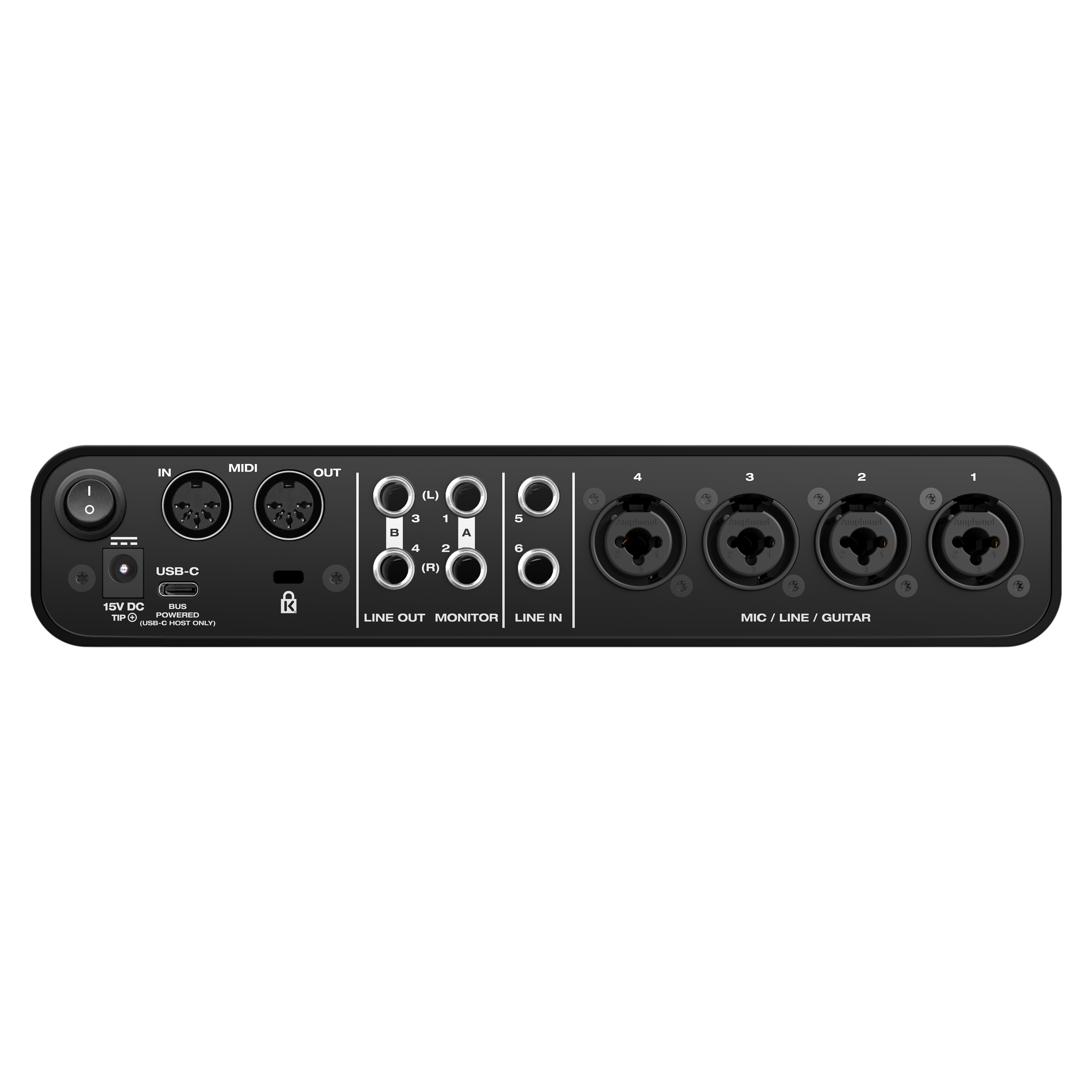

I/O

• 4x microphone/line/hi-Z guitar inputs
• 2x balanced 1/4-inch line inputs
• 4x balanced 1/4-inch TRS outputs
• 2x stereo headphone with volume
• 1x MIDI in/out
• 1x USB-C (compatible with Type A)

Analog specifications

• 120 dB dynamic range on output
• -129 dBu EIN on microphone inputs

Connectivity

• Bus-powered USB-C
• Optional DC power adapter
• Compatible with USB Type A (requires power adapter)
• Windows driver
• Mac driver (optional)
• Compatible with iOS (with Lightning adapter)

Key features

• Plug-and-play operation
• Hardware (direct) monitoring
• Independent 48V phantom power
• A/B monitor switching
• Stand-alone operation with power adapter
• Robust metal construction
• 44.1 to 192 kHz sample rates

System requirements

• macOS 10.11 or higher
• Windows 10 or higher
• iOS 9 or higher
