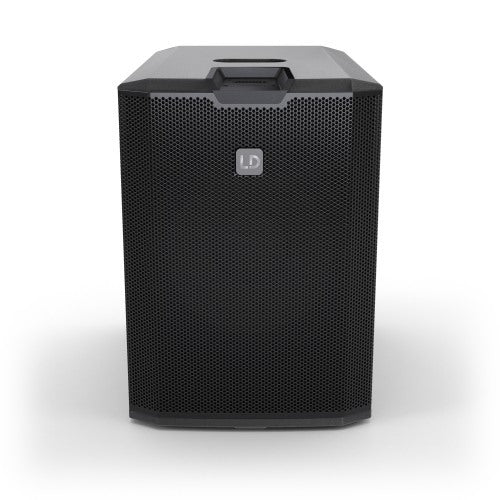

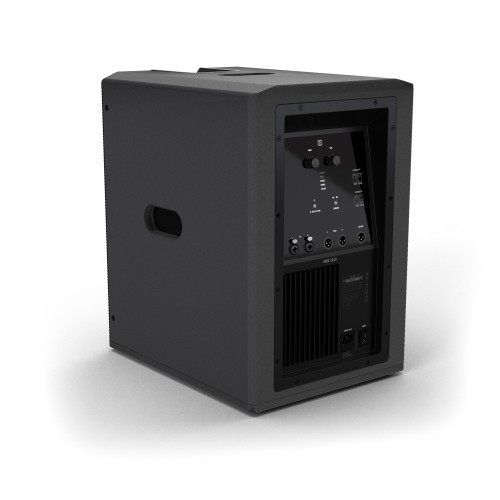

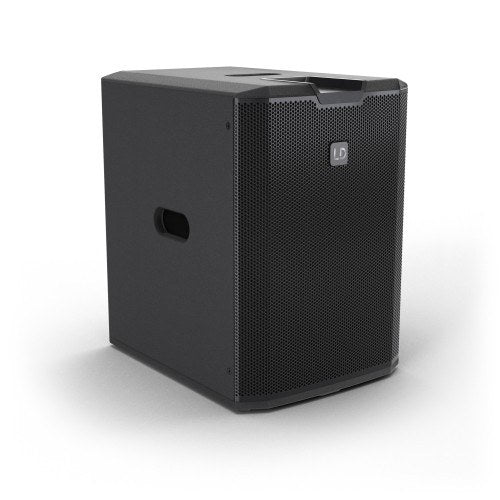

MAUI 28 G3 SUB LD Systems 12-inch subwoofer
- Active 12" subwoofer with optimised bass reflex ports
- 12" specially designed woofer with deep bass down to 37 Hz
- Pre-configured for cardioid subwoofer configuration
- DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
- Automatic setup detection (MAIN / FOLLOWER)
- Sturdy subwoofer enclosure made of polyurea-coated birch plywoodAll product information
Delivery
S2Store Genk (BE)
Pros and Cons
Description
MAUI 28 G3 SUB LD Systems 12-inch subwoofer
- Active 12" subwoofer with optimised bass reflex ports
- 12" specially designed woofer with deep bass down to 37 Hz
- Pre-configured for cardioid subwoofer configuration
- DynX® DSP (Gen.2) technology for distortion-free sound at maximum volume
- Automatic setup detection (MAIN / FOLLOWER)
- Sturdy subwoofer enclosure made of polyurea-coated birch plywood
- Impact-resistant front grille for ultimate speaker protection
- Four ergonomic handles for easy handling. Sharper and more powerful bass with an additional LD MAUI 28 G3 SUB subwoofer.
With the MAUI 28 G3 SUB subwoofer, you extend the cardioid capabilities of our professional column speaker series.
Place the SUB next to your MAUI® 28 G3 facing the rear, enable the Cardioid preset and you get a quieter and controlled low end at the back while retaining the punch at the front. The low frequencies at the rear of the system are attenuated by -15 dB. For extra bass, keep the SUB facing the same direction as your MAUI® 28 G3 and disable the cardioid setting.
Setting up the SUB with your MAUI® 28 G3 is simple and fast. Thanks to the automatic setup detection system, the SUB immediately switches to FOLLOWER mode as long as no column is attached.
The protective cover and the swivel board are also recommended to facilitate transport and to keep the SUB free from draft damage for as long as possible.
The MAUI® 28 G3 SUB W shares the same design construction as the MAUI® 28 G3 W subwoofer and is the perfect addition to get your low end under control.
Brief specifications
| Housing | |
|---|---|
| Dimensions | 370 x 527 x 472 mm |
| Weight | 22,8 kg |
| Color | Zwart |
| Construction material | 15 mm berken multiplex |
| Sound | |
|---|---|
| Frequency response | (-10dB) 37 Hz - 20000 Hz |
| LF driver | 12 inch |
| SPL | 127 dB |
| Power | |
|---|---|
| Peak power | 2060 W |
| RMS power | 1030 W |
| Power supply | |
|---|---|
| Power supply | 100 V AC - 120 V AC, 50 - 60 Hz, 220 V AC - 240 |
| Consumption | 400 W |
| Audio I/O | |
|---|---|
| Inputs | 2 |
| Digital I/O | |
|---|---|
| DSP resolution | 24 bit |
| Digital audio | |
|---|---|
| Sample rate | 48 kHz |
| Connectivity | |
|---|---|
| Bluetooth | AAC, SBC |
