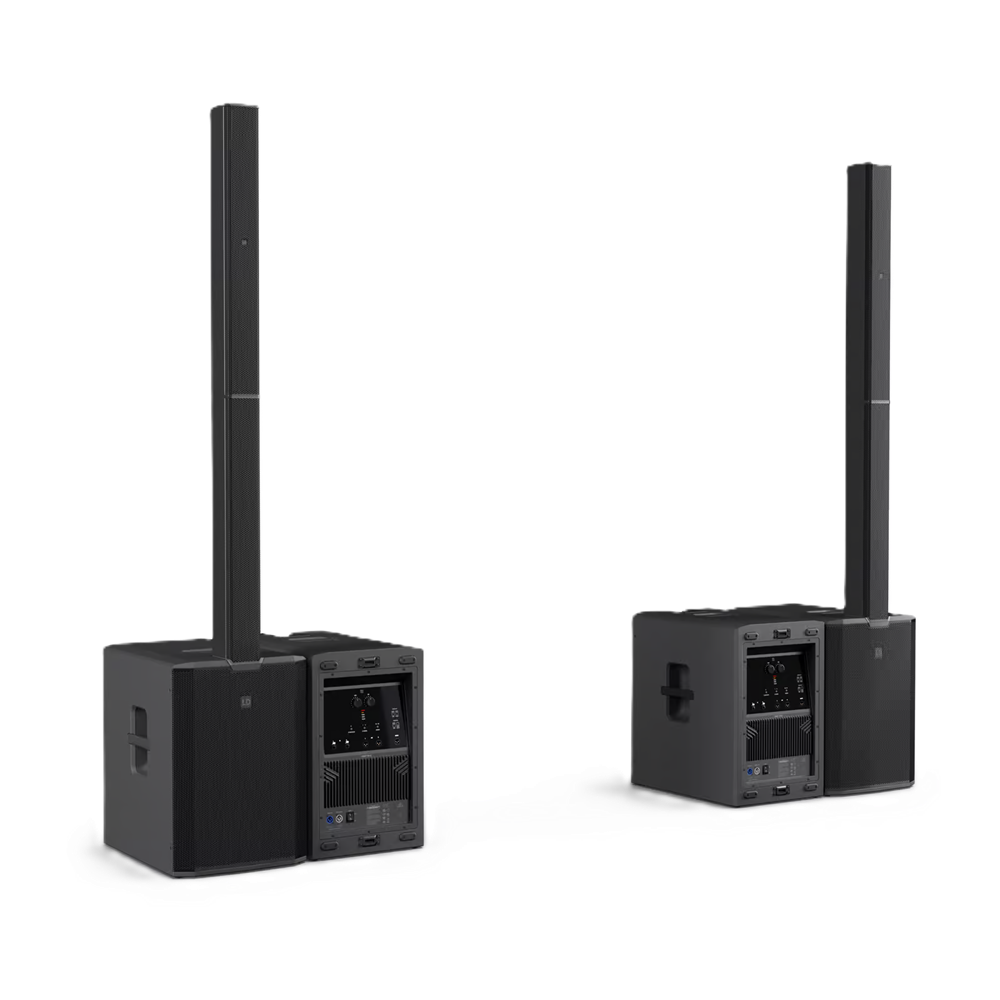

MAUI 44 G3 LD Systems 4-Way Column PA System (Black)
- Powerful 4-way cardioid column PA system
- 3600 W peak power / 133 dB max. SPL
- Powerful 15" bass reflex subwoofer with low-end reproduction down to 34 Hz
- 14 × 3.5" neodymium midrange drivers for balanced midrange reproduction
- 4 × 1" compression drivers with waveguide for precise and clear high-frequency reproduction
- Cardioid column with up to 18 dB rear attenuation (100 Hz - 1 kHz)
- BEM-optimised waveguides and phase plugs for controlled, homogeneous dispersion
- Horn-loaded midrange drivers for improved wavefront coherence
- Airflow-optimised bass reflex design for an extended low-frequency range and reduced port noise
- Expandable with a second MAUI 44 G3 subwoofer for extended low-end reproduction or a cardioid subwoofer configuration
- DynX® DSP (Gen. 2) with advanced limiters for distortion-free sound, even at maximum volume
- Bluetooth 5.4 with AAC for high-quality audio streaming
- Subwoofer with 4 ergonomic handles for easy transport
- Fast and easy setup thanks to wireless connection and automatic column detection
- Robust birch plywood subwoofer with polyurea coating and powder-coated aluminium column speakers

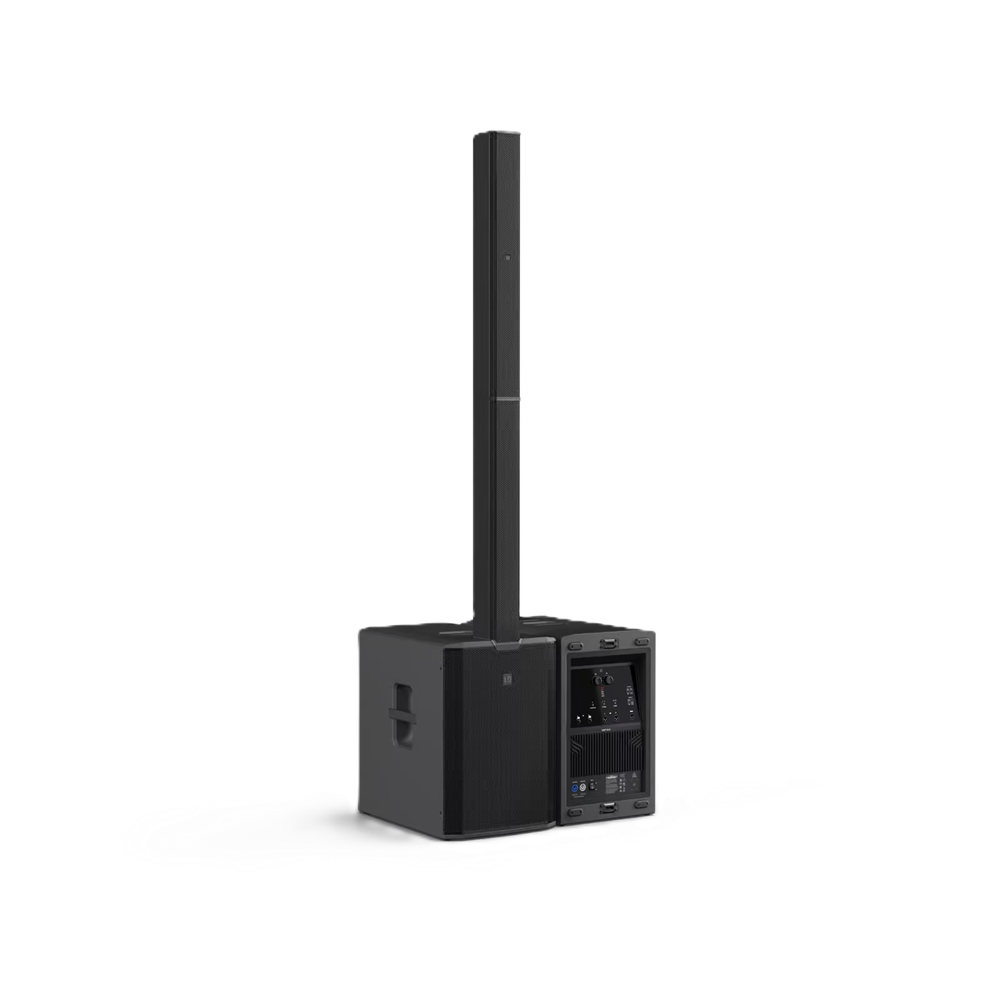

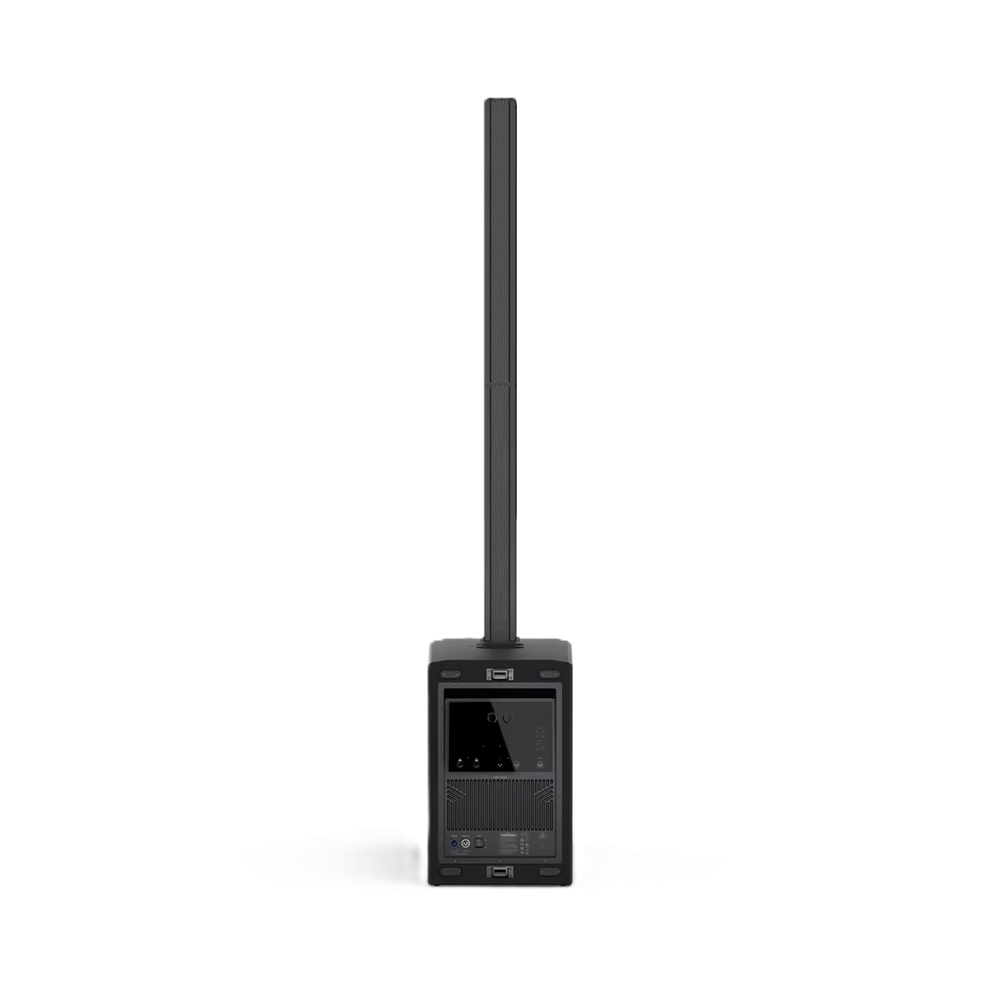

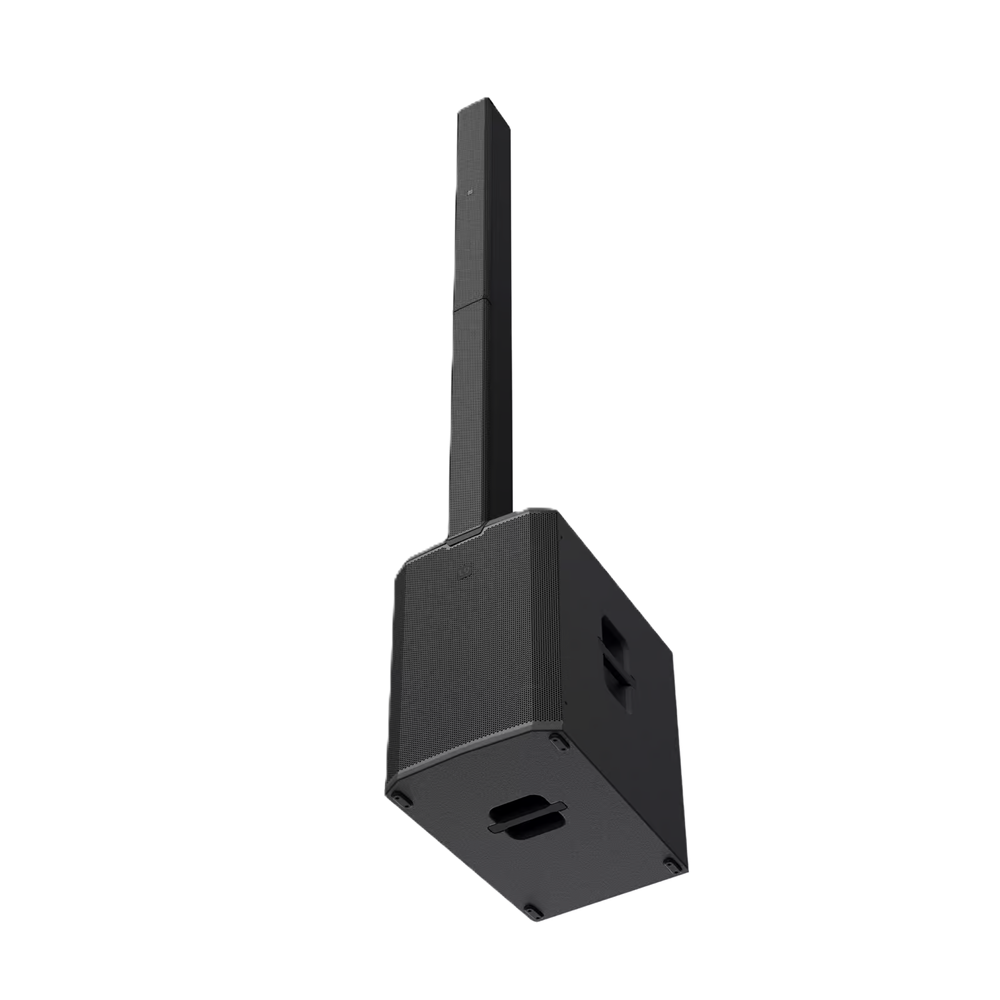

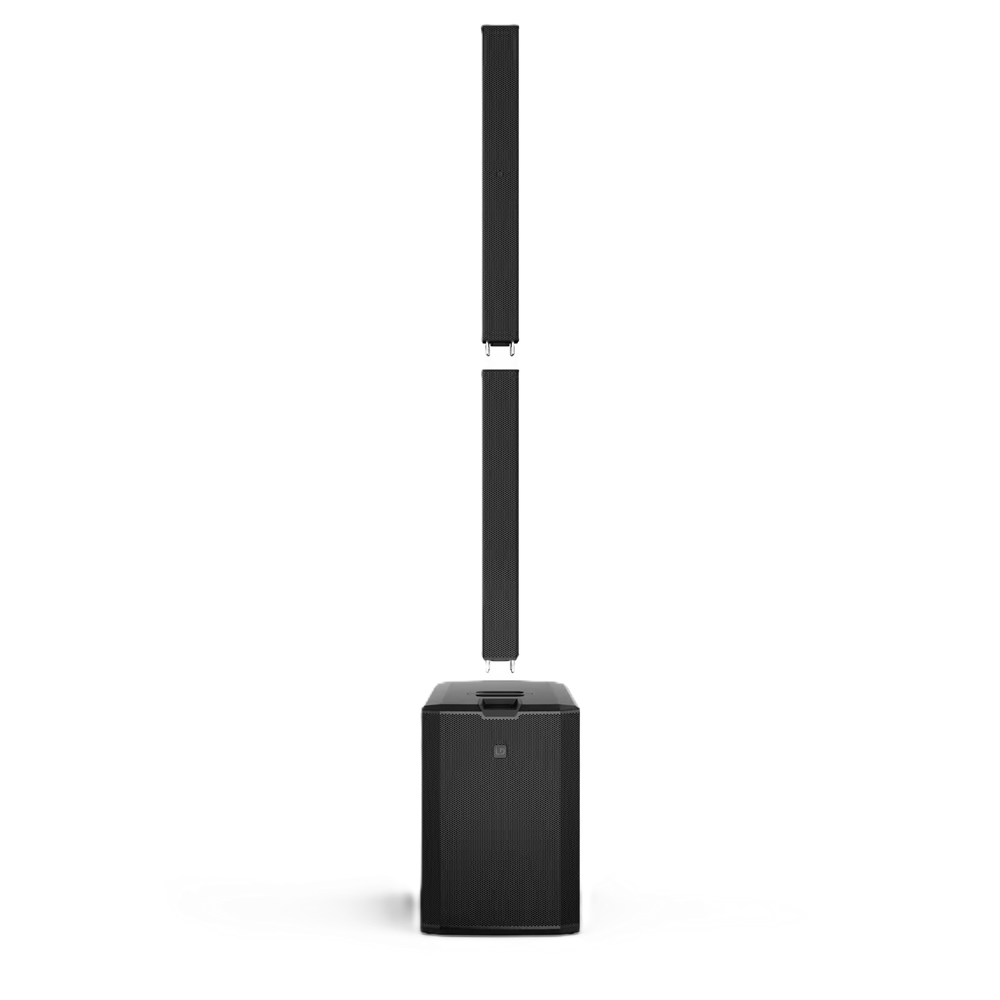

The MAUI 44 G3 is a powerful, fully active 4-way column PA system with a passive cardioid column design. The system is developed for demanding live performances and combines powerful full-range sound reproduction, ample headroom and controlled dispersion with the fast and easy operation the MAUI series is known for.

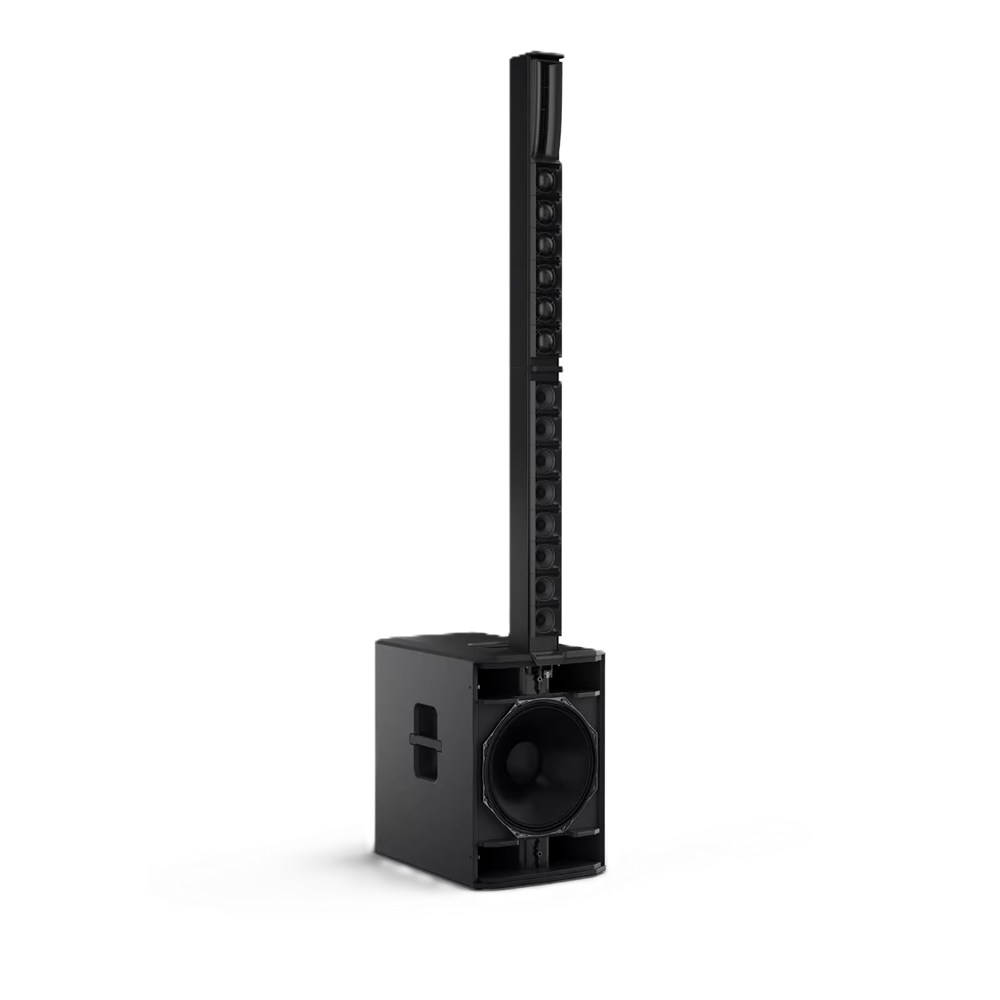

The powerful 15" neodymium woofer delivers solid and accurate low-end reproduction down to 34 Hz. The bass reflex ports, specially designed for optimal airflow, reduce turbulence and port noise, keeping the bass clean and defined even at high sound pressure levels.

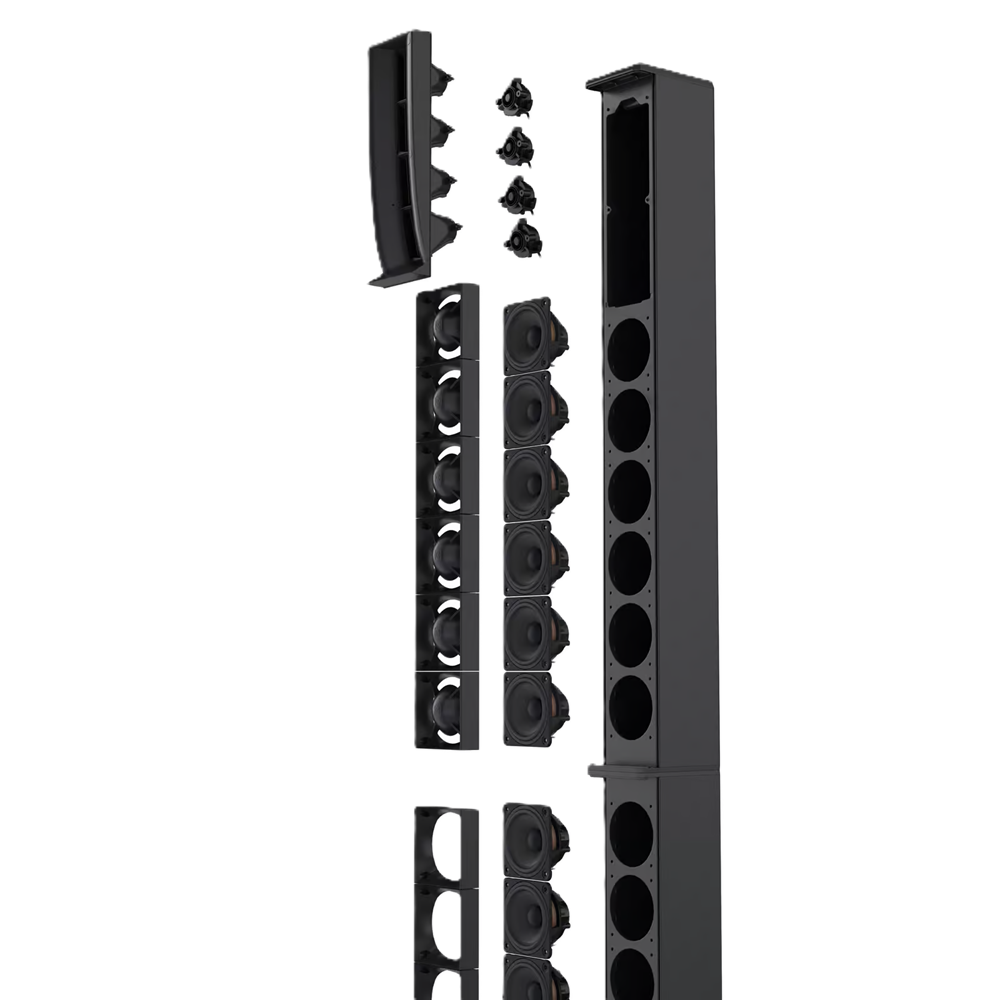

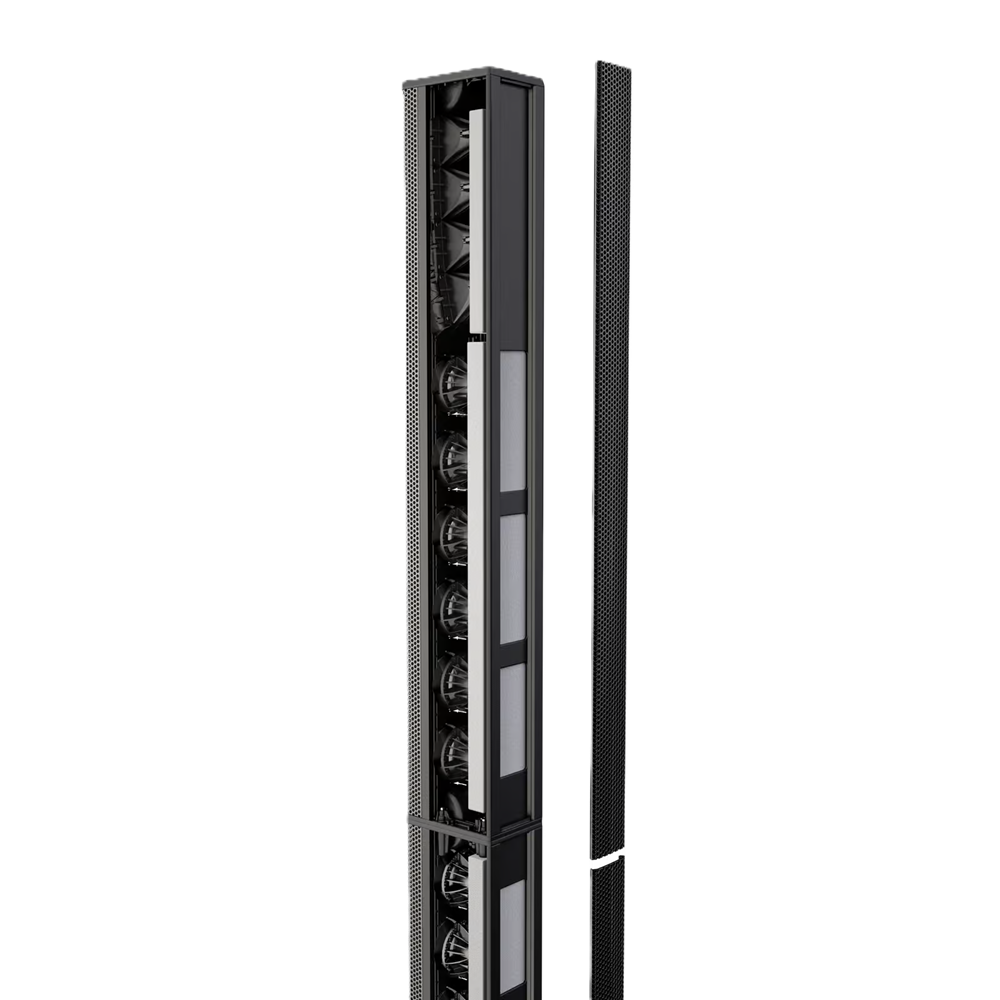

The two-part column features a total of 14 × 3.5" neodymium midrange drivers and 4 × 1" compression drivers. In the upper section, newly developed phase plugs and BEM-optimised waveguides ensure even and controlled dispersion. The lower section features horn-loaded midrange drivers for higher efficiency, ample headroom and powerful, clear vocal reproduction. The result is coherent midrange and high-frequency reproduction with a dispersion angle of 120° × 25°.

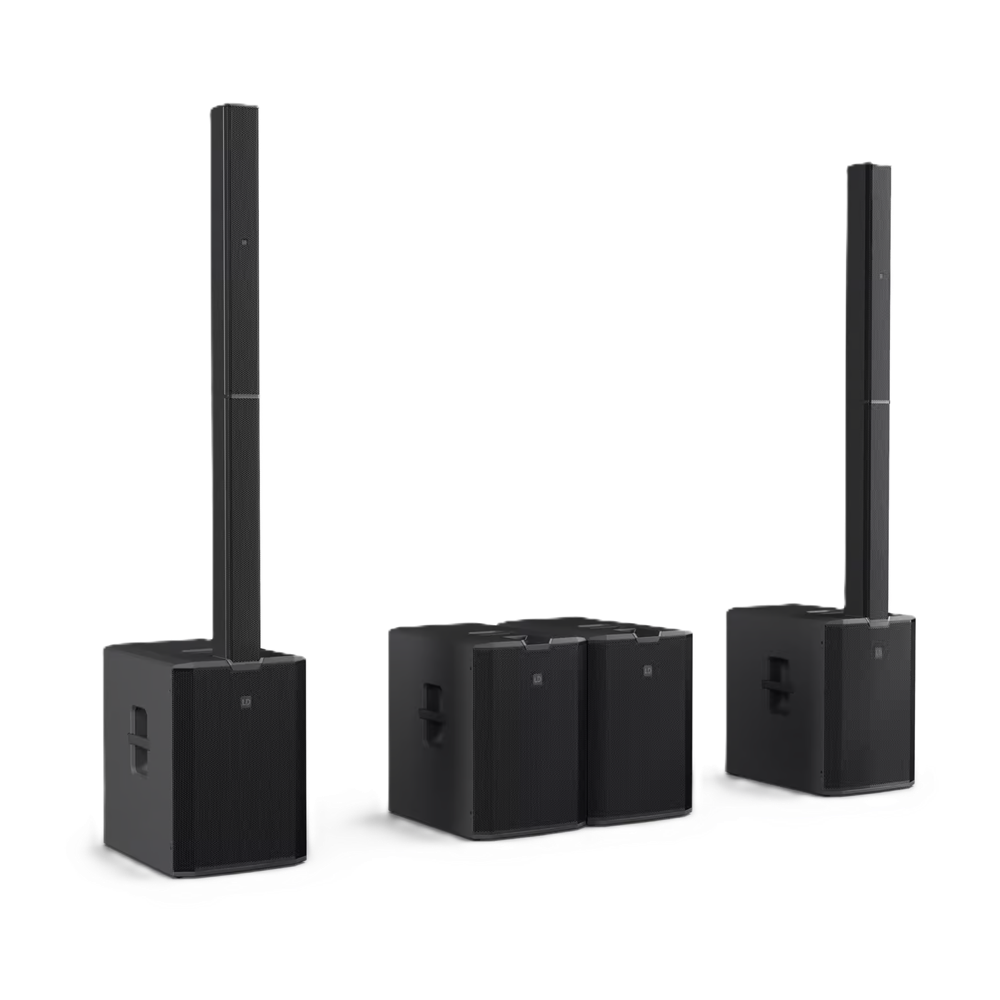

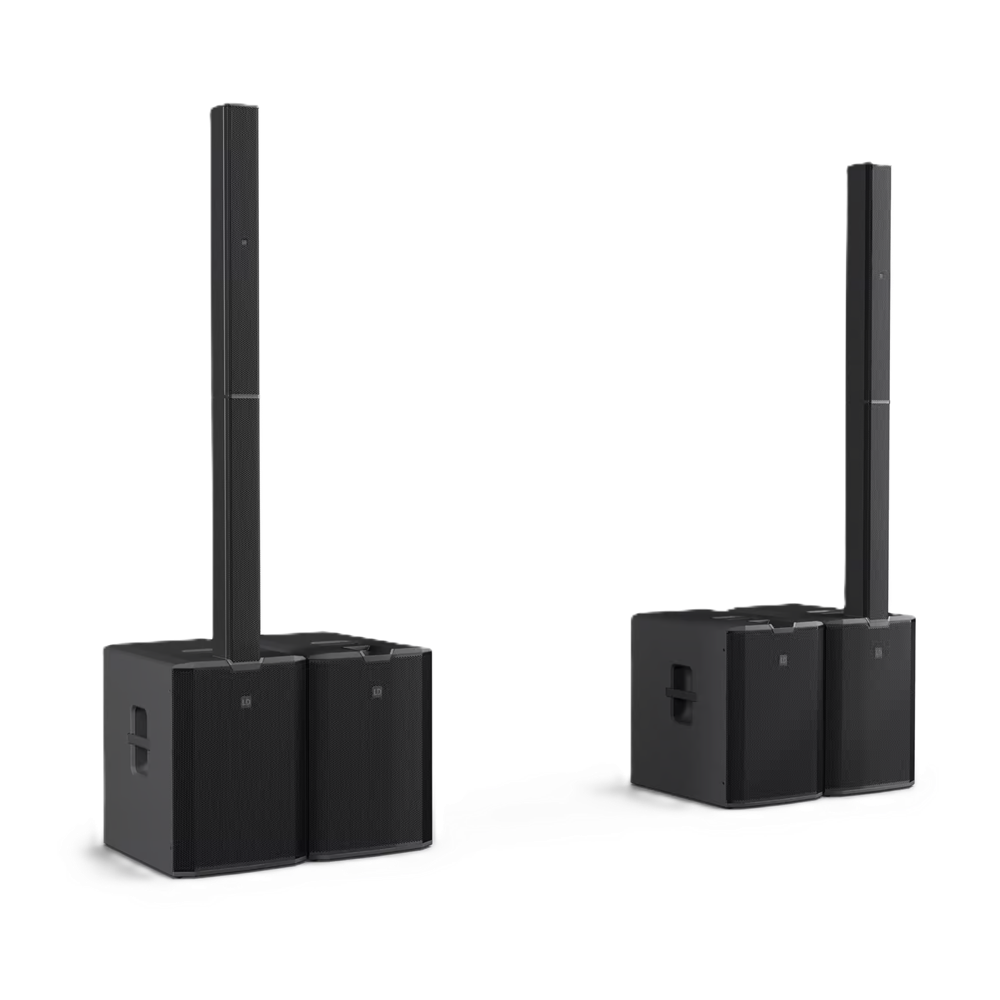

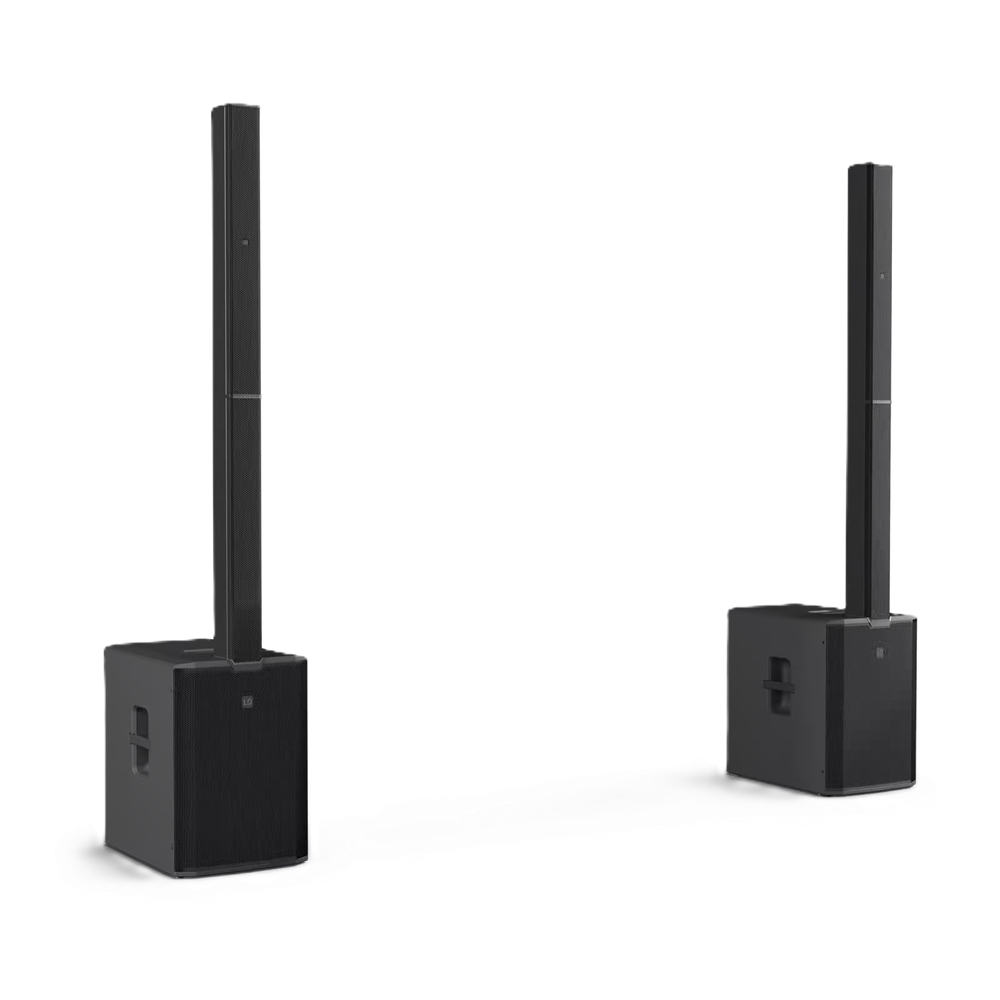

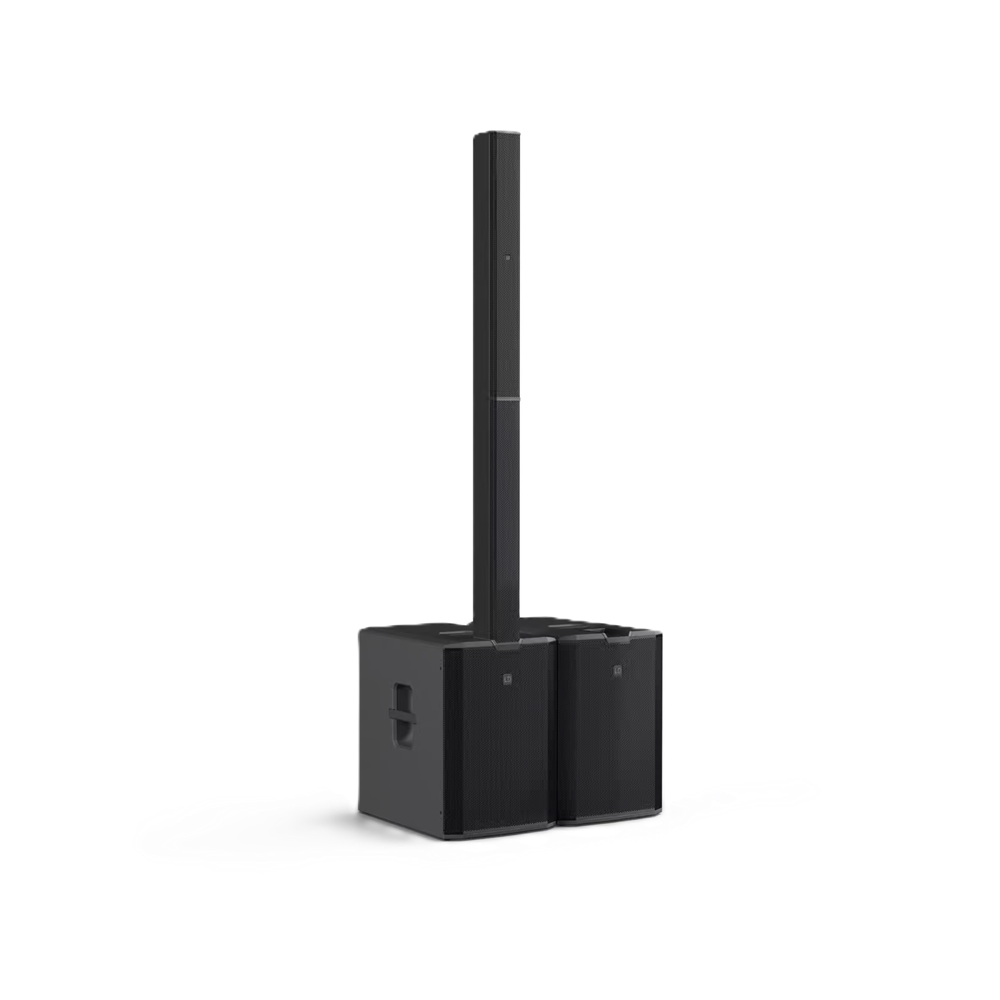

The passive cardioid design of the column directs sound energy towards the audience while simultaneously attenuating rear sound radiation by up to 18 dB. This significantly reduces unwanted sound on stage. With an additional rear-facing MAUI 44 G3 SUB and the Cardioid preset, this principle can be extended to the low-frequency range. This increases bass reproduction towards the audience while noticeably reducing it behind the system. For maximum low-end reinforcement, the second subwoofer can be aimed forward, doubling the sound pressure in the low-frequency range (+6 dB).
The class D amplifier delivers 1,800 W RMS and 3,600 W peak power, with a maximum sound pressure level of 133 dB SPL. The fully active 4-way architecture uses separate driver groups and amplifier channels for each frequency range. The crossover frequencies are set at 200 Hz, 700 Hz and 1,800 Hz. Thanks to DynX® DSP (Gen. 2) and advanced peak, RMS and thermal limiters, the MAUI 44 G3 delivers clear and undistorted sound, even at the highest output levels.

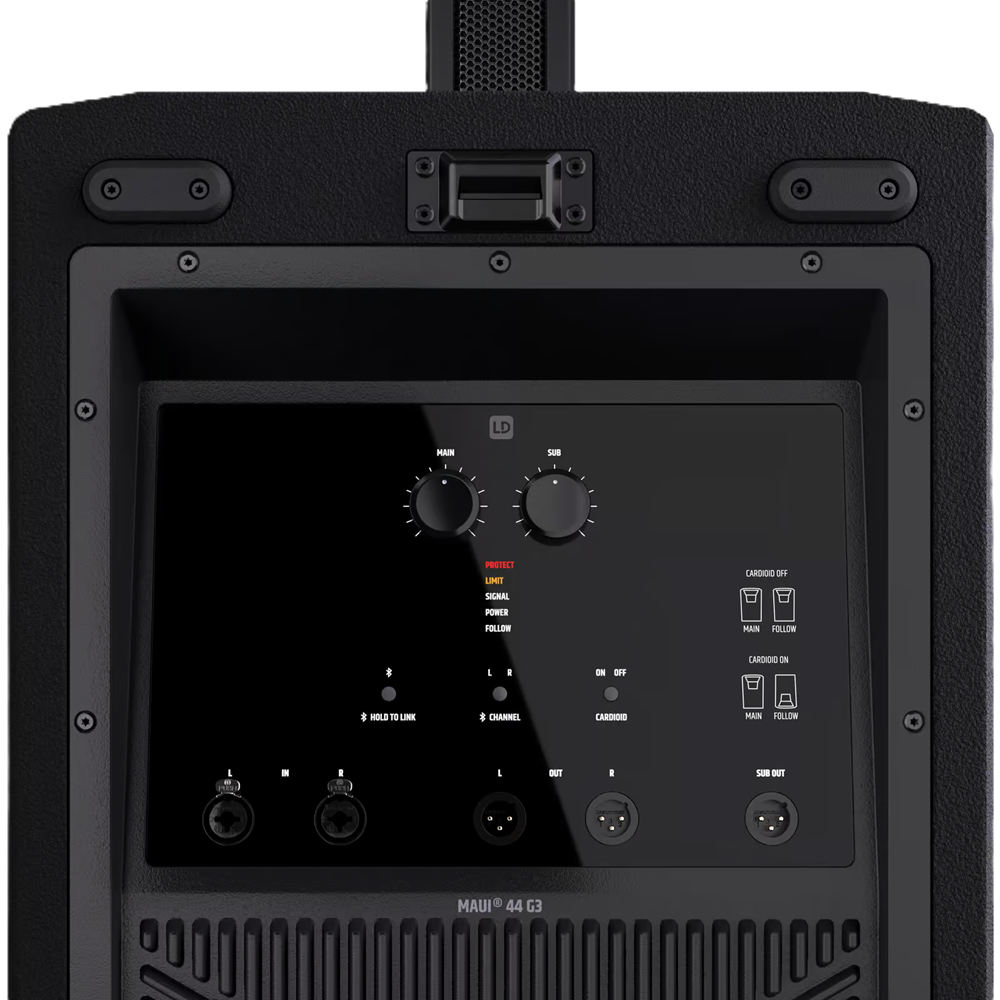

Two XLR/TRS combo inputs, two thru outputs and a dedicated sub output enable easy integration and flexible expansion of the system. Bluetooth 5.4 with support for the SBC and AAC codecs provides straightforward wireless audio playback.

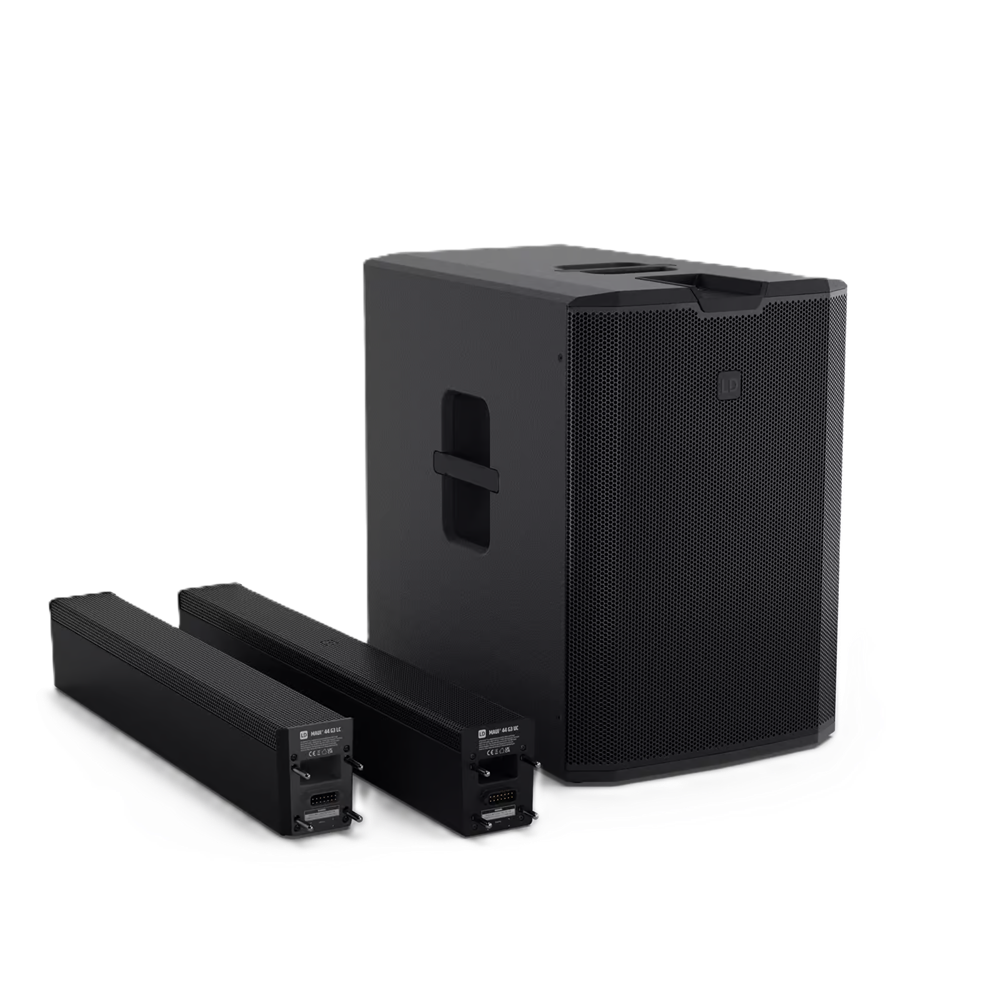

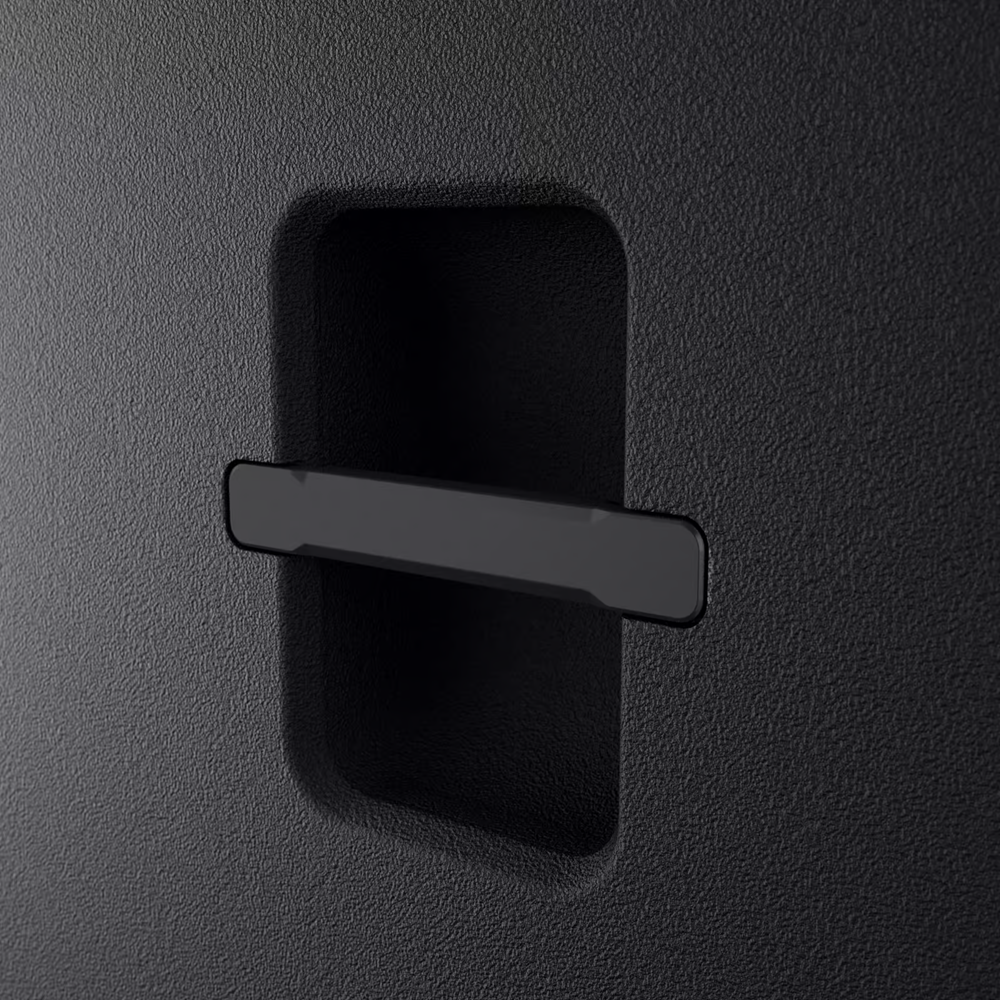

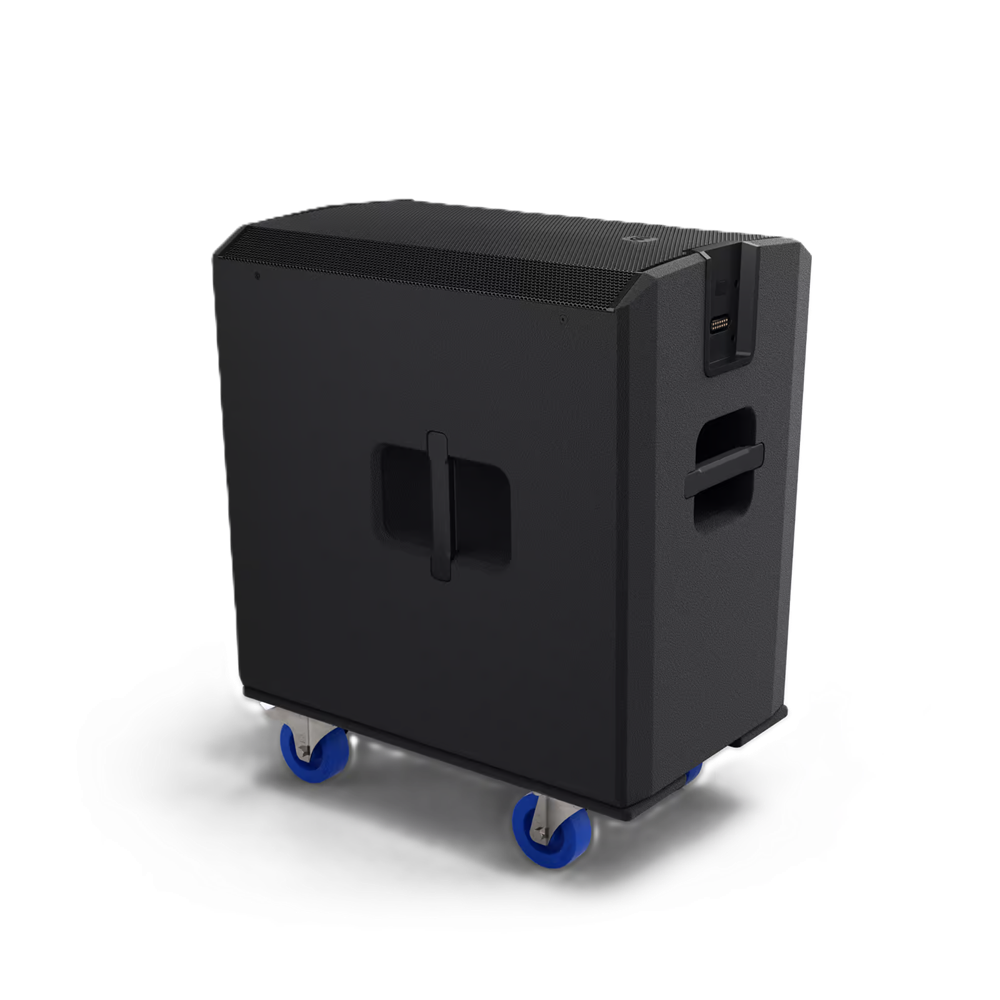

The polyurea-coated birch plywood subwoofer enclosure and the robust aluminium columns are designed for daily professional use. Four ergonomic handles on the subwoofer and recessed handles in the columns make transport and handling easier.
The MAUI 44 G3 is ideal for DJs, bands and event service providers looking to combine professional sound reinforcement with minimal setup time.
Brief specifications
| General | |
|---|---|
| Type | actief |
| Piekvermogen | 3600 W |
| RMS-vermogen | 1800 W |
| Versterkerklasse | klasse D |
| Maximale SPL | 133 dB |
| Frequentiebereik | 37 Hz - 20 kHz (-6 dB, rel. gem.), 34 Hz - 20 kHz (-10 dB, rel. gem.) |
| Luidsprekersysteem | 4-weg systeem |
| Crossoverfrequenties | 200 Hz, 700 Hz, 1.800 Hz |
| Spreidingshoek | horizontaal 120°, verticaal 25° |
| Aantal ingangen | 2, XLR-combo-aansluiting |
| Aantal uitgangen | 3, XLR 3p mannelijk |
| Beveiligingen | limiter, oververhittingsbeveiliging |
| Kleur | zwart |
| Bluetooth | |
|---|---|
| Bluetoothversie | 5.4 |
| Ondersteunde audio-codecs | AAC, SBC, aptX™ |
| Signaalprocessing | |
|---|---|
| AD/DA bit diepte | 32 Bit, 24 Bit |
| AD/DA saple rate | 48 kHz |
| Signaal-ruis-verhouding | 106 dB |
