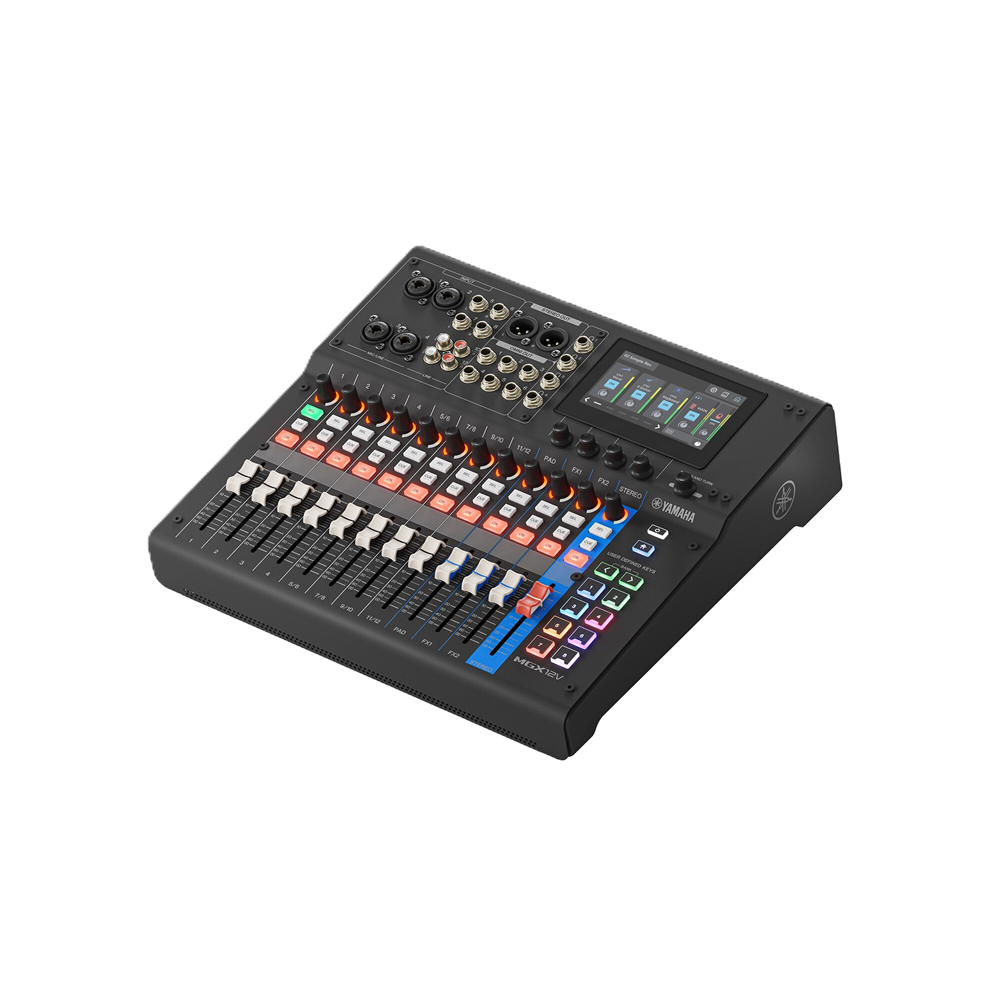

MGX12V B Yamaha 18-Channel Digital Mixer with Video Interface (Black)
Regular price
€899,00
Unit price
per
- 11 + 1 fader configuration (non-motorised fader)
- A 4.3-inch touchscreen with five control knobs
- Mix channel inputs: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
- Buses: 1 STEREO + 8 MIX
- Local inputs: 4 combo (mic/line), 4 TRS (line), 4 RCA (line)
- Local outputs: 2 XLR, 6 TRS pho...
Approx. 3-7 business days
S2 Ref: 018768
Delivery
Approx. 3-7 business days
S2Store Genk (BE)
Approx. 3-7 business days
Pros and Cons
Description
MGX12V B Yamaha 18-Channel Digital Mixer with Video Interface (Black)
- 11 + 1 fader configuration (non-motorised fader)
- A 4.3-inch touchscreen with five control knobs
- Mix channel inputs: 4 mono + 4 stereo + 1 Sound Pad + 2 FX return
- Buses: 1 STEREO + 8 MIX
- Local inputs: 4 combo (mic/line), 4 TRS (line), 4 RCA (line)
- Local outputs: 2 XLR, 6 TRS phone, 4 headphones
- USB MAIN: 18 inputs / 18 outputs (32-bit / 96 kHz)
- USB SUB: 2 inputs / 2 outputs (16-bit / 48 kHz)
- microSD card: 16-track recording / 2-track playback (24-bit / up to 96 kHz)
- Bluetooth audio input: 2 inputs (Bluetooth 5.0, A2DP)
- HDMI-to-USB video/audio input with recording function and real-time HDMI passthrough
- Built-in DSP processor for professional sound and latency-free monitoring
- Utility functions: Auto Gain, Clip Safe, Simple/Standard mode, Scene Recall
- Included accessories: Quick Start Guide, safety guide, Steinberg software licence card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite licence card, power adapter (PA-300C)
The MGX12V is a compact digital mixer with a video interface and versatile capabilities, making it ideal for a wide range of applications. The MGX12V delivers excellent sound quality, is quick and easy to set up and operate, and features professional-grade functionality.
Brief specifications
| Aansluitingen | |
|---|---|
| Analoog In | 4 Combo (Mic/Line), 4 TRS (Line), 4 RCA (Line) |
| Analoog Uit | 2 XLR, 6 TRS |
| USB to Host | 2 (USB Type-C, MAIN: 32-bit/SUB: 16-bit) |
| Phones | 4 TRS (100 mW+100 mW @40 Ohm) |
| Voeding | 1 (Barrel type, DC power IN) |
| MicroSD-kaart slot | ja, 1 |
| Bluetooth | ja, 1 Bluetooth audio input (Bluetooth 5.0, A2DP) |
| HDMI | 1 IN / 1 THRU (Audio/Video input/capture/pass-through) |
| User Interface | |
|---|---|
| User Interface | 4.3-inch touch screen, 12 x 60 mm fader, 12 x SEND knob, 5 x rotary encoder (4 x screen knob, 1 x "TOUCH AND TURN") |
| Recording & Playback | |
|---|---|
| USB | 18-track recording, 18-track playback |
| USB (SUB) | 2-track recording, 2-track playback |
| microSD Card | Up to 16-track recording, 2-track playback |
| Audio | |
|---|---|
| Sampling frequency rate | 96 kHz - 44.1 kHz |
| Signal Delay | Less than 0.4 ms (INPUT to STEREO OUT @ Fs=96 kHz) |
| Frequency response | +0.0 / -0.5dB 20 Hz to 20 kHz, reference to the nominal output level @1 kHz, Input Gain= Min. |
| Dynamic range | 125 dB typ., DAC to STEREO OUT, 115 dB typ., INPUT to MAIN OUT, Input Gain=Min. |
| Total harmonic distortion | Less than 0.002% 20 Hz to 20 kHz@+4 dBu, MIC INPUT to STEREO OUT, Input Gain=Min. |
| DSP | Gate, Compressor, EQ, Sweet Spot Morphing Channel Strip (Comp & EQ), Guitar Amp Classics (Amp Simulator), Pitch Fix (Voice Changer), Ducker, Multi-Band Compressor, Compander, Delay, REV-X (Reverb) |
| Input Channels | 4 mono + 4 stereo + 1 Sound Pad + 2 FX |
| Mix Buses | 8 (mono) |
| Stroomvoorziening | |
|---|---|
| Stroomvoorziening | DC16 V/2.4 A, PA-300C AC power adapter (100 V-240 V, 50 Hz/60 Hz) |
| Stroomverbruik | 38.4 W |
| Behuizing | |
|---|---|
| Afmetingen | 335 x 96 x 319 mm |
| Gewicht | 4.1 kg |
| Inbegrepen | |
|---|---|
| Meegeleverd | Start Guide, Safety Guide, Steinberg Software License Card x2 (Cubase AI + WaveLab Cast, Steinberg Plus), Basic FX Suite license card, AC Power Adapter (PA-300 including power cord) |
