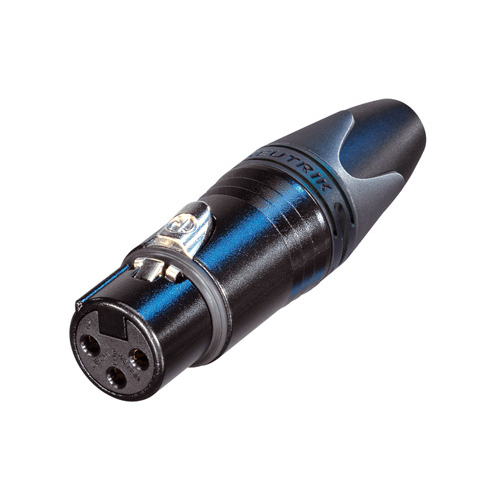

NC3FXX-BAG 3-Pin XLR-Connector Female Black Neutrik
Regular price
€6,07
Unit price
per
5 or more
€5,77
10 or more
€5,47
20 or more
€5,16
Characteristics:
- Capacity between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Retraction force: ≤ 20 N
- Service life: > 1000 ma...
In stock (78)
S2 Ref: NC3FXXBAG
Delivery
In stock
S2Store Genk (BE)
In stock
Pros and Cons
Description
NC3FXX-BAG 3-Pin XLR-Connector Female Black Neutrik
Characteristics:
- Capacity between contacts: ≤ 4 pF
- Contact resistance: ≤ 3 mΩ
- Dielectric strength: 1.5 kVdc
- Insulation resistance: > 10 GΩ (initial)
- Rated current per contact: 16 A
- Rated voltage: < 50 V
- Cable O.D.: 3.5 - 8.0 mm
- Insertion force: ≤ 20 N
- Retraction force: ≤ 20 N
- Service life: > 1000 mating cycles
- Wire: sizemax. 2.5 mm²
- Wire: size max. 14 AWG
- Wiring: Solder contacts
- With locking device
- Material: Polyurethane
- Contact plating: 2 µm Ag
- Contacts: Brass (CuZn39Pb3)
- Insert: Polyamide (PA 6.6 30 % GR)
- Locking element: Die-cast zinc (ZnAl4Cu1)
- Housing: Die-cast zinc (ZnAl4Cu1)
- Casing plated: Black chrome
Brief specifications
| Housing | |
|---|---|
| Color | Zwart |
