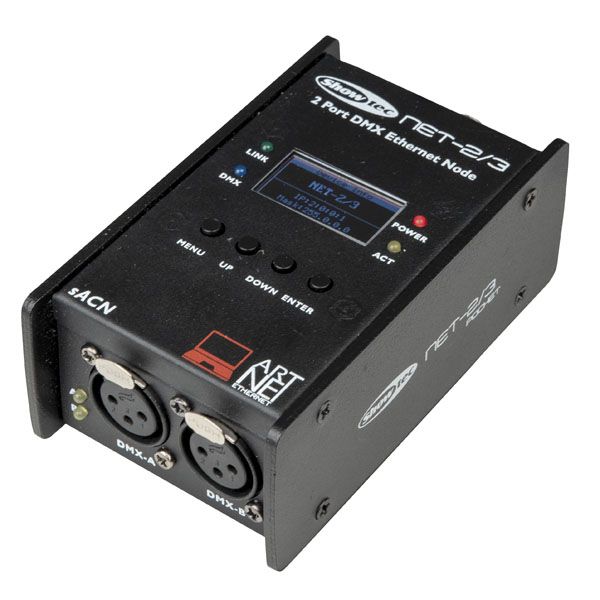

NET-2/3 POCKET 2-CHANNEL ARTNET-NODE SHOWTEC
2 CHANNEL ARTNET NODE SHOWTEC - 3p XLR
The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert ArtNET or sACN to DMX512 and back. The power input can be provided by POE which makes the 12V power supply superfluous.
A maximum of 1024 channels can be transported o...
Delivery
S2Store Genk (BE)
Related products
Pros and Cons
Description
NET-2/3 POCKET 2-CHANNEL ARTNET-NODE SHOWTEC
2 CHANNEL ARTNET NODE SHOWTEC - 3p XLR
The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert ArtNET or sACN to DMX512 and back. The power input can be provided by POE which makes the 12V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Specifications:
| Network | RJ45 |
|---|---|
| DMX | 2x 3-pin XLR |
| Supported protocols | ArtNET, sACN, TCP/IPv4, DMX-512A |
| Dimensions | 67 x 115 x 44 mm |
| Power supply | 12VDC, 500mA or PoE (IEEE 802.3af) |
| Power consumption | 6W max. |
| Operating temp | 0 to +40 °C |
| Weight | 335gr |
