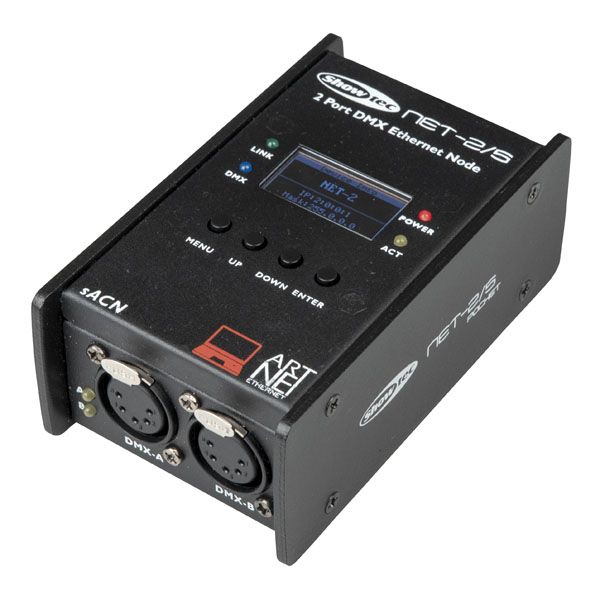

NET-2/5 POCKET SHOWTEC
NET-2/5 POCKET SHOWTEC - 2-channel artnet node 5-pole XLR
The Showtec NET-2/3 Pocket and NET-2/5 Pocket nodes are cutting-edge network routing devices which convert ArtNET or sACN to DMX512 and back. The power input can be provided by POE which makes the 12V power supply superfluous.
A maximum of 1024 channels can be transported over a single CAT5. All settings can be done by the easy-to-use menu on the graphic display and buttons on the front.
Specifications:
| Network | RJ45 |
|---|---|
| DMX | 2x 5-pin XLR |
| Supported protocols | ArtNET, sACN, TCP/IPv4, DMX-512A |
| Dimensions | 67 x 115 x 44 mm |
| Power supply | 12VDC, 500mA, or PoE (IEEE 802.3af) |
| Power consumption | 6W max. |
| Operating temp | 0 to +40 °C |
| Weight | 335gr |
