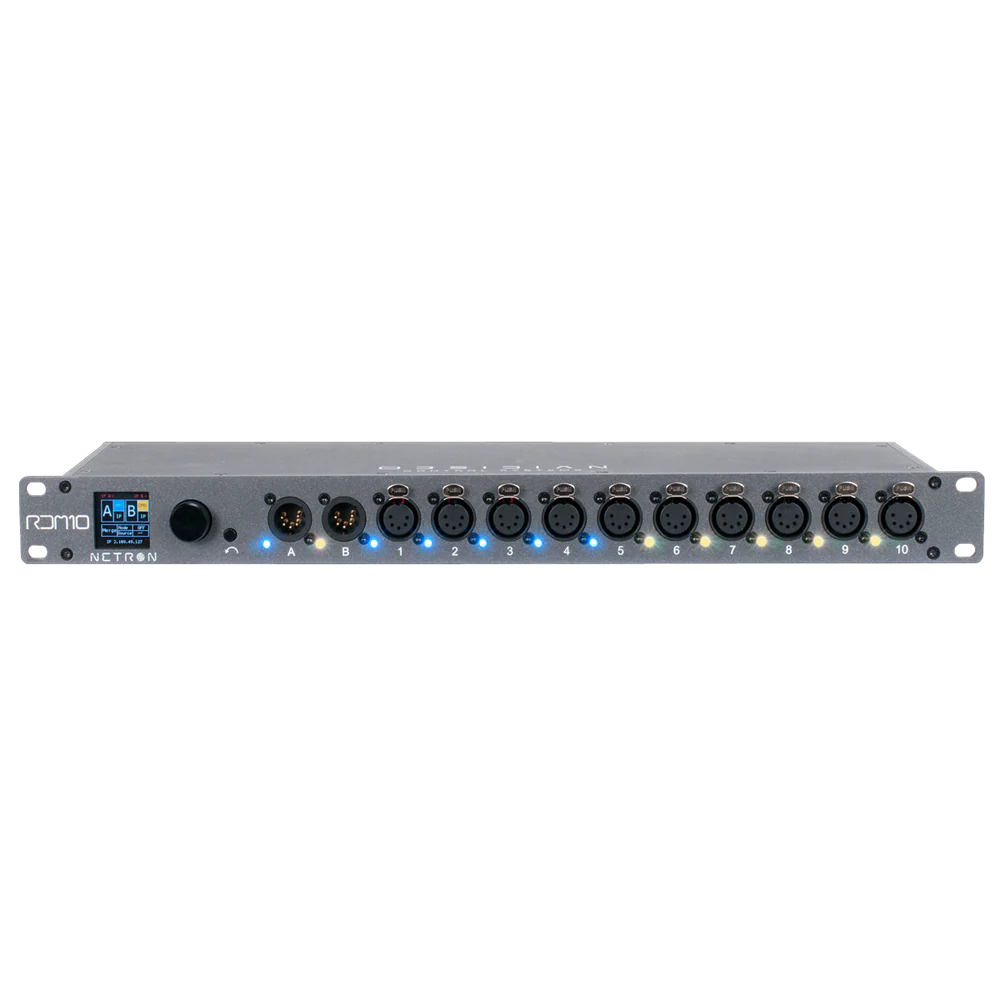

Netron RDM 10 Obsidian Splitter/Merger/Ethernet DMX Gateway

The NETRON RDM 10 is a unique hybrid splitter. A dual DMX input, 10-port RDM splitter, merger and EtherDMX gateway are combined in the RDM10, with advanced features for a wide range of applications.

Features

• 10 assignable DMX outputs
• Integrated 2 Universe Artnet/sACN node
• Configurable DMX refresh rate
• Dual DMX inputs for backup and signal loss options
• Remote configuration via internal web page
• 1.8-inch OLED display with rotary encoder
• 99 internal cues with fade and delay time
• Contact closures for cue or preset recall
• Powder-coated aluminium rackmount enclosure
• Unlocks ONYX NOVA 4 Universe licence
• NETRON CLU for remote configuration and firmware updates

Mounting

• Rackmount

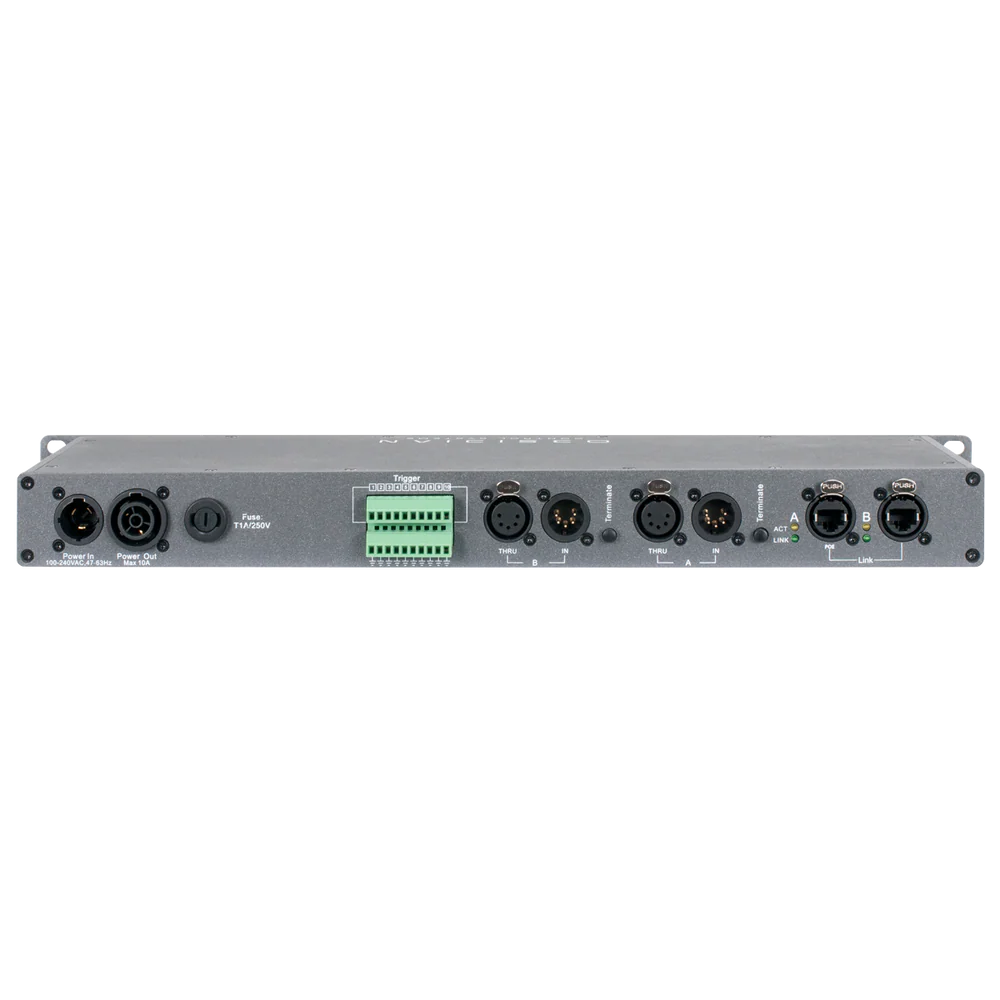

Connections

• (2) 5-pin DMX input
• (10) 5-pin opto-isolated DMX outputs
• Full colour OLED display
• Encoder with push-to-select/exit button
• (2) 5-pin DMX input (parallel with front)
• (2) 5-pin DMX thru
• (2) Locking RJ45 Ethernet network input
• (10) Contact closures (terminal block)
• Locking power input/thru

Included

• 1.5 m locking power cable (EU or US version)
