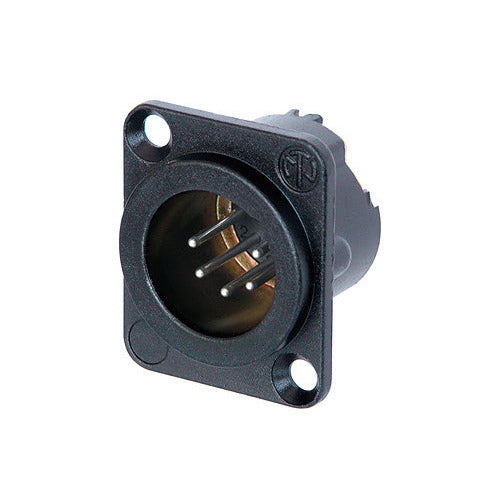

NC5MD-LX-BAG Neutrik

5 pole male receptacle, solder cups, black metal housing, silver contacts

The DLX series features a compact all metal housing with an ingenious duplex ground contact, which offers excellent RF protection and shielding.

Features & Benefits

• All metal housing offers best overall RF protection and electromagnetic shielding
• Duplex ground contact for excellent contact integrity between chassis and cable connector
• Male connector's retention bar replaces plastic design with all metal version improving pull-out force
• Larger solder contacts for easier termination
• Optional connection to easily join pin1 to chassis ground
• D-style housing provides installation compatibility with industry standard D mounting dimensions

Product

Connection Type XLR

Gender male

Electrical

Capacitance between contacts

≤ 7 pF

Contact resistance

≤ 5 mΩ

Dielectric strength

1,5 kVdc

Insulation resistance

> 10 GΩ (initial)

Rated current per contact

7,5 A

Rated voltage

< 50 V

Mechanical

Insertion force

≤ 20 N

Withdrawal force

≤ 20 N

Lifetime

> 1000 mating cycles

Wiresize

max. 1.0 mm²

Wiresize

max. 18 AWG

Wiring

Solder contacts

Locking device

Latch lock

Chassis shape

D

Material

Contact plating

2 µm Ag over 2 µm Ni

Contacts

Brass (CuZn35Pb2)

Insert

Polyamide (PA 6.6 30 % GR)

Locking element

Steel Ck67

Shell

Zinc diecast (ZnAl4Cu1)

Shell plating

Black chromium

Environmental

Flammability

UL 94 HB

Standard compliance

IEC 61076-2-103

Protection class

IP 40

Solderability

Complies with IEC 68-2-20

Temperature range

-30 °C to +80 °C
