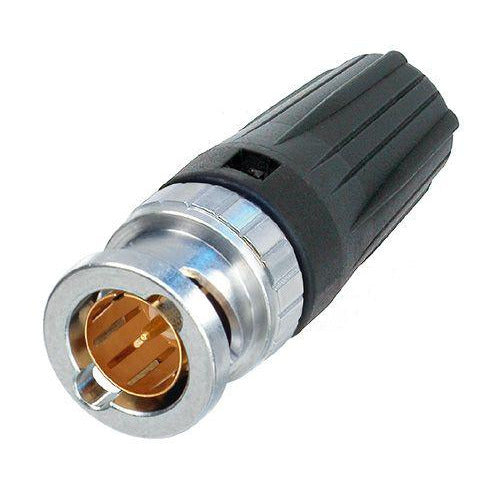

Neutrik rearTWIST HD BNC cable connector.

• “rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507)
• Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
• True 75 Ω design meets the stringent HDTV / DVD requirements

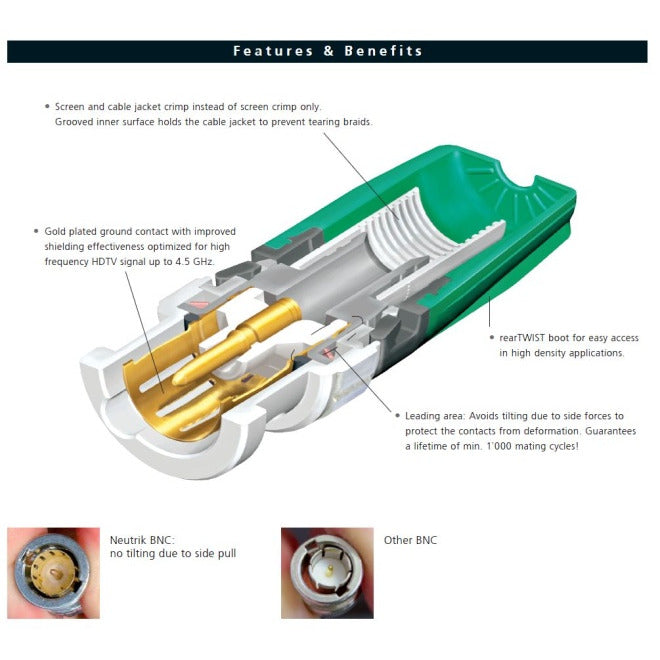

• Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
• Snug-fit center pin insert provides tactile feedback
• Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
• Excellent cable protection and retention
• Precise Swiss machined brass parts for outstanding durability
• Accessories include color coded boots in 10 standard colors, crimp tool and dies
• Suitable cables: Belden 1505F, Bryant BD SD53F, Cordial CVI 08-37 HD

Specifications:
Product

• Title: NBNC75BJP9
• Connection Type: BNC 75 Ω
• Gender: male

Electrical

• Contact resistance: ≤ 3 mΩ (inner)
• Contact resistance: ≤ 2 mΩ (outer)
• Dielectric strength: 1,5 kVdc
• Insulation resistance: > 5 GΩ
• Rated voltage: <50 V

VSWR

• ≤1.050/>32 dB up to 1 GHz
• ≤1.065/>30 dB up to 2 GHz
• ≤1.100/>26 dB up to 3 Ghz

Mechanical

• Cable O.D.: 6.3 mm
• Cable retention: > 30 N (Center)
• Crimp size: 6,47 Hex crimp (shield) acc. IEC 60803 (die designation E)
• Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
• Insertion force: < 25 N
• Lifetime: > 1000 mating cycles
• Locking device: Bayonett
• Cable anchoring: Jacket crimping

Environmental

• Temperature range: -30 °C to +85 °C
• Contact crimpability: Complies with IEC 60803 and IEC 60352-2

Downloads:

• Assembly Instruction
• BNC Cable to Connector List
• Neutrik BNC rearTWIST White Paper
• Product Guide - Section BNC
• True 75 Ohm HD BNC Connectors
• Drawing
