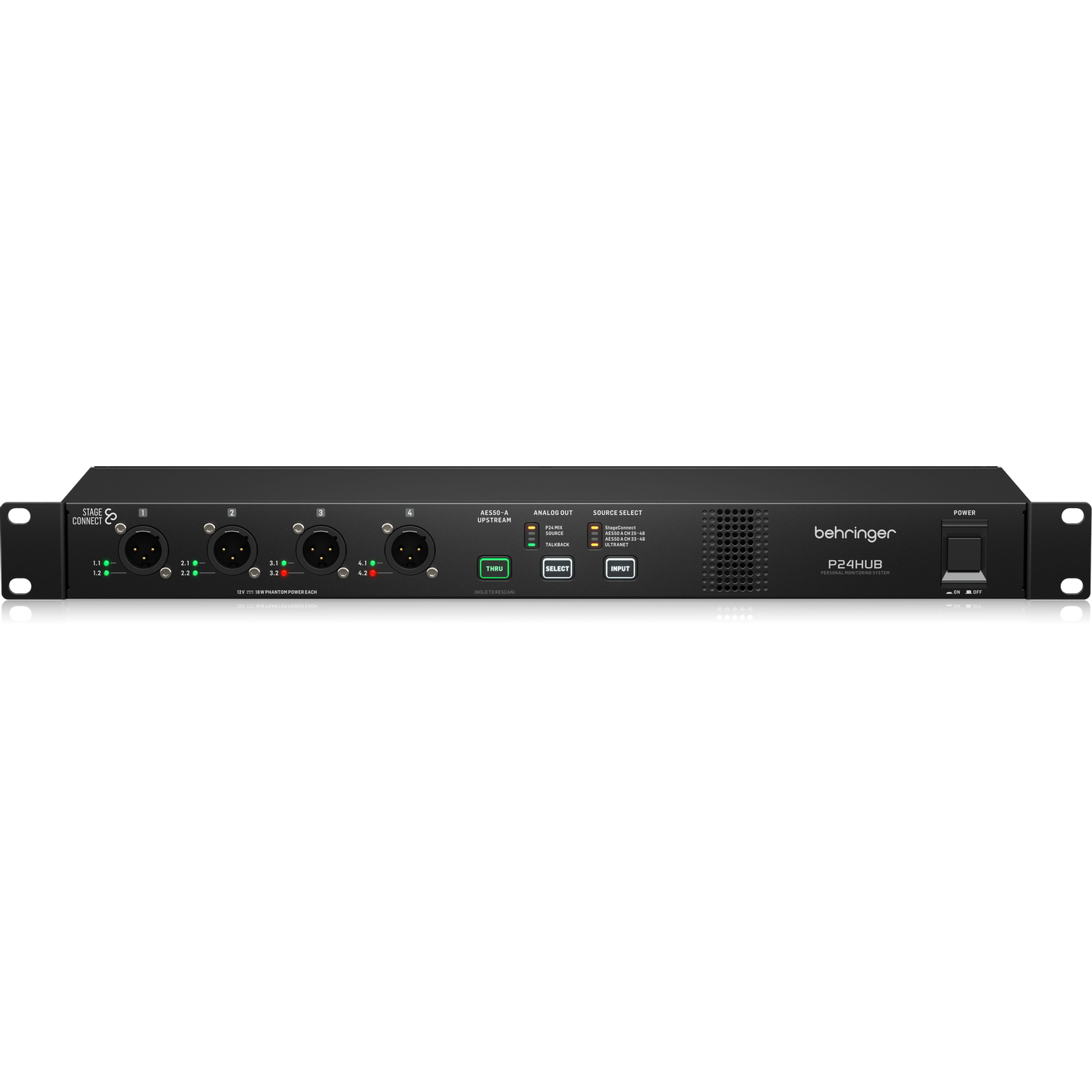

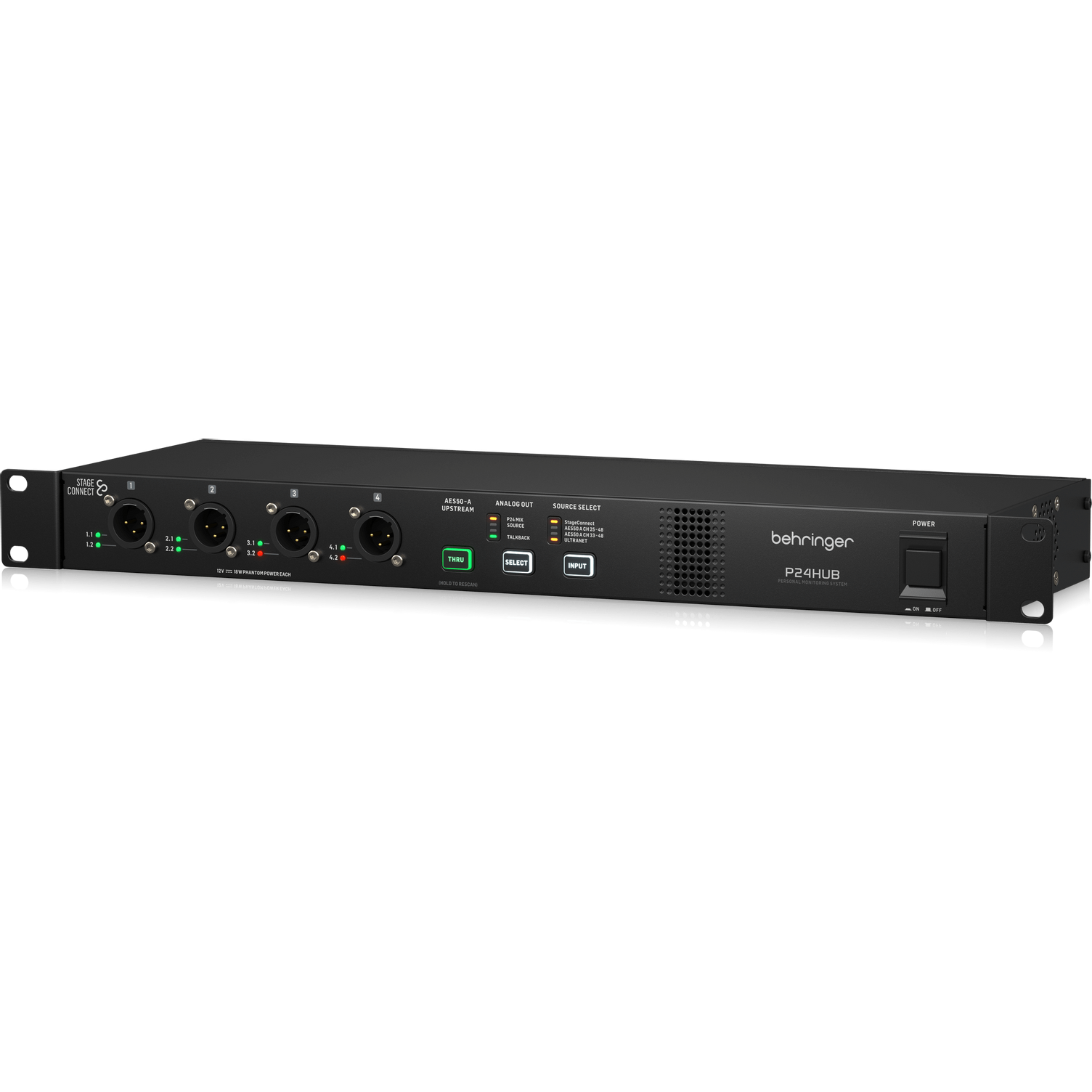

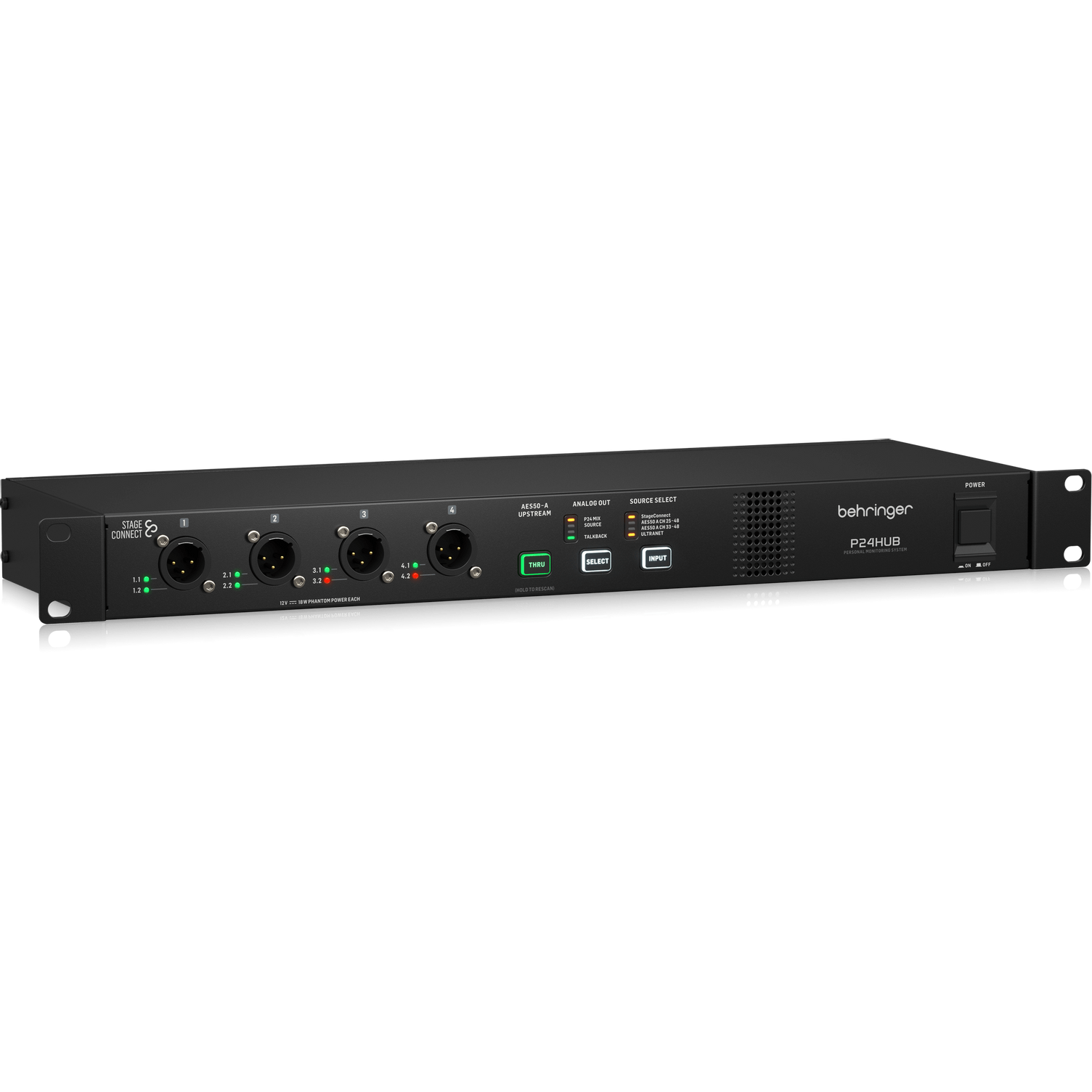

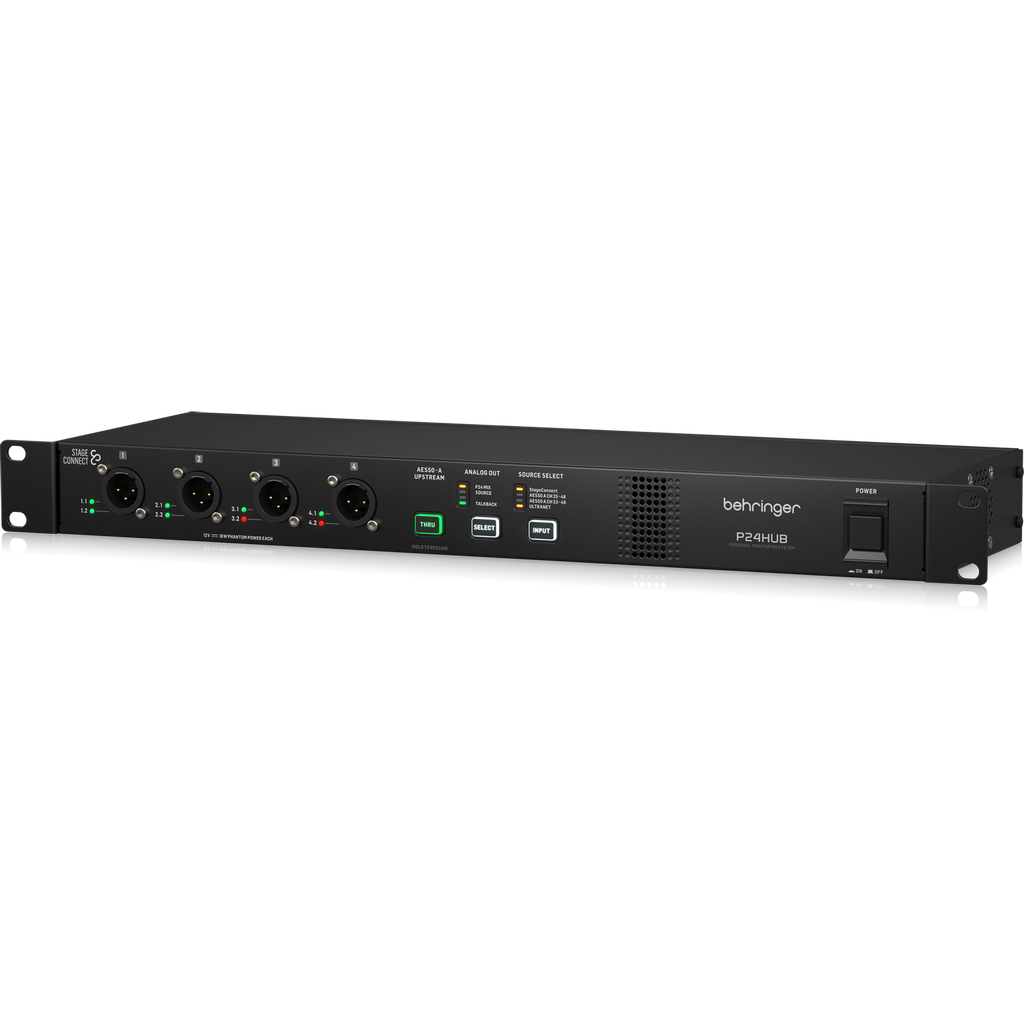

P24HUB Behringer StageConnect Hub with Bus Powering for Personal Monitor Mixers

• Distribution hub with StageConnect bus powering for up to 8 personal monitoring mixers
• Compatible with Behringer P24 personal mixers, AES50, Ultranet and Analog Connectivity

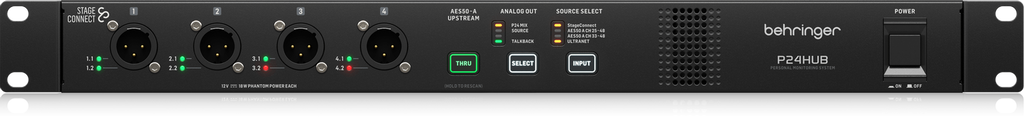

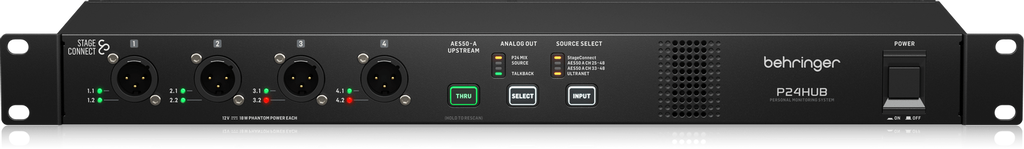

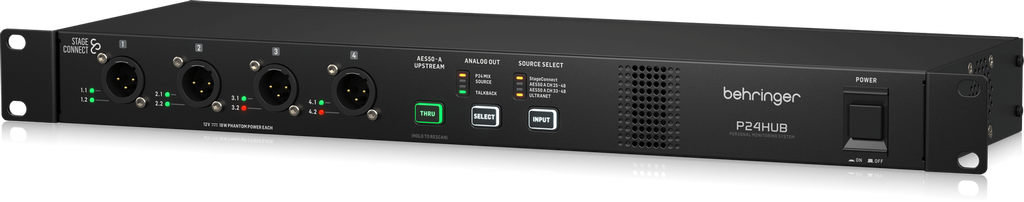

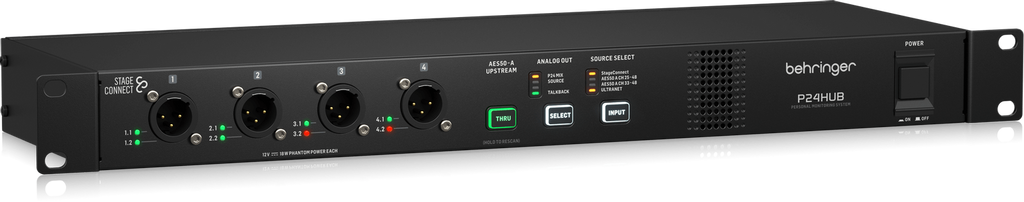

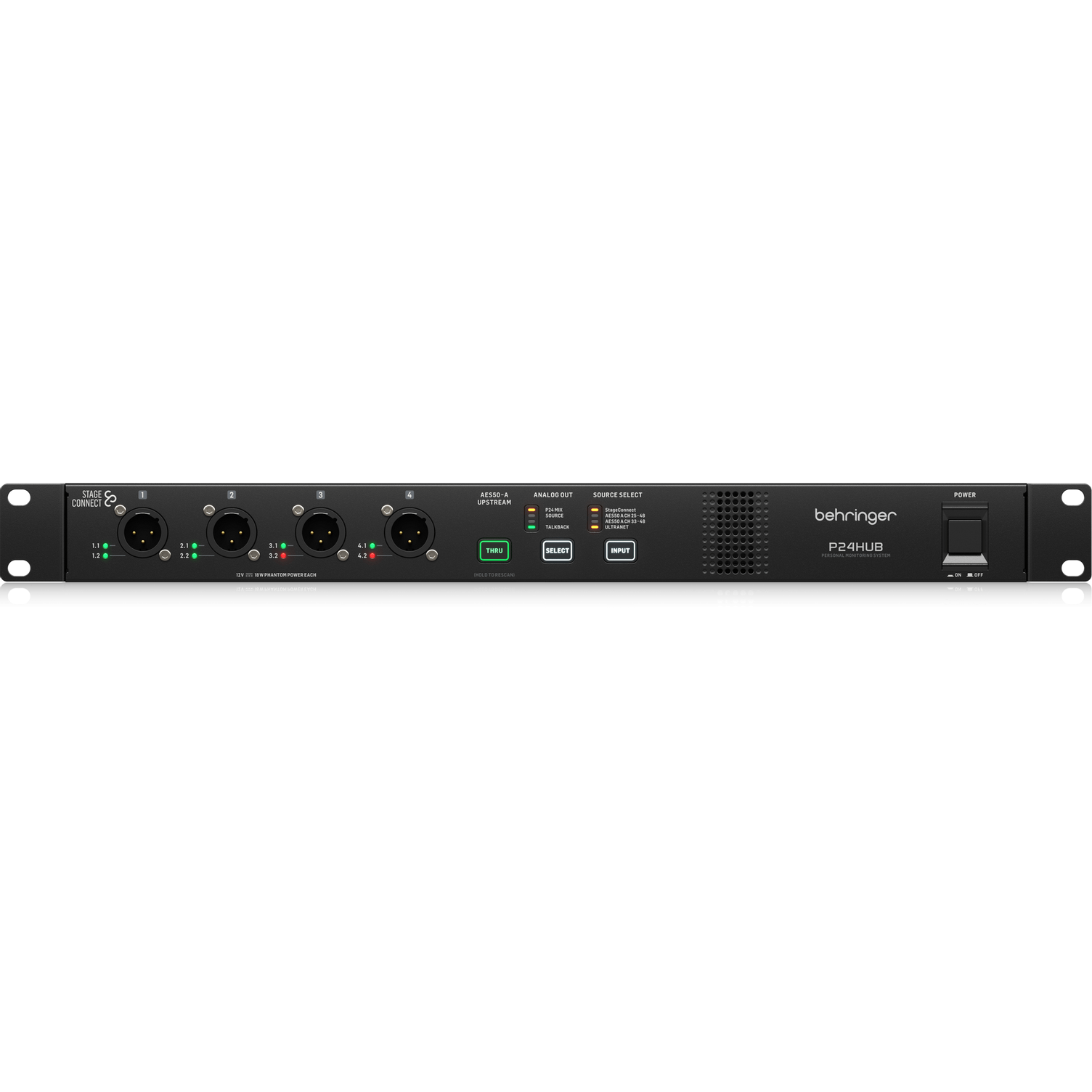

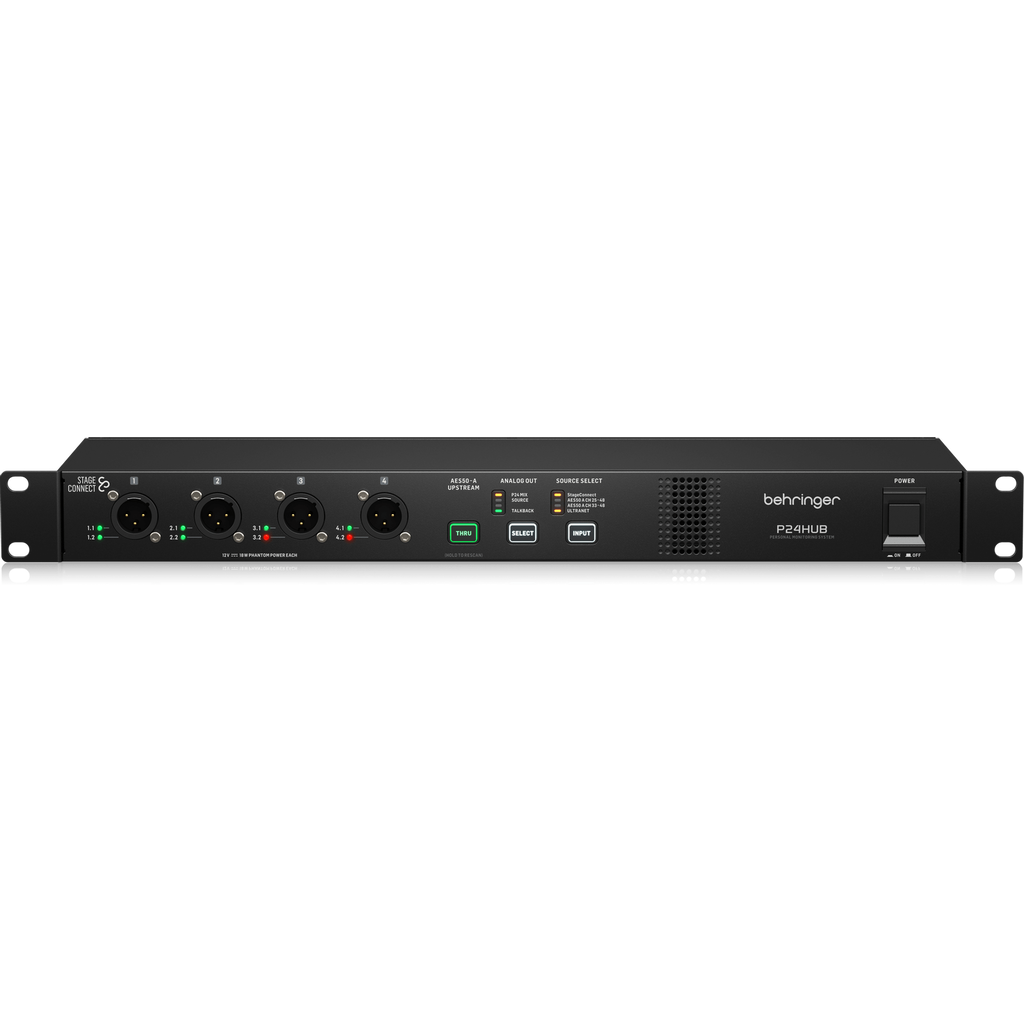

• 4 StageConnect front ports for powering 2 daisy-chained mixers each, minimizing on-stage cabling
• 16 balanced analog outputs on 1/4" TRS, for sending up to 8 personal stereo mixes to wireless IEM transmitters
• StageConnect 26 x 6-channel audio transmission at sub-milisecond latency, 24-Bit uncompressed PCM, 44.1/48 kHz, using a standard XLR cable (DMX cable recommended)
• StageTalk intercom system for communication between FOH, stage technician and musicians
• Stable operation range up to 40 m via DMX type XLR cable - standard microphone cable can be used for short connections

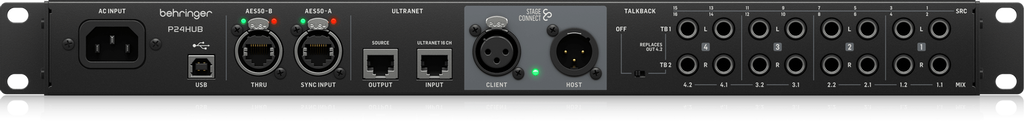

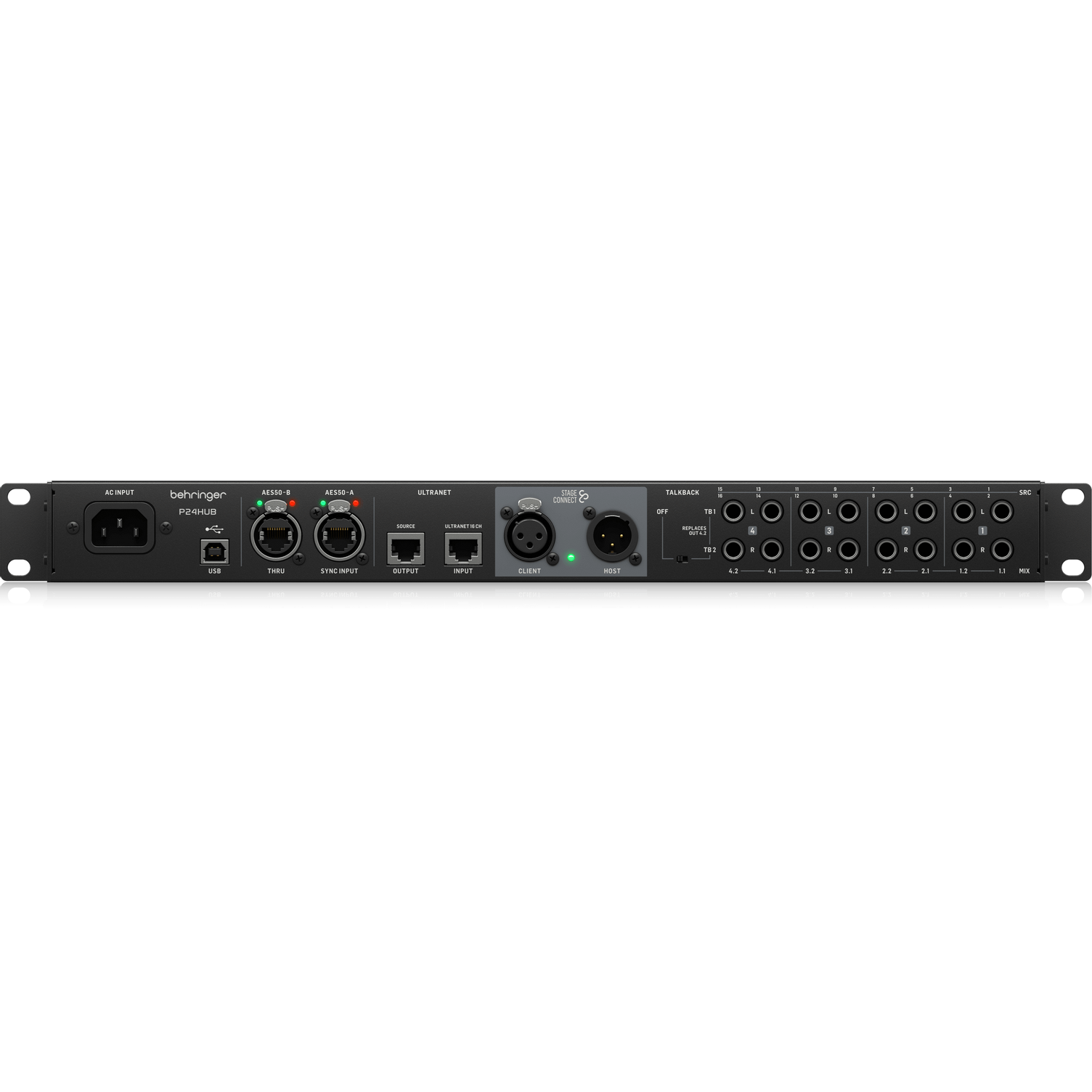

• AES50 In and Thru, with 48 x 48 channels on CAT5E STP cable up to 80 m
• Ultranet Input with 16 channels on CAT5 STP cable up to 75 m
• Ultranet In and Outputs for interfacing with various Behringer P16 personal monitoring equipment
• Integrated sample rate conversion for compatibility with 96 kHz AES50-equipped devices, such as Midas HD consoles
• Rugged 1U rackmount chassis for durability in portable applications
• Integrated auto-ranging switch-mode power supply
