Showtec Phantom 130 Spot

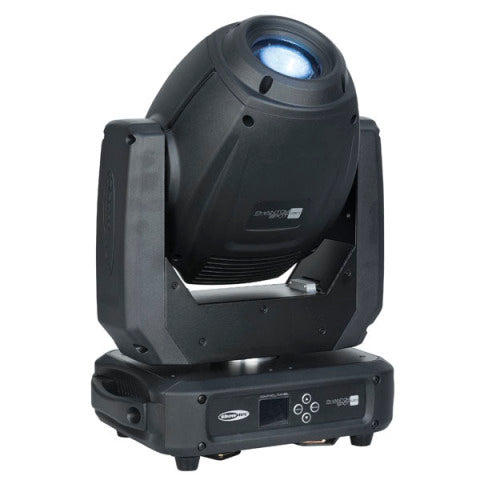

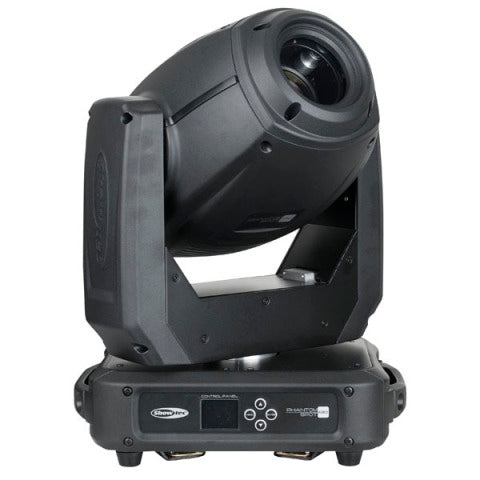

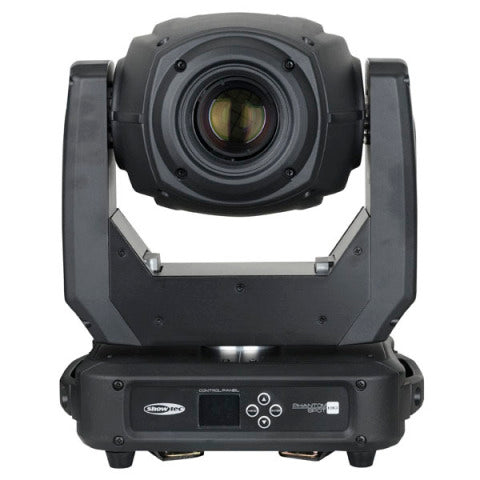

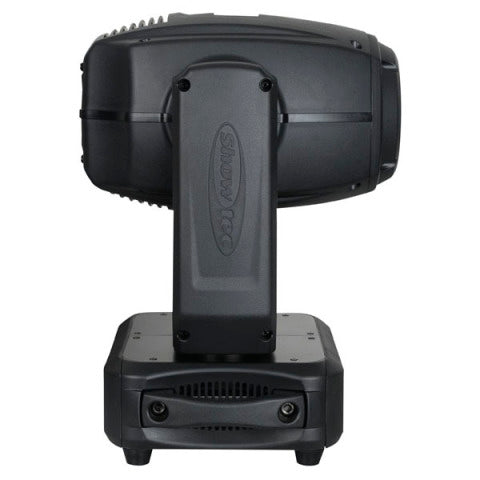

The Phantom 130 LED spot is a medium size powerful moving head with a 130 watt white LED light-source. It is equipped with a fixed gobo wheel, rotating gobo wheel, colour wheel and prism. Because of the LED source the shutter is electronic not mechanical. Focus is motorized and it has a mechanical zoom. The stylish design and lightweight housing make this moving head very attractive and ergonomic.

The Phantom series are very reliable and sustainable lighting fixtures with low power consumption and high output. The Phantom Series are going perfectly hand in hand with the lighting demands these days, and give you a total package of modern lighting fixtures such as Spot, wash, beam, matrix FX, and Hybrid. This gives you the opportunity to fill the needs of the most extensive lighting designs.

Features

• 7 fixed gobo's and 7 rotating gobo's

• 7 colours + white

• 8-facet circular & 5- facet linear prism

• Motorized zoom and focus

Specifications

Output

• Lux @ 5m: 5200 (12°)

• Beam Angle: 12° - 21°

• Light Source: 130W White LED

Electrical

• Input voltage: 100~240VAC, 50/60Hz (auto ranging)

• Power consumption: 300W max.

Control

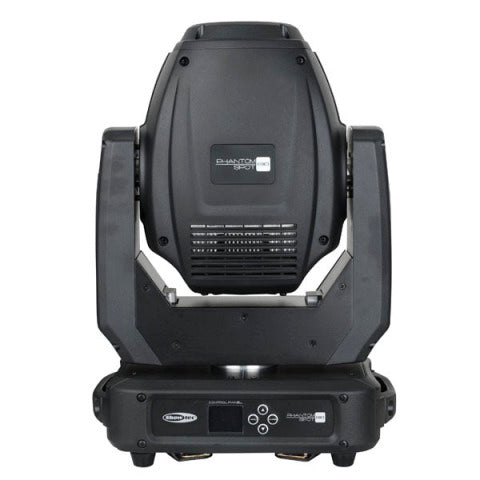

• On-Board: Full colour display

• Control Protocol: DMX512, Auto, Sound, Manual, Master-Slave

• Control Personality: Advanced 15ch /Basic 9ch

Optical system

• Dimmer: 0-100%

• Strobe: 0-20Hz

• Focus: Motorized

• Zoom: Motorized

• Prism: 8-facet circular & 5- facet linear prism rotating prism

Movement

• Pan: 540°

• Tilt: 270°

• Pan/Tilt resolution: 16 bit

• Special: Pan / Tilt movement blackout, User-selectable Pan & Tilt ranges, 540°/360°/180°, Reverse Pan / Tilt movement

Gobos & Colours

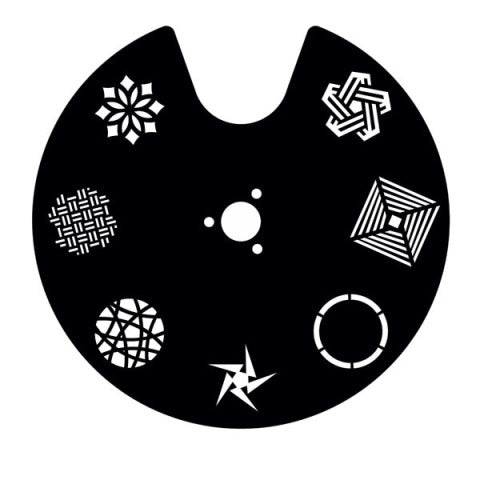

• Fixed Gobowheel: 7 gobos

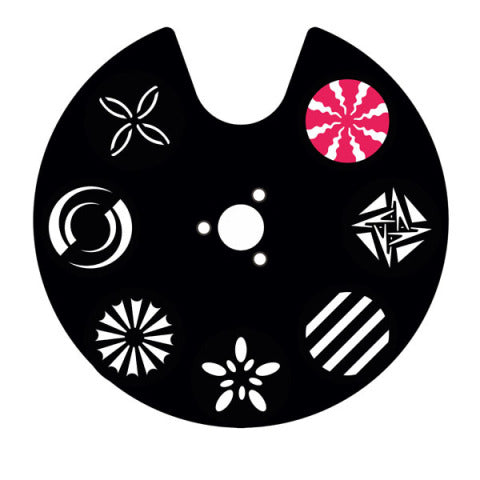

• Rotating Gobowheel: 7 gobos

• Gobo functions: Gobo-flow effect,Gobo shake

• Rotation: Bi-directional

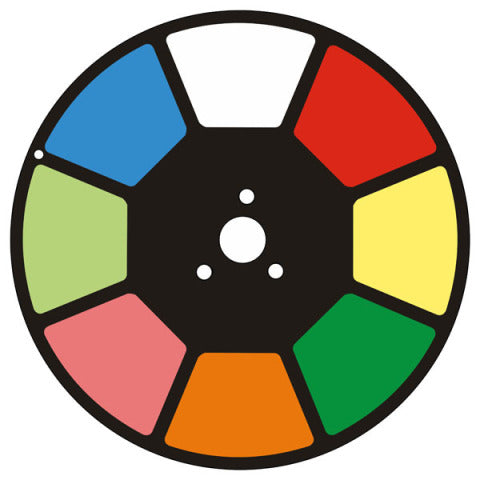

• Colorwheel: 7 dichroic-filters + white

• Colour functions: Split colours, Rainbow-flow effect

Physical

• Colour: Black

• Housing: Metal & Flame-retardant plastic

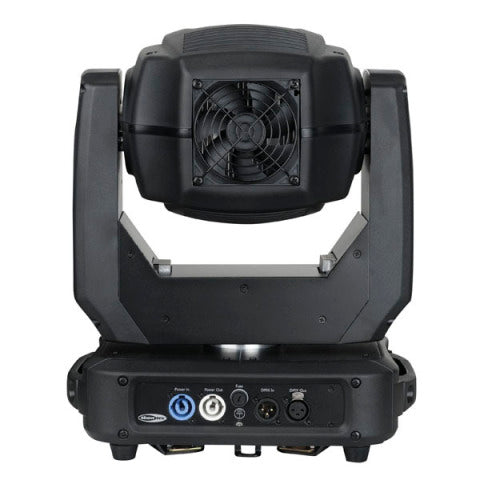

• Data Connection: XLR 3&5p in- & output

• Power connection: Pro Power in- & output

• Dimensions (WxDxH): 321 x 211 x 462 mm

• Weight: 13Kg

Certification and Safety

• Certification: CE

• Max. ambient Temp.: 40°C
