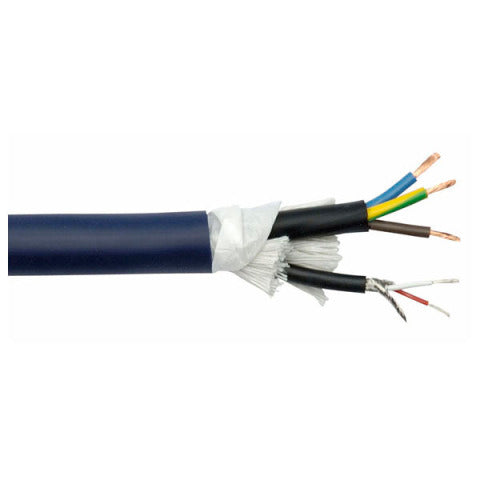

POWER/SIGNAL CABLE 1M - DAP- AUDIO
Regular price
€9,45
Unit price
per
POWER/SIGNAL CABLE 1 METER - DAP- AUDIO
Specifications
- Conductor wires Ø mm: OFC 20 x 0,10 (NF) & 3 x 1,5 (power)
- Conductor insulation: PE red + white and PVC black (power)
- Conductor insulation Ø: 1,3 mm (NF) and 3,7 mm (power)
- <...
In stock (9)
S2 Ref: D9481
Delivery
In stock
S2Store Genk (BE)
In stock
Pros and Cons
Description
POWER/SIGNAL CABLE 1M - DAP- AUDIO
POWER/SIGNAL CABLE 1 METER - DAP- AUDIO
Specifications
- Conductor wires Ø mm: OFC 20 x 0,10 (NF) & 3 x 1,5 (power)
- Conductor insulation: PE red + white and PVC black (power)
- Conductor insulation Ø: 1,3 mm (NF) and 3,7 mm (power)
- Filler material: paper and cotton yarn
- 1st shielding: twisted tinned copper NF 96 x 0,10
- 2nd shielding: -
- Outer insulation: PVC 15mm
- Conductor resistance: 80 Ohm/km
- Shield resistance: 30 Ohm/km
- Inner conductor capacitance: 60 pF/m
- Shield/inner conductor capacitance: 78 pF/m
- Operating temperature: -20~60 ℃ (min./max.)
- Operating voltage overflash: 30V
- Nominal impedance: 110 Ohm
