PRE-101 DAP Phono Preamp
Regular price
€38,50
Unit price
per
The PRE-101 is a phono pre-amp with RIAA equalization. The tiny signal of magnetic pick-ups is amplified to fit the line-level inputs of mixers or USB sound-cards.
FEATURES:
- Solid housing
- RIAA Equalization
- High quality componentsAll product information
Approx. 3-7 business days
S2 Ref: D1530
Delivery
Approx. 3-7 business days
S2Store Genk (BE)
Approx. 3-7 business days
Pros and Cons
Description

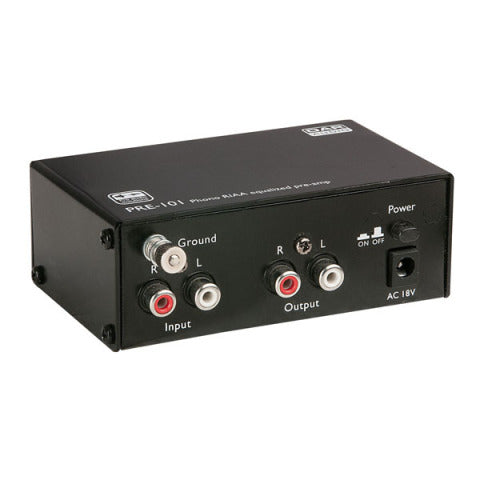

PRE-101 DAP Phono Preamp
The PRE-101 is a phono pre-amp with RIAA equalization. The tiny signal of magnetic pick-ups is amplified to fit the line-level inputs of mixers or USB sound-cards.
FEATURES:
- Solid housing
- RIAA Equalization
- High quality components
SPECIFICATIONS:
- Frequency Response: 20Hz-20KHz RIAA
- Inputs: RCA
- Outputs: RCA
- Input sensitivity: 3mV for 1000 mV output
- Input Impedance: 47 kOhm
- Nominal Output Voltage: 0 dBV
- Max Output voltage: +16 dBu
- Output impedance: 100-600 Ohms
- Power supply: 18V AC (adapter included)
- Dimensions: 40 x 113 x 80 mm (HxWxD)
- Weight: 0,35 Kg
DOWNLOADS:
D1530_MANUAL_GB_V1
