PRX835W

15” Three-Way Full-Range Main System with Wi-Fi

The JBL PRX835W is a full-range speaker designed for main system applications. Featuring a 15” woofer, 6.5” midrange transducer, and 1.5” compression driver powered by a 1500-watt class-D amplifier, PRX835W delivers incredible volume in a lightweight and compact form factor.

FEATURES

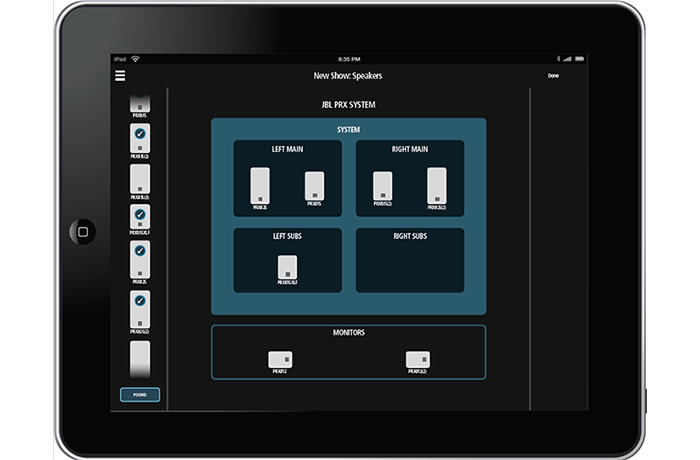

• Built-in Wi-Fi for wireless control of your system from anywhere in the venue

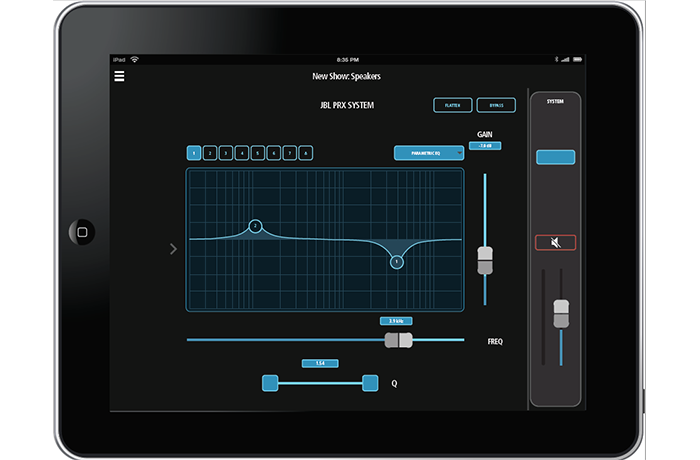

• Free PRX Connect mobile app for iOS and Android provides wireless control over volume levels, 8-band parametric EQ and up to 50ms of speaker delay to fine-tune your sound

• Class-leading 1500-watt amplifier delivers ample power to fill your venue

• JBL Differential Drive® transducers for higher SPL in a lightweight design

• Next-generation JBL neodymium compression drivers

• Redesigned Crown input technology, including XLR, 1/4” and RCA inputs plus XLR loop-through

• Intelligent variable-speed fan activates only when needed to reduce noise

• Updated tuning delivers flat frequency response and smooth off-axis behavior

• Durable wooden cabinets, tour-proven DuraFlex™ finish and dent-resistant 16-gauge grilles

• Universal power supply for worldwide compatibility

• dbx Type IV™ limiting ensures clear, accurate sound at high volumes

• Brutal testing regimen—including the famous JBL 100-hour power test—ensures reliable performance

APPLICATIONS

• This speaker is ideally suited to applications where the program material exhibits subtlety and nuance. Perfectly capable of reproducing high fidelity full range sound without a subwoofer, when coupled with the extended low frequencies of the PRX818XLFW, complete control over the entire audio spectrum is attained. As with all the full-range PRX800 Series systems, two EQ selections can be used to optimize the system for the program material and/or environment. The input section also accommodates either Line or Mic/Instrument level inputs.

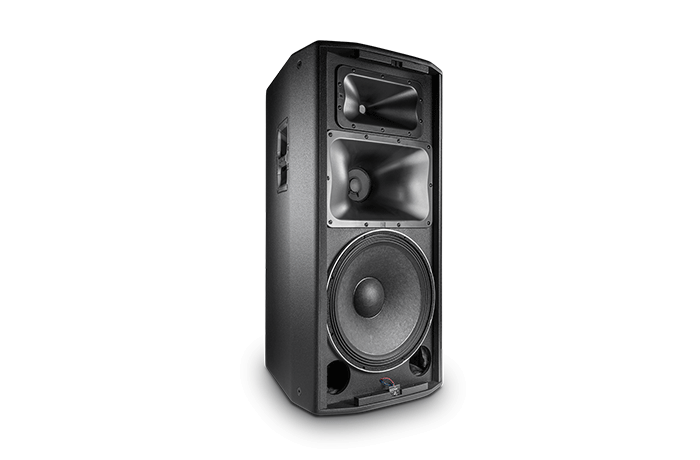

• The PRX835W is a self-powered, lightweight three-way loudspeaker system capable of delivering a very high level of performance over a wide bandwidth with remote Wi-Fi control of onboard DSP EQ parameters. The PRX835W is comprised of one 15 in 275G Differential Drive® woofer, a 165 mm (6.5 in) 196H horn-loaded mid-range and a 2408H-2 37.5 mm (1.5 in) annular polymer diaphragm, neodymium compression driver mounted to a 90° by 50° horn, all driven by a 1500 watt Audio Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable system EQ, protection, input sensitivity selection, cross-over functionality, dynamic limiting and discrete component optimization.

• All PRX800 cabinets are built from a combination of 25 mm (on the top and bottom for added rigidity) and 18 mm, strong, light-weight poplar plywood made structurally sound with tongue and groove joints. All PRX800 Series cabinets are protected by JBL’s tour proven DuraFlex™ finish. Grilles are made from dent-resistant 16 gauge steel and handles are made from light-weight glass-filled nylon for added strength and durability. All M10 suspension points are constructed from 14 gauge steel and have been tested with a yield-strength of 1000 lbs. each.

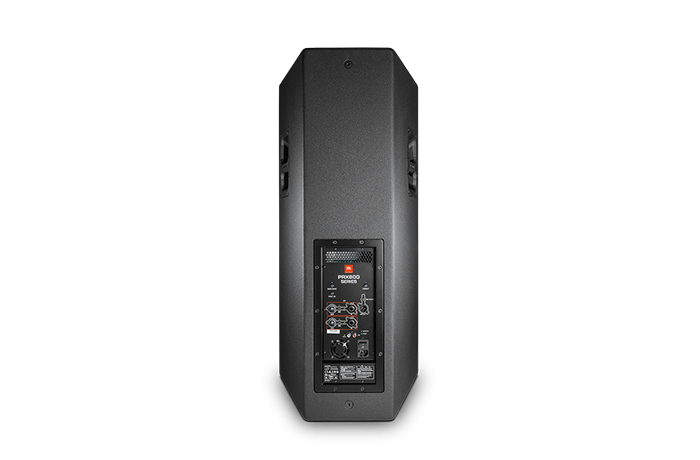

• The amplifier input panel offers XLR or ¼ inch jack compatibility and a sensitivity switch provides extra flexibility, making it possible to connect literally any sound source without using a mixer. Signal present and overload lights indicate the system status and assist in setting the optimum level via the level control knob.

SPECIFICATIONS

• System Type    Self Powered 15”, three-way, bass-reflex

• Maximum SPL Output    138 dB peak

• Frequency Range (-10 dB):    Normal: 41 Hz – 20 kHz

• Boost: 41 Hz – 20 kHz

• Frequency Response (±3 dB)    Normal: 50 Hz – 18.25k

• Boost: 48 Hz - 20k

• Input Connectors    2 x Balanced XLR / 1/4 inch input, 2 x unbalanced RCA input

• Input Impedance    20K Ohms (balanced), 10K Ohms (unbalanced)

• Signal Indicators    Limit: Yellow LED indicates peak output has been reached and dsp limiter is acting

• Signal: Green LED indicates signal present

• Power: Blue indicates system has power and ready to pass audio.

• EQ    User selectable presets for Normal or Boost, Advanced EQ settings available using Wi-Fi and PRX Connect application.

• Dynamic Control (Input)    dbx Type IV™ limiter circuit

• Crossover Frequency    580 Hz, 2.1 kHz

• Design    Highly efficient Class-D amplifier

• Power Rating    1500W (750W x 2)

• AC Power Input    100V - 240V ~ 50/60 Hz

• LF Driver    1 x JBL 275G 380 mm (15 in) woofer

• MF Driver    1 x JBL 196H 165 mm (6.5 in) horn-loaded midrange transducer

• HF Driver    1 x JBL 2408H-2 37.5 mm (1.5”) annular polymer diaphragm, neodymium compression driver

• Coverage Pattern    90° x 50° nominal

• Directivity Index (DI)    10.5 dB

• Directivity Factor (Q)    11.2

• Enclosure    Trapezoidal, 18 mm, plywood

• Suspension / Mounting    12 x M10 Suspension Points

• Transport    2 x integrated handles with injection molded backing cup

• Finish    Obsidian DuraFlex™ finish

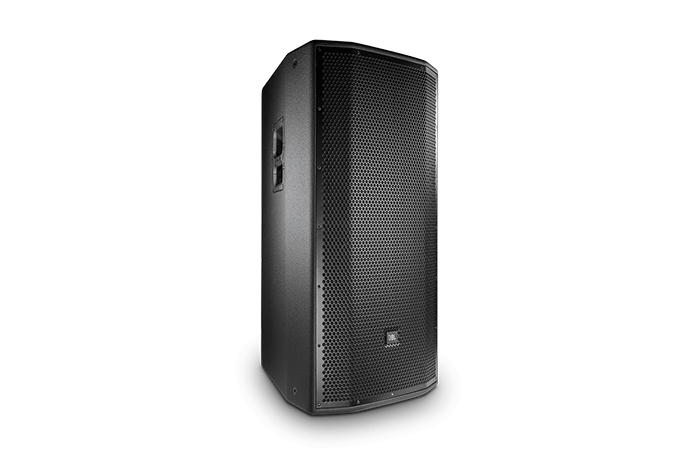

• Grille    Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing.

• Dimensions (H x W x D)    938 mm x 446 mm x 539 mm

• (36.9 in x 17.5 in x 21.2 in)

• Net Weight    34.9 kg (77.0 lb)

• Gross Weight    38.6 kg (85.0 lb)
