Qi-4200 DAP 4ch install amp
Qi 4200 Dap
The Qi amplifier series is designed for installation use to make a perfect match with the Xi installation speaker series. With its rugged steel housing, it can also be used for mobile use. With only 1U it gives power for 4 channels. All 4 channels are individually adjustable and the bridge mode can be set for each stereo pair. With the SMPS and Class-D amplification,...
Delivery
S2Store Genk (BE)
Pros and Cons
Description

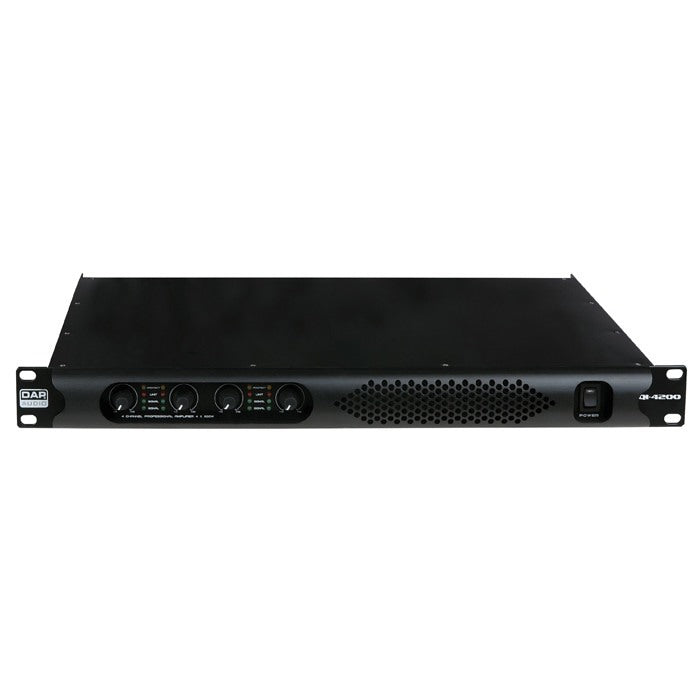

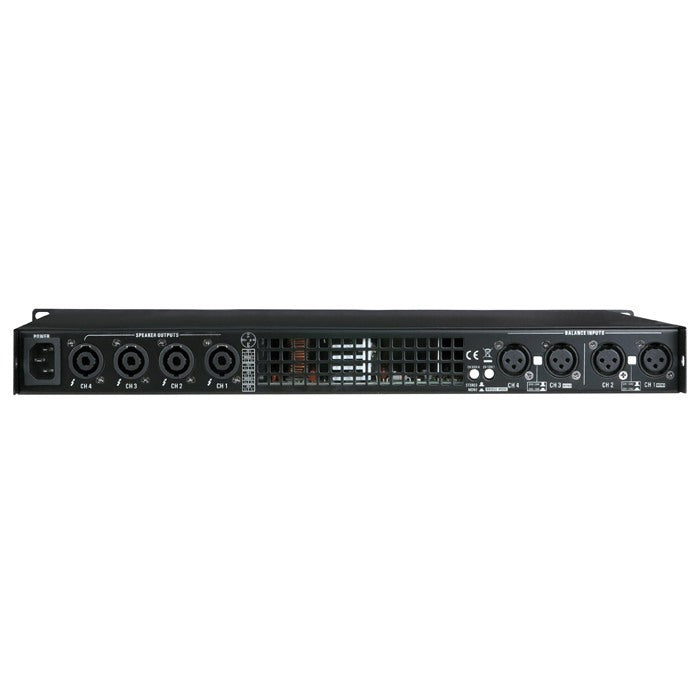

Qi-4200 DAP 4ch install amp
Qi 4200 Dap
The Qi amplifier series is designed for installation use to make a perfect match with the Xi installation speaker series. With its rugged steel housing, it can also be used for mobile use. With only 1U it gives power for 4 channels. All 4 channels are individually adjustable and the bridge mode can be set for each stereo pair. With the SMPS and Class-D amplification, it is a lightweight solution with high efficiency power consumption/power ratio. An advanced protection circuit protects the amplifier and connected speakers. It has short circuit / thermal, DC, RF protection and a soft start system. The Qi amplifiers are made with high quality components with low deviation to ensure perfect sound quality and long life.
IEC Cable, Rubber feet and manual included.
Brief specifications
| Housing | |
|---|---|
| Dimensions | 44 x 483 x 390mm |
| Weight | 6.4 Kg |
| Sound | |
|---|---|
| Frequency response | 10Hz - 20kHz |
| Power | |
|---|---|
| RMS power | 4x 200W (4 Ohm) / 4x 120W (8 Ohm) / Briged 400W (8 Ohm) |
| Amplifier configuration | 4 Kanaals, Bridge, Stereo |
| Amplifier class | D |
| Power supply | |
|---|---|
| Voltage | 100-240 VAC 50-60 Hz |
| Audio I/O | |
|---|---|
| Inputs | Mono 4 (3-pin XLR) |
| Features | |
|---|---|
| IP ingress protection rating | IP20 (Indoor) |
