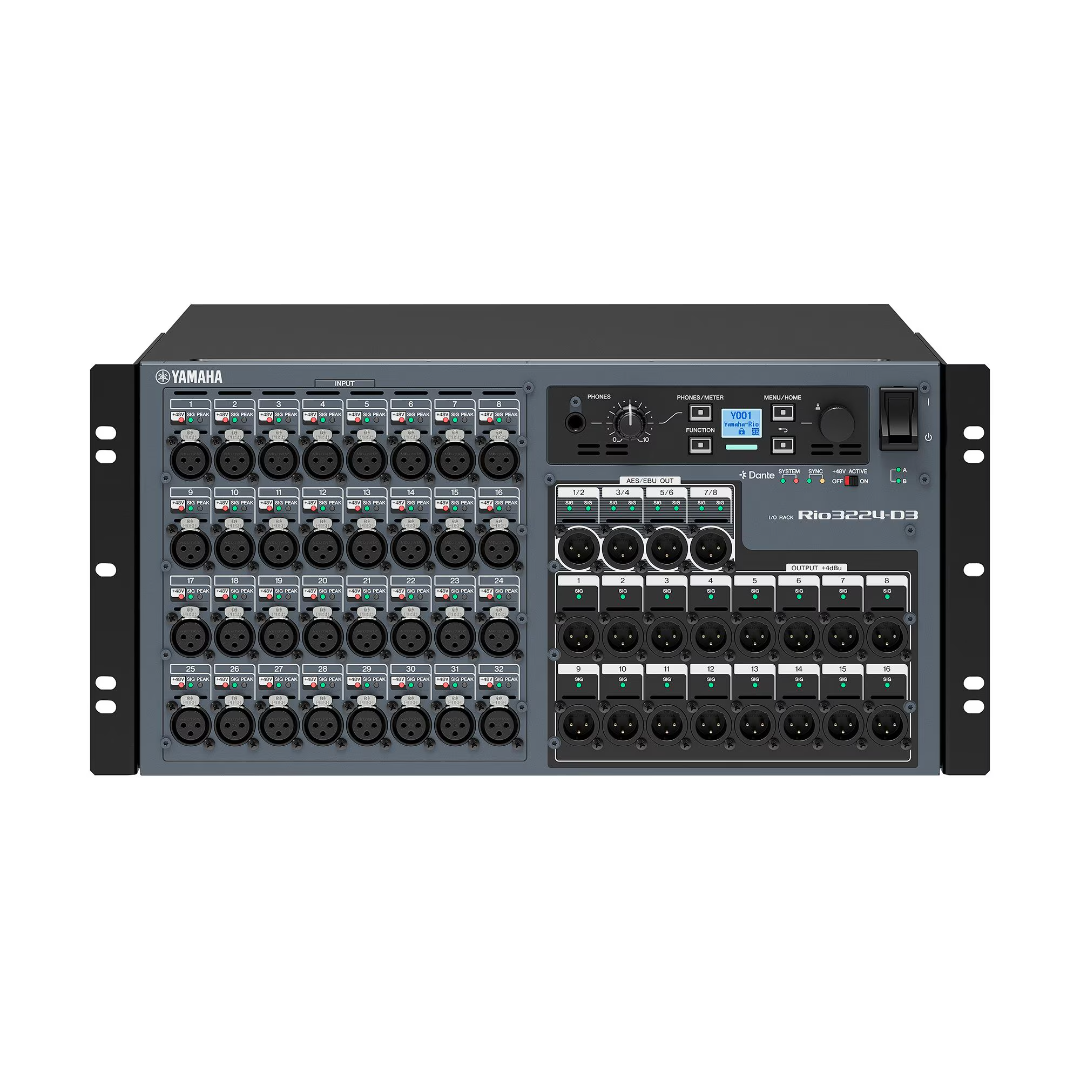

Rio3224-D3 Yamaha Stageblock 32 In 24 Out

The third generation Rio3224-D3 and Rio1608-D3 are premium-quality, Dante-compatible I/O racks that deliver improved overall performance and come equipped with a newly added headphone socket, output delay, and a phase function, further expanding an already impressive range of potential applications. Both models are compatible with a wide range of Yamaha consoles, from our high-end RIVAGE PM and DM7 series digital mixers, to our industry standard CL and QL series consoles, playing a crucial role in configuring new systems or adding flexibility and depth to an existing sound reinforcement solution.

This Dante-compatible unit features 32 analog inputs, 16 analog outputs, and 8 digital AES/EBU outputs, enabling flexible system configuration with Yamaha digital mixers and processors. The Rio3224-D3 is housed in a sleek, sturdy chassis and features a redundant power supply that ensures serious reliability, while the newly added headphone socket and output delay provide additional versatility.

• Analog I/O: 32 inputs / 16 outputs
• AES/EBU: 8 outputs
• Dante: 26 receive / 32 transmit channels
• Comprehensive display and local control of gain, delay and other parameters.
• Dual power supply units are built in for high reliability.
• Onboard headphone socket
• Power consumption: 100 W
• Dimensions (WxHxD): 480 x 220 x 370 mm (18.9” x 8.7” x 14.6”)
• Net Weight: 13.2 kg (29.1 lb)
