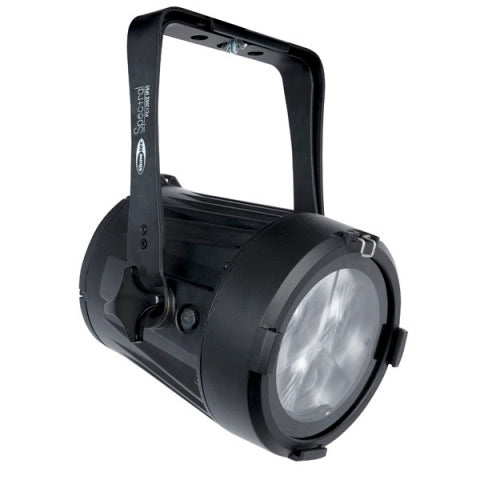

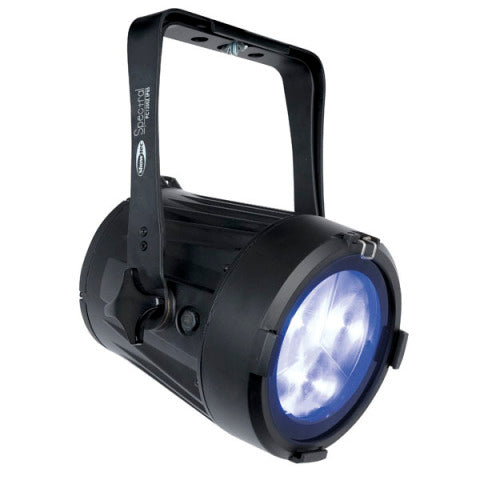

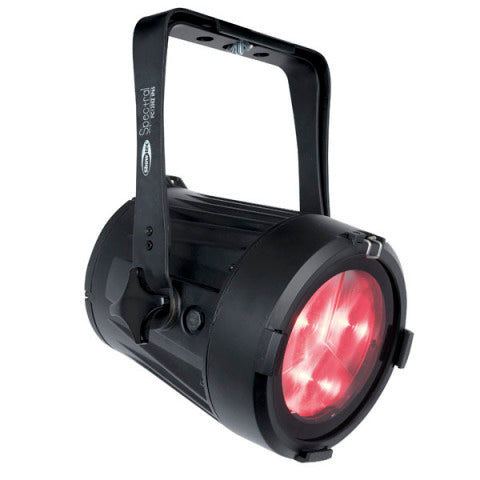

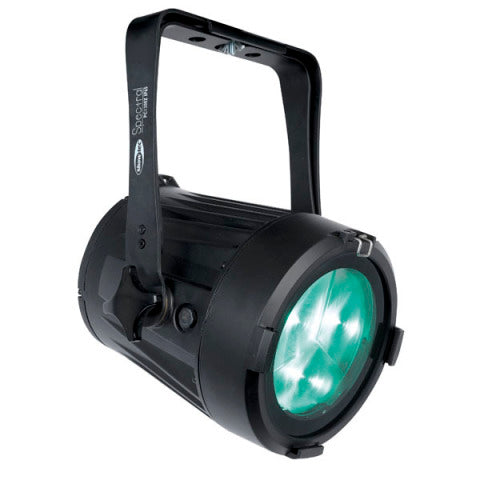

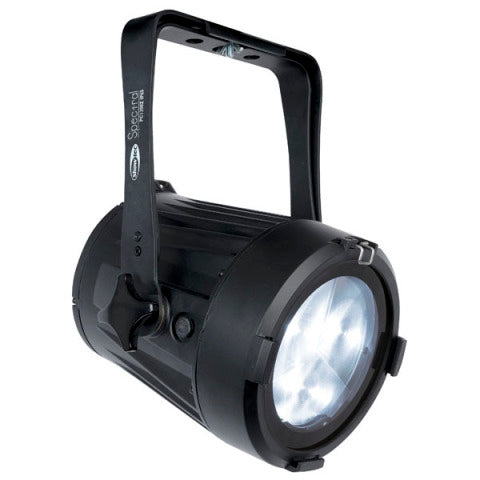

Showtec Spectral PC 1200Z

The Spectral PC1200Z IP stands for the new generation of LED Parcans and combines a cutting edge optical system which offers a truly homogenic light output with a classic concept of one solid beam without any visible colordots. The precise and smooth zoom system creates an incredible zoomrange from 4.5° to 36°..  It has a full IP65 rating ensuring reliable use outdoor in the most severe weather conditions.

Features

• Wide zoom range

• RGBW colormixing

• Fast zoom

• IP65 rated

Specifications

• Lightsource: Osram LED Array (RGBW) 120W,

• Drive current: 2.5A

• Beam Angle: 4,5° to 36°

• Field Angle: 7° to 41°

• Input voltage: 90-240VAC, 50/60Hz

• Power: 130 W

• Output (4,5°): 163250 Lux @ 1 meter

• Output (45°): 5280 lux @ 1 meter

• Selectable PWM: 600 Hz, 1200 Hz, 2000 Hz, 2400 Hz, 6000 Hz, 25000 Hz.

• Dimmer: 0-100%

• Strobe: 0-25Hz

• Control protocol: DMX-512

• Control personality: HSiC, SSP, TOUR, TR16)

• DMX Channels: 9, 12 or 17

• Dimensions: 376 x 274 x 210 mm

• Weight: 7.5Kg

• Housing: Die cast aluminium

• Colour: Black

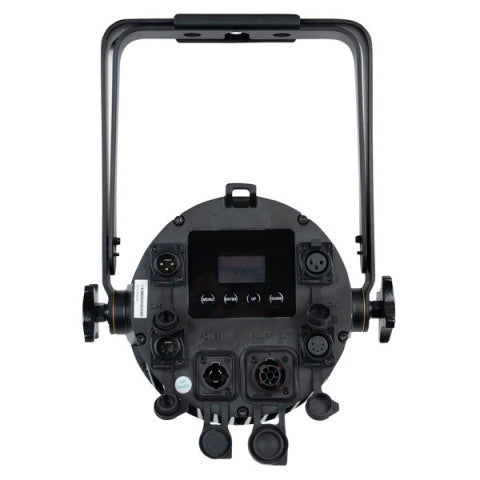

• Fixture connection: IP65 3-pole XLR connectors, IP-65 Power connector

• Cooling: Convection

• Operating temperature: -20°C - 45°C
