SPL-D3 MK2 DATEQ Sound level meter display with log function & case

The SPL-D3MK2 is an advanced sound pressure level meter that stores audio fragments for a minimum of 60 days. The audio fragments can be viewed via the configuration software or saved externally to a USB drive with a FAT32 file system. The device features a network connection with DHCP and can also operate with PoE+. The configuration software can be used to read out and configure the SPL-D3mk2. At the time of release, the device supports Windows 7 and later. Normally, users can only view settings and logs. An additional password and licence file are required to modify settings. The SPL-D3 uses a measurement microphone to measure the actual sound level. If measurements indicate that the sound level is at risk of becoming too high, the display changes from green to orange. If the sound level actually exceeds the limit, the display turns red. The dedicated calendar functions allow you to set different sound levels per day and per week. With the dedicated SRL-1 power interrupter, you can connect an external warning light to the mains supply, such as the DJ booth monitor. This ensures that sound can always be played at the maximum permitted sound level without compromising audio quality. Theatre mode turns off the display as long as there are no (imminent) exceedances. The display only activates when it turns orange or red.

SPL-D3:

• Large, easy-to-read digits
• Can be used as a standalone unit or in combination with the SPL5MK2 and SPL6
• Display dims automatically in dark environments
• Colour of digits changes to green, orange and red above an adjustable threshold
• Can be linked to the SRL-1 to act as a power interrupter

Software:

• Supported by Windows 7, 8, 10, 11
• Locked by default with installation licence
• Display brightness is adjustable
• Threshold can be adjusted
• Leq can be adjusted
• Display configuration of all 3 displays can be set individually
• Microphone sensitivity can be adjusted
• Theatre mode

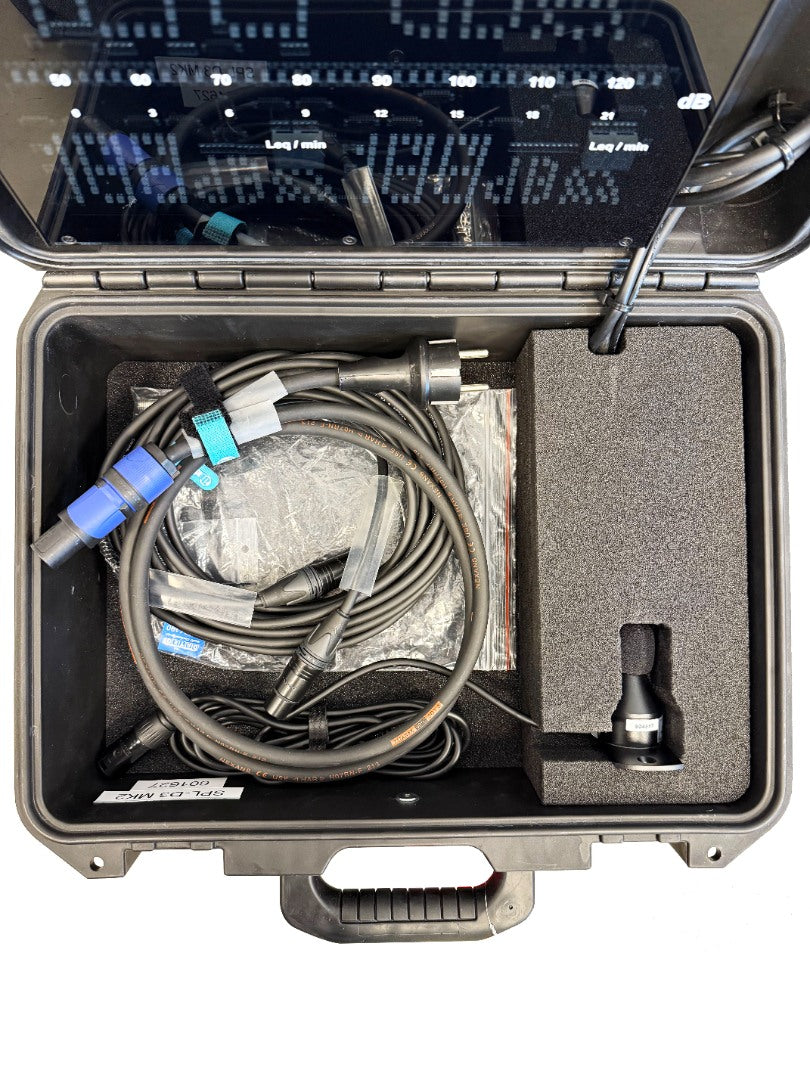

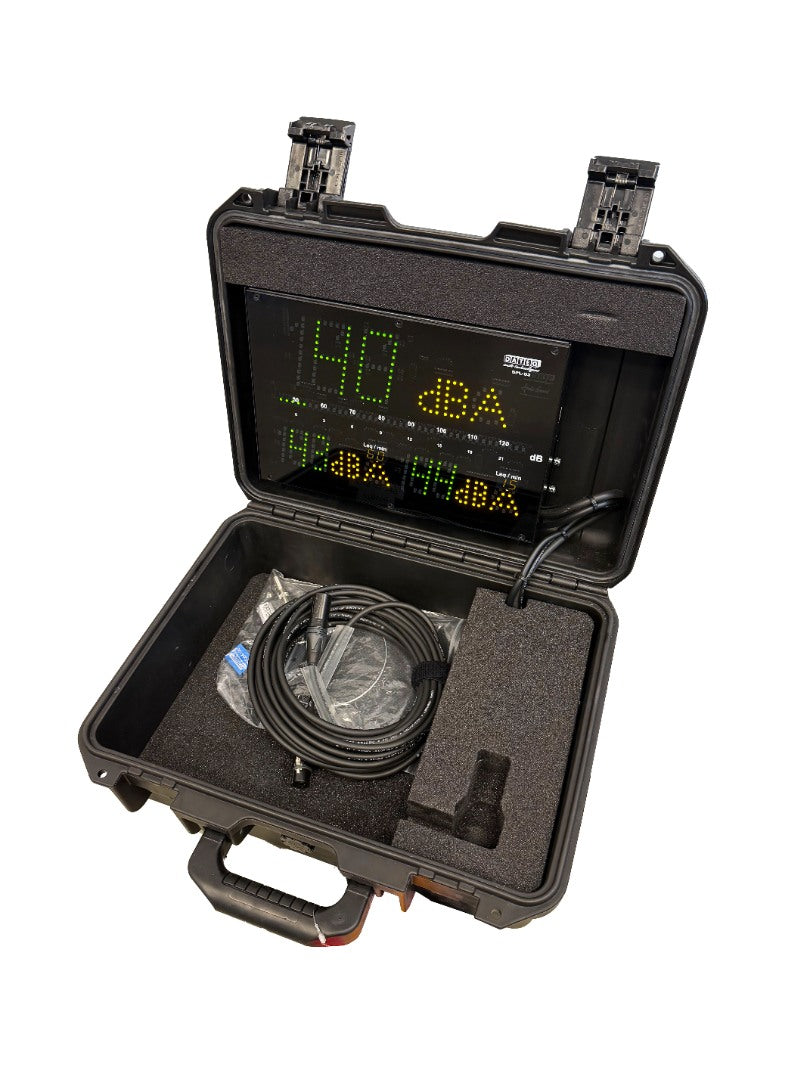

Ready to use & built-in Peli case
