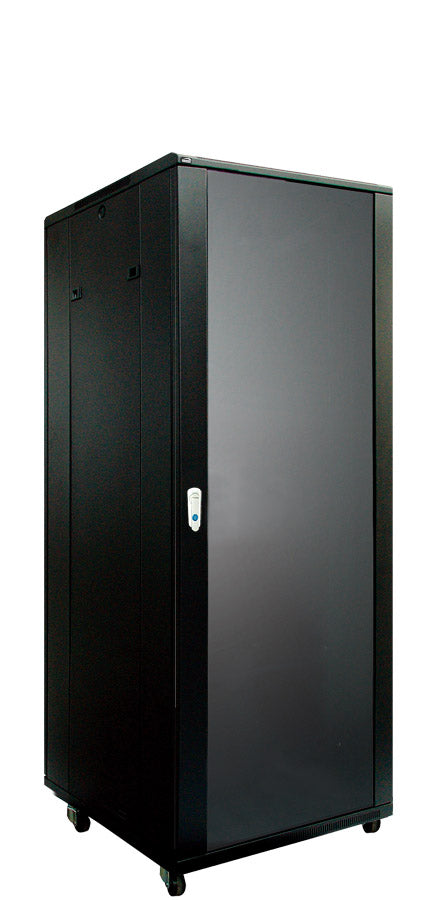

SPR632

19" Rack Cabinet - 32 Units

The SPR632 is a professional 19” rack compliant to the ANSI/EIA RS-310D, DIN41491 and IEC60297 standards. A cold rolled steel 2 mm thick frame and 1,2 mm thick plates provides a solid and stable construction making it suitable for heavy equipment, storing up to 32 units inside. The SPR632 comes fully assembled including 50 mm wheels for easy moving and adjustable feet for fixing and leveling once correctly positioned. The 19” mounting profile with punched square holes for use with snap-in cage nuts in combination with the printed unit measurement indicators ensure an easy fitting of the equipment. Adjustable 19 “ profiles provide great flexibilty for installing equipment depending on its depth. Both front and rear doors are fitted with a standard keylock.

Product highlights

• 50 mm Wheels + leveling feet included

• Front and rear in depth adjustable 19” profiles (max 540 mm)

• Integrated ventilation grid on top

• Punched square holes for use with snap-in cage nuts

• Removable sides for easy installing & cabling

• Standard keylock for both doors

• Stores up to 32 units of 19” Equipment

• Tempered smokey grey glass front door & steel rear door

Specifications

• Max Load : 800 kg

• Unit height : 32 HE

• Width : 600 mm

• Depth : 600 mm

• Max usable depth : 540 mm

• Height : 1540 mm

• Height with wheels : 1610 mm

• Weight : 74 kg

• Rack color : Black (RAL 9004)

• Wheel diameter : 50 mm
