• Sample rate: 96 kHz
• Input channels: 48
• Mix buses: 44 (12x mono / stereo group / aux + master, 8x multi-FX, 4x rack Ultra FX, 6x matrix, 1x stereo PAFL)
• 8 DCA / Mute groups
• 9" touchscreen
• 25 motorised 100 mm faders / six layers
• Chromatic 12-segment LED level meter
• Illuminated knobs and encoders
• Per-channel LCD displays
• 16 assignable SoftKeys
• Four assignable soft rotaries
• Optional DEEP processing enables direct integration into a channel strip without increasing latency
• SLink port for 128 x 128 Everything I/O
• 64 x 64 I/O port for expansion cards (128 x 128 with SLink card)
• 32 x 32 USB-B audio interface at 48/96 kHz, 16/24 bit
• SQ-Drive USB-A for stereo / multitrack audio recording / playback (stereo @ 48/96 kHz, 24 bit / 16 channels @ 96 kHz, 24 bit / 32 channels @ 48 kHz, 24 bit)

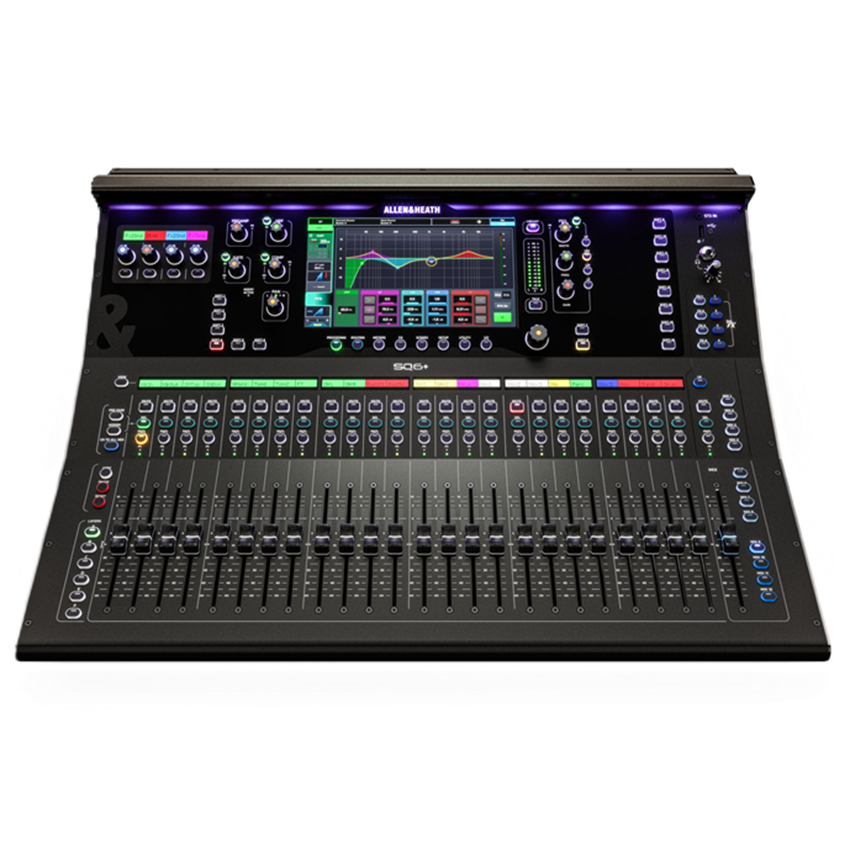

The SQ6+ extends the range with 25 motorised faders, 16 assignable SoftKeys and 4 SoftRotaries, giving you more physical control when working on larger, more complex shows. Add to that 4 built-in RackUltra FX engines and you have a mixing console that offers the perfect balance between hands-on control and portability.

A larger, more powerful interface

The SQ+ is built around a responsive 9-inch touchscreen with an entirely new dark user interface that is quick to navigate and easy to read in any mixing environment. Surrounded by well-gripped illuminated encoders, it offers an intuitive combination of visual feedback and hands-on control.

Drag-and-drop layout

Channels and mixes can be dragged and dropped to any strip, with custom naming and colour coding on the displays, so you can create a mixing environment that works for you.

At-a-glance metering

Every strip features our patented Chromatic channel metering system, giving you an at-a-glance level indication down to -72 dB thanks to LEDs with variable brightness and colour.

Accelerate your workflow

All SQ+ mixers feature assignable SoftKeys for quick access to the functions you use most. The SQ6+ and SQ7+ also include assignable SoftRotaries for even more custom control.

All the tools for the perfect mix

Every input channel is equipped with an HPF, an ultra-fast gate with sidechain and filter, a freely assignable insert point, a musical 4-band parametric equaliser with RTA, and a Peak/RMS compressor for controlling and shaping levels and transients. Mix buses come as standard with both a parametric and a 28-band graphic EQ, along with a compressor, all ready to be switched in whenever needed.

Zero-latency emulations

The SQ+ supports the latest generation of DEEP processing add-ons – models of classic analogue hardware built directly into your channel and mix strips, without added latency, and available on every channel simultaneously.

PlusPack – Give your mixer a boost!

Register your SQ+ and sign up for the Allen & Heath newsletter to receive the SQ+ PlusPack – a bundle containing all DEEP and RackExtra FX add-ons available at launch – free with your new mixer!

(RackUltra FX is sold separately)
