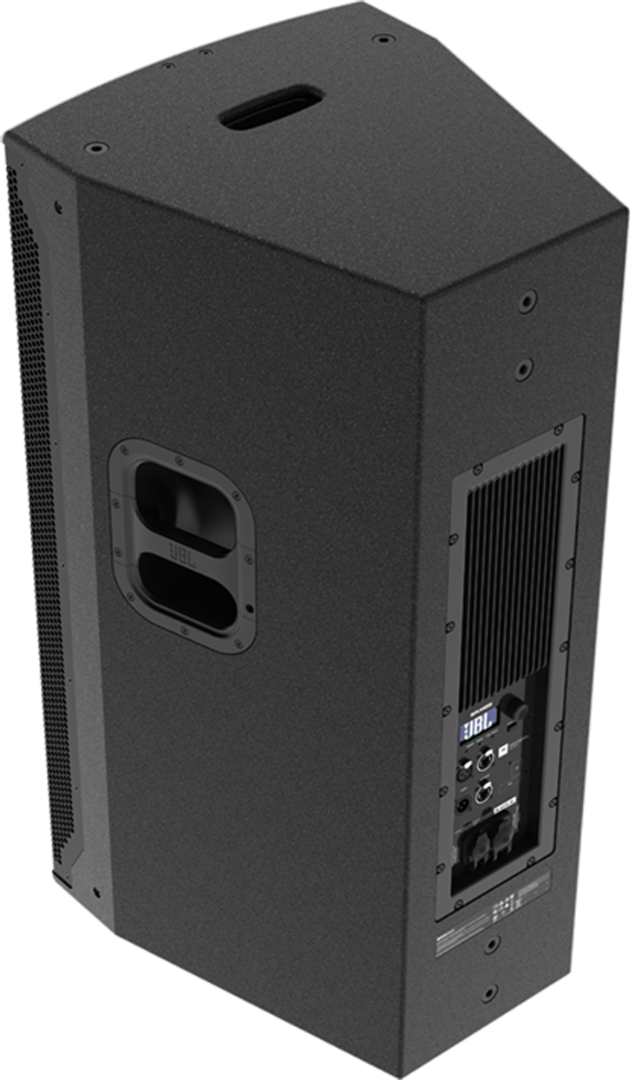

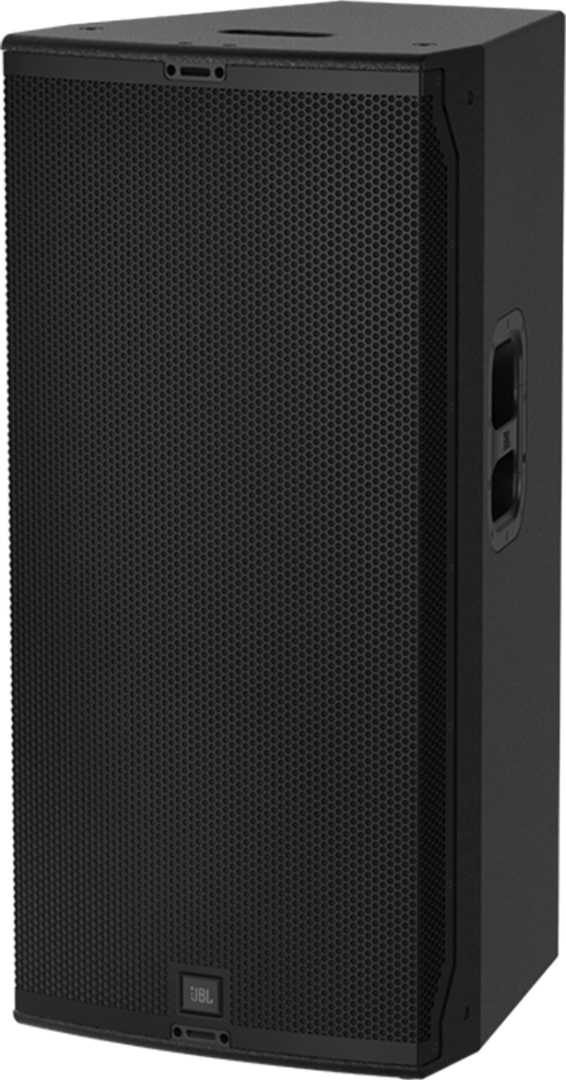

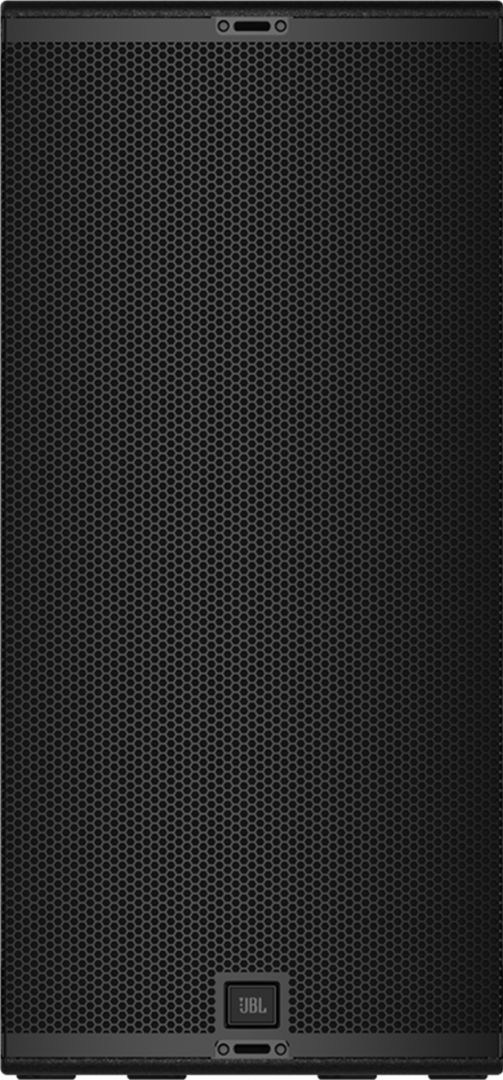

SRX922 JBL 3-Way Active Loudspeaker

The SRX922 is a compact, acoustic three-way, active point source loudspeaker with two 12" woofers, designed for applications requiring high output and precise directional control from a trapezoidal full-range enclosure. It is an ideal choice for powerful main systems, side-fills or as a high-quality point source element within larger SRX900 configurations.

The system delivers exceptional power relative to its weight thanks to the innovative acoustic design with dual low-frequency woofers. This allows it to deliver more power than traditional 15" three-way systems in a significantly more compact enclosure. Multiple M10 QuickLink™ suspension points enable fast and secure integration with various accessories for both touring and fixed installations.

Integrated DSP and amplification provide a true plug-and-play experience, ensuring consistent, optimised performance anywhere in the world. A complete software bundle offers extensive control and monitoring capabilities for Windows, macOS and iPadOS.

Features

• Includes two 12-inch LF woofers, a 6.5-inch mid-range horn driver and a 1.5-inch annular diaphragm compression driver
• The symmetrically placed dual LF section provides twice the headroom in the low-frequency range compared to traditional single-woofer designs
• The dipole configuration provides improved vertical directional control
• The mid-range horn driver ensures the LF drivers operate within their most efficient and controlled bandwidth
• Dual 90° × 60° Progressive Transition™ waveguides provide smooth and predictable coverage
• Four large flared ports extend the low-frequency response down to 50 Hz
• An 80 Hz high-pass filter is available for use with SRX900 subwoofers
• The tonal and phase response have been carefully optimised for the SRX900 line sources
• Integrated amplification provides plug-and-play functionality

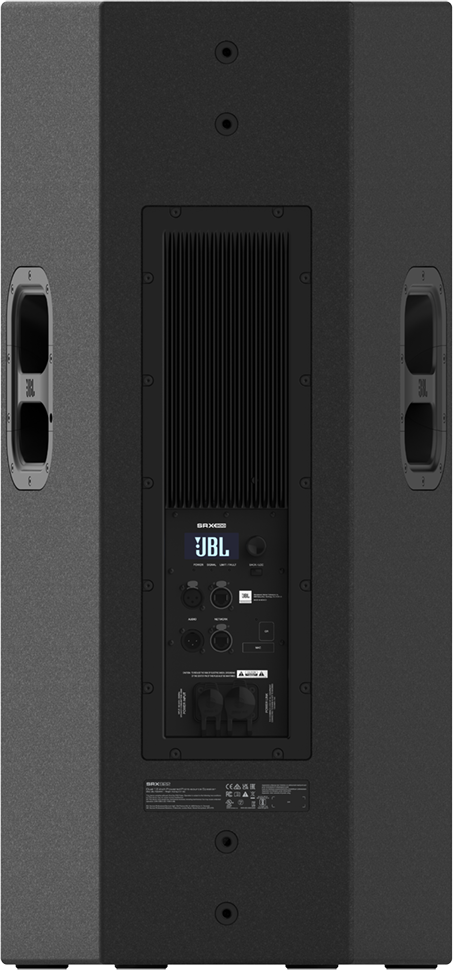

• The rear-panel LCD display enables quick configuration
• The DSP includes 24 adjustable filters, a 2000 ms delay and other essential loudspeaker management tools
• Eight M10 Quick-Link™ attachment points for suspension using standard M10 eye bolts
• Made from high-quality, weather-resistant Baltic birch plywood for outstanding durability
