Description

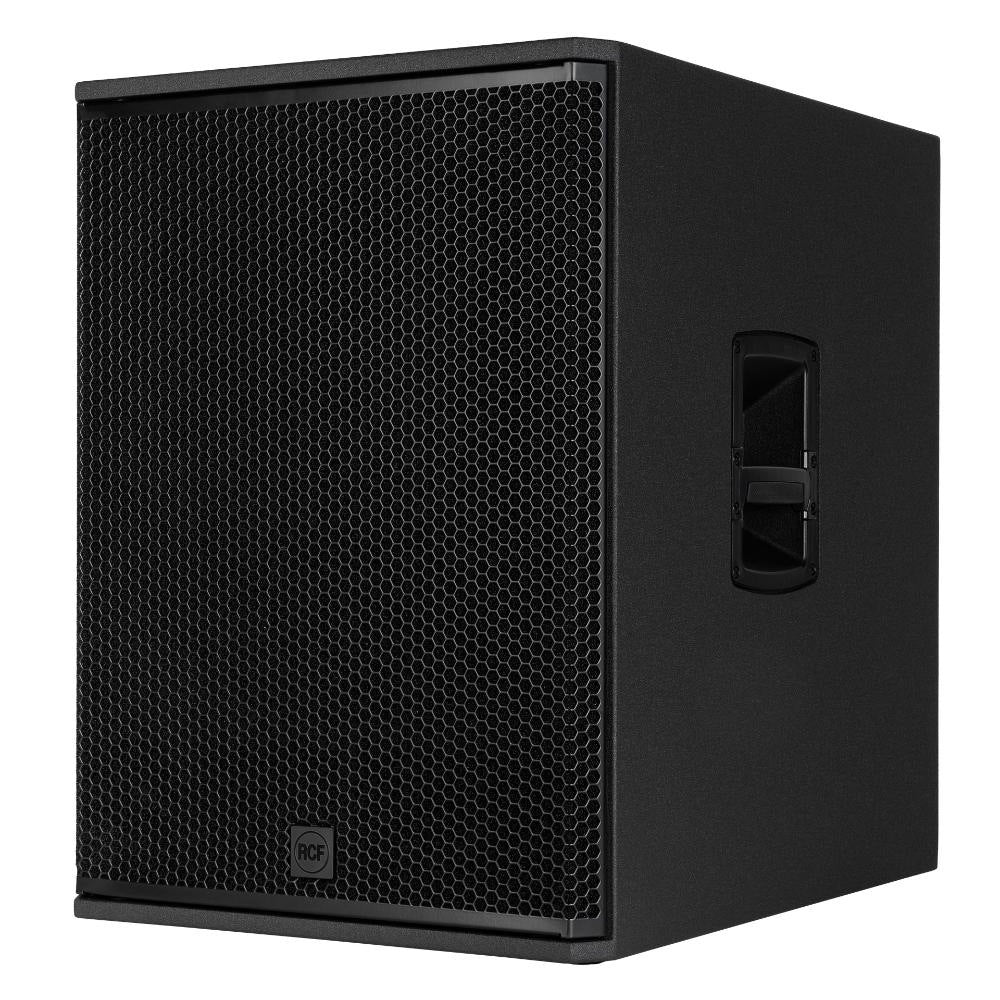

SUB 18-AX RCF Active Subwoofer (Black)
SUB 18-AX RCF Active Subwoofer (Black)
The SUB 18-AX is a portable 18" high-power active subwoofer for live sound applications with full-featured processing, a color touch screen and remote control via Bluetooth®. The combination of a latest-generation transducer with a powerful Class-D amplifier delivers sound pressure levels up to 135 dB with exceptional clarity and headroom. SUB AX subwoofers are specifically designed for small to medium-sized venues and ideal for portable applications. SUB 18-AX is the ideal complement for 10", 12" or 15" woofer-size speakers; it centralizes speaker management in the subwoofer and offers dual crossovers, 8-band EQs, routing, delays, cardioid configurations and callable crossover presets. The all-wood cabinet with polyurea coating features a sealed Powercon True1 Top connector.
Features
- 2200 Watt Class-D Amplifier
- 135 dB MAX SPL

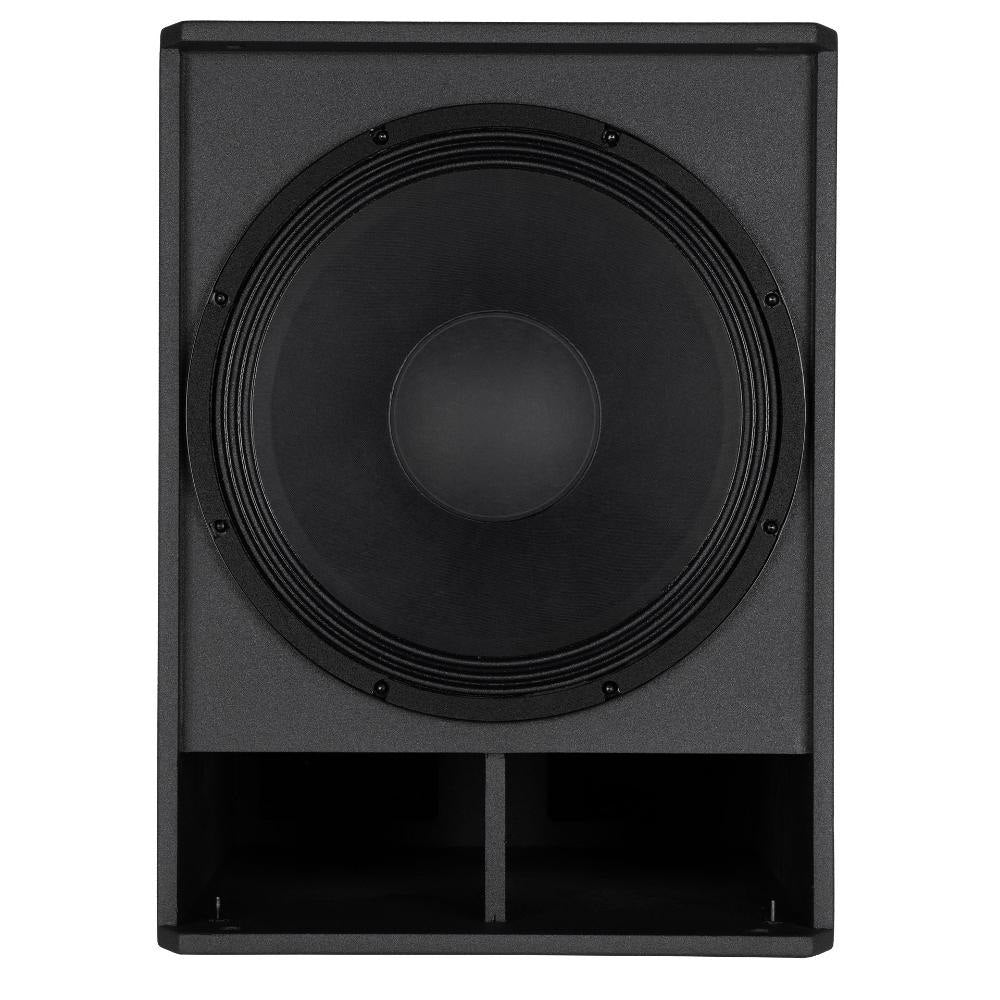

- 18” Woofer, bass reflex housing
- Digital Crossover w/ Presets
- Multi-ply hardwood polyurea-coated
- LiveRemote App
- Dual XLR/TRS combo Input + Link, Dual XLR Xover Out
- Bass Motion Control excursion management
- Powercon True1 Top Sealed AC Connector
- Pole mount M20
Brief specifications
| Housing | |
|---|---|
| Dimensions | Hoogte: 693mm | Breedte: 505mm | Diepte: 685mm | Gewicht: 37.6kg |
| Stand | |
|---|---|
| Stand adapter (top hat) | M20 Pole Mount |
| Sound | |
|---|---|
| Frequency response | 35 Hz ÷ 120 Hz |
| LF driver | 1 x 18'', 4.0'' v.c |
| Power | |
|---|---|
| Peak power | 2200W |
| Audio I/O | |
|---|---|
| Audio inputs | Combo XLR/Jack |
| Audio outputs | 2x XLR |
