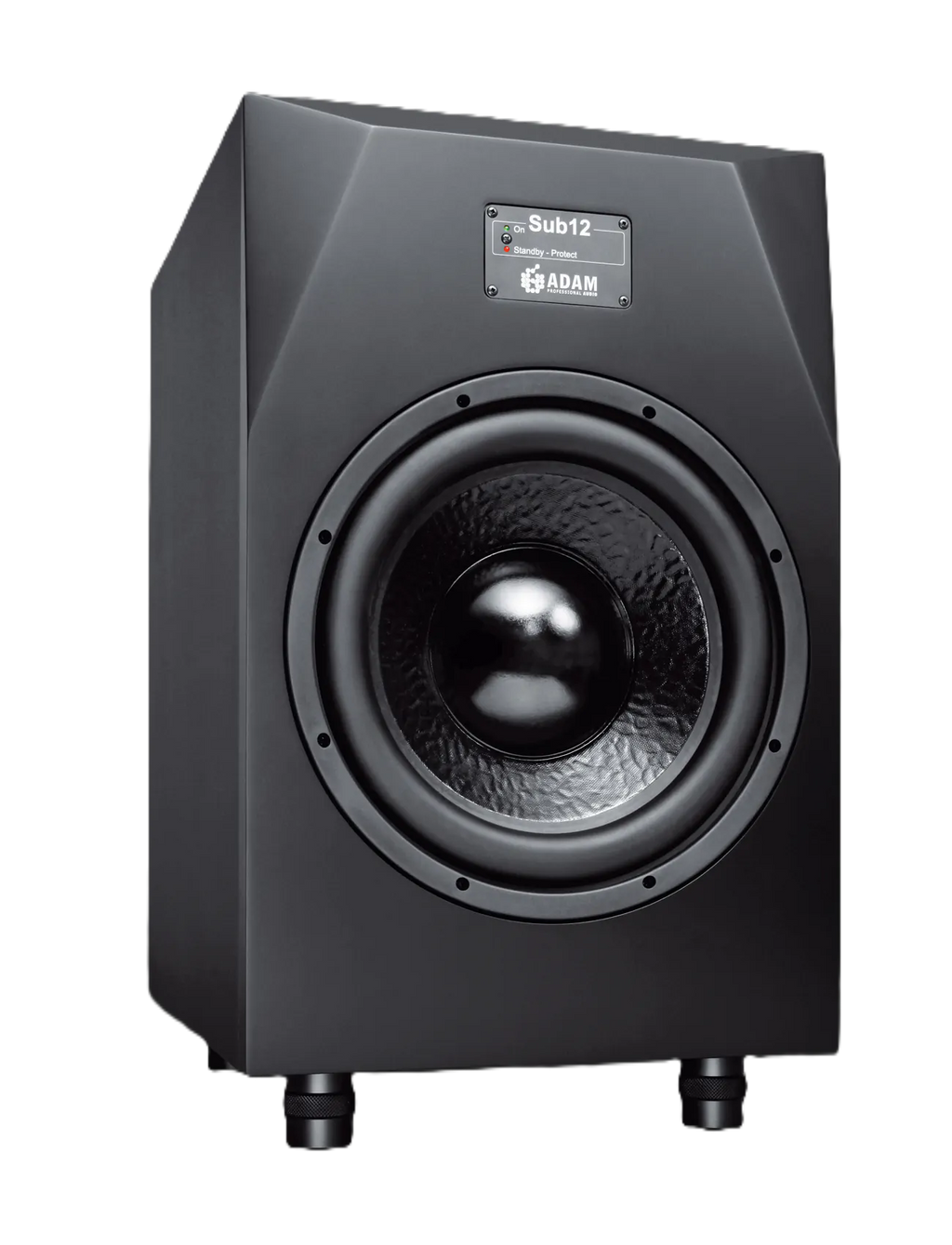

SUB12 Adam Audio Active Subwoofer
The Sub12 is a powerful subwoofer designed to extend the low-frequency range of any near- or midfield monitor system down to 22 Hz.
A robust, specially designed woofer with extended cone excursion and a heavy-duty voice coil is optimised for accurate reproduction from a bass reflex enclosure. The downward-firing bass reflex port prevents disturbing port noise thanks to its generous dimensions and shape. The PWM amplifier achieves an efficiency of over 90% and can handle critical passages for extended periods without overheating. An additional output allows you to daisy-chain as many subwoofers as needed.
The Sub12 subwoofer offers a precise combination of a low cutoff frequency (-3 dB at 22 Hz) and a high undistorted sound pressure level (115 dB SPL at 1 m).
Brief specifications
| Behuizing | |
|---|---|
| Gewicht | 26 kg |
| Afmetingen | 600 x 360 x 450 mm |
| Audio Inputs | |
|---|---|
| Connectoren | XLR / RCA |
| Impedantie | 10 kOhm |
| Versterking | |
|---|---|
| Type | PWM |
| Vermogen RMS | 200 W |
| Vermogen Music | 300 W |
| Acoustics | |
|---|---|
| Frequentie Respons | 22 Hz - 150 Hz |
| THD | > 60 Hz: <1 % |
| Max. Peak SPL | 115 dB (1m) |
| Crossover Frequentie | 50 - 150 Hz |
| Driver | |
|---|---|
| Diameter | 12" |
| Voice Coil Diameter | 2" (50 mm) |
| Materiaal Cone | Papier |
