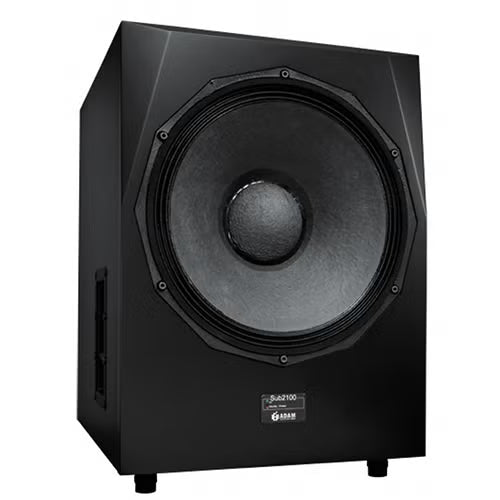

SUB2100 Adam Active Subwoofer
ADAM Audio has developed the unique Sub2100 subwoofer for the specific requirements of large control rooms and studios. The Sub2100 combines an enormous 21.5″ woofer with an amplifier delivering a continuous output of 1000 W, housed in a bass reflex enclosure tuned to reproduce frequencies down to 18 Hz. Thanks to the enormous power and extremely high efficiency (99 dB/W/m), this system can ...
Delivery
S2Store Genk (BE)
Pros and Cons
Description
SUB2100 Adam Active Subwoofer
ADAM Audio has developed the unique Sub2100 subwoofer for the specific requirements of large control rooms and studios. The Sub2100 combines an enormous 21.5″ woofer with an amplifier delivering a continuous output of 1000 W, housed in a bass reflex enclosure tuned to reproduce frequencies down to 18 Hz. Thanks to the enormous power and extremely high efficiency (99 dB/W/m), this system can produce linear SPL peaks of ≥128 dB without noticeable compression.
Essential to the output of this woofer is the massive 6" voice coil. Thanks to this voice coil, the Sub2100 is capable of reaching the highest SPL levels at the lowest frequencies perceivable by the human ear. In every respect, the Sub2100 sets a new benchmark in subwoofer technology.
Brief specifications
| Behuizing | |
|---|---|
| Gewicht | 85 kg |
| Afmetingen | 850 x 600 x 705 mm |
| Audio Inputs | |
|---|---|
| Connectoren | XLR / RCA |
| Input Impedantie | 10 kOhm |
| Versterking | |
|---|---|
| Type | PWM |
| Vermogen RMS | 1000 W |
| Vermogen Music | 1200 W |
| Driver | |
|---|---|
| Diameter | 21.5" |
| Diameter Voice Coil | 6" (150 mm) |
| Materiaal Cone | Papier |
| Acoustics | |
|---|---|
| Frequentie Respons | 18 Hz - 150 Hz |
| THD | > 60 Hz: <1 % |
| Max. Peak SPL | 128 dB (1 m) |
| Crossover Frequentie | 50 - 150 Hz |
